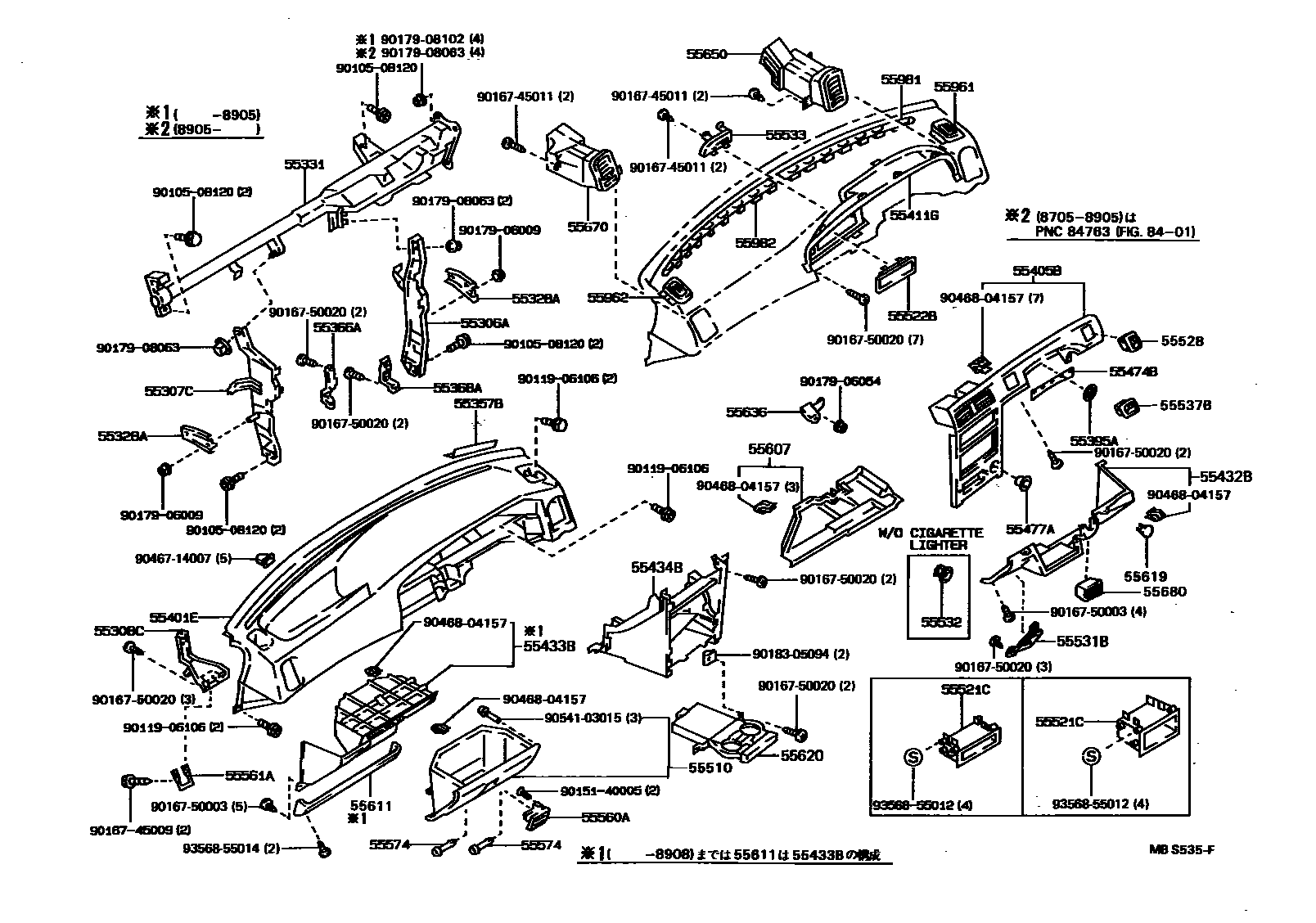

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12060 · 55306-12100 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12110 · 55307-12150 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12150 |
| 55328A | Dashboard No. 3 stay | 55328-12040 |
| 55331 | Dashboard reinforcement | 55330-12160 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-22010 |
| 55366A | Radio No. 1 mounting bracket | 55366-12010 |
| 55368A | Radio No. 2 mounting bracket | 55368-12010 |
| 55395A | Instrument panel clip fastener | 55395-12010 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-12810 · 55411-12850 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-12120 |
| 55477A | Cigarette lighter hole frame | 55477-12080 |
| 55521C | stereo system hole cover | 55521-16030 · 55521-16040 |
| 55522B | Radio tuner opening cover | 55522-12140 |
| 55533 | automatic clock hole cover | 55533-12090 |
| 55561A | Glove box lid lock | 55561-12050 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55636 | Instrument panel bottom cover bracket No. 1 | 55636-12030 |
