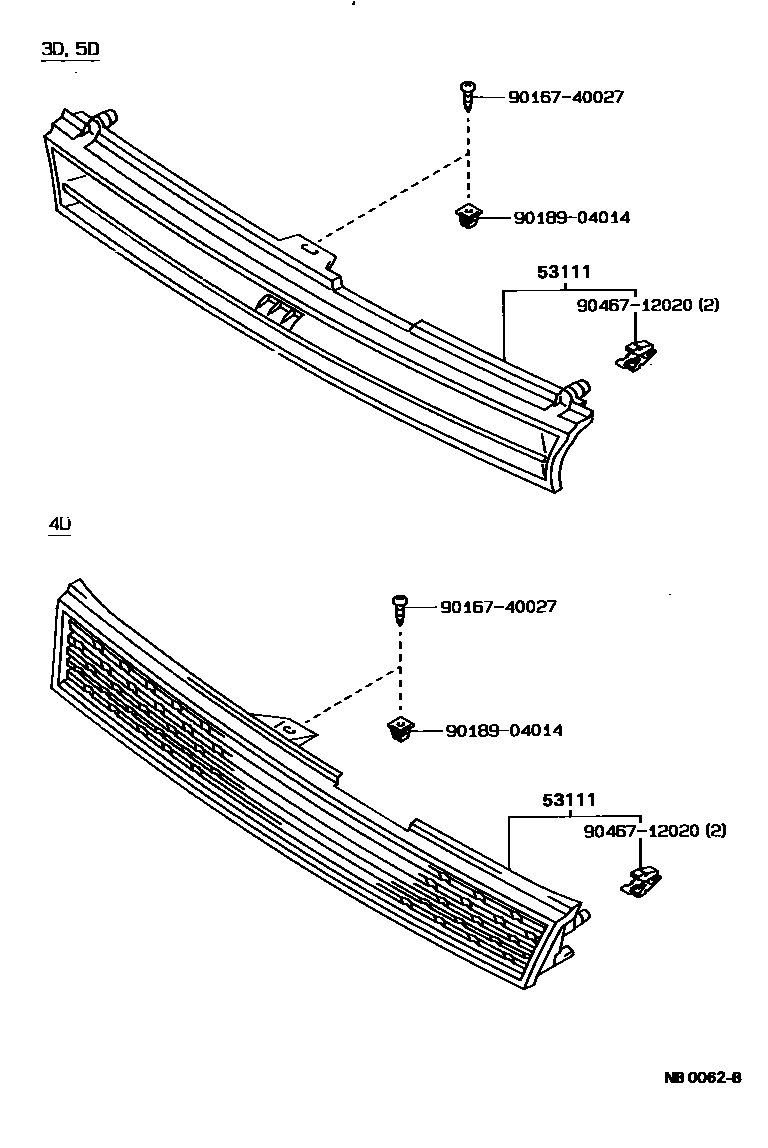

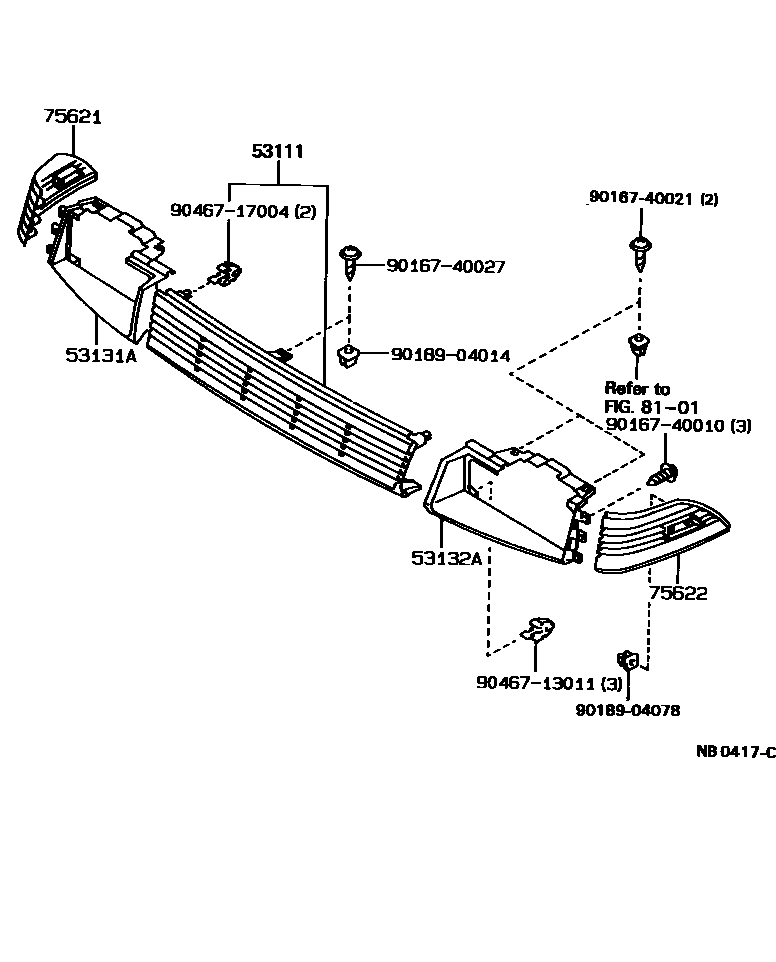

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53101-12610 · 53101-12620 · 53101-12660 · 53101-12770 · 53101-12780 · 53101-12790 · 53101-13010 · 53101-13011 |
| 53131A | Right headlight lampshade | 53131-13020 · 53131-13040 |
| 53132A | Left headlight lampshade | 53132-13020 · 53132-13040 |
| 75621 | Right front fender decorative panel | 75621-13010 · 75621-13011 |
| 75622 | Left front fender decorative panel | 75622-13010 · 75622-13011 |
