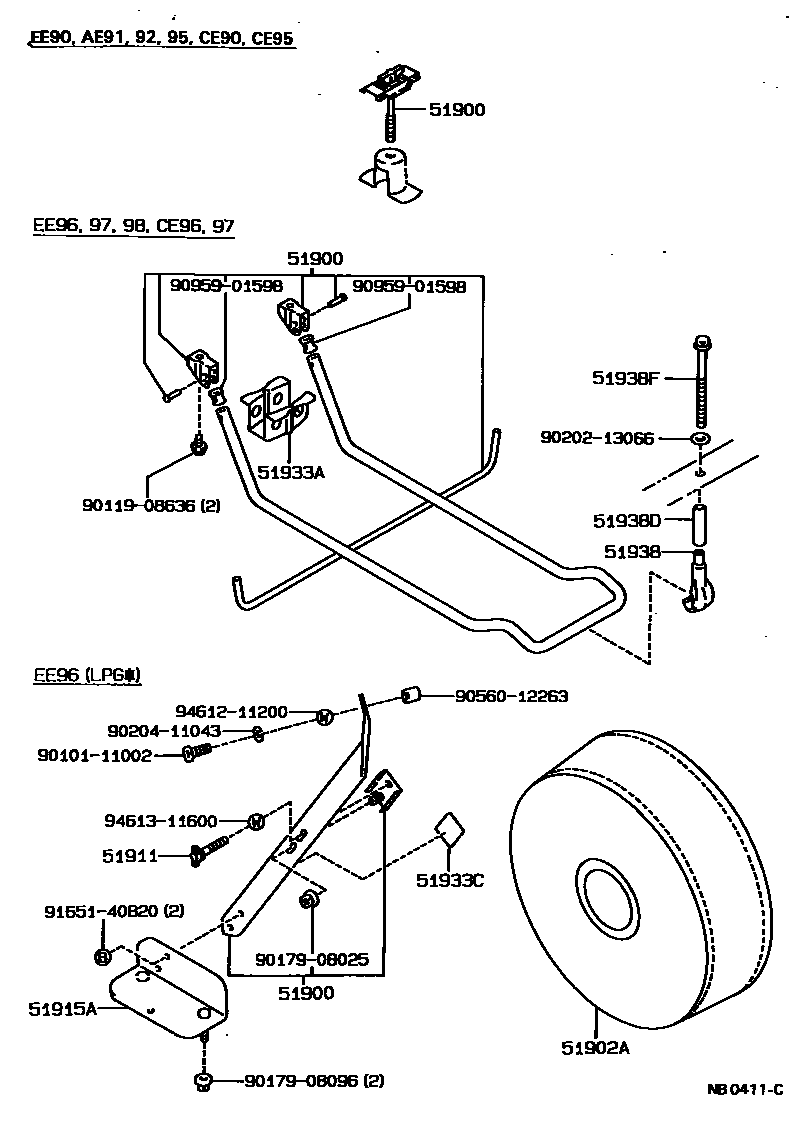

Toyota COROLLA Spare tire rack — Figure 5104
Toyota COROLLA EPC diagram 5104, Spare tire rack, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-12030 · 51900-13050 · 51900-13051 · 51900-13060 · 51900-13061 · 51900-13070 · 51900-13071 · 51900-13110 · 51900-16020 · 51903-13050 |
| 51902A | Spare tire cover sub-assembly | 51902-13010 |
| 51911 | Spare tire mounting bolt assembly | 51910-13010 |
| 51915A | Spare tire rack base | 51915-13010 |
| 51933A | No. 1 spare tire block | 51933-13020 |
| 51933C | Spare tire block | 51933-13030 |
| 51938 | Spare tire rack lock | 51938-13030 |
| 51938D | Conduit (for spare wheel carrier bolt) | 90440-17022 · 90440-17040 · 90440-17042 · 90440-17045 · 90440-17047 |
| 51938F | Bolt (for spare tire carrier lock) | 90101-11002 · 90119-12133 · 90119-12134 · 90119-12181 · 90119-12184 |
