Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

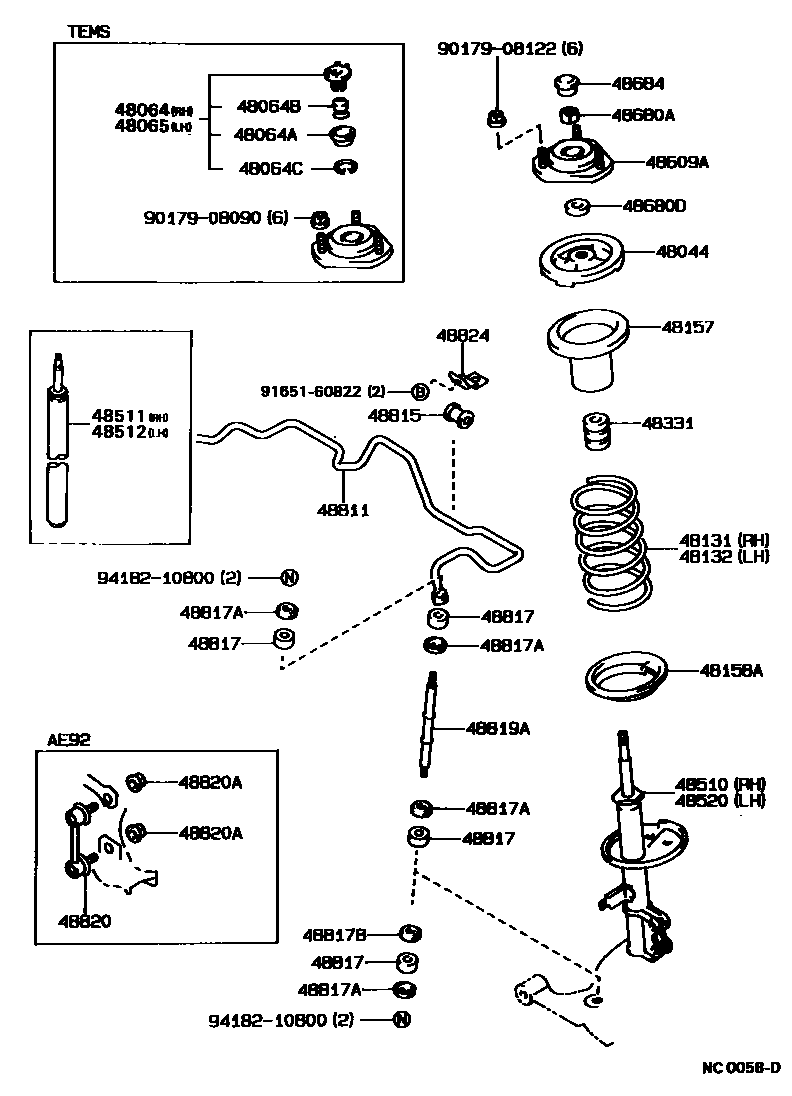

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48044 | No. 1 front spring seat sub-assembly | 48044-12090 |
| 48064 | Right front suspension support cover sub-assembly | 48064-12010 |
| 48064A | Dust seal (for front suspension mount cover) | 90304-26001 |
| 48064B | Seal (for front suspension mount cover) | 90480-13019 |
| 48064C | Retaining ring (for front suspension mount cover) | 90522-24001 |
| 48065 | Left front suspension support cover sub-assembly | 48065-12010 |
| 48131 | Right front coil spring | 48131-1E720 · 48131-1E740 · 48131-1E760 · 48131-1E780 · 48131-1E840 · 48131-1E860 · 48131-1E880 · 48131-1E890 · 48131-1H020 · 48131-1H130 · 48131-1H170 · 48131-1H180 · 48131-1H210 · 48131-1H230 · 48131-1H240 · 48131-1H260 · 48131-1H370 · 48131-1H440 · 48131-1H460 · 48131-1H510 · 48131-1H530 · 48131-1H550 · 48131-1H620 · 48131-1K230 |
| 48132 | Left front coil spring | 48131-1E720 · 48131-1E740 · 48131-1E760 · 48131-1E810 · 48131-1E840 · 48131-1E860 · 48131-1E880 · 48131-1E890 · 48131-1H020 · 48131-1H060 · 48131-1H150 · 48131-1H170 · 48131-1H180 · 48131-1H210 · 48131-1H230 · 48131-1H240 · 48131-1H260 · 48131-1H370 · 48131-1H420 · 48131-1H440 · 48131-1H460 · 48131-1H510 · 48131-1H530 · 48131-1H610 · 48131-1H620 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-12060 |
| 48158A | Front coil spring lower vibration isolation pad | 48158-12030 |
| 48331 | No. 1 front spring buffer block | 48331-12100 · 48331-12120 · 48331-12130 · 48331-20040 |
| 48510 | Right front shock absorber assembly | 48510-12520 · 48510-12550 · 48510-12560 · 48510-12610 · 48510-12611 · 48510-12660 · 48510-12661 · 48510-12720 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-12310 · 48511-12330 · 48511-12370 · 48511-12410 · 48511-12430 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-12310 · 48511-12330 · 48511-12370 · 48511-12410 · 48511-12430 |
| 48520 | Left front shock absorber assembly | 48520-12390 · 48520-12420 · 48520-12430 · 48520-12480 · 48520-12481 · 48520-12530 · 48520-12531 · 48520-12590 |
| 48609A | Front suspension support sub-assembly | 48609-12190 · 48609-12191 · 48609-12192 · 48609-12210 · 48609-12220 · 48609-12221 · 48609-12230 · 48609-12231 · 48609-12240 · 48609-12241 |
| 48680A | Nut (for front mount to front shock absorber) | 90179-14029 · 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-12490 · 48811-12510 · 48811-12530 · 48811-12580 · 48811-12620 · 48811-12660 · 48811-12670 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12140 · 48815-12160 · 48815-12170 · 48815-12180 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48819A | front stabilizer bar bolt | 48819-20030 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-20010 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10054 · 90179-10183 |
| 48824 | front stabilizer bar bracket | 48824-12090 |
