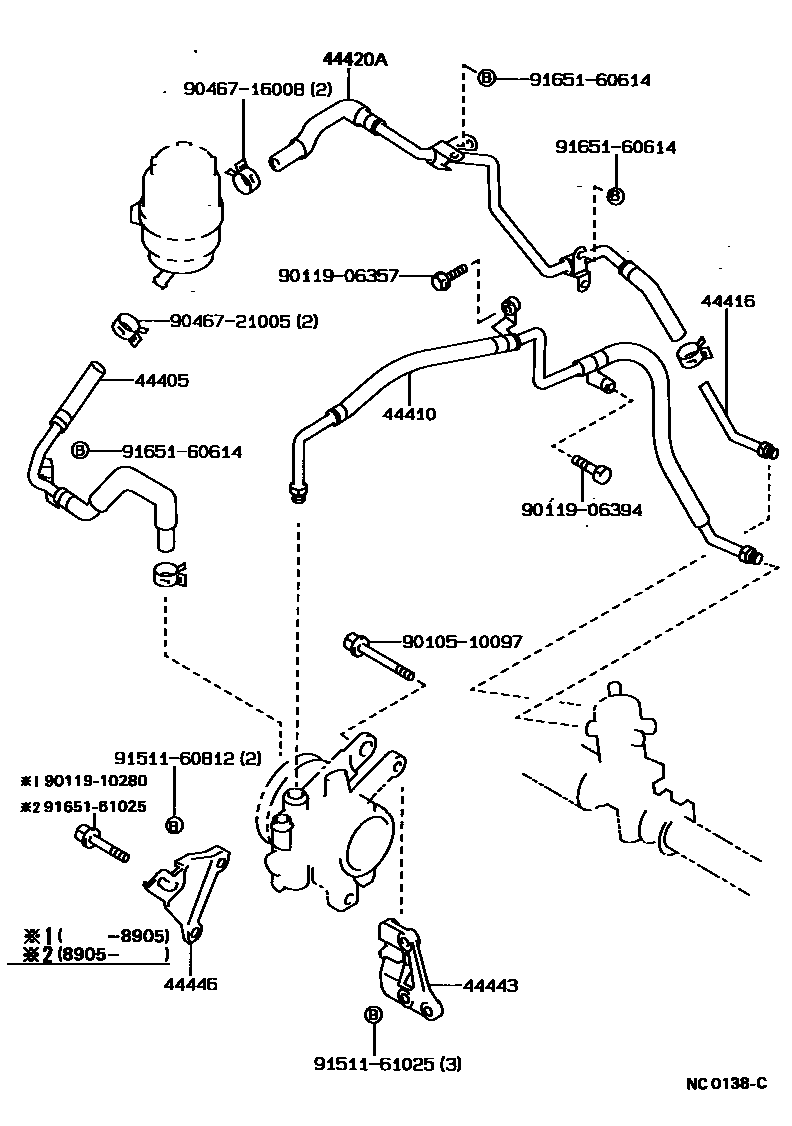

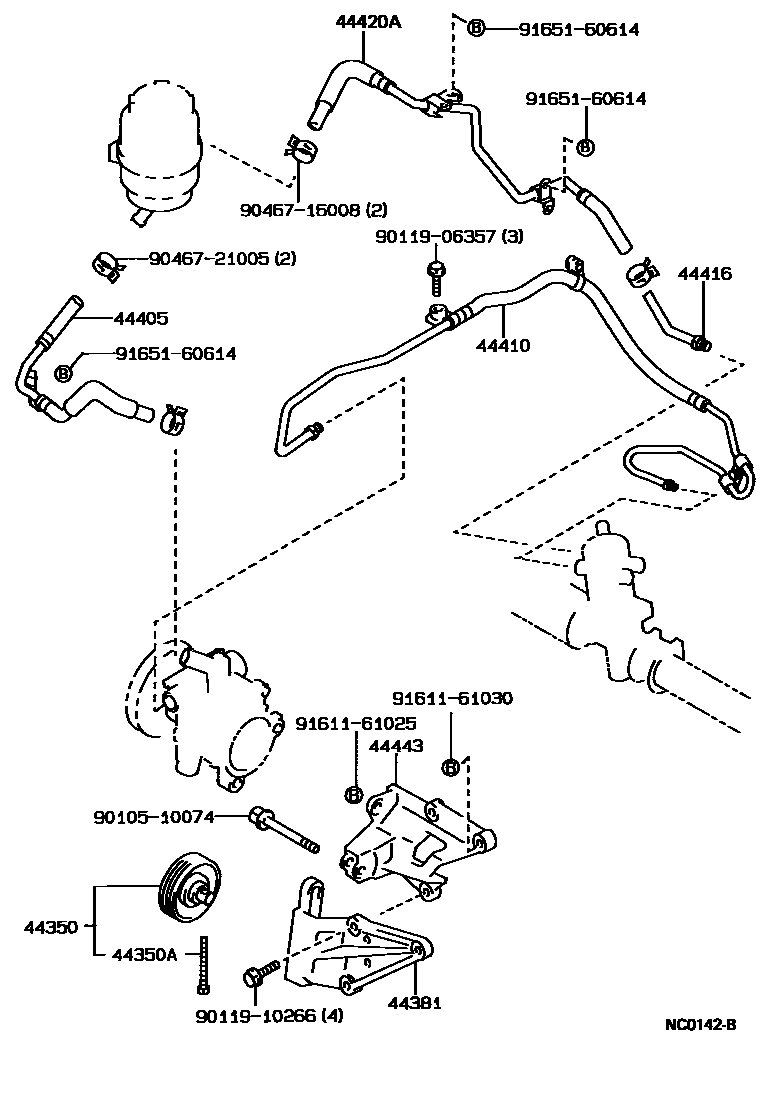

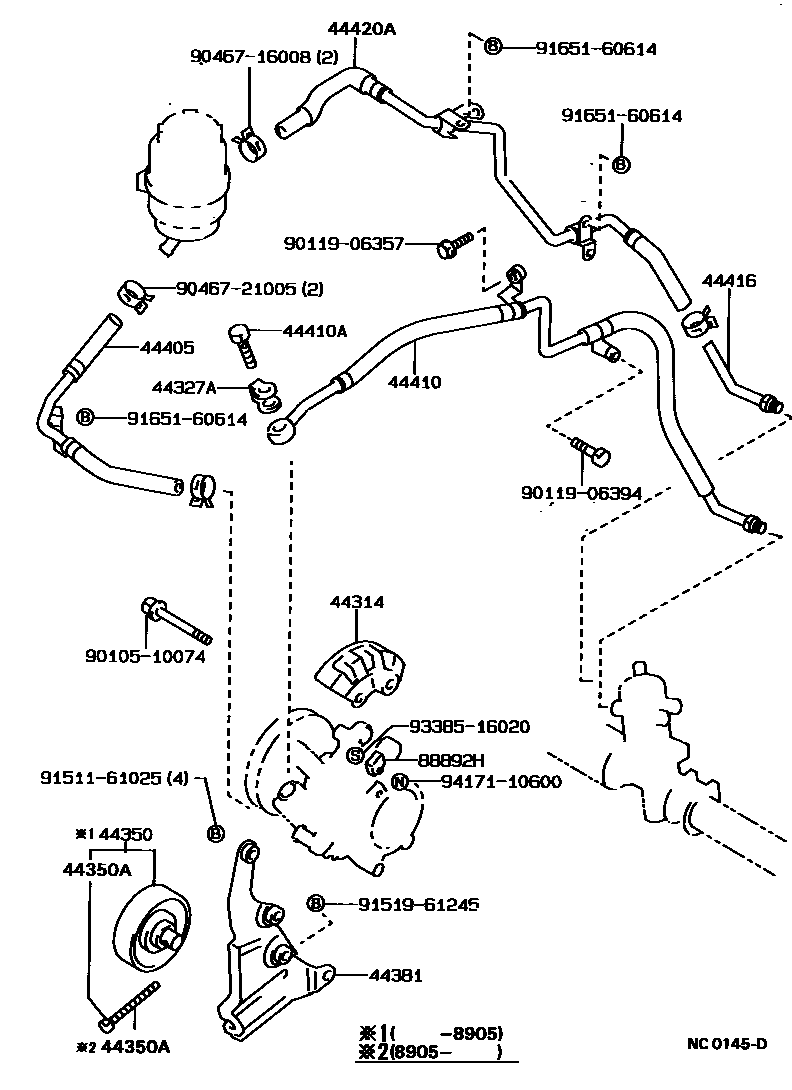

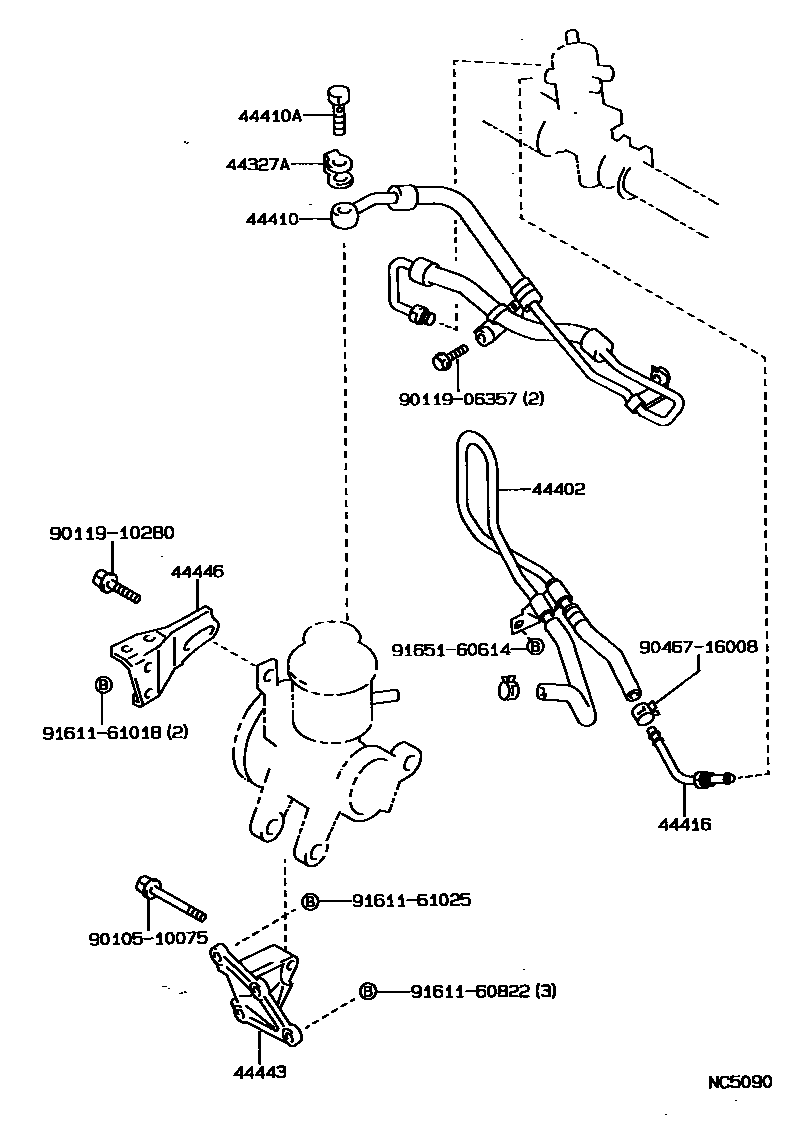

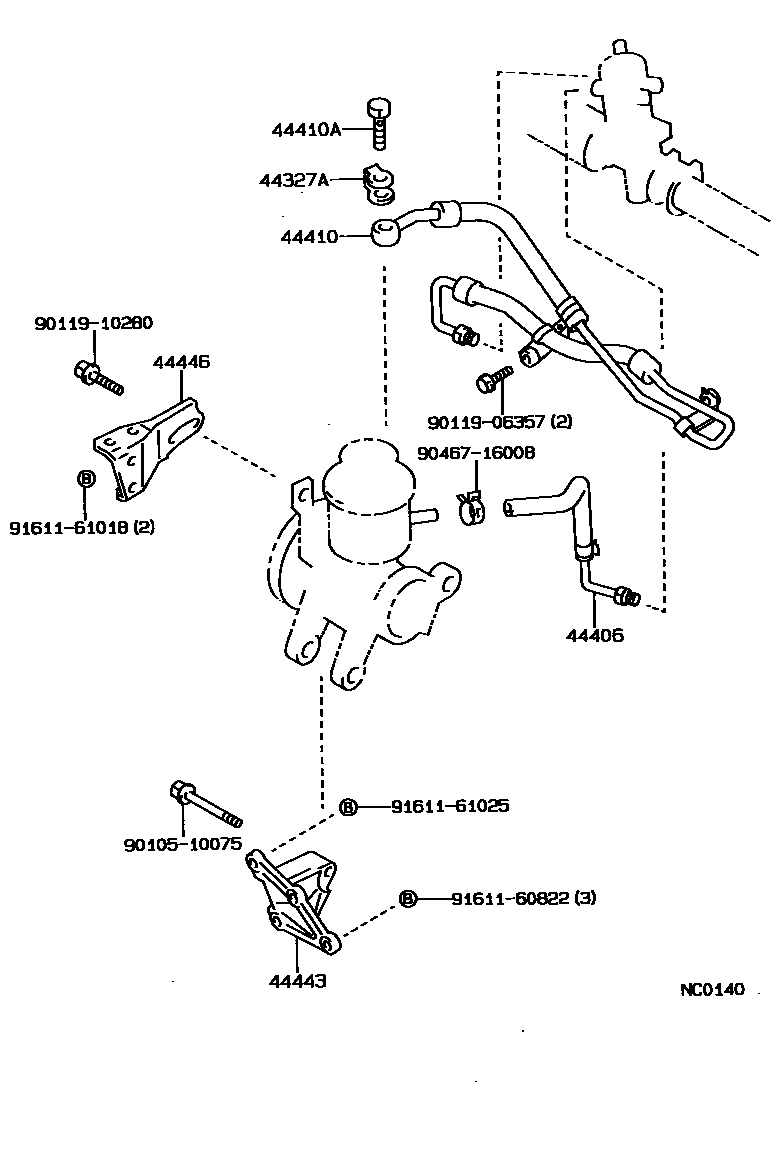

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44314 | pulley cover | 44314-12010 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44350 | Power steering idler assembly | 44350-12050 · 44350-12051 · 44350-12060 |
| 44350A | Bolt (for power steering idler pulley) | 90105-08099 · 90109-08106 |
| 44381 | Power steering idler bracket | 44381-12020 · 44381-12030 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-12090 · 44402-13010 |
| 44405 | No. 1 pipe assembly (oil storage tank to pump) | 44405-12010 · 44405-12020 · 44405-12031 · 44405-12060 |
| 44406 | Oil return pipe sub-assembly | 44406-12080 · 44406-12081 · 44406-12082 · 44406-12090 |
| 44410 | Pressure supply pipe assembly | 44410-12220 · 44410-12240 · 44410-12260 · 44410-12261 · 44410-12262 · 44410-12270 · 44410-12280 · 44410-12340 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16012 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-12170 |
| 44420A | Oil return pipe assembly | 44420-12010 · 44420-12050 · 44420-12070 |
| 44443 | pump bracket | 44443-12050 · 44443-12060 · 44443-12070 · 44443-13010 |
| 44446 | Adjust the stand | 44446-12040 · 44446-12050 |
| 88892H | Air purifier board sub-assembly | 88892-12130 |
