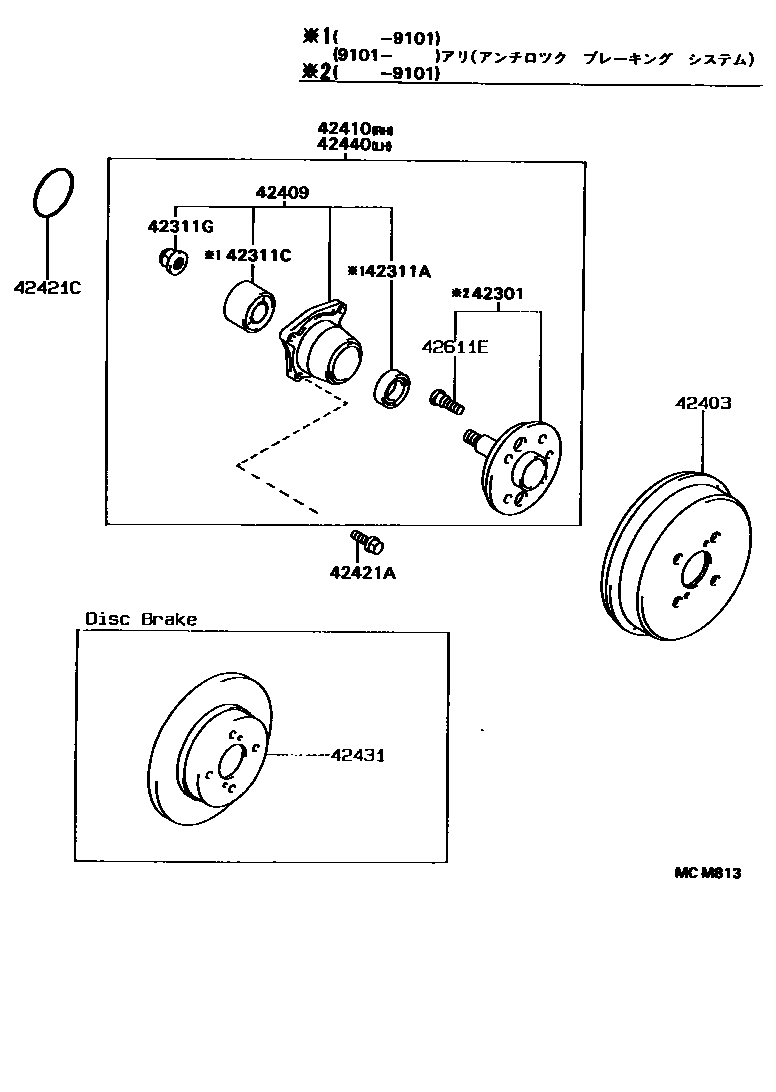

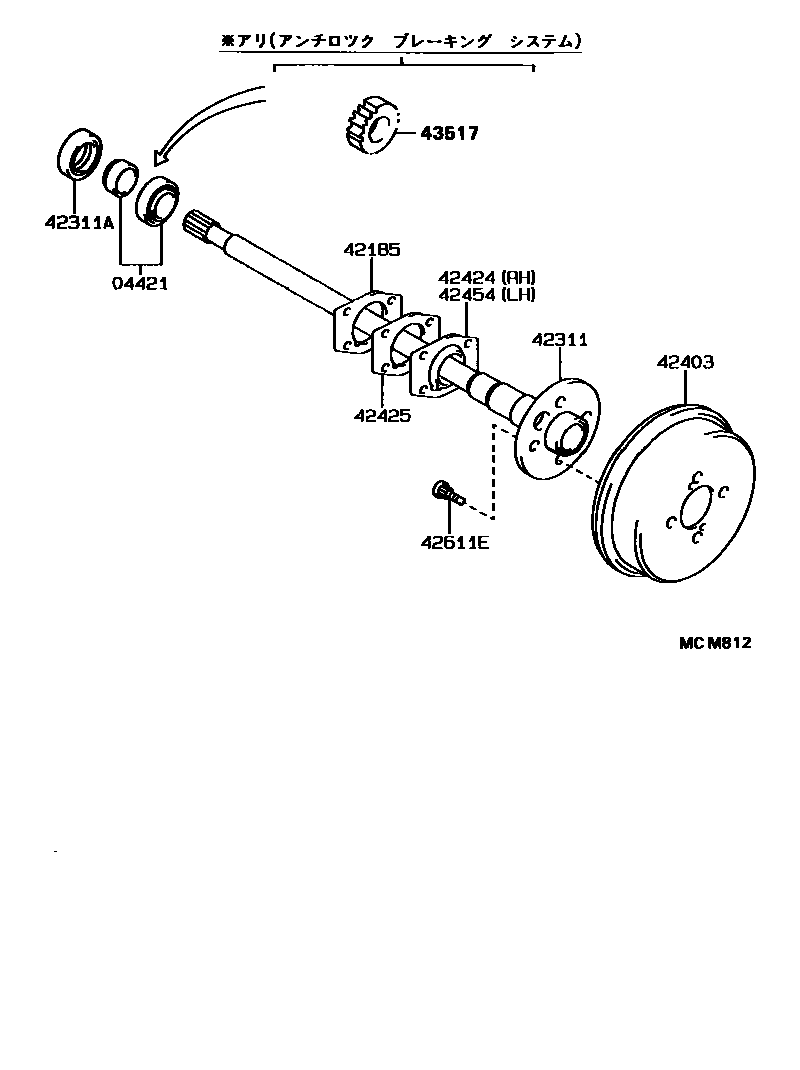

Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102
Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04421 | Rear axle half shaft bearing assembly | 04421-12010 |
| 42185 | Rear axle housing end gasket | 42185-12010 |
| 42301 | Rear axle half-shaft sub-assembly | 42301-12150 · 42301-12170 · 43502-17010 |
| 42311 | Rear axle half shaft | 42311-12200 · 42311-12201 · 42311-13021 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-41003 · 90311-41004 · 90311-42055 · 90311-48001 |
| 42311C | Bearings (for rear axle half shaft) | 90369-28006 |
| 42311G | Nut (for rear axle half shaft) | 90179-20003 · 90179-20017 |
| 42311Q | Outer bearing (for rear axle half shaft) | 90368-19037 · 90368-22001 |
| 42311R | Inner bearing (for rear axle half shaft) | 90368-31067 · 90368-35004 |
| 42403 | Rear brake drum sub-assembly | 42403-13010 · 42403-20040 · 42431-16031 · 42431-16040 · 42431-20080 |
| 42409 | Rear axle bearing sub-assembly | 42409-19015 · 42421-19015 · 42421-19025 · 42421-19035 · 42422-19015 |
| 42410 | Rear axle right hub and bearing assembly | 42410-12050 · 42410-12060 · 42410-12070 · 42410-12130 · 42410-12140 |
| 42418 | Rear hub grease cap | 42418-13010 |
| 42420A | Claw washer (for rear axle half shaft) | 90214-20005 |
| 42420B | Nut (for rear axle half shaft) | 90170-19185 |
| 42421A | Bolt (for rear axle bearing housing) | 90105-10124 · 90105-10251 |
| 42421C | O-ring (for rear axle bearing housing) | 90301-61002 |
| 42424 | Rear axle right bearing outer retainer | 42424-20010 |
| 42425 | Rear axle bearing retainer gasket | 42425-20010 |
| 42431 | rear brake disc | 42431-12090 · 42431-12120 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-12050 · 42410-12060 · 42410-12130 · 42410-12140 · 42440-12010 |
| 42454 | Rear axle left bearing outer retainer | 42454-20010 |
| 42611E | Hub bolts (for rear axle) | 90942-02047 |
| 43517 | Rear anti-skid control rotor | 43517-10020 |
| 43525A | Rear wheel adjustment lock cover | 43525-22010 |
