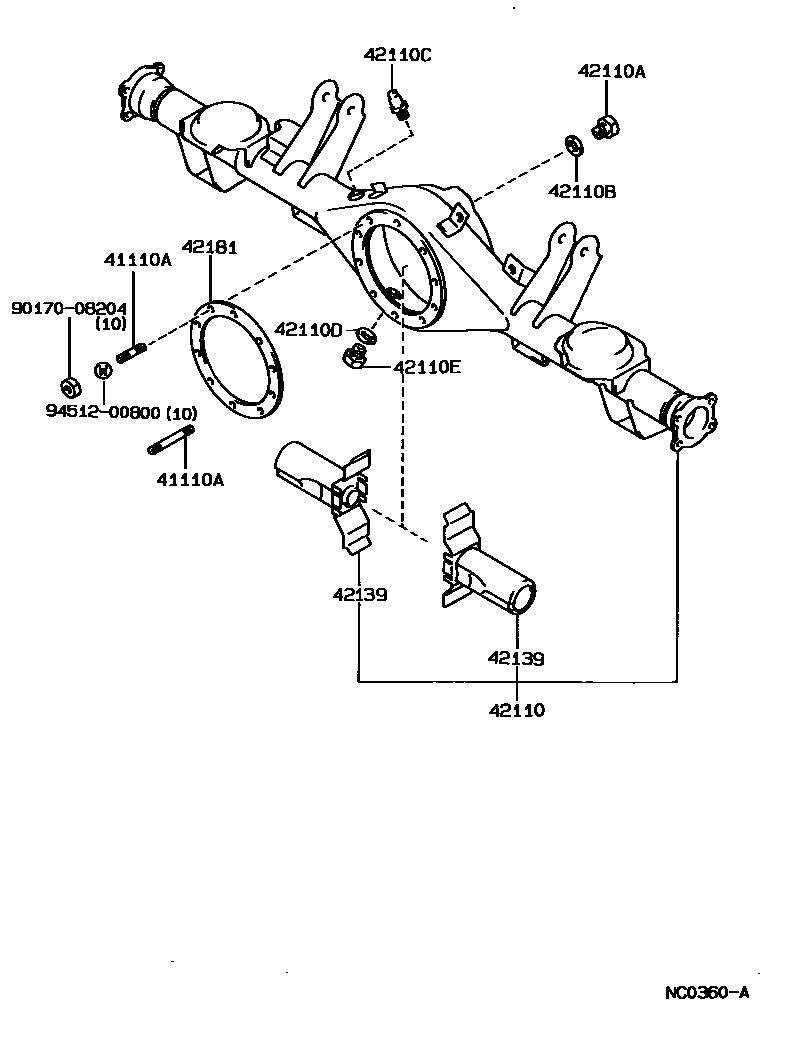

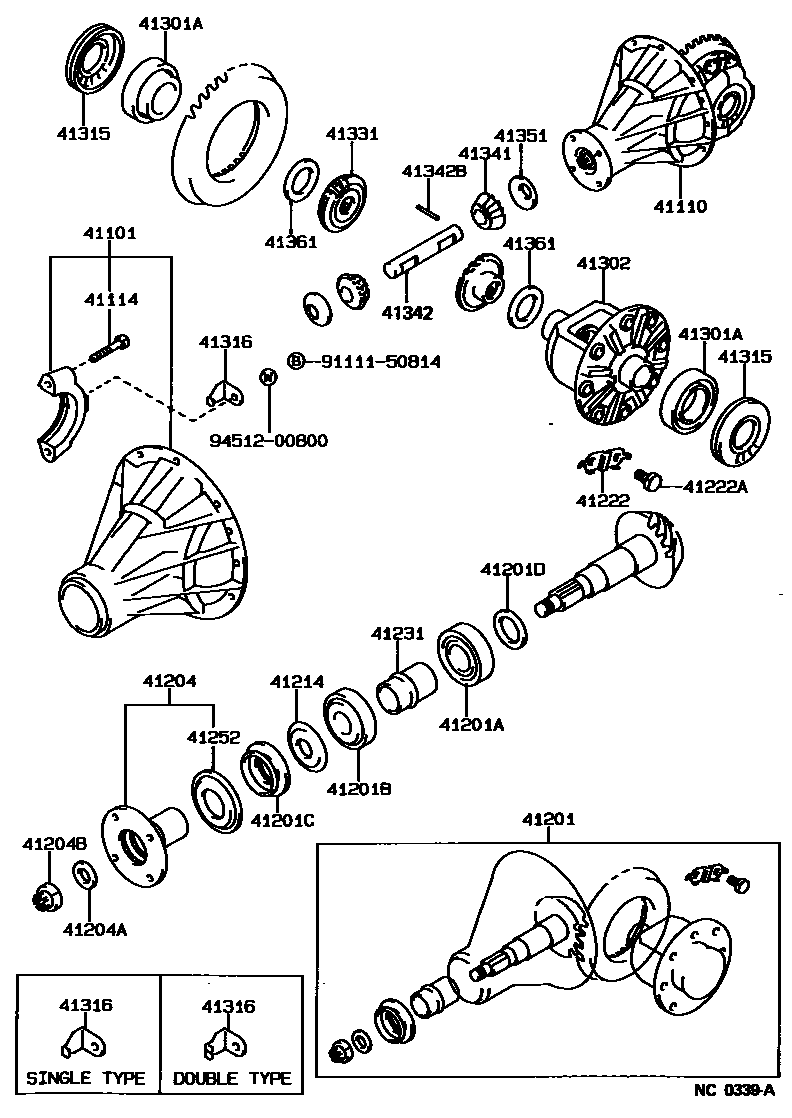

Toyota COROLLA 后桥壳和差速器 — Figure 4101
Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41101 | Rear differential bracket sub-assembly | 41101-12040 |
| 41110 | Rear differential bracket assembly | 41110-12220 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08235 · 90116-08236 |
| 41114 | Rear differential bearing cap bolts | 90105-12114 |
| 41201 | Rear differential final drive gear assembly | 41201-29835 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90368-34049 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90368-30002 |
| 41201C | Oil seal (for rear differential case) | 90311-38015 |
| 41201D | Flat washer (for rear differential drive pinion) | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35435 · 90201-35436 · 90201-35437 · 90201-35438 · 90201-35439 · 90201-35440 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-20020 |
| 41204A | Flat washer (for rear drive pinion) | 90201-18485 |
| 41204B | Nut (for rear driving pinion) | 90179-18001 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-20020 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-28010 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11353 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-22010 |
| 41252 | Dust cover (for rear differential) | 41252-22010 |
| 41301A | Bearings (for rear differential housing) | 90368-41050 |
| 41302 | Rear differential housing sub-assembly | 41311-22031 |
| 41315 | Rear differential bearing adjusting nut | 41315-22011 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-22011 · 41317-22011 |
| 41331 | rear differential side gear | 41331-22021 |
| 41341 | rear differential pinion | 41341-12030 |
| 41342 | Rear differential planetary gear shaft | 41342-22010 |
| 41342B | Direct sales (for rear differential planetary gear shaft) | 90250-04193 |
| 41351 | Rear differential planetary gear thrust washer | 41351-12030 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
| 42110 | Rear axle housing assembly | 42110-12190 · 42110-13070 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 · 90341-18049 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42139 | Rear axle housing oil baffle | 42108-14010 |
| 42181 | Rear differential case gasket | 42181-22010 |
