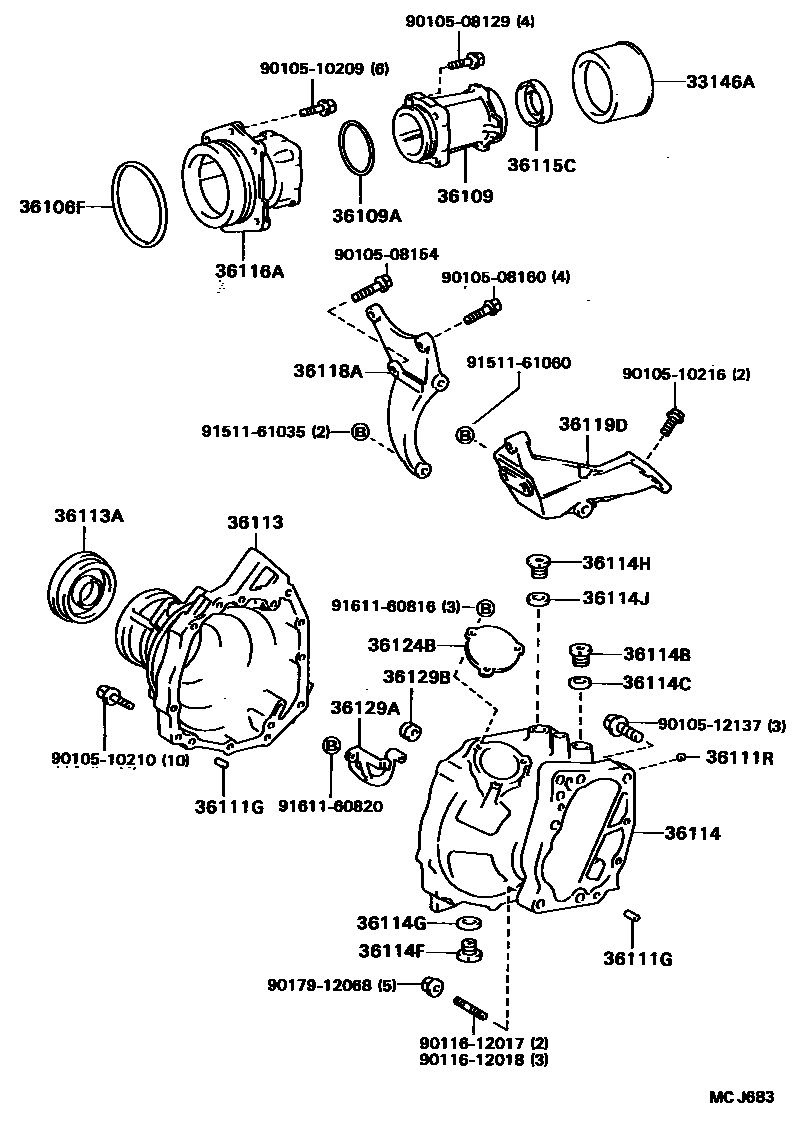

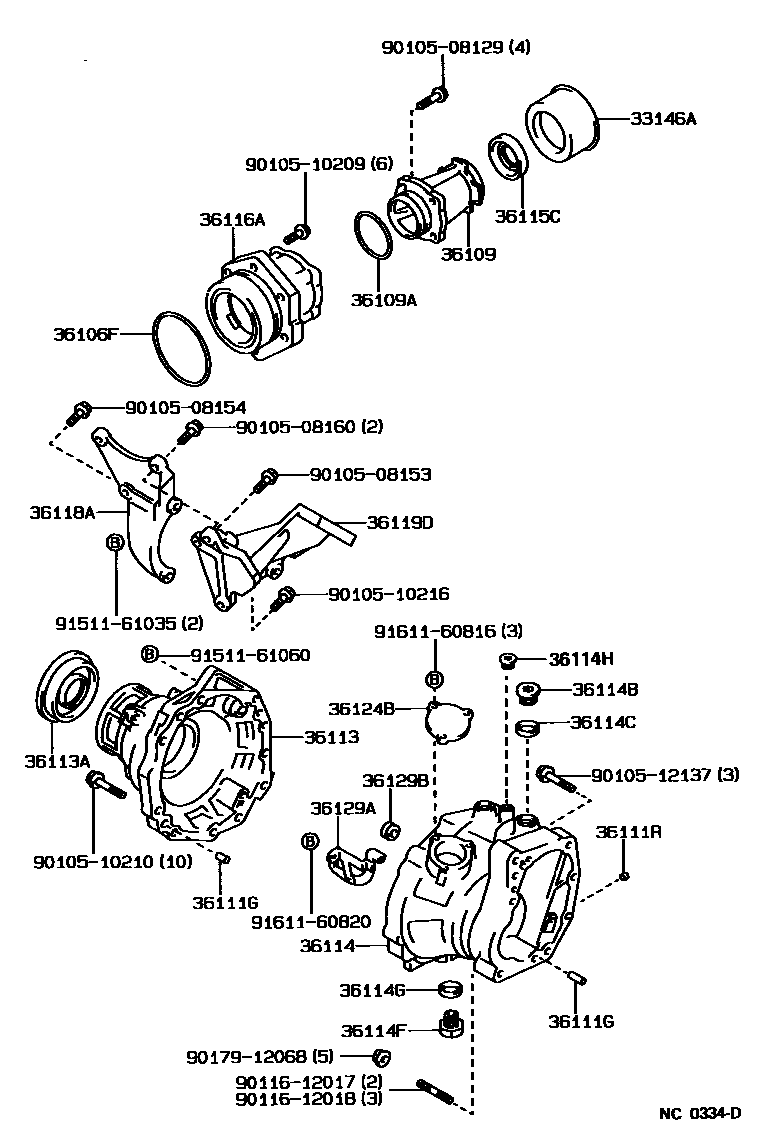

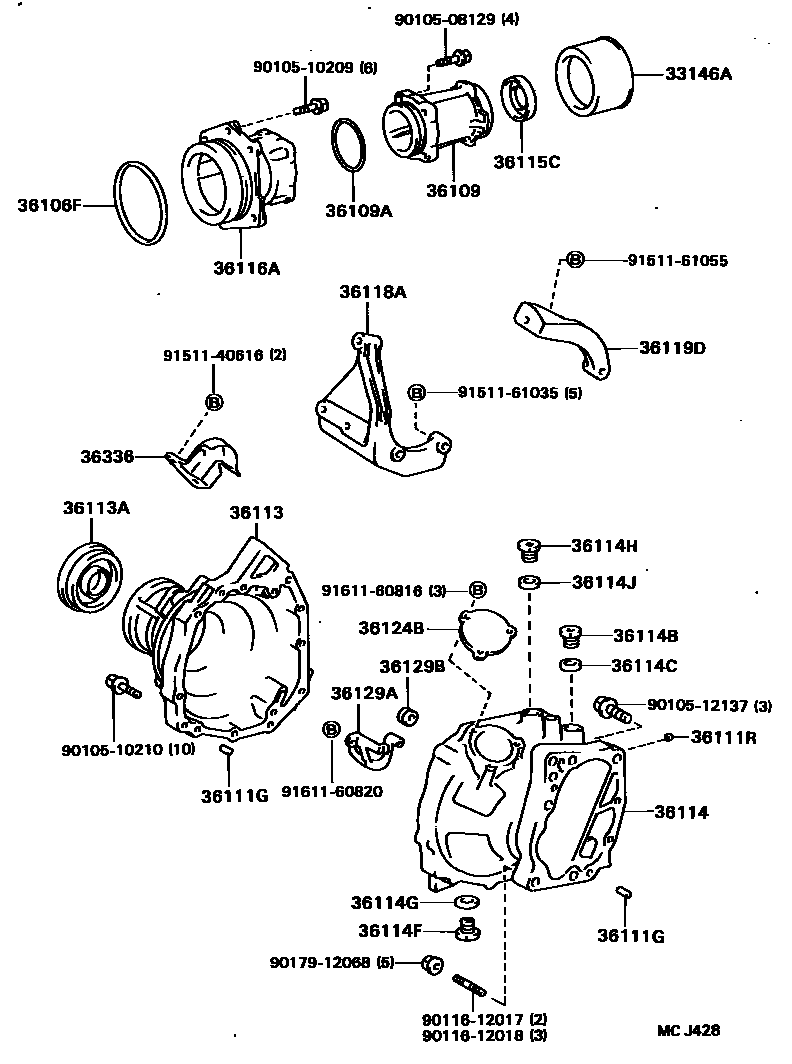

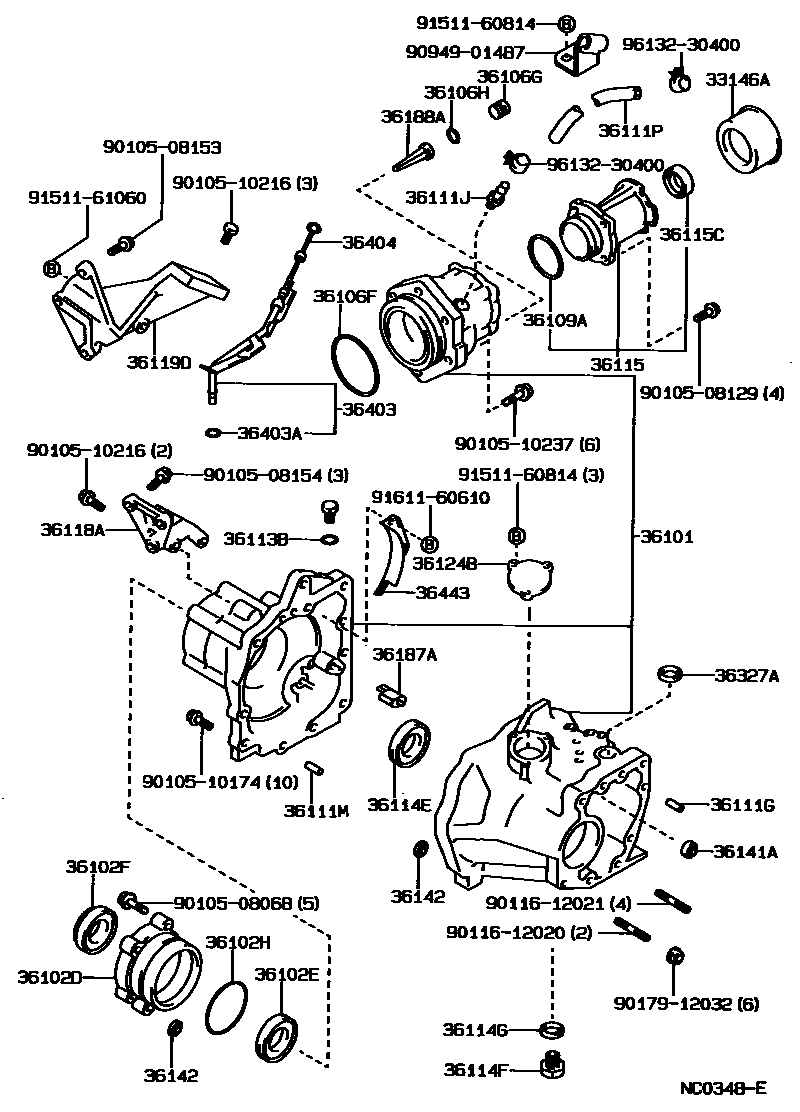

Toyota COROLLA Transfer Case & Extension Housing — Figure 3609
Toyota COROLLA EPC diagram 3609, Transfer Case & Extension Housing, with 4 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33146A | Transfer case extension housing dust cover | 33146-30010 |
| 36101 | Transfer case sub-assembly | 36101-12010 · 36101-20021 · 36101-20022 |
| 36102D | Transfer case right bearing retainer sub-assembly | 36102-12010 |
| 36102E | No. 1 oil seal (for transfer case right bearing retainer) | 90316-52001 |
| 36102F | No. 2 oil seal (for transfer case right bearing retainer) | 90310-50002 |
| 36102H | O-ring (for transfer case right bearing retainer) | 90301-85003 |
| 36106F | O-ring (for transfer case pinion bearing housing) | 90301-94001 · 90301-99049 |
| 36106G | Straight thread plug (for transfer case pinion bearing housing) | 90334-09004 |
| 36106H | O-shaped plug (for transfer case pinion bearing cover screw plug) | 90301-05002 |
| 36109 | Transfer case extension housing sub-assembly | 36109-12010 · 36109-12011 |
| 36109A | O-ring (for transfer case extension housing) | 90301-63005 |
| 36111G | Direct sales (for transfer case) | 90250-10017 · 90250-10021 · 90250-12005 |
| 36111J | No. 1 breather pipe joint (for transfer case) | 90404-51059 |
| 36111M | Slotted spring pin (for transfer case) | 90254-10003 |
| 36111P | Breather hose (for transfer case) | 90447-11023 · 90999-92003 |
| 36111R | Sealing plug (for transfer case) | 90331-08002 |
| 36113 | Right transfer case | 36113-12010 · 36113-12030 · 36113-20030 |
| 36113A | Oil seal (for right transfer case) | 90311-47003 |
| 36113B | O-ring (for transfer case plug) | 90301-10189 |
| 36114 | Left transfer case | 36114-12010 · 36114-12011 · 36114-12030 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-22001 |
| 36114C | No. 1 gasket (for transfer case) | 90430-22002 |
| 36114E | Oil seal (for left transfer case) | 90316-61001 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18006 · 90341-18021 · 90341-18057 |
| 36114G | Gasket (for transfer case drain plug) | 90430-18008 |
| 36114H | No. 2 screw plug (for transfer case) | 90341-12004 · 90341-18023 |
| 36114J | No. 2 gasket (for transfer case) | 90430-18008 |
| 36115 | Transfer case extension housing | 36105-12020 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38030 · 90311-38032 |
| 36116A | Transfer case pinion bearing cover | 36116-12010 |
| 36118A | Transfer case right side reinforcement plate | 36118-12011 · 36118-12021 · 36118-12040 · 36118-12060 |
| 36119D | Transfer case center reinforcement plate | 36119-12010 · 36119-12020 · 36119-12030 · 36119-20020 |
| 36124B | Transfer case inspection hole cover | 36124-12010 · 36124-12020 |
| 36129A | Transfer case oil pipe | 36129-20010 |
| 36129B | Buffer pad (for transfer case oil pipe) | 90540-06027 |
| 36141A | Transfer case gasket | 36141-12020 |
| 36142 | Transfer case cover gasket | 36142-12010 |
| 36187A | No. 1 transfer case oil filter | 36187-12010 |
| 36188A | No. 2 transfer case oil filter | 36188-12010 |
| 36327A | Oil seal (for transfer case shift lever shaft) | 90311-15007 |
| 36336 | Transfer case insulation pad | 36336-12010 |
| 36403 | Transfer case filler pipe sub-assembly | 36403-12020 · 36403-12021 |
| 36403A | O-ring (for transfer case filler pipe) | 90301-09173 |
| 36404 | Transfer case oil level scoring assembly | 36404-12020 · 36404-12021 |
| 36443 | Transfer case oil level gauge guide plate | 36443-12010 |
