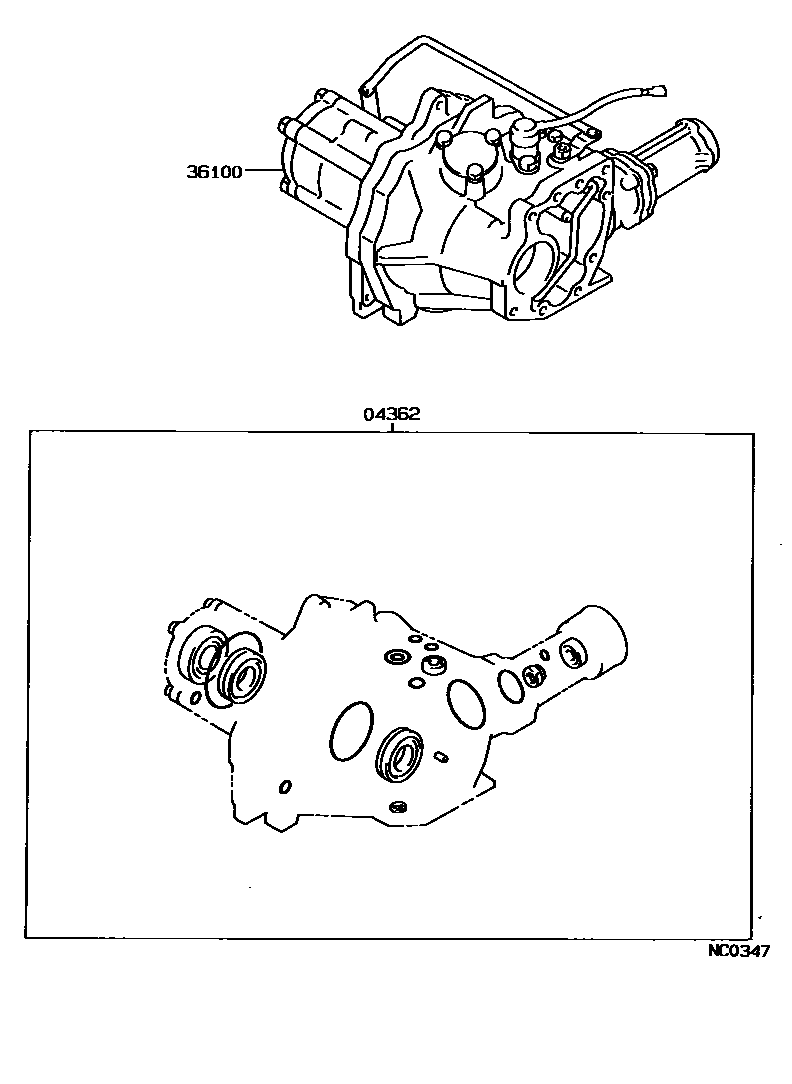

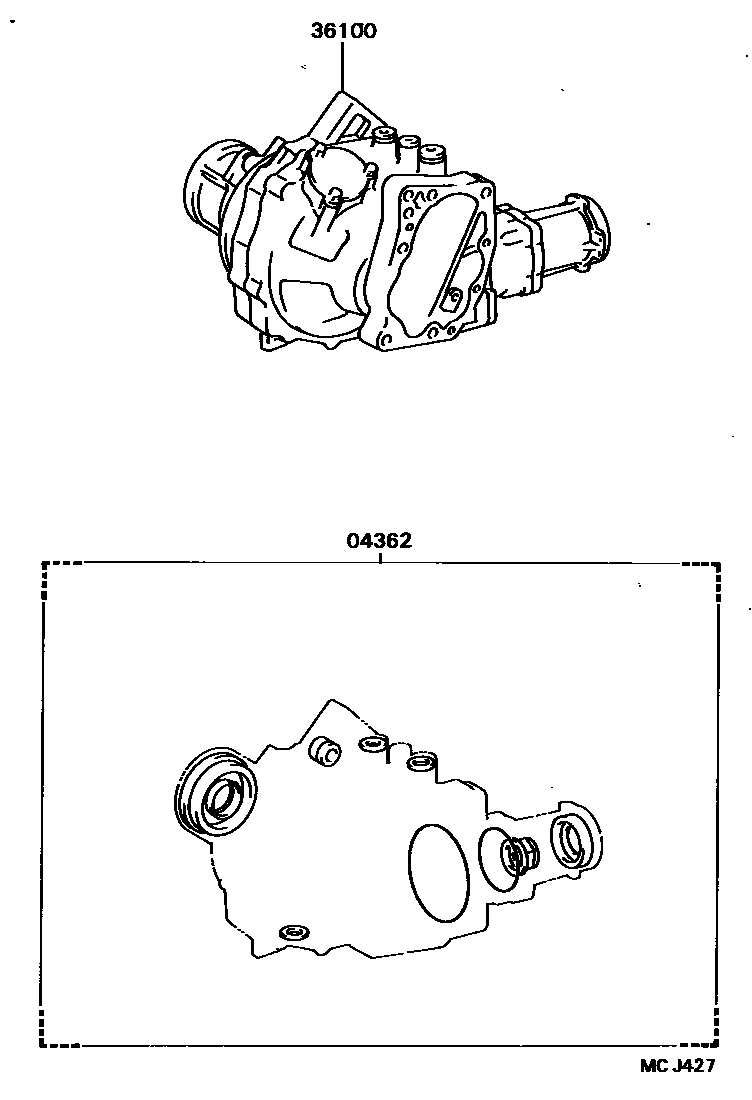

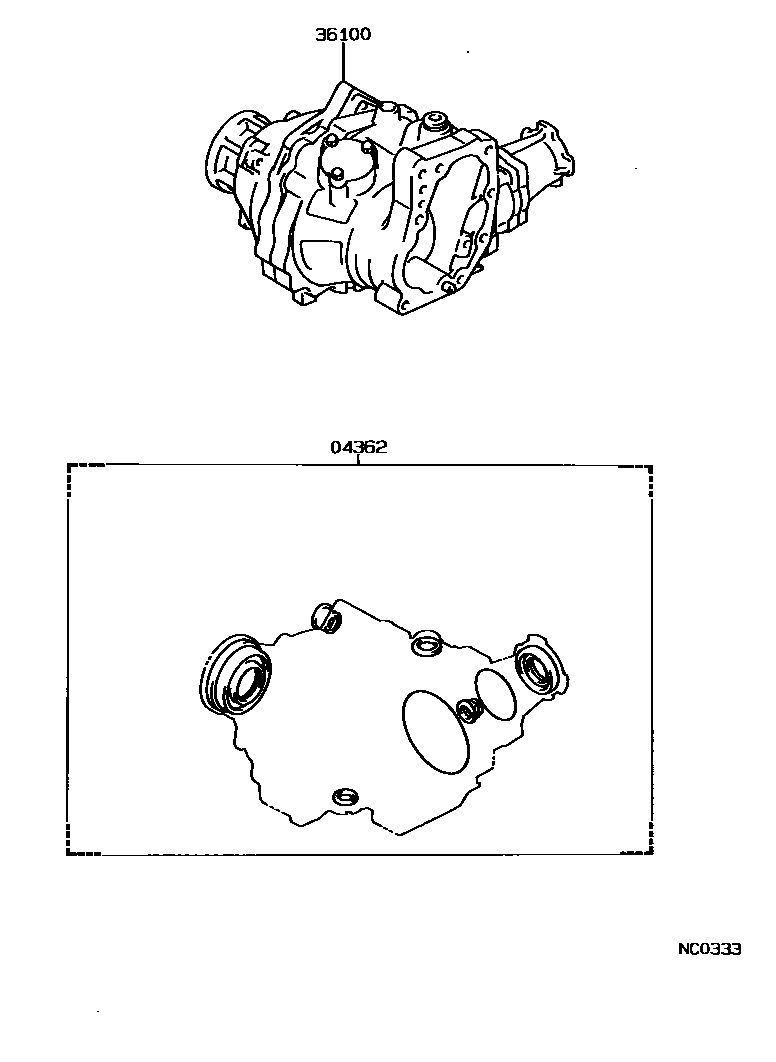

Toyota COROLLA Transfer Assembly & Gasket Kit — Figure 3608
Toyota COROLLA EPC diagram 3608, Transfer Assembly & Gasket Kit, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04362 | Transfer case overhaul gasket assembly | 04362-12010 · 04362-12020 · 04362-12030 · 04362-32020 |
| 36100 | Transfer case assembly | 36100-12010 · 36100-12020 · 36100-12021 · 36100-12040 · 36100-20031 · 36100-20060 |
