Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 14 images and 175 PNC and OE references.

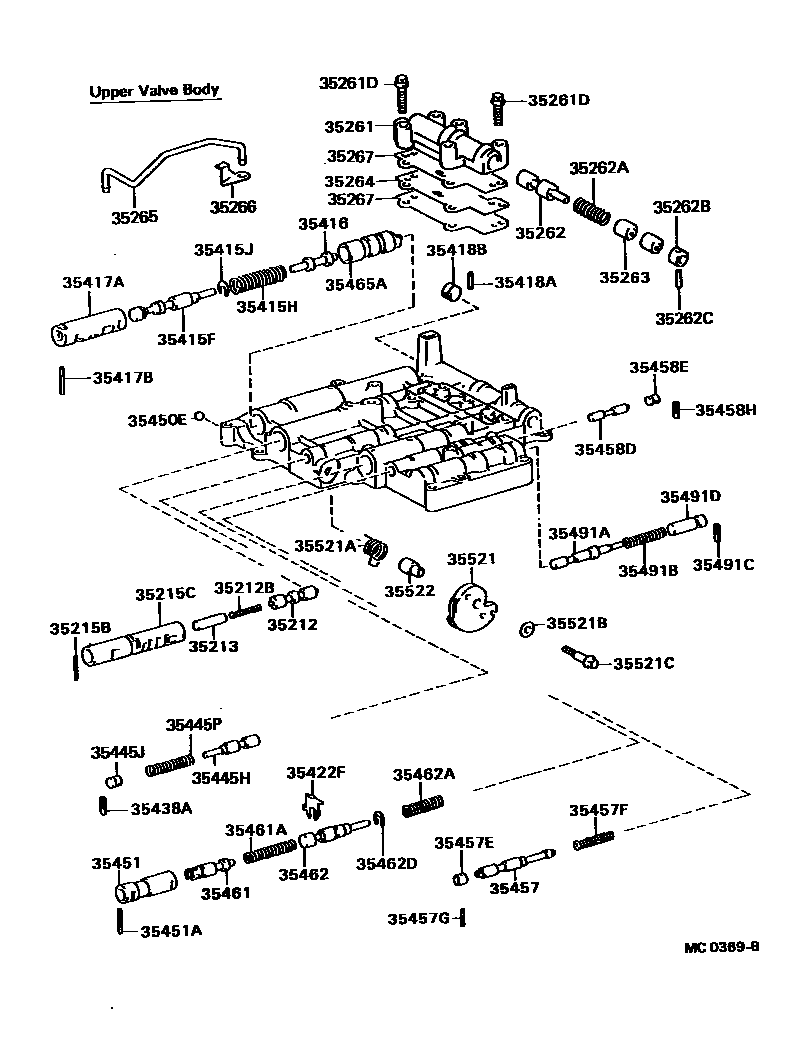

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — MC0369B
阀体和滤油网(ATM) — MC0369B (198705 – 999999)

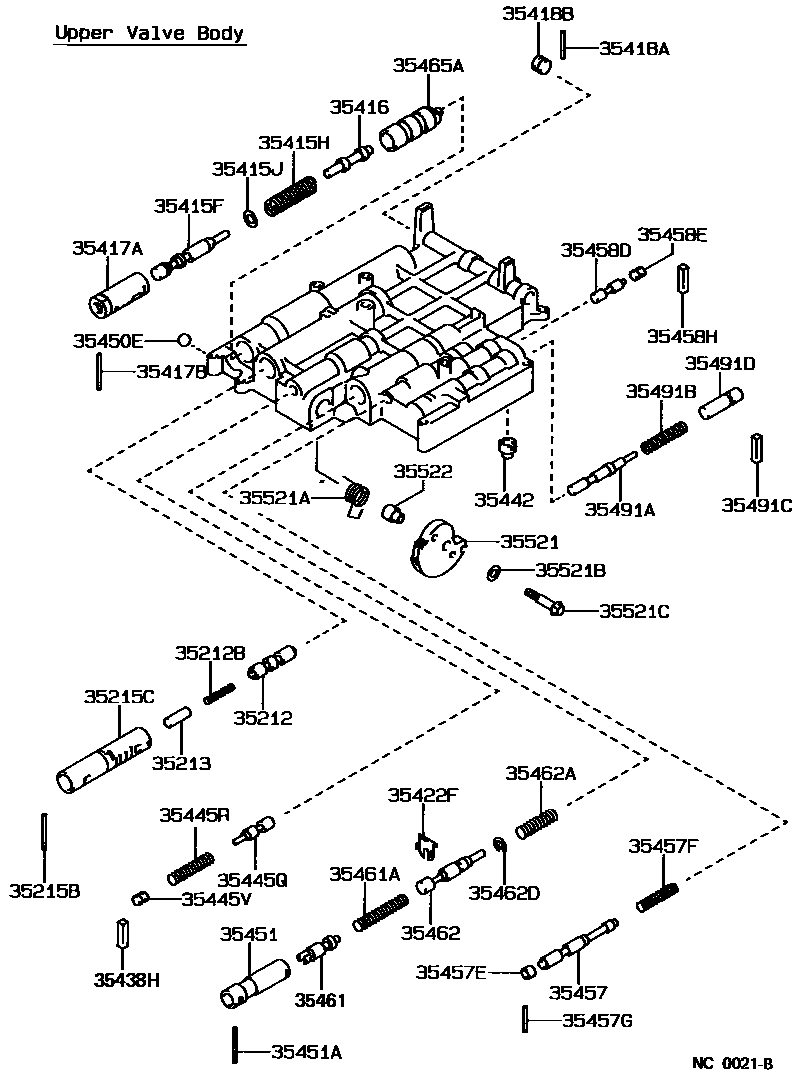

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0021B
阀体和滤油网(ATM) — NC0021B (198705 – 999999)

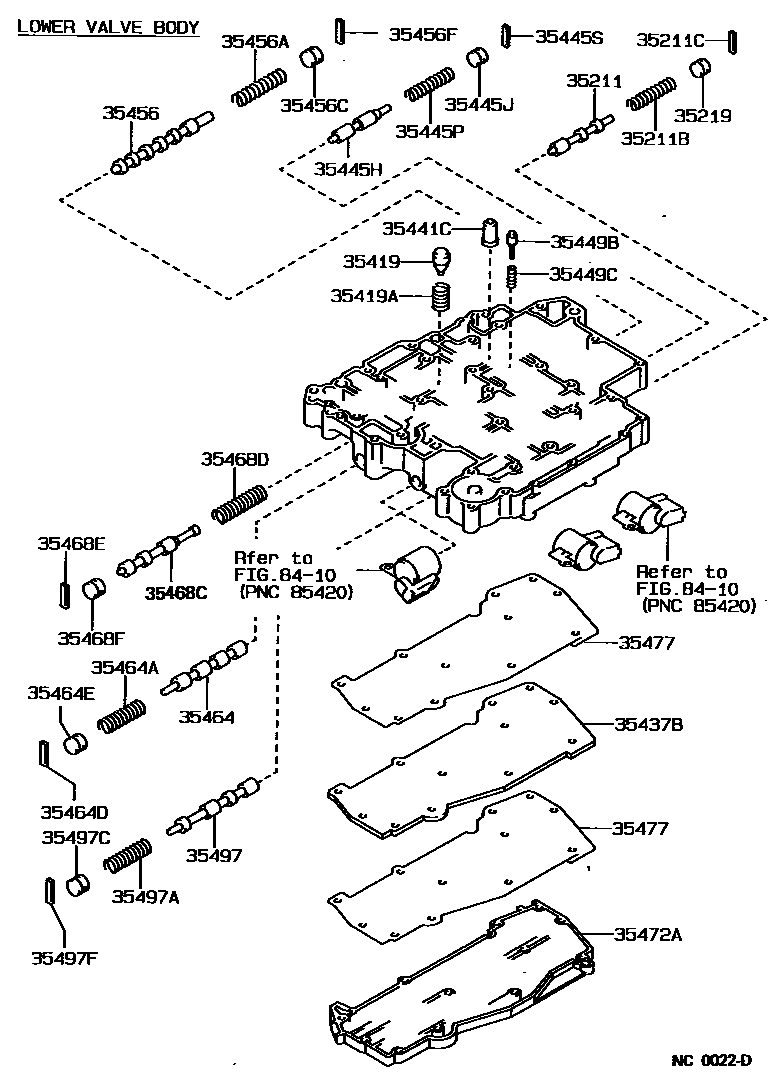

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0022D
阀体和滤油网(ATM) — NC0022D (198705 – 999999)

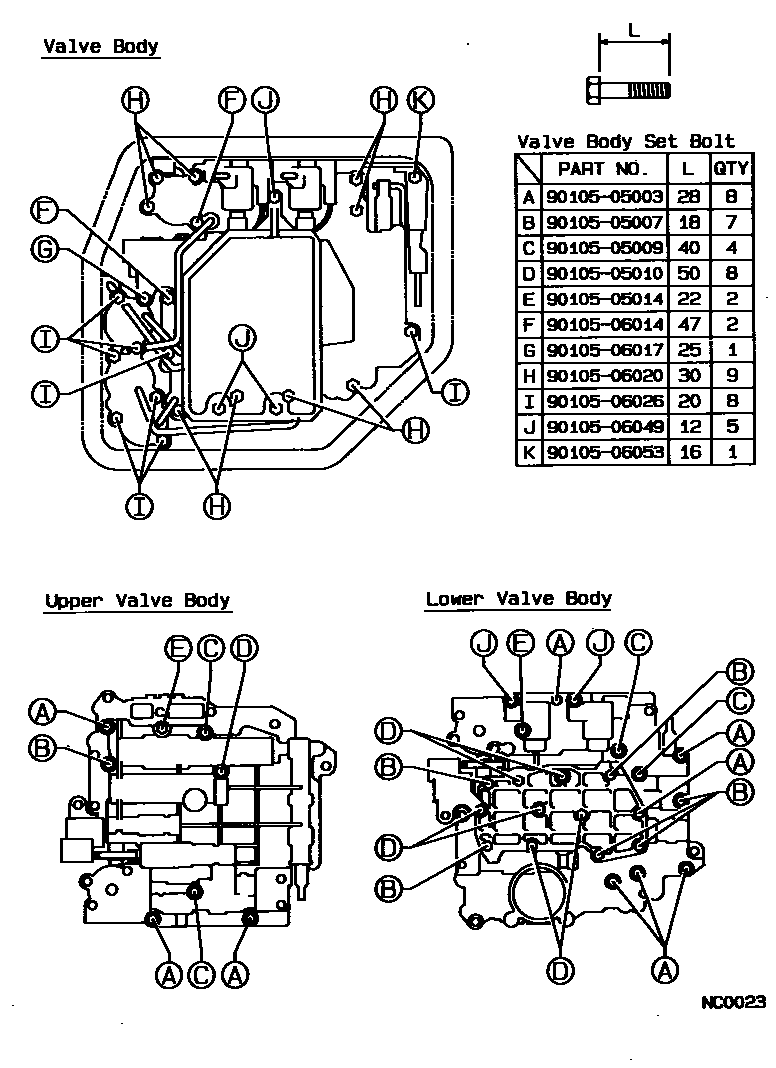

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0023
阀体和滤油网(ATM) — NC0023 (198705 – 999999)

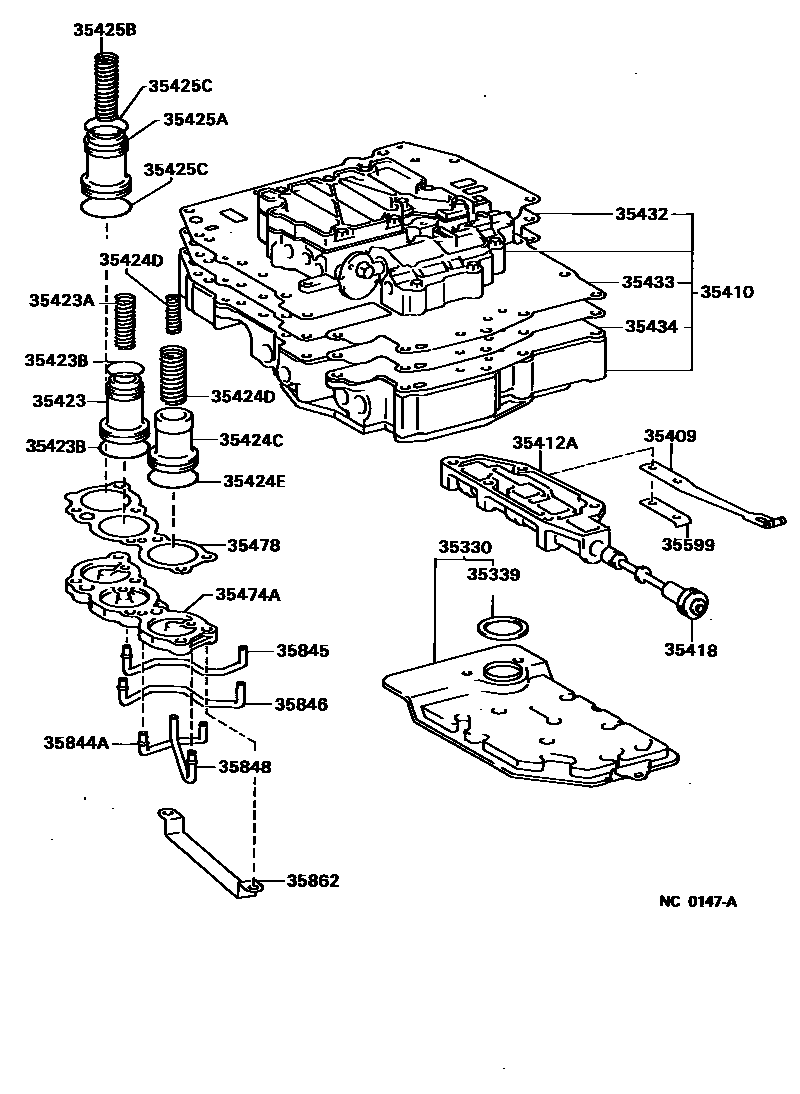

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0147A
阀体和滤油网(ATM) — NC0147A (198705 – 999999)

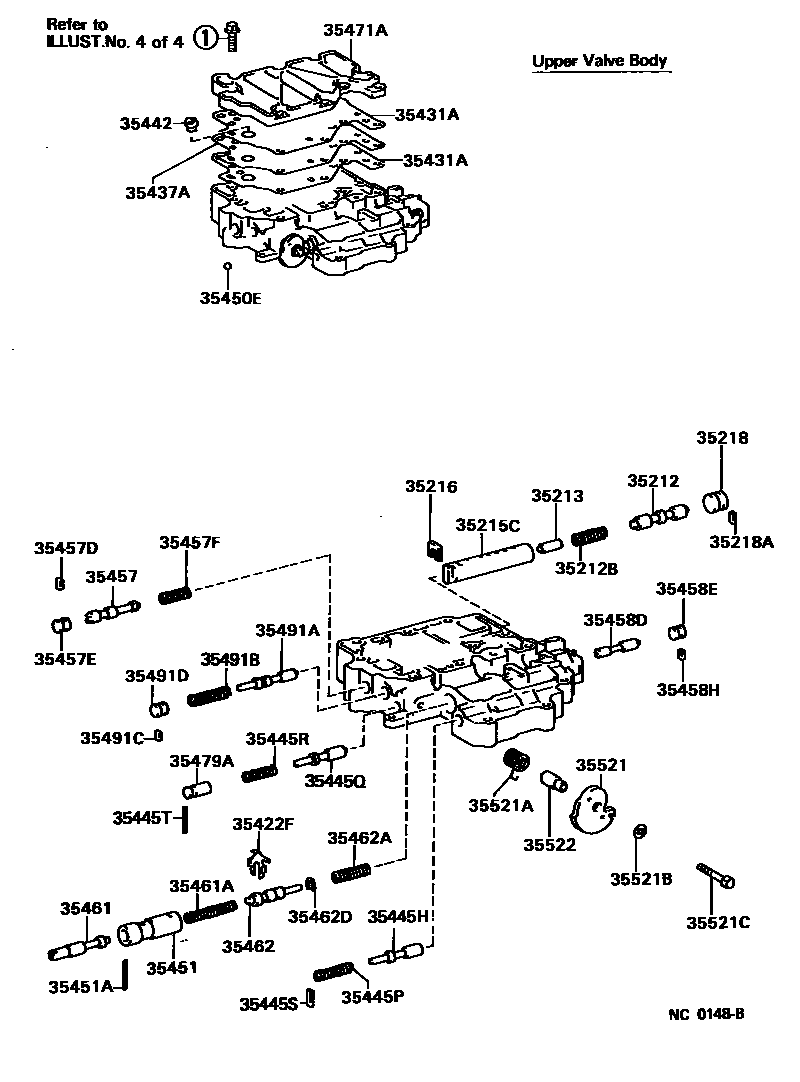

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0148B
阀体和滤油网(ATM) — NC0148B (198705 – 999999)

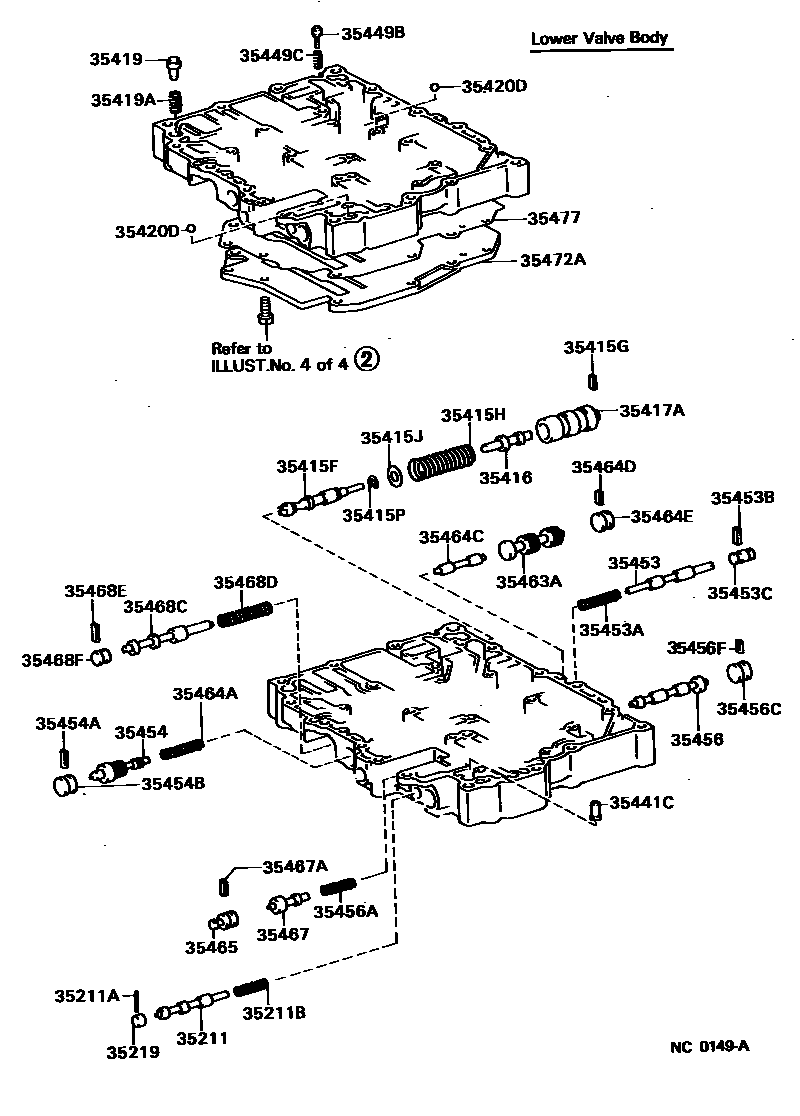

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0149A
阀体和滤油网(ATM) — NC0149A (198705 – 999999)

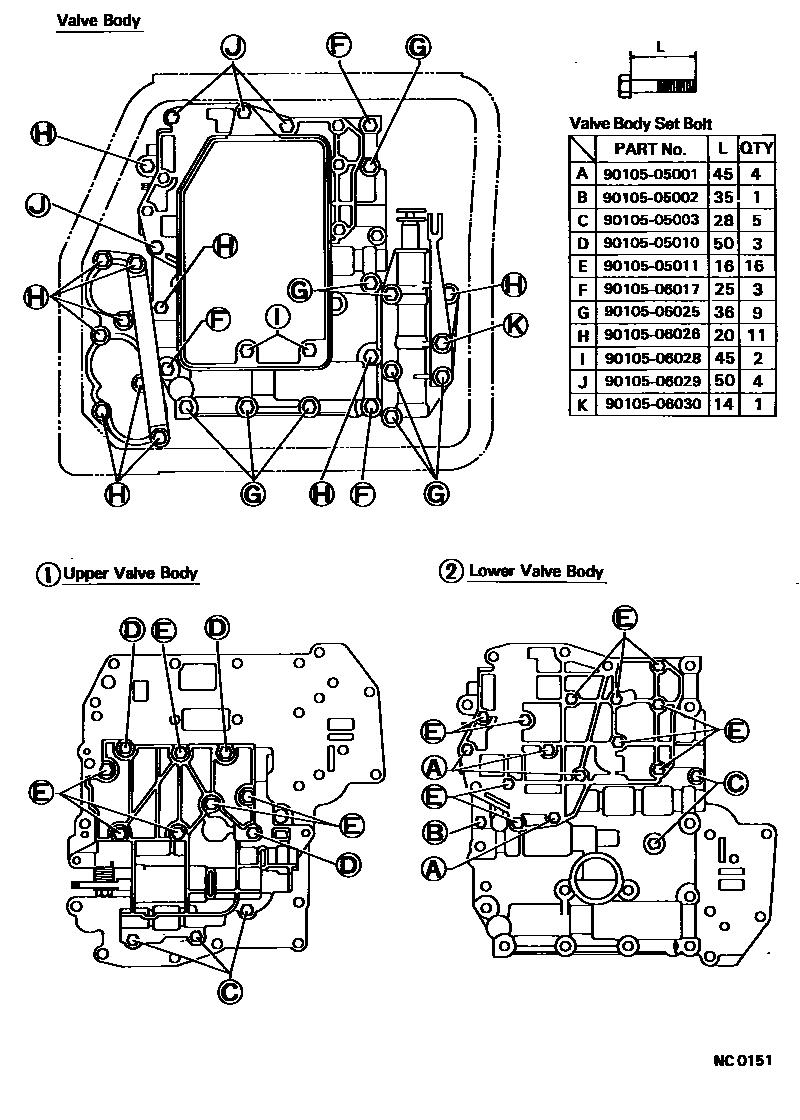

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0151
阀体和滤油网(ATM) — NC0151 (198705 – 999999)

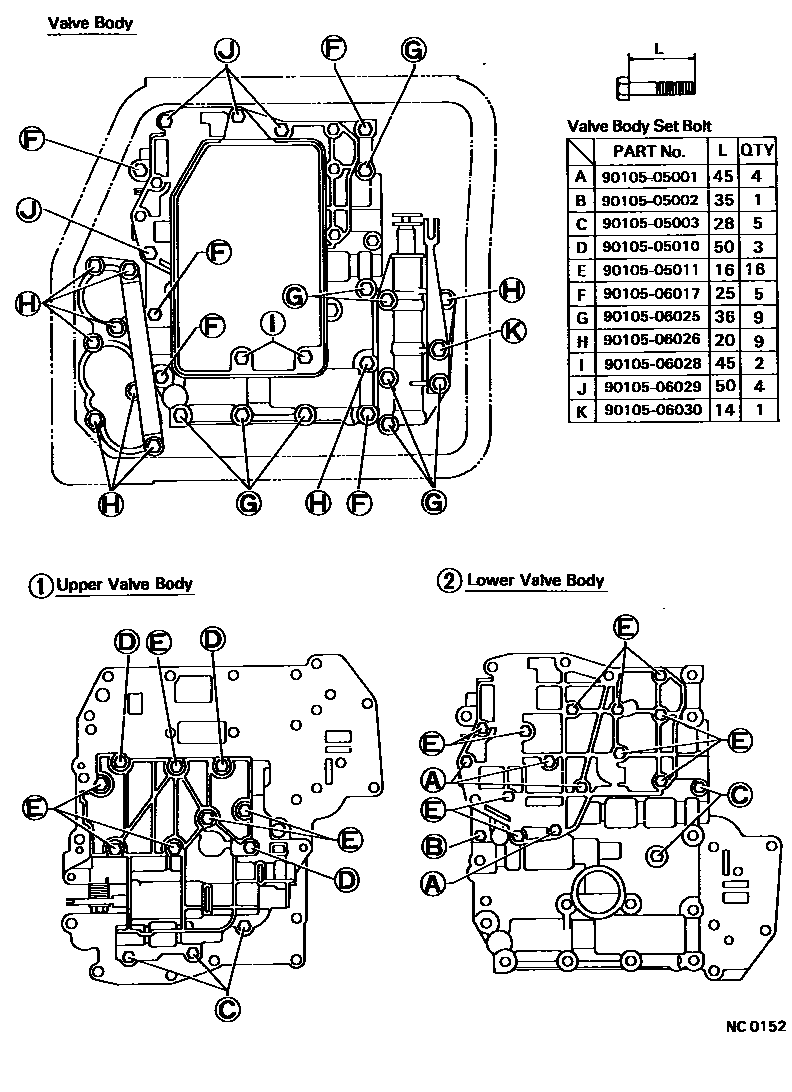

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0152
阀体和滤油网(ATM) — NC0152 (198705 – 999999)

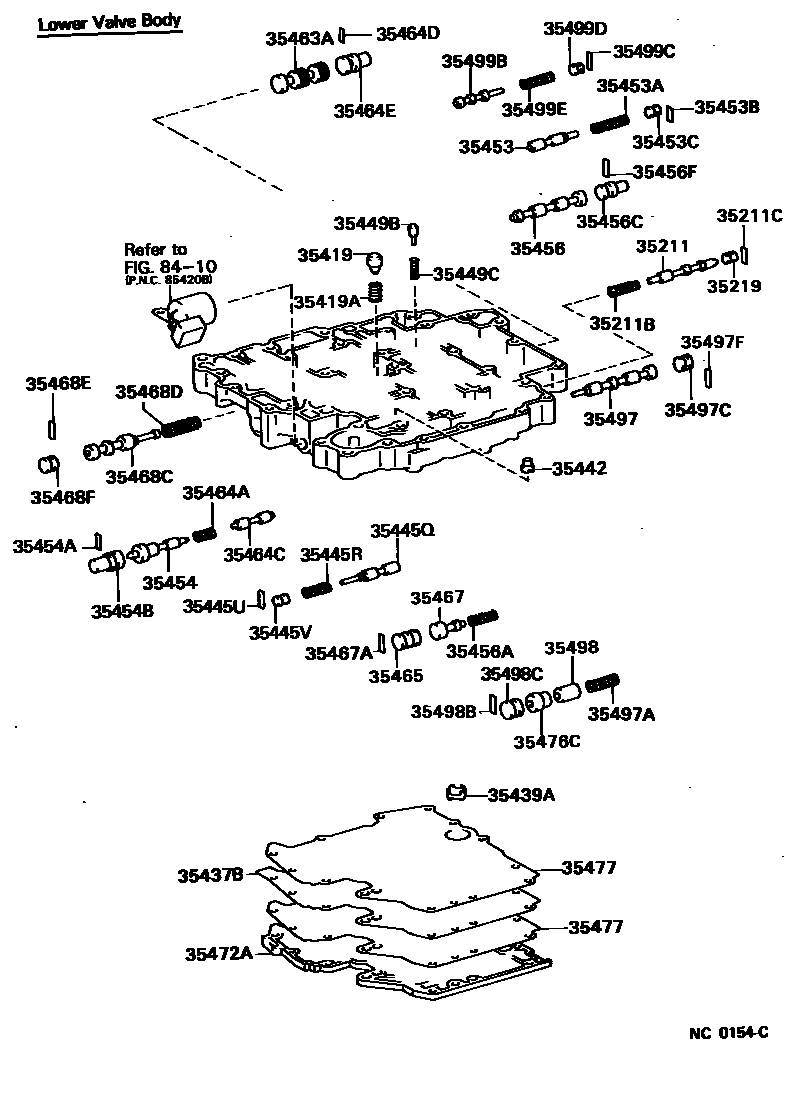

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0154C
阀体和滤油网(ATM) — NC0154C (198705 – 999999)

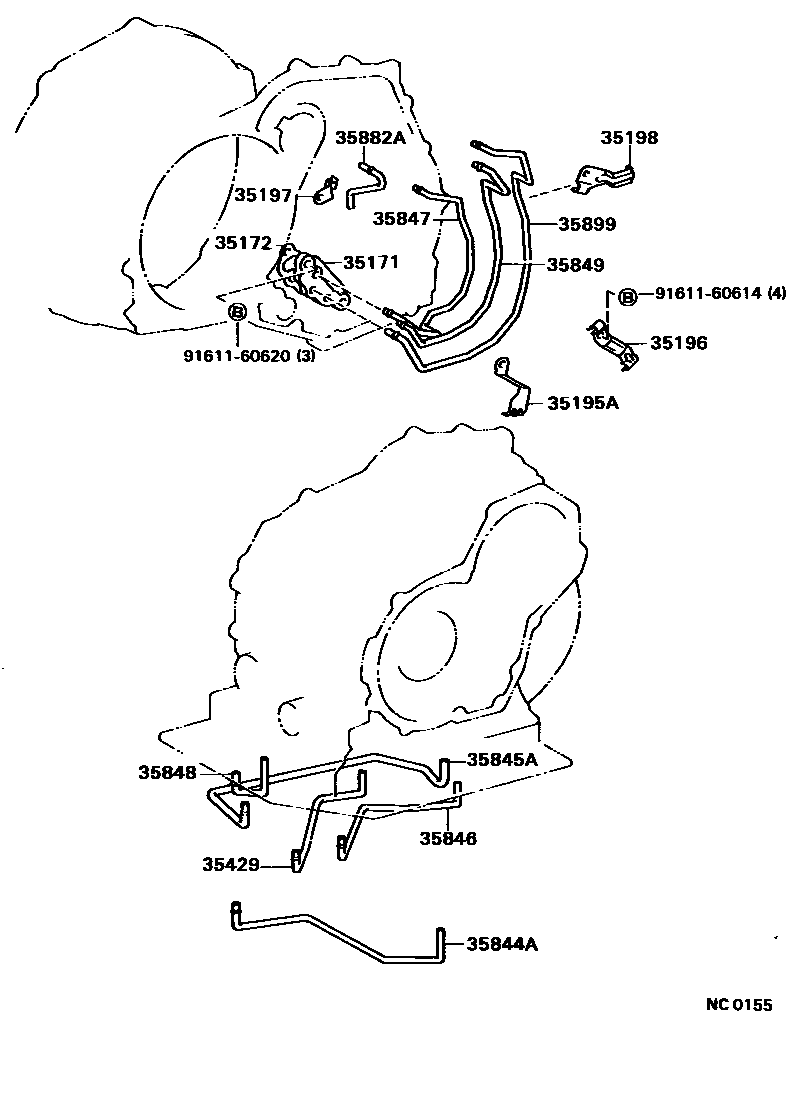

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0155
阀体和滤油网(ATM) — NC0155 (198705 – 999999)

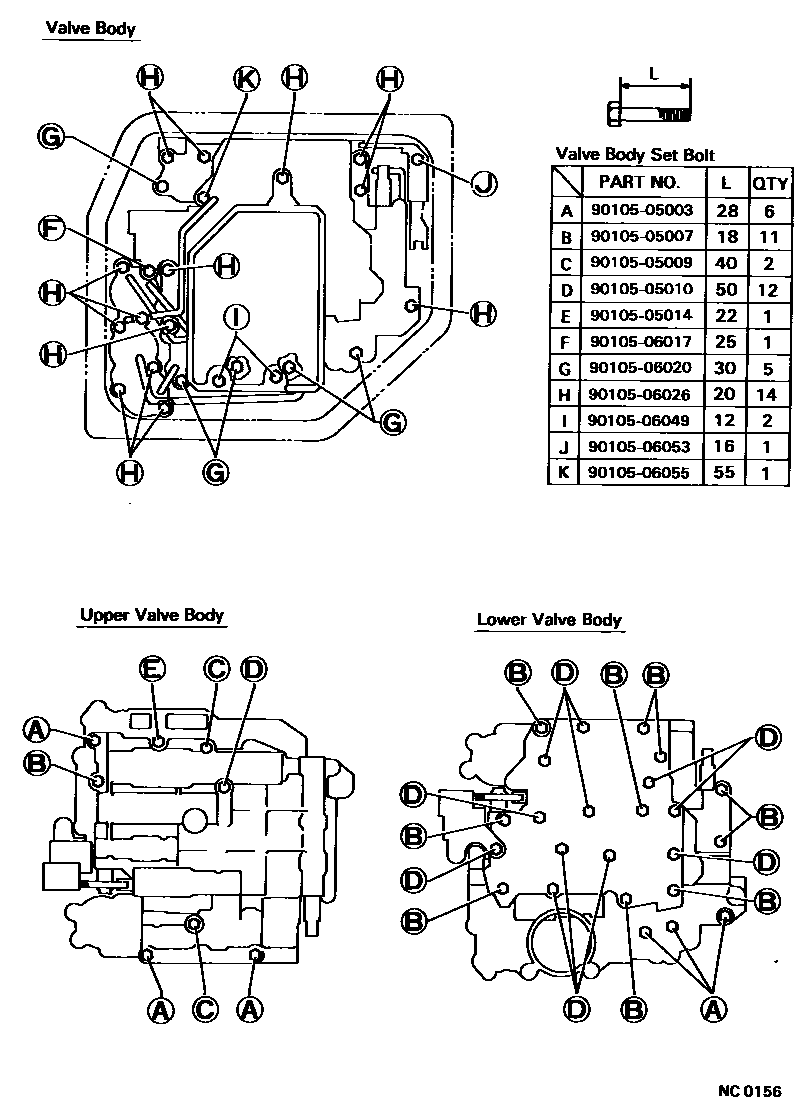

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0156
阀体和滤油网(ATM) — NC0156 (198705 – 999999)

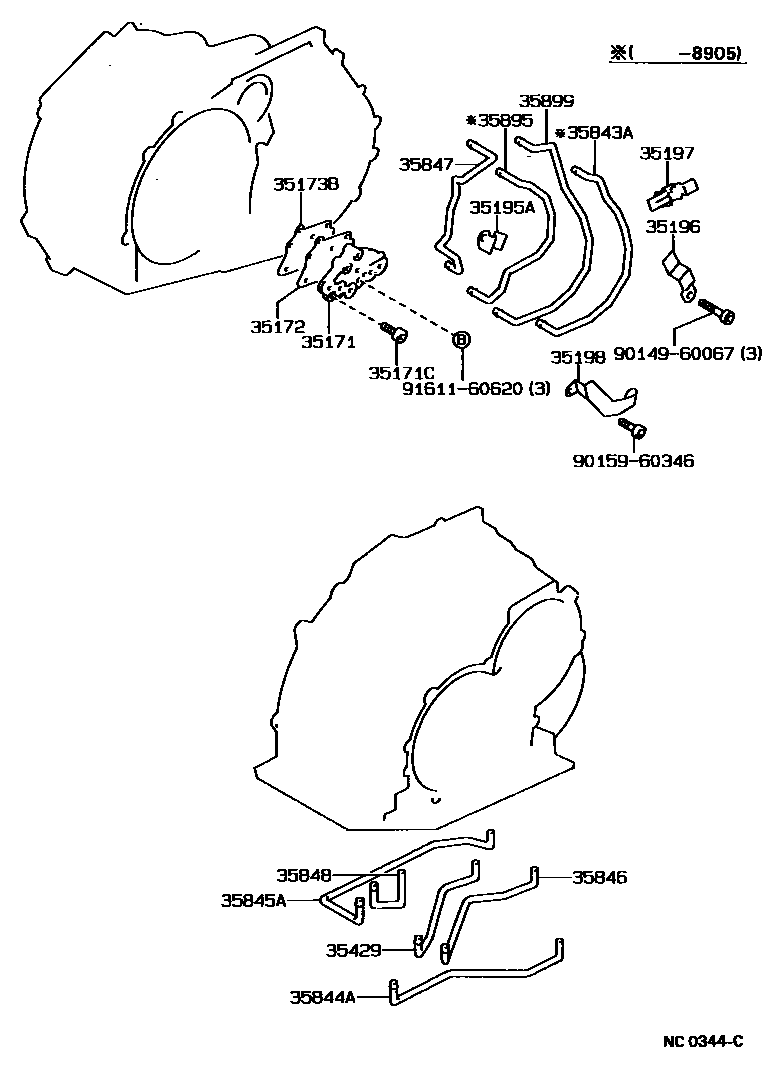

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0344C
阀体和滤油网(ATM) — NC0344C (198710 – 999999)

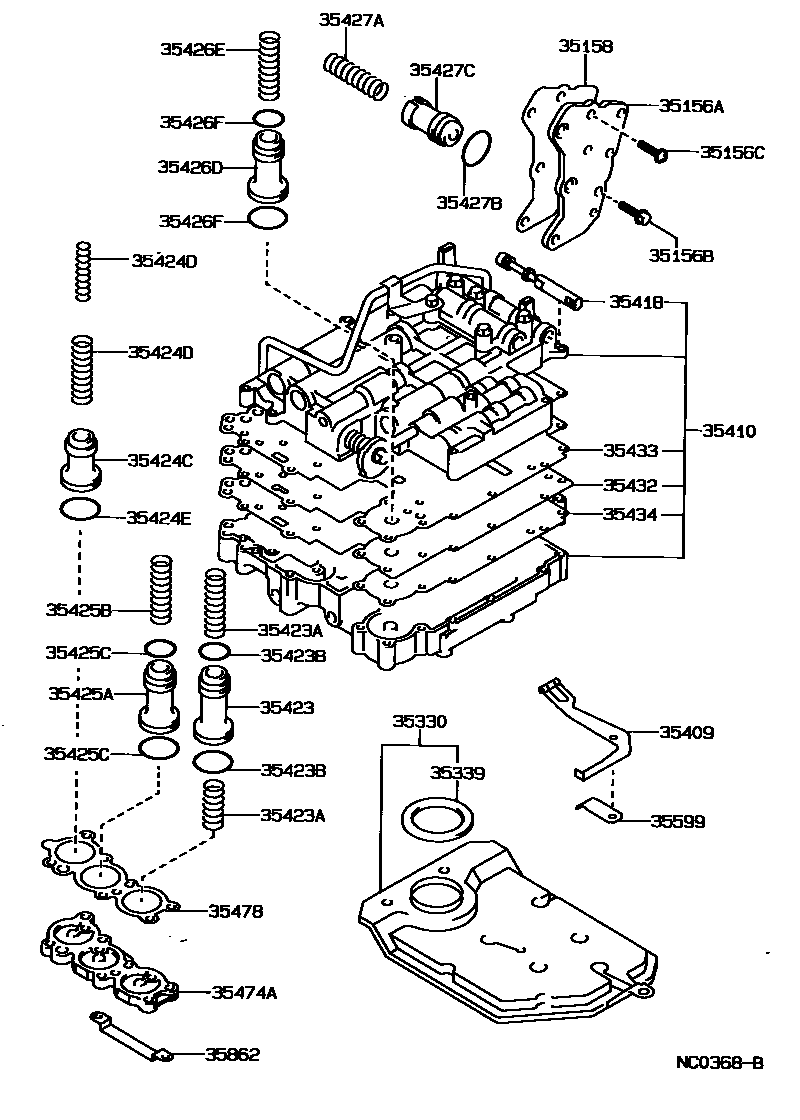

Toyota COROLLA 阀体和滤油网(ATM) EPC diagram — NC0368B
阀体和滤油网(ATM) — NC0368B (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
35156ANo. 2 gearbox block35156-12010 · 35156-20010
35156BBolt (for gearbox block No. 2)90105-06049
35156CBolt (for gearbox block No. 2)90149-60041
35158No. 2 gearbox shield gasket35158-12010 · 35158-20020
35171Transmission axle housing cover35171-12010 · 35171-12020
35171CScrews (for transaxle housing cover)90149-50047
35172Transaxle housing cover gasket35172-12010 · 35172-12020 · 35172-12021
35173BTransmission axle housing cover35173-12010 · 35173-12011
35195ANo. 1 transmission axle fuel supply pipe clamp35195-12010 · 35195-12020
35196No. 2 transmission axle fuel supply pipe clamp35196-12010 · 35196-12020
35197No. 3 transmission axle oil supply pipe clamp35197-12010 · 35197-12020
35198No. 4 transmission axle oil supply pipe clamp35198-12010 · 35198-20010
35211lock signal valve35211-12010 · 35211-32010 · 35211-32020
35211ADirect pin (for locking signal valve)90250-02013
35211BCompression spring (for locking signal valve)90501-07021 · 90501-07025 · 90501-07028 · 90501-07032 · 90501-08057 · 90501-08064
35211CStraight key (for locking signal valve)90282-03002
35212lock relay valve35212-12010 · 35212-32010
35212BCompression spring (for locking relay valve)90501-05010 · 90501-07023
35213Lock relay control valve35213-12010 · 35213-32010
35215BDirect pin (for locking relay valve sleeve)90250-03038
35215CNo. 1 locking relay valve sleeve35215-12020 · 35215-12021 · 35215-32010
35216Valve sleeve stop35216-32010
35218Lock relay valve plunger35218-32010
35218AStraight key (for locking the relay valve plunger)90282-03003
35219Lock signal valve plunger35219-32010 · 90339-04002 · 90339-04005
35261No. 2 pressure regulator valve body35261-12010
35261DBolt (for pressure regulator valve No. 2)90105-05003 · 90105-05014
35262No. 2 pressure regulator valve35262-12010
35262ACompression spring (for pressure regulator valve No. 2)90501-08098
35262BPlunger (for pressure regulator valve No. 2)90339-05006
35262CRoller (for pressure regulator valve No. 2)90361-02023
35263pressure regulator valve plunger35263-12010
35264Pressure regulator valve body piece35264-12010
35265Clutch pressure supply pipe35265-12010
35266Clutch pressure oil supply pipe clamp35266-12010
35267Pressure regulator valve body gasket35267-12010
35330Valve body oil filter assembly35330-12010 · 35330-12011 · 35330-12020 · 35330-20010 · 35330-20011
35339Oil filter gasket35339-12010 · 35339-32010
35409Manual lock spring sub-assembly35409-12010 · 35409-20010 · 35409-32020 · 35409-32030
35410Transmission valve body assembly35410-12101 · 35410-12130 · 35410-12161 · 35410-12163 · 35410-12170 · 35410-12250 · 35410-12290 · 35410-12300 · 35410-12320 · 35410-20080 · 35410-20090 · 35410-20091 · 35410-20092 · 35410-20150 · 35410-20231 · 35410-20290
35412AManual valve body35412-32010
35415FMain regulator valve35415-12020 · 35415-32010
35415GStraight key (for main regulator valve)90282-03001
35415HCompression spring (for main regulator valve)90501-16065 · 90501-16077
35415JGasket (for main regulator valve)90201-08021 · 94614-10600
35415PE-ring (for main regulator valve)90523-06004
35416No. 1 main regulator valve plunger35416-12010 · 35416-32010
35417AMain regulator valve sleeve35417-12020 · 35417-32010
35417BDirect sales (for main regulator valve sleeve)90250-03038
35418Manual valve35418-12020 · 35418-32010
35418ADirect sales (for manual valves)90250-02007
35418BPlunger (for manual valve)90339-04007
35419No. 1 one-way valve35419-12030 · 35419-32010
35419ACompression spring (for one-way valve)90501-10056 · 90501-10079
35420DBall (for lower valve body)35495-22010 · 35495-22020
35422FValve damping stop35422-22010 · 35422-32010
35423B-2 Accumulator Piston35403-20010 · 35423-20010 · 35423-32010
35423ACompression spring (for B-2 accumulator piston)90501-14101 · 90501-16111 · 90501-20114 · 90501-23062 · 90501-26014 · 90501-26041 · 90501-26044 · 90501-26048 · 90501-27006 · 90501-27015 · 90501-28002
35423BO-ring (for B-2 accumulator piston)90301-22185 · 90301-29187
35424CC-1 Accumulator Piston35424-20010 · 35424-20020 · 35424-32010
35424DCompression spring (for C-1 accumulator piston)90501-20118 · 90501-21013 · 90501-22005 · 90501-23044 · 90501-23058 · 90501-23065 · 90501-23078 · 90501-23079 · 90501-23100 · 90501-23115 · 90501-24007 · 90501-24018 · 90501-26053
35424EO-ring (for C-1 accumulator piston)90301-29187
35425AC-2 Accumulator Piston35425-12020 · 35425-32010
35425BCompression spring (for C-2 accumulator piston)90501-23042 · 90501-23057 · 90501-23062 · 90501-23063 · 90501-25012
35425CO-ring (for C-2 accumulator piston)90301-23194 · 90301-26190 · 90301-29187
35426DC-3 Accumulator Piston35426-12020
35426ECompression spring (for C-3 accumulator piston)90501-23050
35426FO-ring (for C-3 accumulator piston)90301-20002 · 90301-29187
35427ACompression spring (for B-4 accumulator piston)90501-26040
35427BO-ring (for B-4 accumulator piston)90301-22185
35427CB-4 Accumulator Piston35427-12010
35429pipeline pressure oil pipe35429-12030
35431AUpper body cover gasket35431-32010
35432No. 1 valve body plate35432-12091 · 35432-12100 · 35432-12120 · 35432-12150 · 35432-17010 · 35432-20031 · 35432-20040 · 35432-20050 · 35432-20110 · 35432-20190 · 35432-20220
35433No. 1 valve body gasket35433-12020 · 35433-12030 · 35433-12040 · 35433-20020 · 35433-20030
35434No. 2 valve body gasket35434-12010 · 35434-12020 · 35434-20010 · 35434-32020
35437AUpper valve body cover35437-32010
35437BValve body cover35437-12020 · 35437-12030 · 35437-20010 · 35437-20020
35438ASecond gear slide regulator valve spring seat35438-22020
35438HLow gear coast regulator valve spring seat35438-22020
35439APipe pressure oil filter35439-20010
35441CSolenoid valve oil filter35441-12010
35442Throttle regulator oil filter35442-32010
35445HSecond gear slide regulator valve35445-12010 · 35445-32010
35445JPlunger (for second gear slide regulator valve)90339-02003 · 90339-04002
35445PCompression spring (for second gear coast regulator valve)90501-10081 · 90501-10133 · 90501-11013
35445QLow gear coast regulator valve35445-12010 · 35445-32010
35445RCompression spring (for low range coast regulator valve)90501-09035 · 90501-09046 · 90501-09062
35445SStraight key (for second gear slide regulator valve)90282-03002 · 90282-03003
35445TDirect sales (for low speed coasting regulator valve)90250-03035 · 90250-03046
35445UStraight key (for low speed coast regulator valve)90282-03002
35445VPlunger (for low range coast regulator valve)90339-02003 · 90339-04002
35449BPressure reducing valve35449-32010
35449CCompression spring (for pressure reducing valve)90501-09032
35450EBall (for upper valve body)35495-22020 · 90360-06004 · 90360-06023
35451Throttle valve sleeve35451-32010
35451ADirect sales (with throttle sleeve)90250-03036 · 90250-03038 · 90250-03045
35453lock regulator valve35453-20010 · 35453-32010
35453ACompression spring (for locking regulator valve)90501-09036 · 90501-09052 · 90501-10080 · 90501-10096 · 90501-10135
35453BStraight key (for locking the pressure regulator valve)90282-03002
35453CPlunger (for locking the regulator valve)90339-02003 · 90339-03007 · 90339-04002
35454Low gear coast shift valve35454-20010 · 35454-32010
35454AStraight key (for low gear coast shift valve)90282-03001 · 90282-03002
35454BPlunger (for low range coast shift valve)90339-04008 · 90339-05003
354562nd-3rd gear shift valve35456-12010 · 35456-32010
35456ACompression spring (for 2-3 gear shift valve)90501-06027 · 90501-09053
35456CPlunger (for 2-3 gear shift valve)90339-03004 · 90339-04004 · 90339-05003 · 90339-07005
35456FStraight key (for 2-3 gear shift valve)90282-03001 · 90282-03002 · 90282-03004
35457Throttle regulator valve35457-12010 · 35457-32010
35457DStraight key (for throttle regulator valve)90282-03001
35457EPlunger (for throttle regulator valve)90339-03004 · 90339-04026 · 90339-05006
35457FCompression spring (for throttle regulator valve)90501-09037 · 90501-09040
35457GDirect sales (for throttle regulator valve)90250-02007
35458Dreverse valve35458-32020
35458EPlunger (for reverse valve)90339-04002 · 90339-04028
35458HStraight key (for reverse valve)90282-03001 · 90282-03003 · 90282-03010
35461Downshift plug35408-32010
35461ACompression spring (for downshift plug)90501-09059 · 90501-10054
35462throttle valve35462-12020 · 35462-12030 · 35462-32010
35462ACompression spring (for throttle valve)90501-07022 · 90501-07027
35462DE-ring (for throttle valve)90523-06023
35463A1-2 gear lower shift valve35463-32010
354641-2 gear shift valve35464-12030
35464ACompression spring (for 1-2 gear shift valve)90501-06025 · 90501-09053
35464C1-2 gear upper shift valve35464-32020
35464DStraight key (for 1-2 gear shift valve)90282-03001 · 90282-03002
35464EPlunger (for 1-2 gear shift valve)90339-03004 · 90339-04004 · 90339-05003 · 90339-07005
35465Intermediate shift valve plunger35465-20010 · 35465-32010
35465AMain regulator valve plunger sleeve35465-12010
35467Intermediate shift valve35467-20010 · 35467-32010
35467AStraight key (for intermediate shift valve)90282-03001 · 90282-03002
35468CSecondary regulator valve35468-12020 · 35468-32011
35468DCompression spring (for secondary regulator valve)90501-14059 · 90501-14072 · 90501-14105
35468EStraight key (for secondary regulator valve)90282-03001 · 90282-03002
35468FPlunger (for secondary regulator valve)90339-03004 · 90339-04026
35471AUpper valve body cover35471-32010
35472ALower valve body cover35472-12010 · 35472-12022 · 35472-12050 · 35472-20020
35474AAccumulator cover35474-12010 · 35474-20010 · 35474-32010
35476CThree-speed slide valve35476-20010
35477Valve body cover gasket35477-12010 · 35477-12020 · 35477-20010 · 35477-32021
35478Accumulator cover gasket35478-32010
35479ALow speed regulator valve spring seat35479-32010
35491ANo. 1 accumulator control valve35491-12010 · 35491-20010 · 35491-32010
35491BCompression spring (for No. 1 accumulator control valve)90501-09041 · 90501-09045 · 90501-09111 · 90501-09115 · 90501-10055
35491CStraight key (for No. 1 accumulator control valve)90282-03002 · 90282-03003
35491DPlunger (for No. 1 accumulator control valve)90339-03004 · 90339-04026 · 90339-04042 · 90339-05007
354973rd-4th gear shift valve35497-12010 · 35497-20020
35497ACompression spring (for 3-4 gear shift valve)90501-07031 · 90501-07044 · 90501-08105 · 90501-09053
35497CPlunger (for 3-4 gear shift valve)90339-03004 · 90339-04006
35497FStraight key (for 3-4 gear shift valve)90282-03001 · 90282-03002
354983rd-4th gear slide shift valve35498-20020
35498BStraight key (for 3-4 speed coasting shift valve)90282-03001
35498CPlunger (for 3-4th gear slide shift valve)90339-04006
35499BOverdrive sequence valve35499-20010
35499CStraight key (for overdrive sequence valve)90282-03002
35499DPlunger (for overdrive sequence valve)90339-02003 · 90339-04002
35499ECompression spring (for overdrive sequence valve)90501-08039
35521throttle cam35521-20010 · 35521-32010
35521ASpring (for throttle cam return)90508-11003
35521BGasket (for throttle cam assembly)90201-06472
35521CBolt (for throttle cam assembly)90101-06021 · 90105-06018
35522Throttle valve cam pin35522-22010
35599Manual locking spring cover35599-12010 · 35599-32010
35843ATransfer case lubricating oil supply pipe35843-12010
35844ANo. 1 accumulator back pressure pipe35844-12020 · 35844-12030 · 35844-32021
35845Rear clutch accumulator tube35845-12020 · 35845-12021 · 35845-32011 · 35845-32012
35845ADirect clutch accumulator tube35845-12030
35846brake accumulator pipe35846-12030 · 35846-12031 · 35846-12040 · 35846-20020 · 35846-32021 · 35846-32022
35847Transmission lubricant supply pipe35847-12010 · 35847-12020
35848Forward clutch accumulator tube35848-12020 · 35848-12030 · 35848-32011
35849Governor oil supply pipe35849-20010
35862Accumulator fuel supply pipe bracket35862-12011 · 35862-12020 · 35862-32011
35882ADifferential gear lubricant oil supply pipe35882-12010
35895Front clutch oil supply pipe35895-12010
35899Governor pressure oil pipe35899-12010 · 35899-12020
