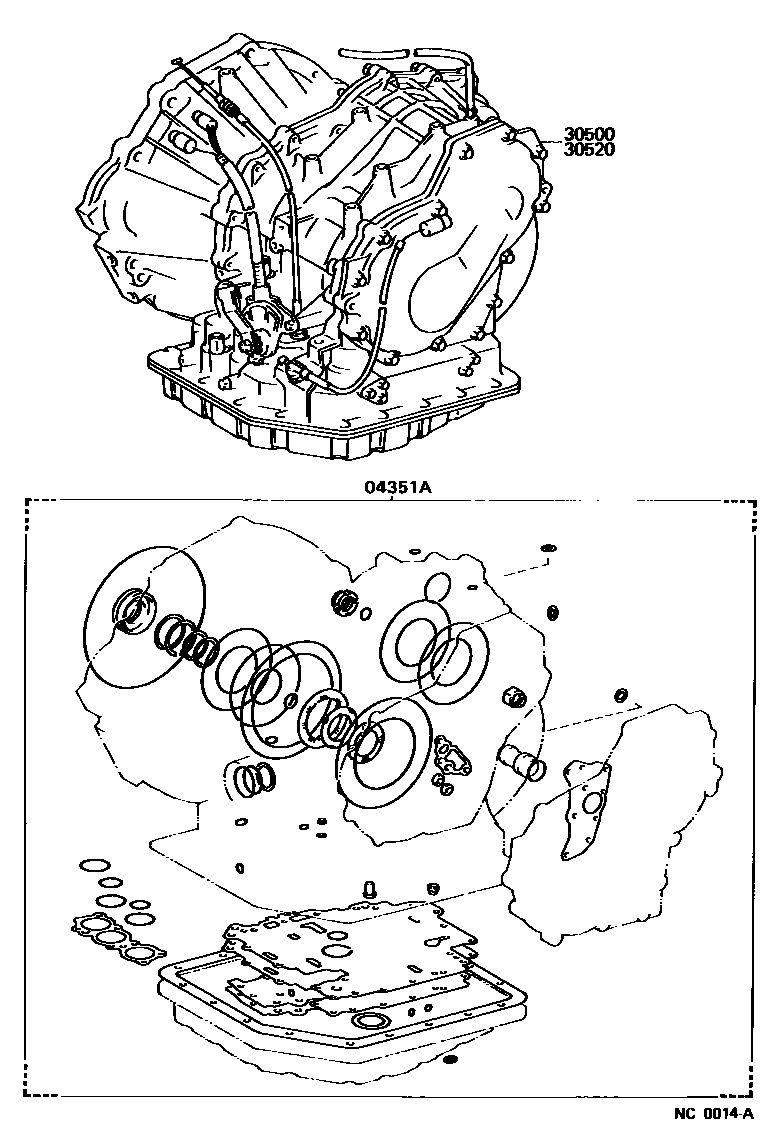

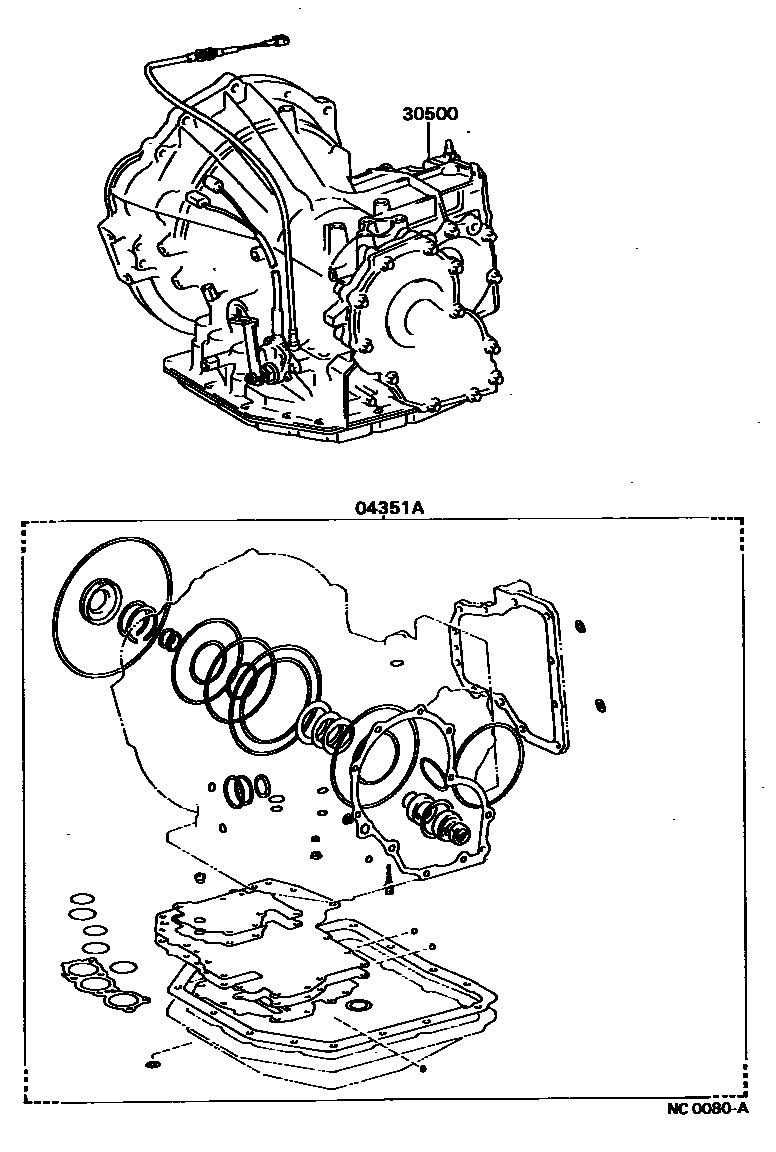

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-10030 · 04351-12050 · 04351-12060 · 04351-12070 · 04351-20060 · 04351-20070 |
| 30500 | Automatic transmission axle assembly | 30500-12210 · 30500-12230 · 30500-12250 · 30500-12260 · 30500-12270 · 30500-12281 · 30500-12290 · 30500-12301 · 30500-12311 · 30500-12360 · 30500-12410 · 30500-12490 · 30500-12550 · 30500-12590 · 30500-12620 · 30500-12630 · 30500-12631 · 30500-12641 · 30500-12680 |
| 30520 | Automatic transmission axle assembly with transfer case | 30520-12022 |
