Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

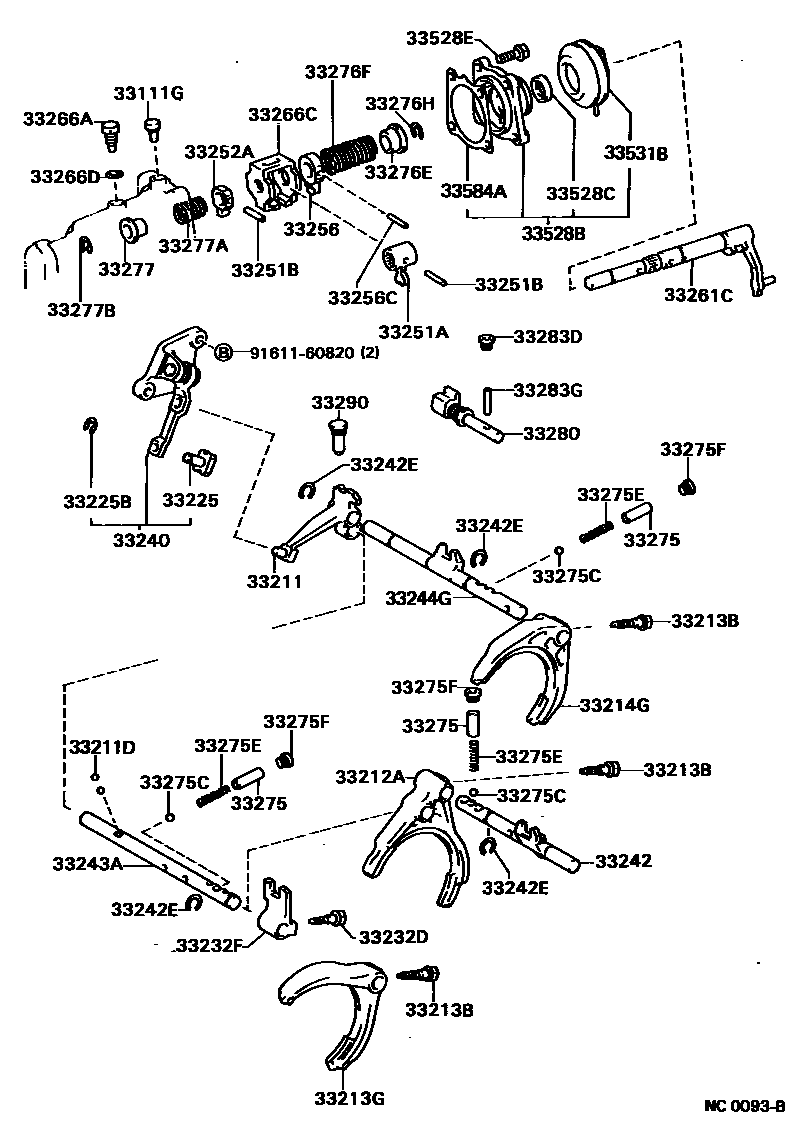

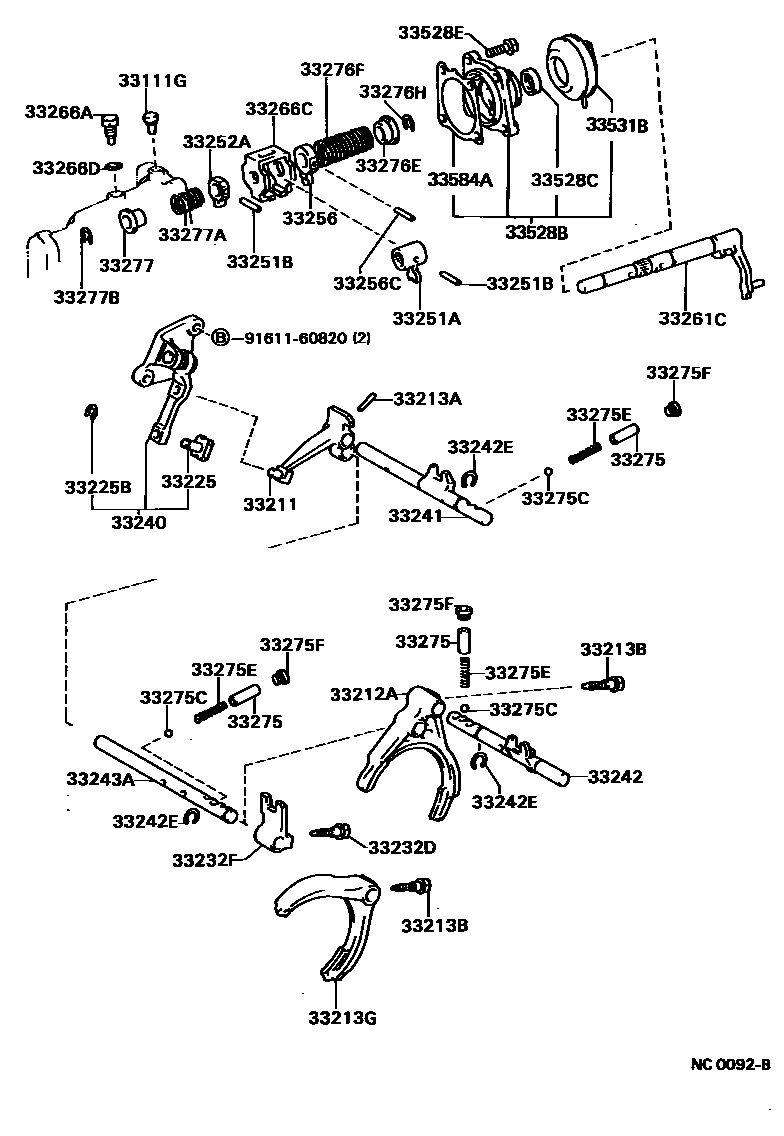

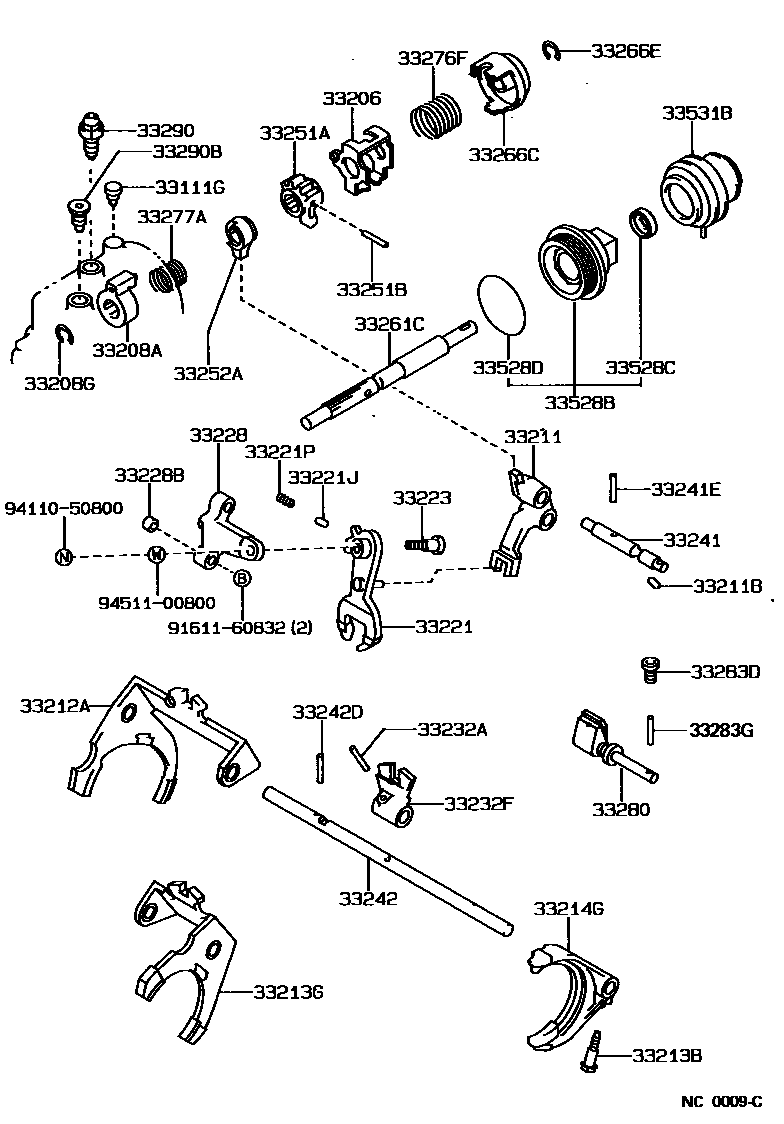

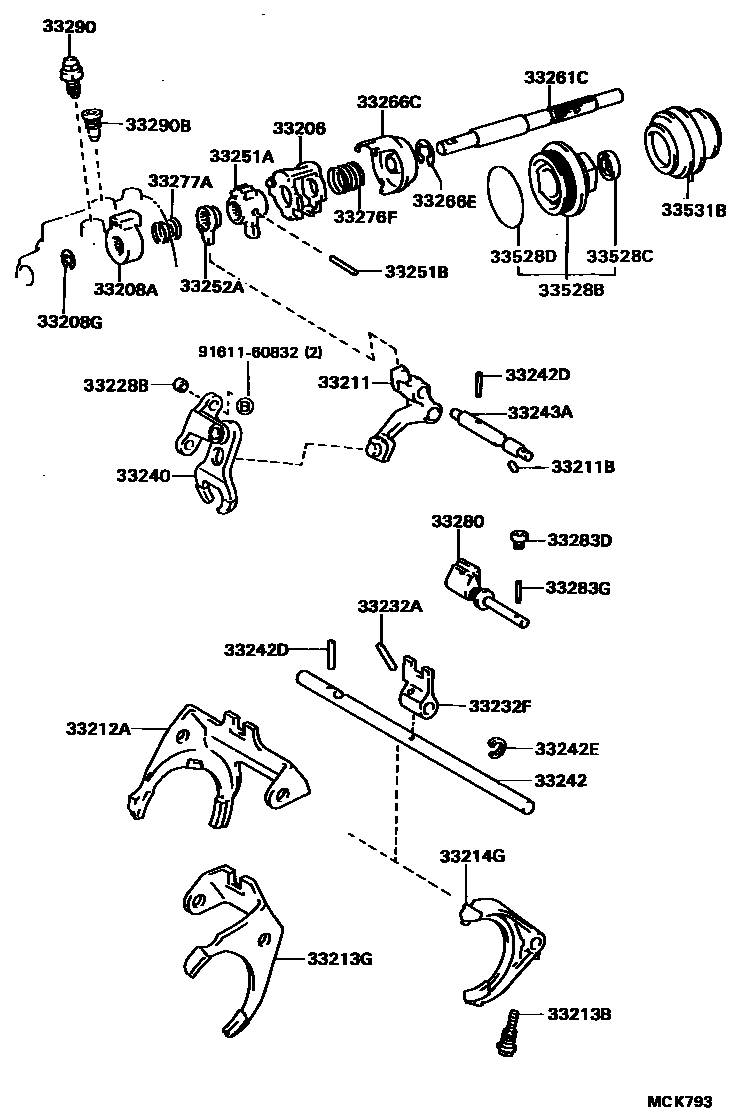

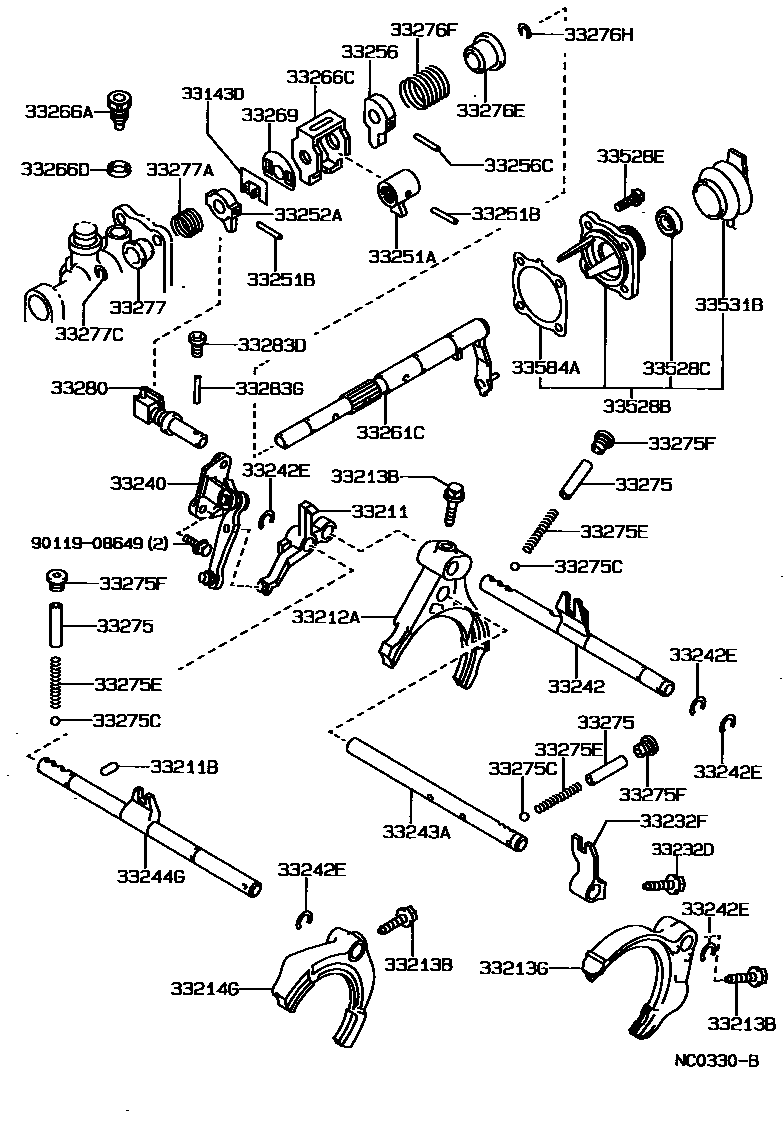

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 5 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03080 · 90930-03133 |
| 33143D | Transmission oil baffle | 33143-12020 |
| 33206 | Shift interlock plate sub-assembly | 33206-32020 · 33206-32021 · 33206-32022 · 33206-32023 |
| 33208A | Reverse gear positioning pin sub-assembly | 33208-32020 · 33208-32021 · 33208-32022 |
| 33208G | E-ring (for reverse gear positioning pin) | 90523-12003 |
| 33211 | Reverse Shift Fork | 33211-12020 · 33211-12030 · 33211-20010 · 33211-20020 · 33211-32010 · 33211-32020 |
| 33211B | Roller (for reverse shift fork) | 90361-08002 · 90361-08005 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 |
| 33212A | No. 1 shift fork | 33210-32010 · 33210-32020 · 33210-32021 · 33210-32022 · 33212-10011 · 33212-10012 · 33212-10013 · 33212-12010 · 33212-12020 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06052 · 90105-06065 · 90105-06115 · 90105-07002 |
| 33213G | No. 2 shift fork | 33213-10021 · 33213-10022 · 33213-12020 · 33213-12032 · 33220-32010 · 33220-32020 · 33220-32021 · 33220-32022 |
| 33214G | No. 3 shift fork | 33214-10021 · 33214-10022 · 33214-12010 · 33214-12020 · 33214-12030 · 33214-32011 · 33214-32020 · 33214-32021 |
| 33221 | Reverse shift arm | 33201-32010 |
| 33221J | Roller (for reverse shift arm) | 90361-08002 |
| 33221P | Compression spring (for reverse shift arm roller) | 90501-10048 |
| 33223 | shift arm pivot | 33223-32010 |
| 33225 | shift arm shoe | 33225-12010 |
| 33225B | E-ring (for shift arm shoe) | 96160-00800 |
| 33228 | Reverse shift arm bracket | 33228-32010 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-06052 · 90105-06115 · 90105-07002 |
| 33232F | No. 1 transmission guide block | 33232-12011 · 33232-12012 · 33232-12020 · 33232-32011 · 33232-32012 |
| 33240 | Reverse shift arm bracket assembly | 33240-12011 · 33240-12020 · 33240-12021 · 33240-32020 |
| 33241 | Reverse shift fork shaft | 33243-32010 · 33244-12062 · 33244-12063 |
| 33241E | Slotted spring pin (for reverse shift fork shaft) | 90254-05001 |
| 33242 | No. 1 shift fork shaft | 33205-12020 · 33205-12021 · 33205-12030 · 33242-32010 · 33242-32011 · 33242-32020 |
| 33242D | Slotted spring pin (for shift fork shaft) | 90254-05001 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-13002 |
| 33243A | No. 2 shift fork shaft | 33243-12091 · 33243-12092 · 33243-12100 · 33243-32010 |
| 33244G | No. 3 shift fork shaft | 33244-12052 · 33244-12053 · 33244-12070 |
| 33251A | Internal shift lever No. 1 | 33251-10050 · 33251-20050 · 33251-32030 · 33251-32031 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05007 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-12010 · 33252-20020 · 33252-32030 |
| 33256 | Internal gear selector | 33256-12021 · 33256-20010 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05002 |
| 33261C | shift lever shaft | 33261-12051 · 33261-12060 · 33261-32030 · 33261-32031 |
| 33266A | Bolt (for shift interlock plate) | 90109-12019 · 90109-18002 |
| 33266C | shift interlock plate | 33266-12021 · 33266-20010 · 33266-32020 · 33266-32021 · 33266-32022 |
| 33266D | Pad (for shift interlock plate) | 90430-12008 · 90430-18008 |
| 33266E | E-ring (with shift interlock plate) | 90523-14001 |
| 33269 | Shift interlock plate cover | 33269-12010 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 · 33275-20010 |
| 33275C | Steel ball (for shift lock) | 90360-08009 · 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-11059 · 90501-14077 · 90501-14104 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-12021 · 33276-20010 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-14092 · 90501-14129 · 90501-16076 · 90501-16103 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-12010 · 33277-20010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-15009 · 90501-16136 · 90501-18052 · 90501-18068 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33277C | Shaft snap ring (for No. 2 gear selector spring seat) | 90520-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-12060 · 33280-12061 · 33280-20040 · 33280-20041 · 33280-32011 · 33280-32012 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-04005 · 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-12011 · 33290-32011 · 33290-32012 |
| 33290B | No. 2 locking steel ball assembly | 33290-32020 · 33290-32021 |
| 33528B | control shaft cover | 33506-12061 · 33506-20210 · 33506-32040 |
| 33528C | Oil seal (for control shaft cover) | 90311-18004 · 90311-18006 · 90311-18009 · 90311-18013 |
| 33528D | O-ring (used to control shaft cover) | 90301-65004 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 91611-61025 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12020 · 33531-32011 |
| 33584A | Shift lever stopper gasket | 33584-12050 · 33584-20020 |
