Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301

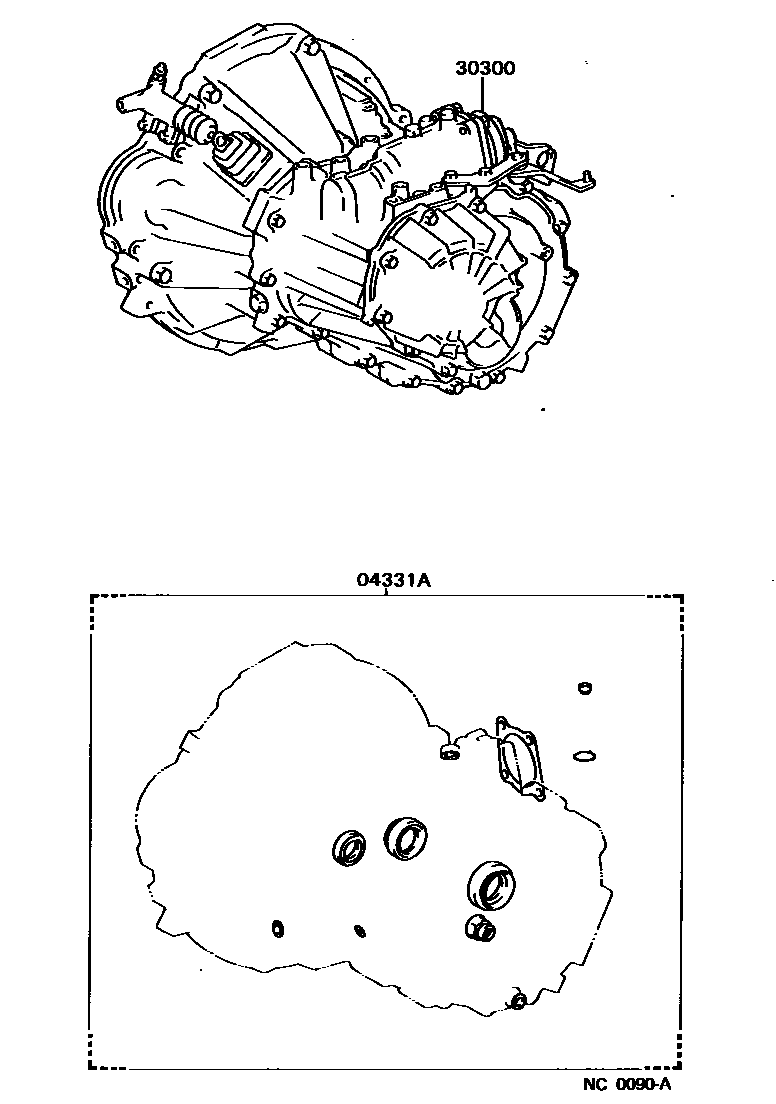

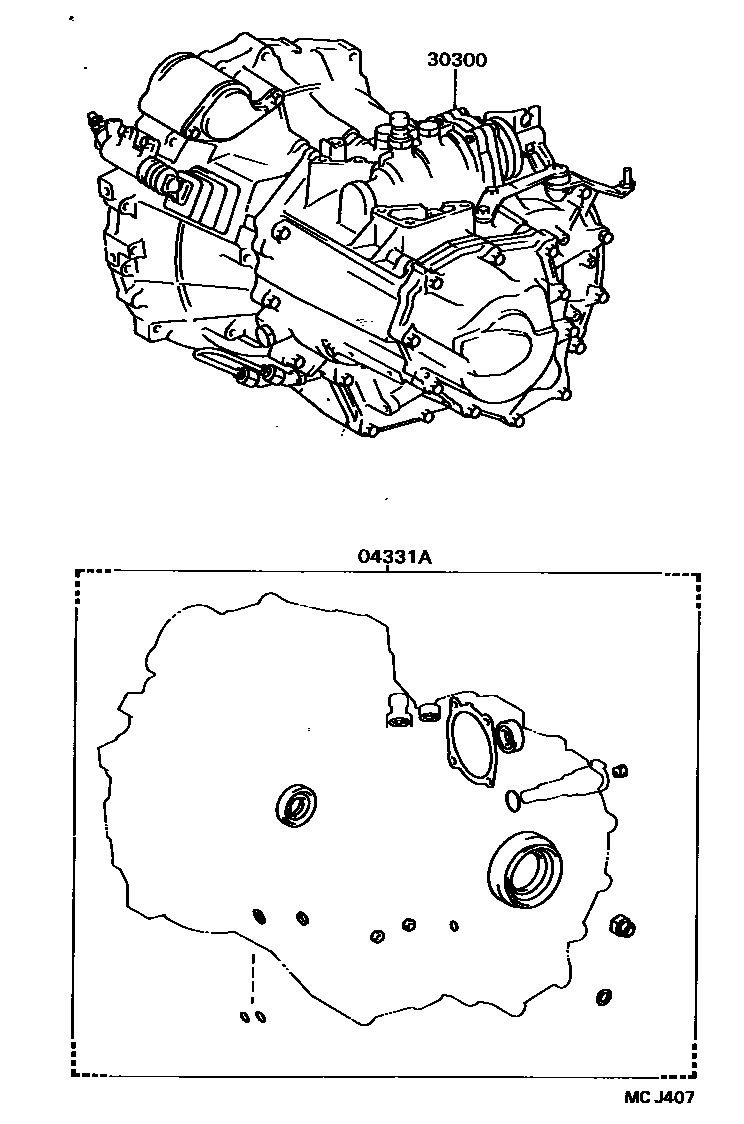

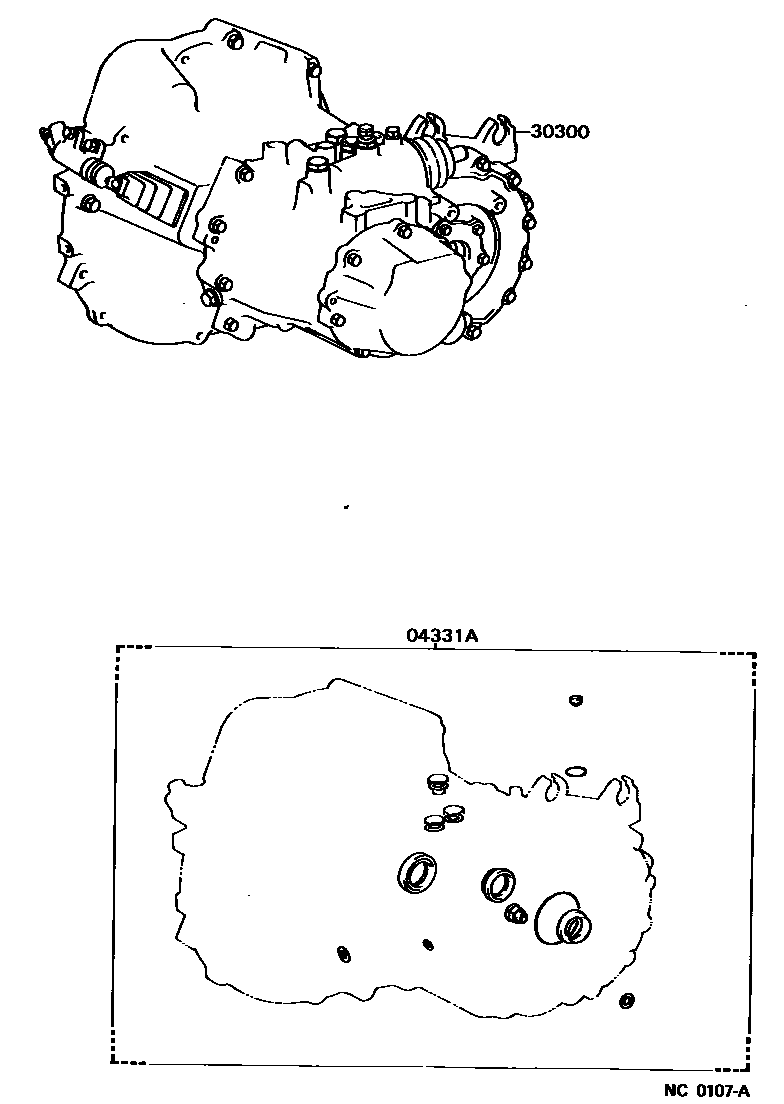

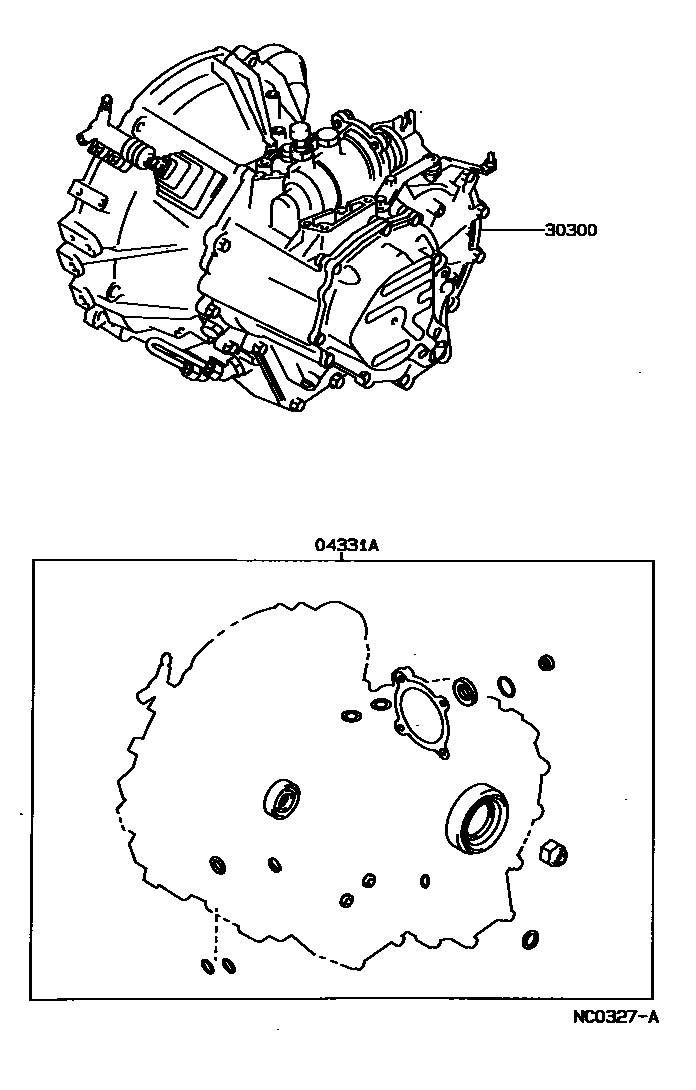

Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12080 · 04331-12100 · 04331-12101 · 04331-32010 · 04331-32011 |
| 30300 | Manual transmission axle assembly | 30300-12360 · 30300-12380 · 30300-12400 · 30300-12420 · 30300-12440 · 30300-12510 · 30300-12520 · 30300-12530 · 30300-12570 · 30300-12600 · 30300-12640 · 30300-12690 · 30300-12691 · 30300-12710 · 30300-12721 · 30300-12730 · 30300-12740 · 30300-12750 |
