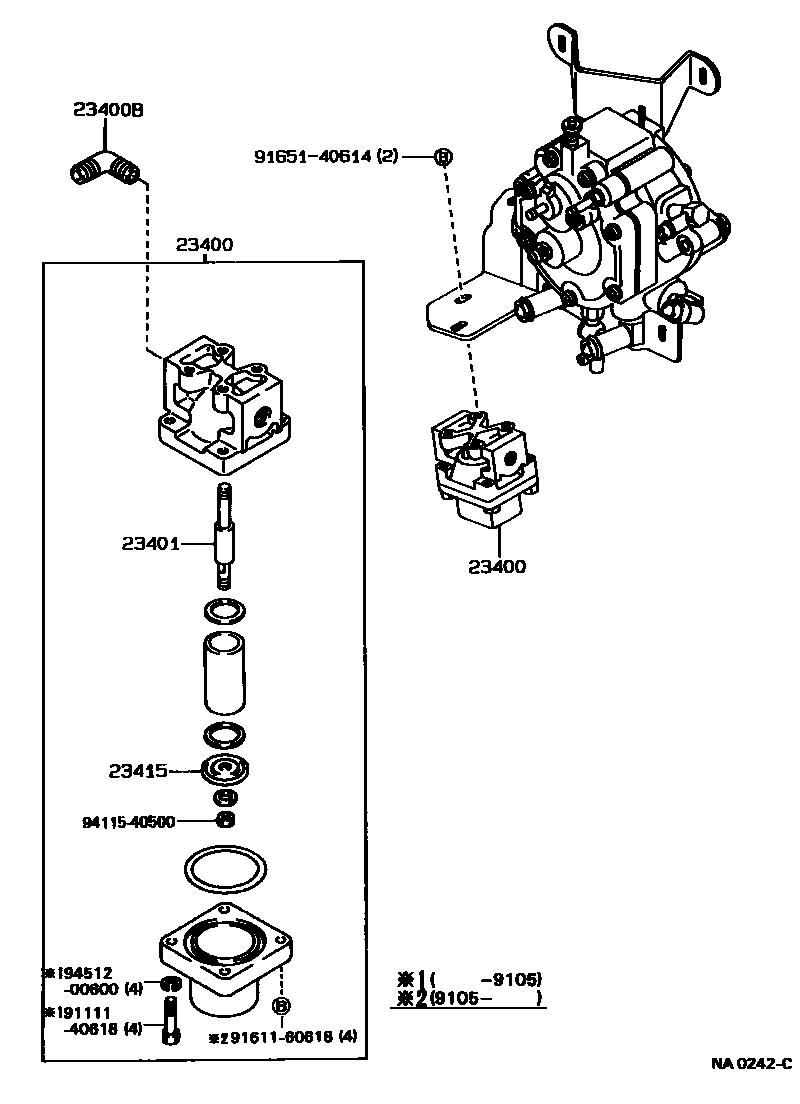

Toyota COROLLA LPG滤清器 — Figure 2605
Toyota COROLLA EPC diagram 2605, LPG滤清器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23400 | LPG filter assembly | 23400-40024 |
| 23400B | LPG filter oil inlet connector | 90407-14023 |
| 23401 | Stud bolt sub-assembly (for LPG filter) | 23401-40020 |
| 23415 | filter chip | 23415-40010 |
