Toyota COROLLA LPG化油器 — Figure 2602

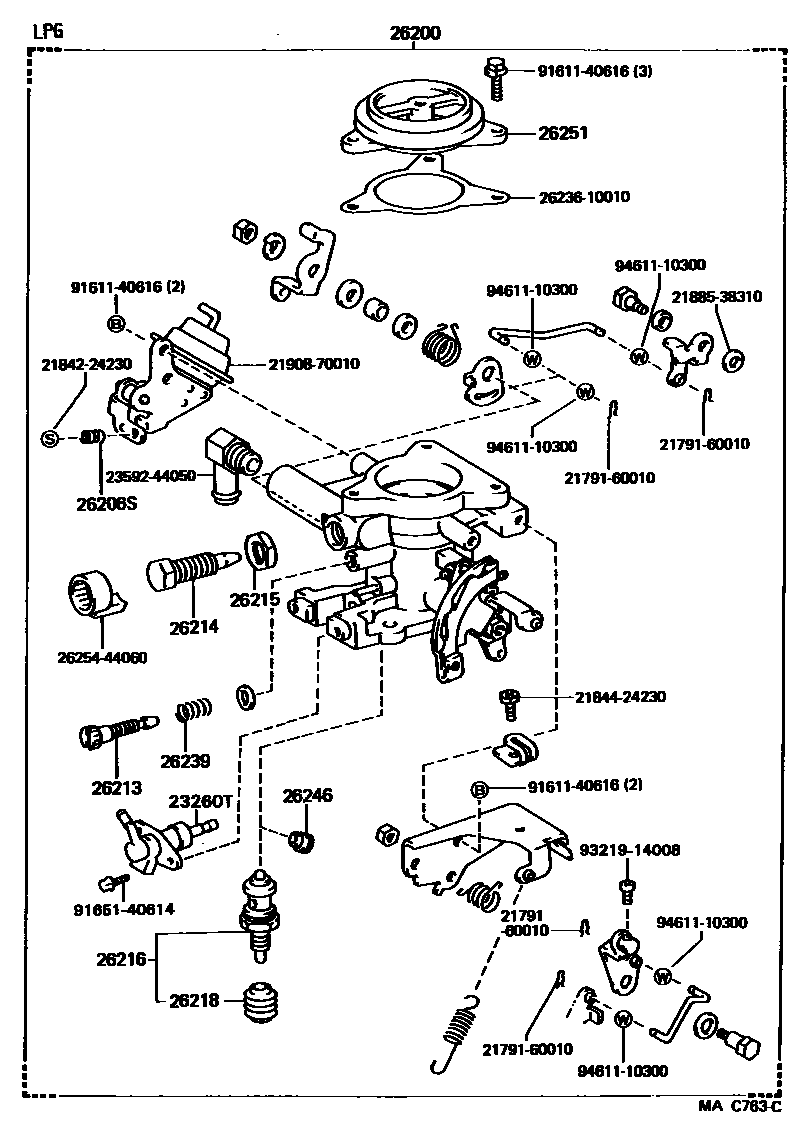

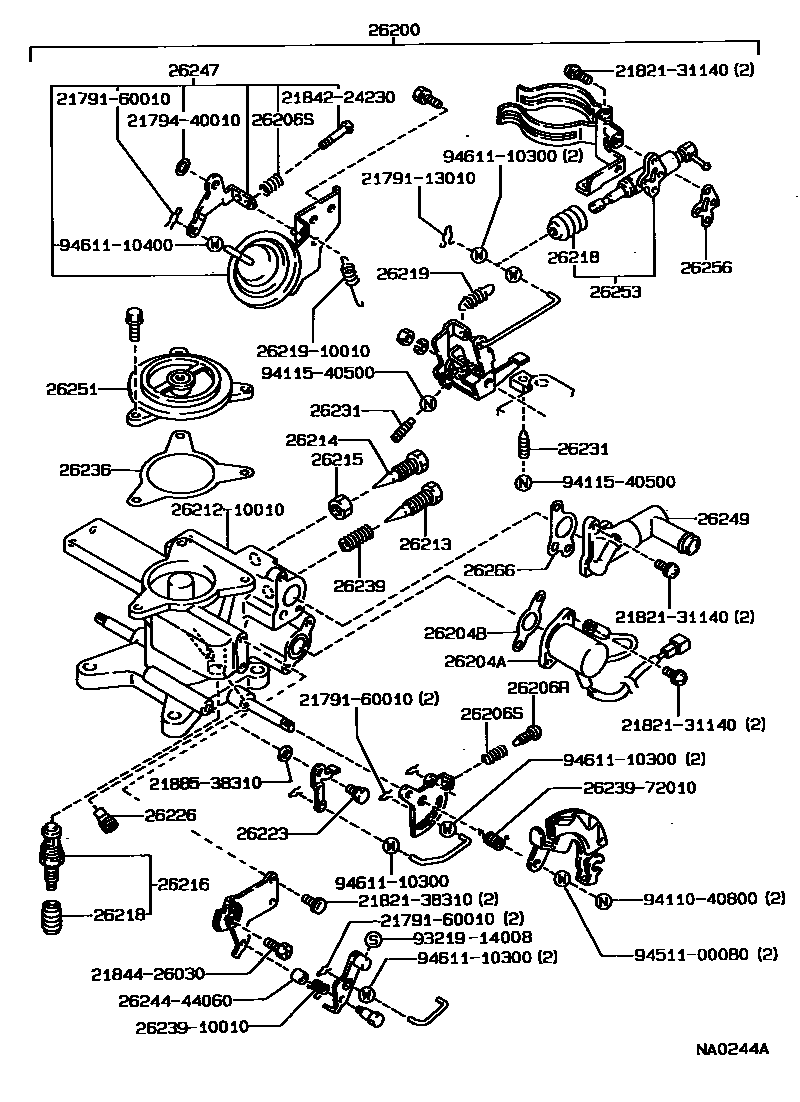

Toyota COROLLA EPC diagram 2602, LPG化油器, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23260T | LPG injector assembly | 23260-11020 |
| 26200 | LPG carburetor assembly | 26200-10010 · 26200-10011 |
| 26204A | Throttle solenoid valve (for LPG) | 26208-10010 |
| 26204B | Solenoid valve gasket (for LPG) | 26236-44020 |
| 26206R | Throttle adjustment screw (for LPG) | 21844-26030 |
| 26206S | Idle speed adjustment screw spring (for LPG) | 21723-21030 |
| 26213 | Adjustment screw | 26214-10010 · 26214-44060 |
| 26214 | Power adjustment screw | 26214-72010 |
| 26215 | Power adjustment nut | 26215-41010 |
| 26216 | enrichment valve | 26216-10010 · 26216-73010 |
| 26218 | Dust boot (for enrichment valve) | 26218-44061 |
| 26219 | Enrichment valve spring | 26219-72010 |
| 26223 | Set screw (for enrichment valve cam) | 26223-72010 |
| 26226 | Power measuring hole | 26226-31161 |
| 26231 | Screw (for LPG carburetor) | 26231-72010 |
| 26236 | Air intake bell gasket | 26236-10010 |
| 26239 | spring | 26239-44060 |
| 26246 | measuring hole | 26246-41030 |
| 26247 | Diaphragm | 26247-10010 |
| 26249 | Fuel hose connector (for LPG) | 26249-10010 |
| 26251 | Air intake bell mouth | 26251-10010 |
| 26253 | Switching valve (for idle speed) | 26253-10010 |
| 26256 | switching valve gasket | 26256-72010 |
| 26266 | Fuel inlet joint gasket | 26266-44060 |
