Toyota COROLLA carburetor assembly — Figure 2102

Toyota COROLLA EPC diagram 2102, carburetor assembly, with 3 images and 7 PNC and OE references.

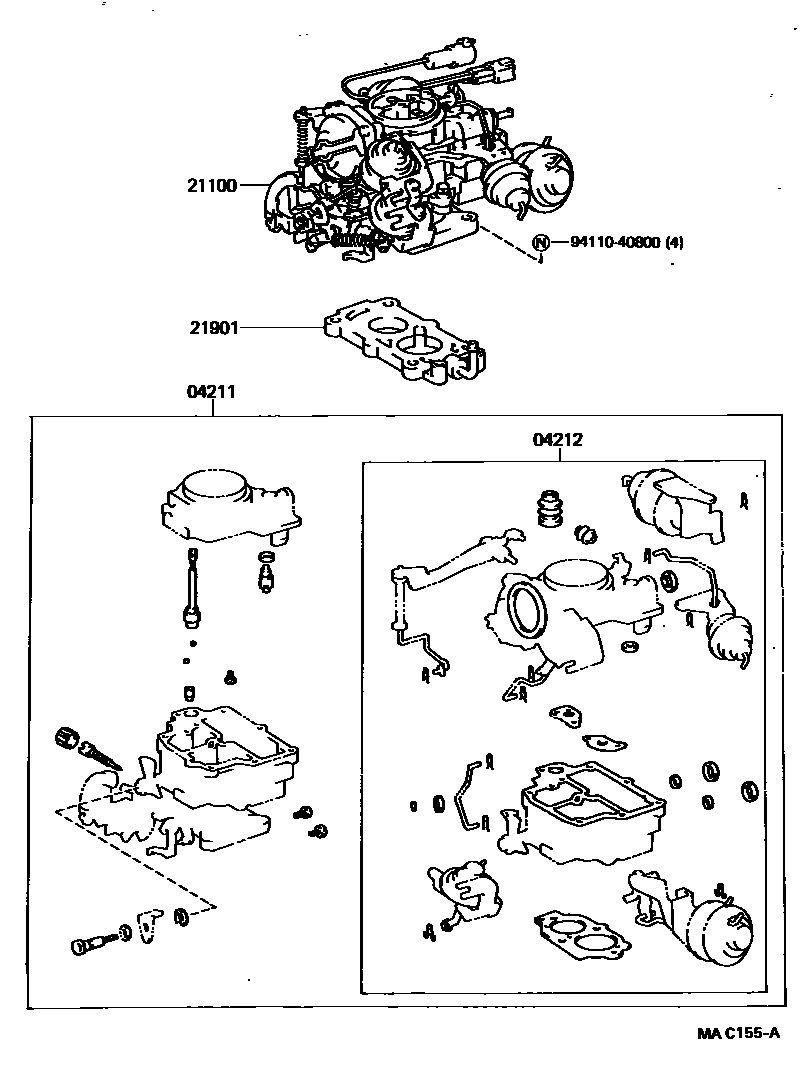

Toyota COROLLA carburetor assembly EPC diagram — MAC155A
carburetor assembly — MAC155A (198905 – 999999)

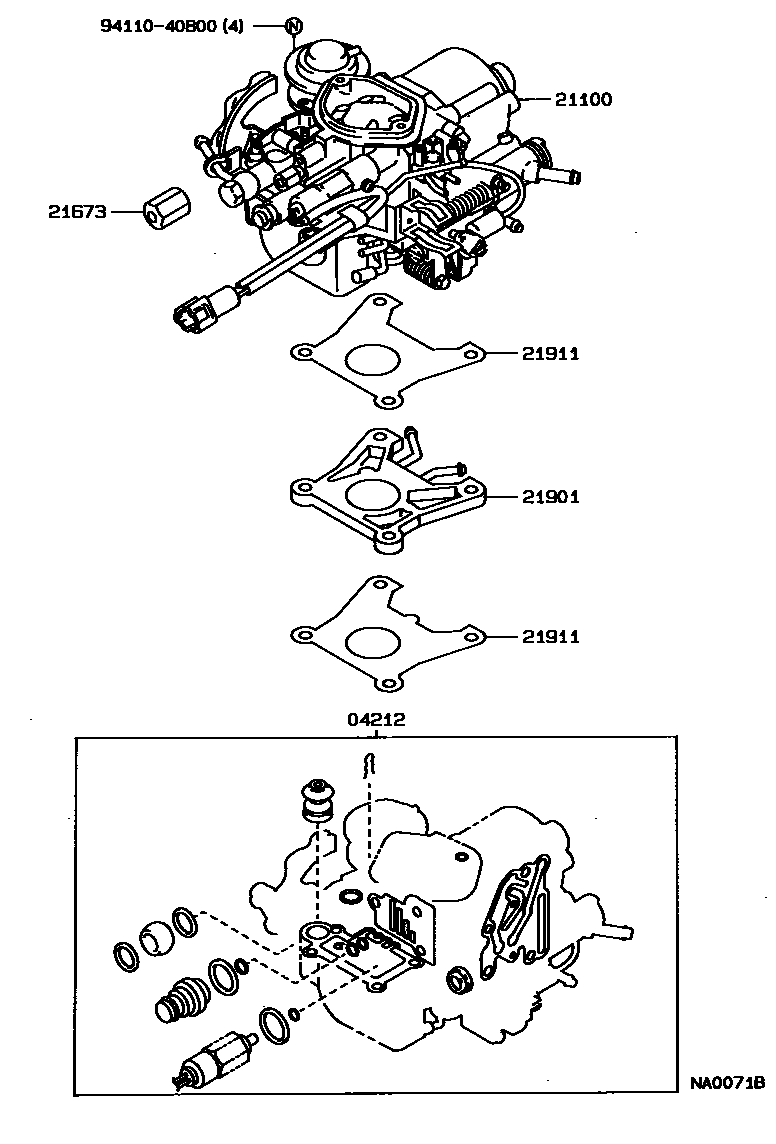

Toyota COROLLA carburetor assembly EPC diagram — NA0071B
carburetor assembly — NA0071B (198705 – 198908)

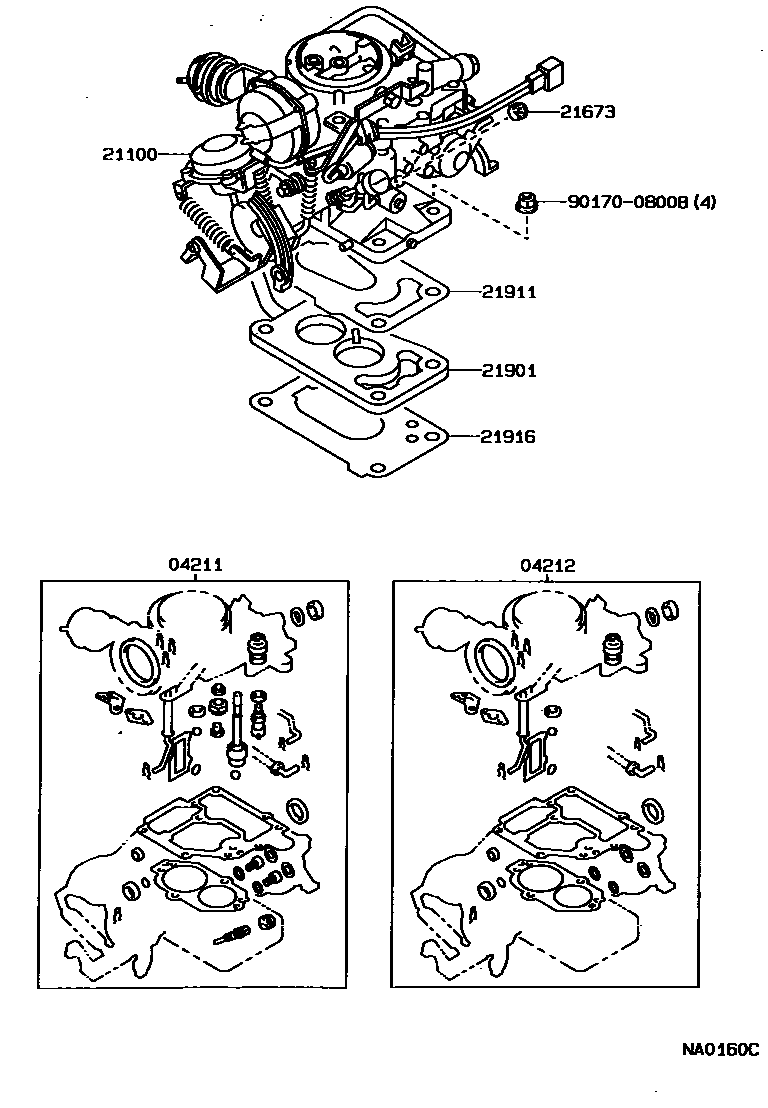

Toyota COROLLA carburetor assembly EPC diagram — NA0160C
carburetor assembly — NA0160C (198705 – 198908)

PNC and OE references

PNCPart nameOE numbers
04211carburetor components04211-11090 · 04211-11091 · 04211-15180 · 04211-15181 · 04211-16200 · 04211-16250
04212carburetor gasket assembly04212-11040 · 04212-11060 · 04212-11070 · 04212-11071 · 04212-16070
21100carburetor assembly21100-11231 · 21100-11232 · 21100-11233 · 21100-11241 · 21100-11242 · 21100-11243 · 21100-11500 · 21100-11503 · 21100-11510 · 21100-11520 · 21100-11572 · 21100-11582 · 21100-11610 · 21100-11620 · 21100-11650 · 21100-11660 · 21100-11670 · 21100-11800 · 21100-15500 · 21100-15501 · 21100-15510 · 21100-15511 · 21100-16280 · 21100-16281 · 21100-16290 · 21100-16291
21673Idle speed limit cap21673-13280
21901No. 1 carburetor heat insulation pad sub-assembly21901-11010 · 21901-11030 · 21901-11050 · 21901-11060 · 21901-15091
21911carburetor gasket21911-11020 · 21911-11030 · 21911-15071
21916No. 2 carburetor gasket21916-15040
