Toyota COROLLA 点火线圈和火花塞 — Figure 1901

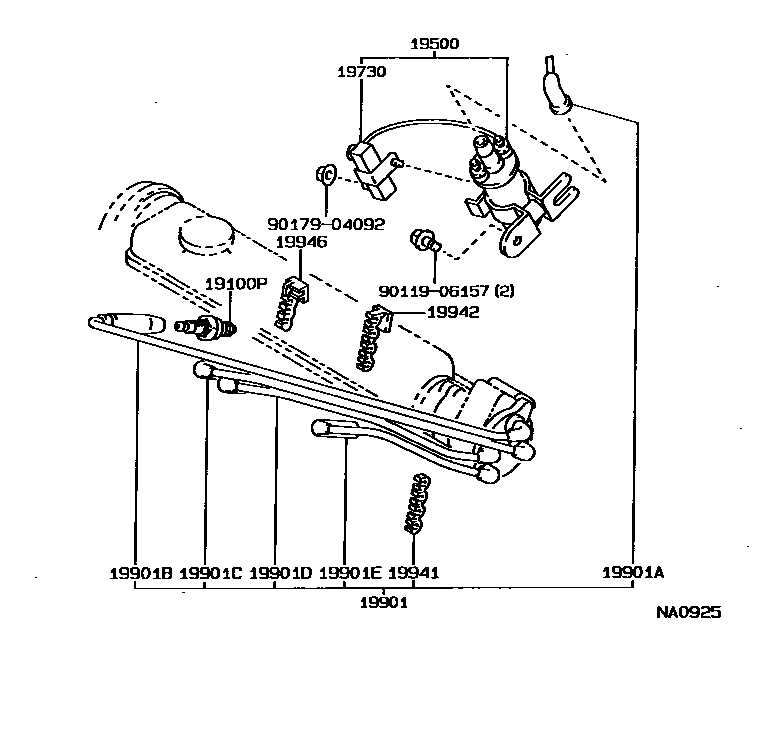

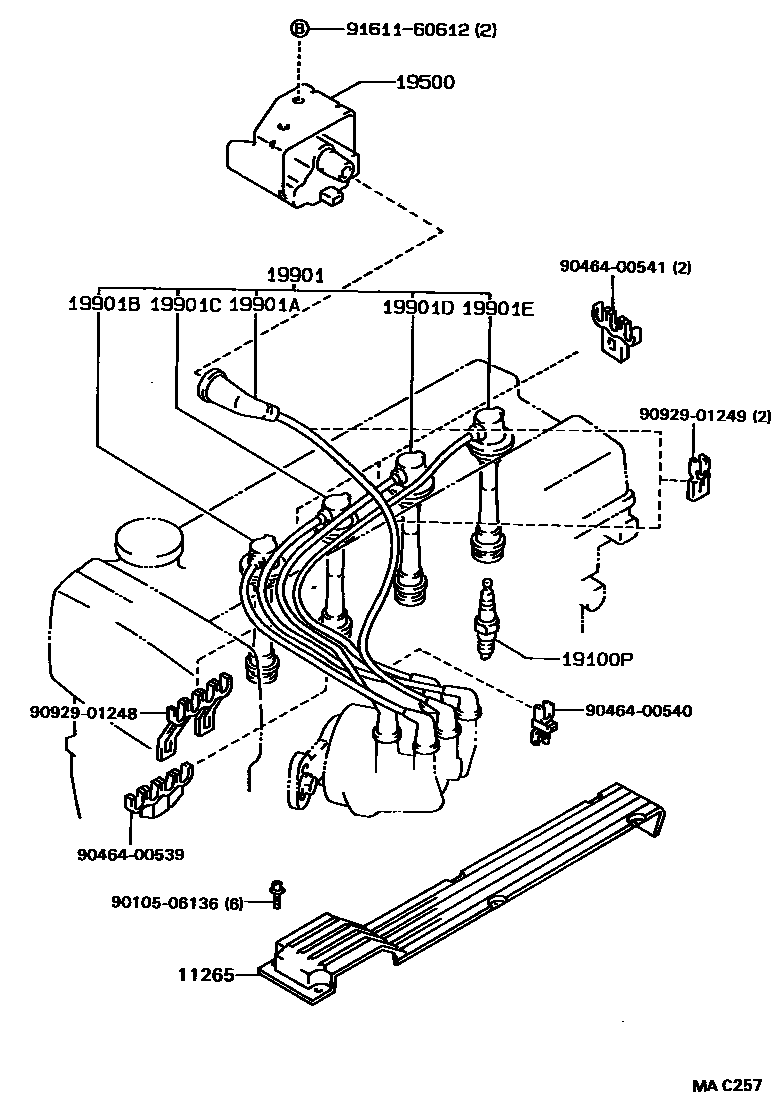

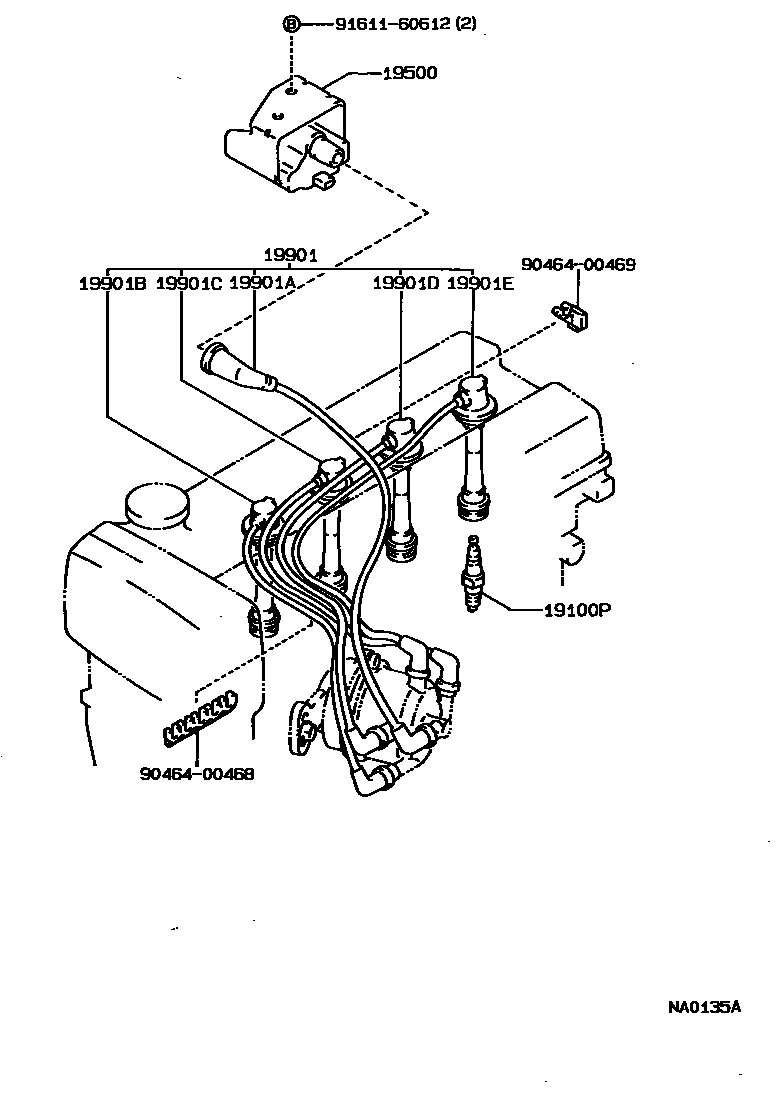

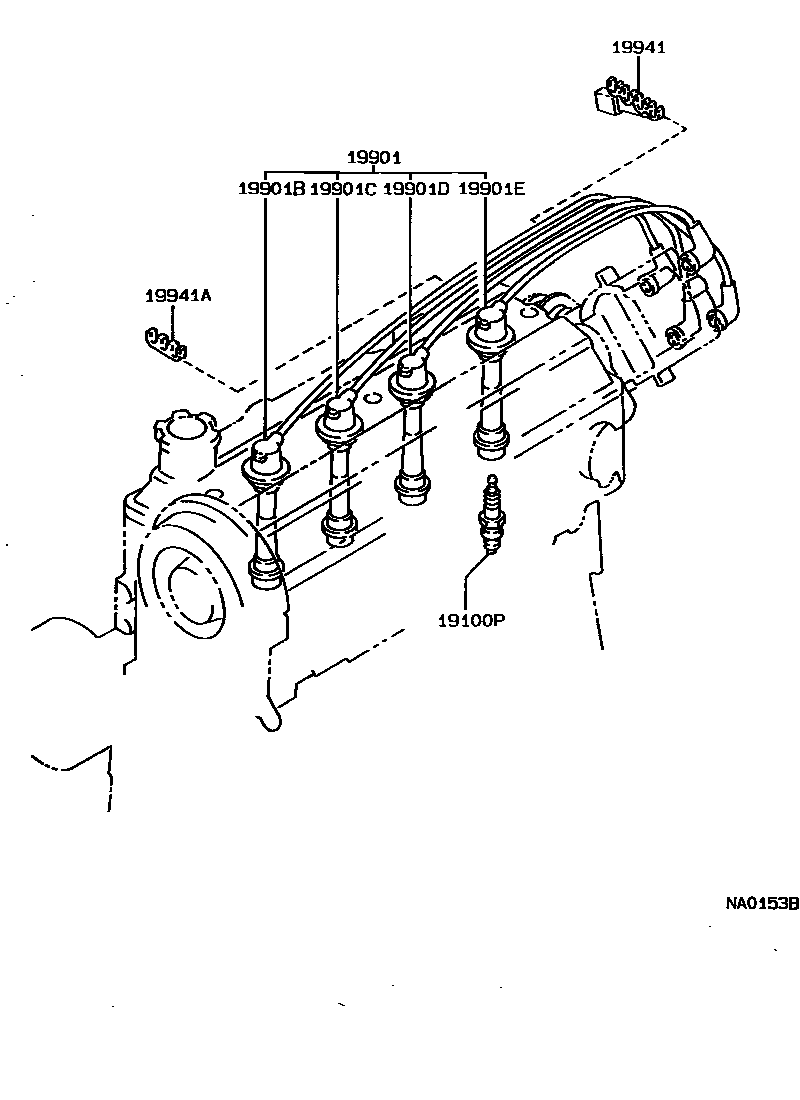

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 6 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-16010 |
| 19100P | spark plug | 90919-01059 · 90919-01091 · 90919-01094 · 90919-01104 · 90919-01121 · 90919-01122 · 90919-01153 · 90919-01159 · 90919-01180 · 90919-01181 |
| 19500 | Ignition coil assembly | 19080-16030 · 90919-02178 · 90919-02183 |
| 19730 | Ignition coil resistor | 90919-04040 |
| 19850 | Glow plug assembly | 19850-64020 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64021 · 19871-64022 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21395 · 90919-21397 · 90919-21461 · 90919-22167 · 90919-22188 · 90919-22194 · 90919-22196 · 90919-22209 · 90919-22214 · 90919-22246 · 90919-22249 · 90919-22251 · 90919-22284 |
| 19901A | coil damping line | 90919-13264 · 90919-13268 · 90919-13337 |
| 19901B | No. 1 spark plug damper wire | 90919-12606 · 90919-12699 · 90919-12707 · 90919-12715 · 90919-12778 · 90919-12791 · 90919-12912 · 90919-12929 · 90919-12982 · 90919-15058 |
| 19901C | No. 2 spark plug damper wire | 90919-12569 · 90919-12700 · 90919-12708 · 90919-12716 · 90919-12775 · 90919-12792 · 90919-12923 · 90919-12983 · 90919-15059 |
| 19901D | No. 3 spark plug damper wire | 90919-12570 · 90919-12701 · 90919-12709 · 90919-12717 · 90919-12776 · 90919-12793 · 90919-12924 · 90919-12984 · 90919-15060 |
| 19901E | No. 4 spark plug damper wire | 90919-12571 · 90919-12694 · 90919-12702 · 90919-12718 · 90919-12777 · 90919-12794 · 90919-12921 · 90919-12985 · 90919-15061 |
| 19941 | No. 1 damping wire clip | 90464-00358 · 90464-00490 · 90929-01165 · 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 |
| 19942 | No. 2 damping wire clip | 90464-00372 |
| 19946 | No. 3 impedance wire clip | 90464-00404 |
