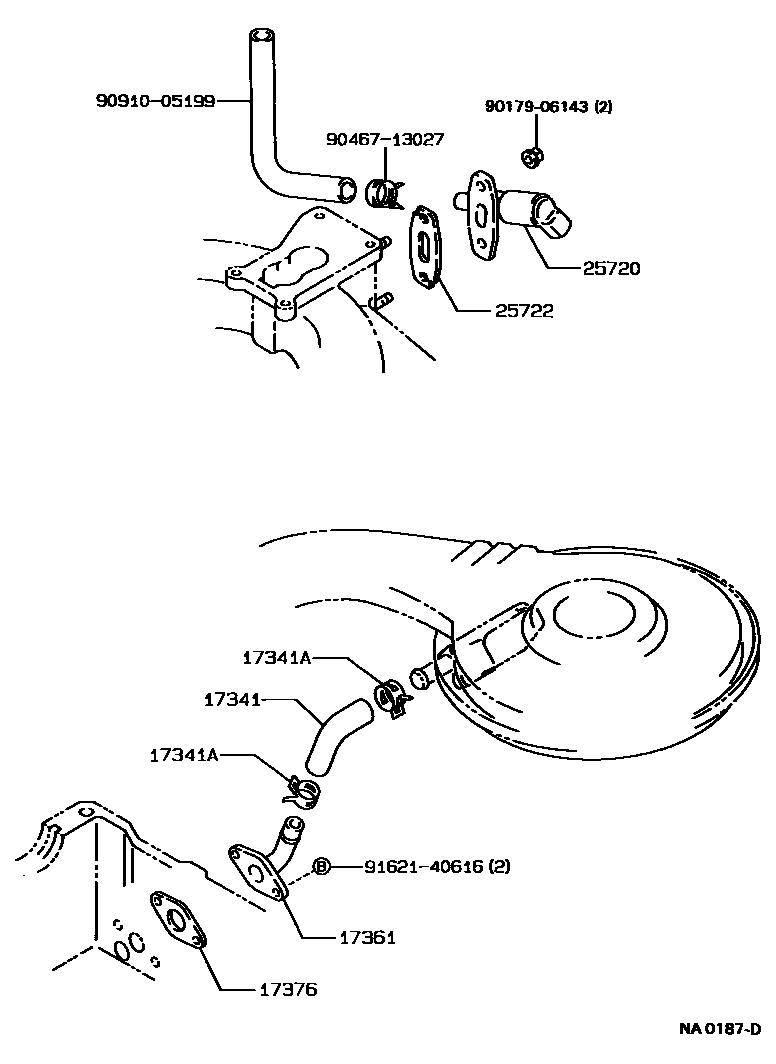

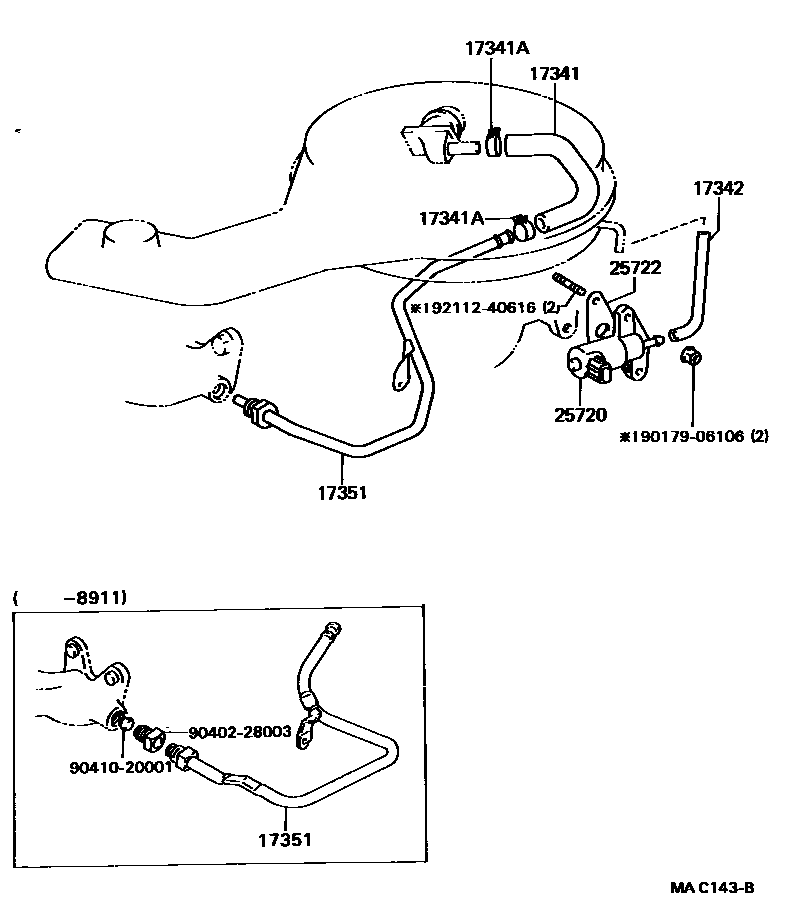

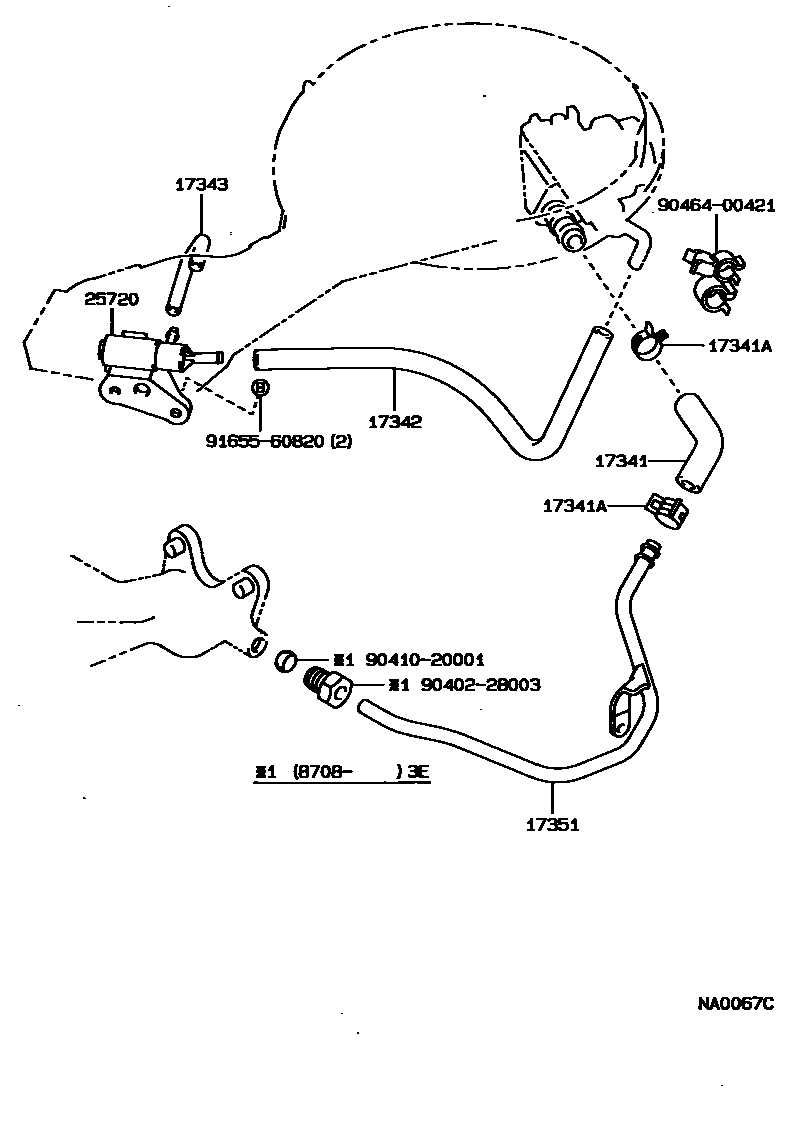

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 17341-11011 · 17341-11012 · 17341-11020 · 17341-11021 · 17341-11120 · 17341-15140 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-20005 · 90467-26002 · 90467-26004 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-11030 · 17342-11031 · 17342-11090 |
| 17343 | No. 3 hose (for air injection system) | 17343-11050 |
| 17351 | jet manifold | 17306-11010 · 17306-11041 · 17306-11050 · 17306-11090 |
| 17361 | air tube | 17361-15080 |
| 17376 | Air tube gasket No. 1 | 17376-15020 |
| 25720 | Electronic air control valve assembly | 25720-11030 · 25720-11080 · 25720-15060 |
| 25722 | Electronic air control valve gasket | 25722-11010 · 25722-15020 |
