Toyota COROLLA Air Cleaner — Figure 1703

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 12 images and 27 PNC and OE references.

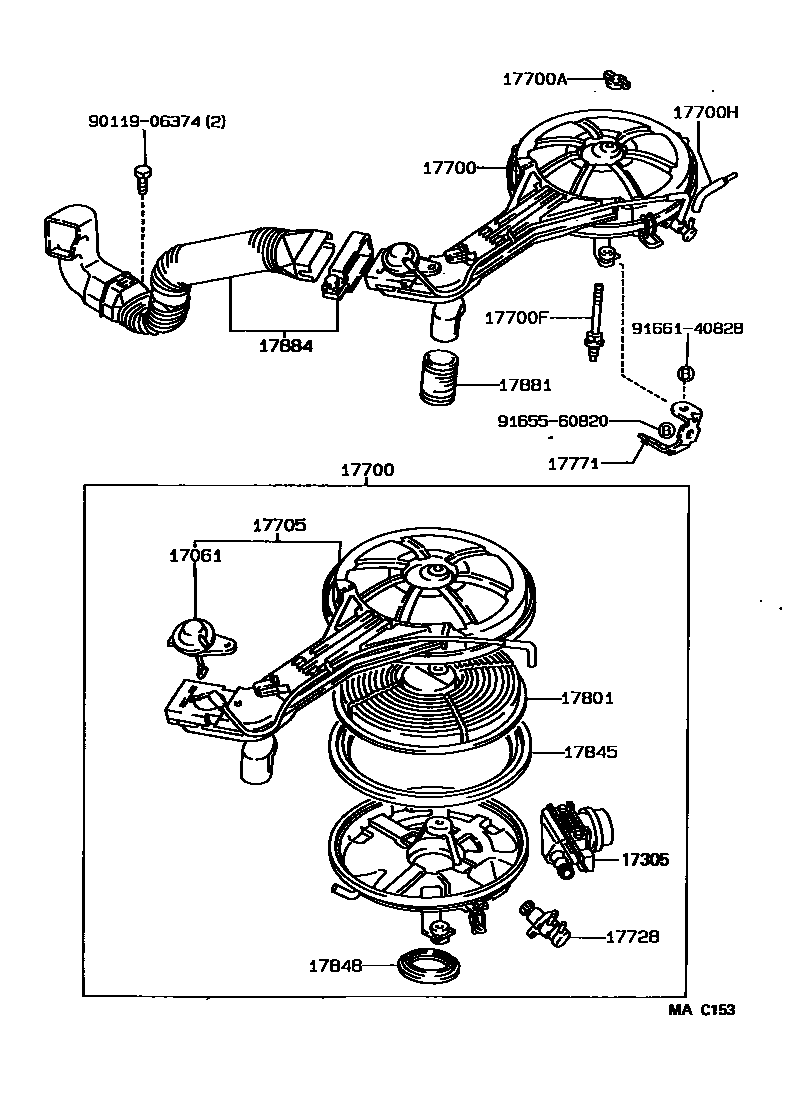

Toyota COROLLA Air Cleaner EPC diagram — MAC153
Air Cleaner — MAC153 (198905 – 999999)

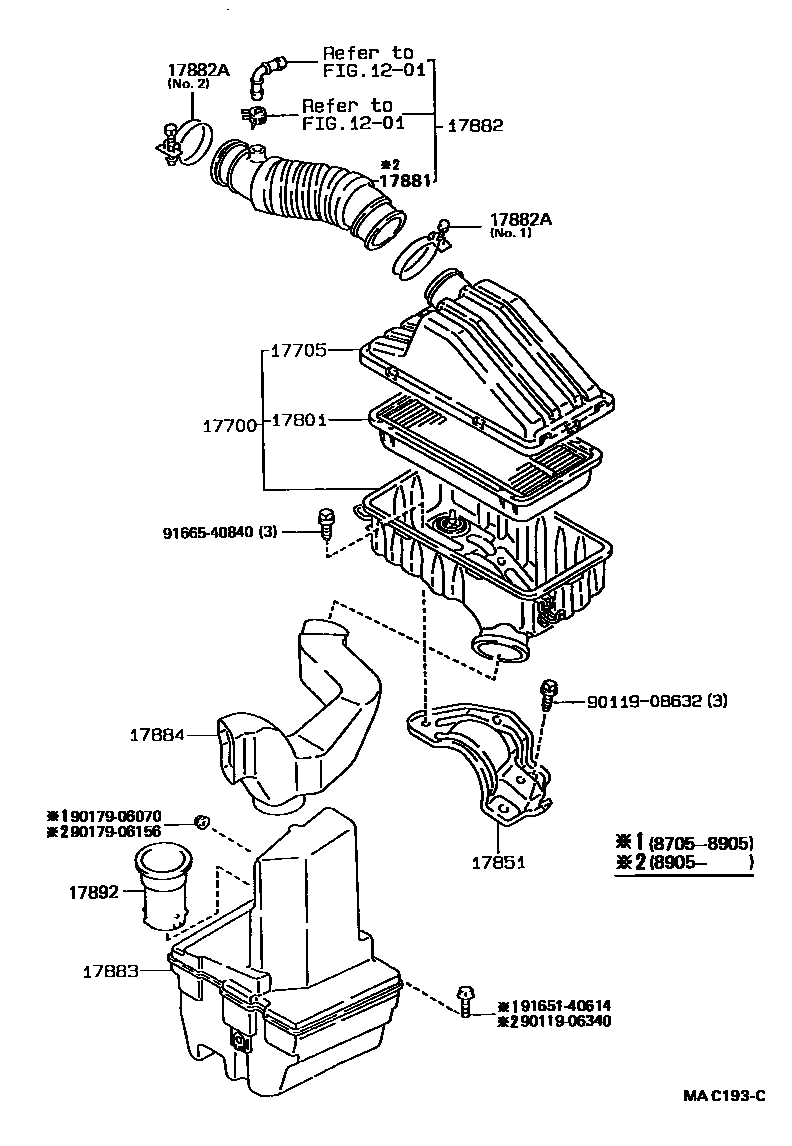

Toyota COROLLA Air Cleaner EPC diagram — MAC193C
Air Cleaner — MAC193C (198705 – 999999)

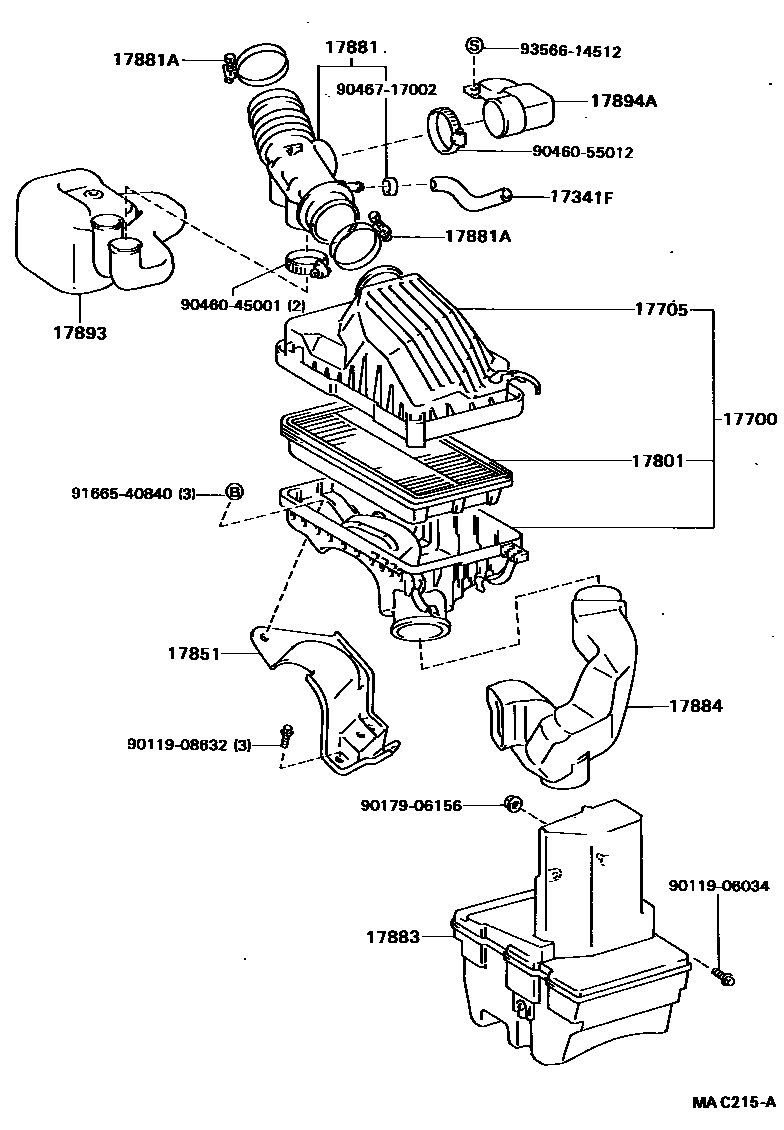

Toyota COROLLA Air Cleaner EPC diagram — MAC215A
Air Cleaner — MAC215A (198905 – 999999)

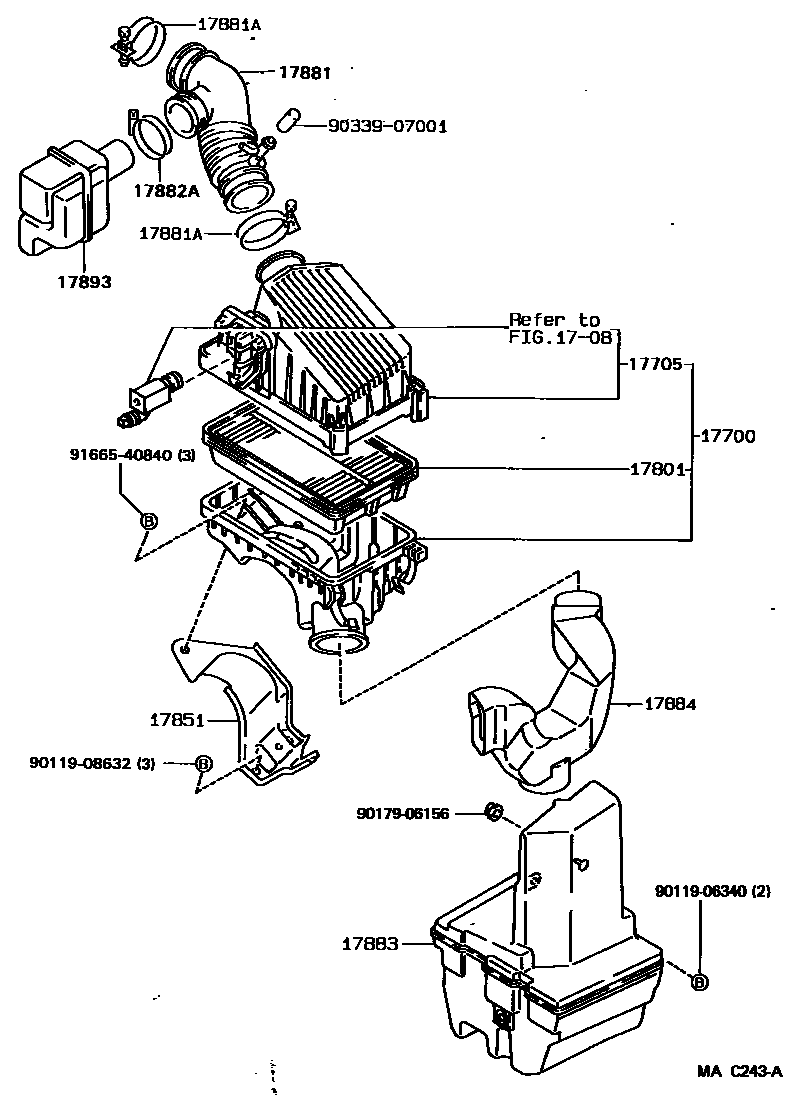

Toyota COROLLA Air Cleaner EPC diagram — MAC243A
Air Cleaner — MAC243A (198905 – 999999)

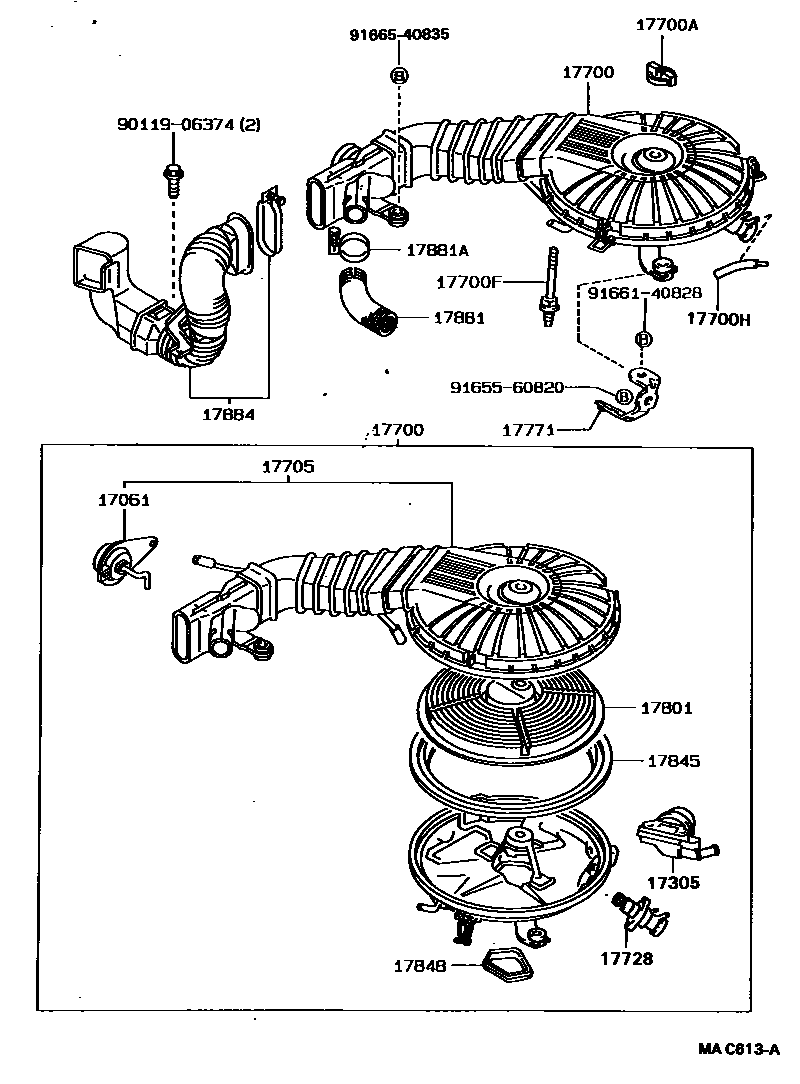

Toyota COROLLA Air Cleaner EPC diagram — MAC613A
Air Cleaner — MAC613A (198908 – 999999)

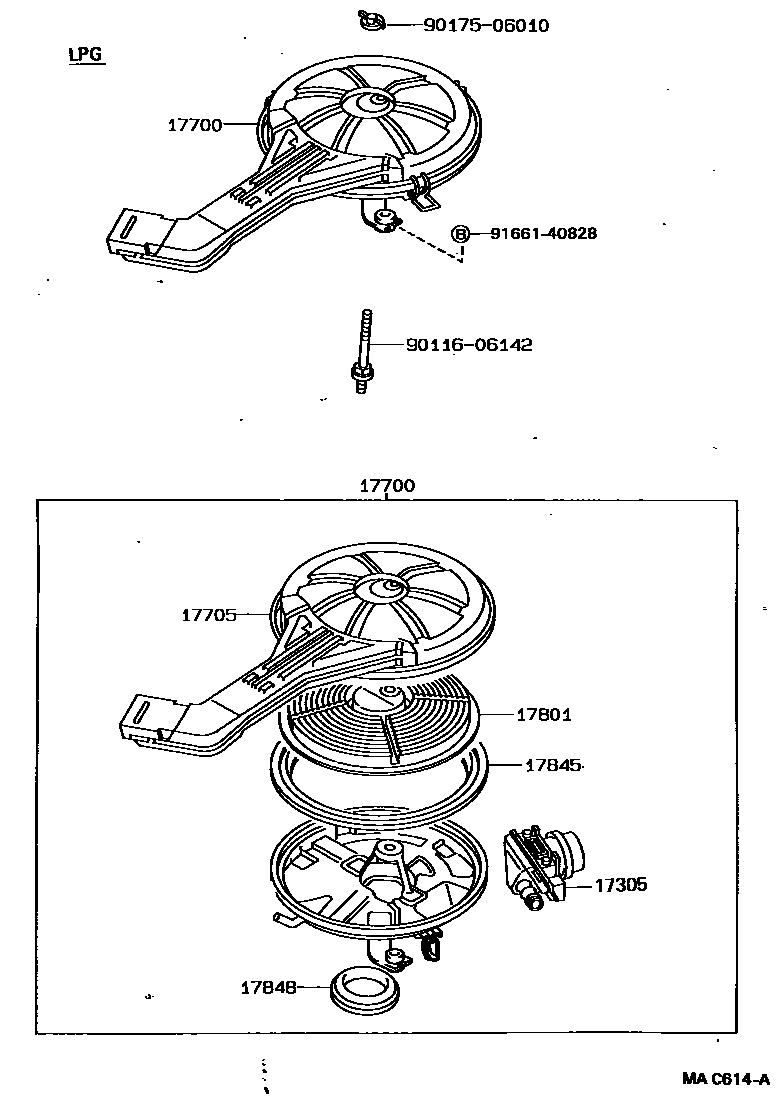

Toyota COROLLA Air Cleaner EPC diagram — MAC614A
Air Cleaner — MAC614A (198908 – 999999)

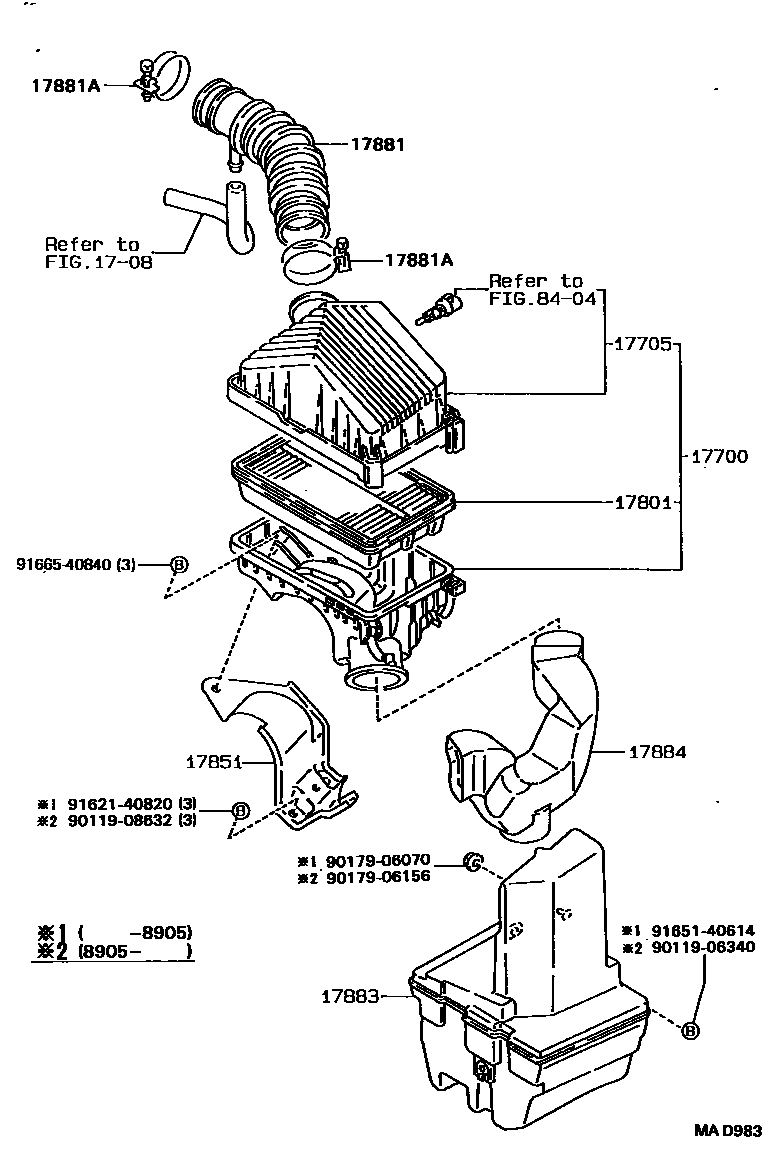

Toyota COROLLA Air Cleaner EPC diagram — MAD983
Air Cleaner — MAD983 (198705 – 999999)

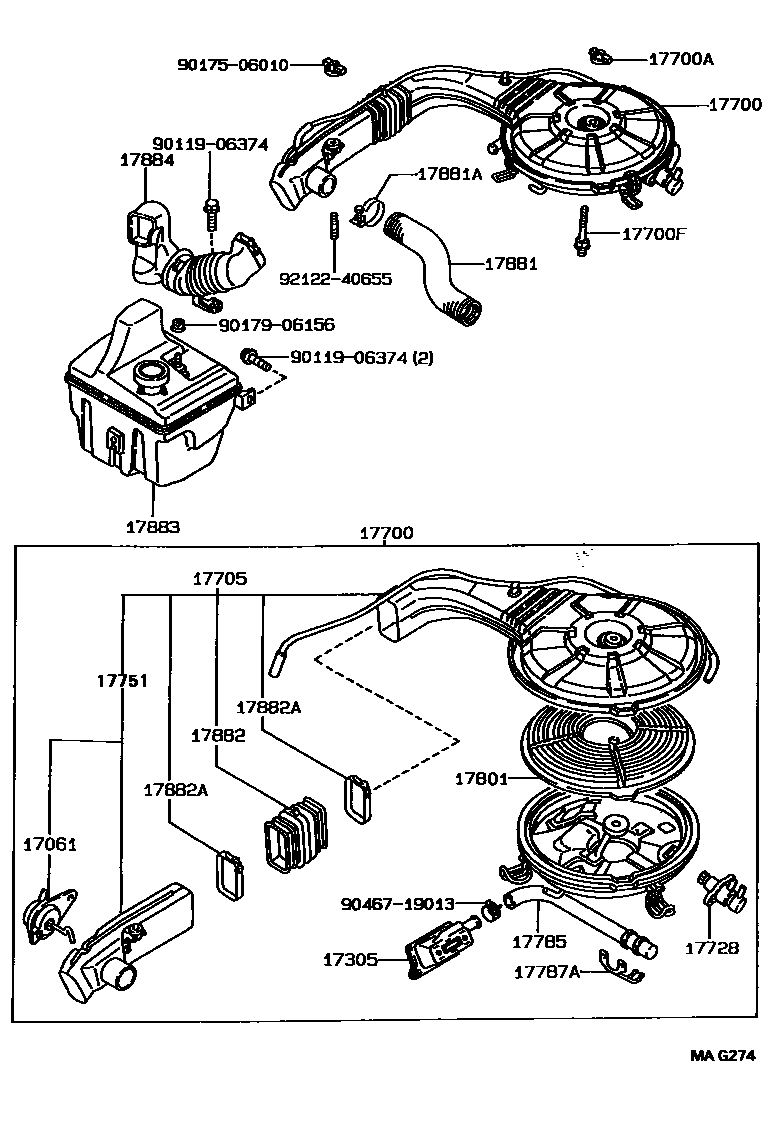

Toyota COROLLA Air Cleaner EPC diagram — MAG274
Air Cleaner — MAG274 (198705 – 198908)

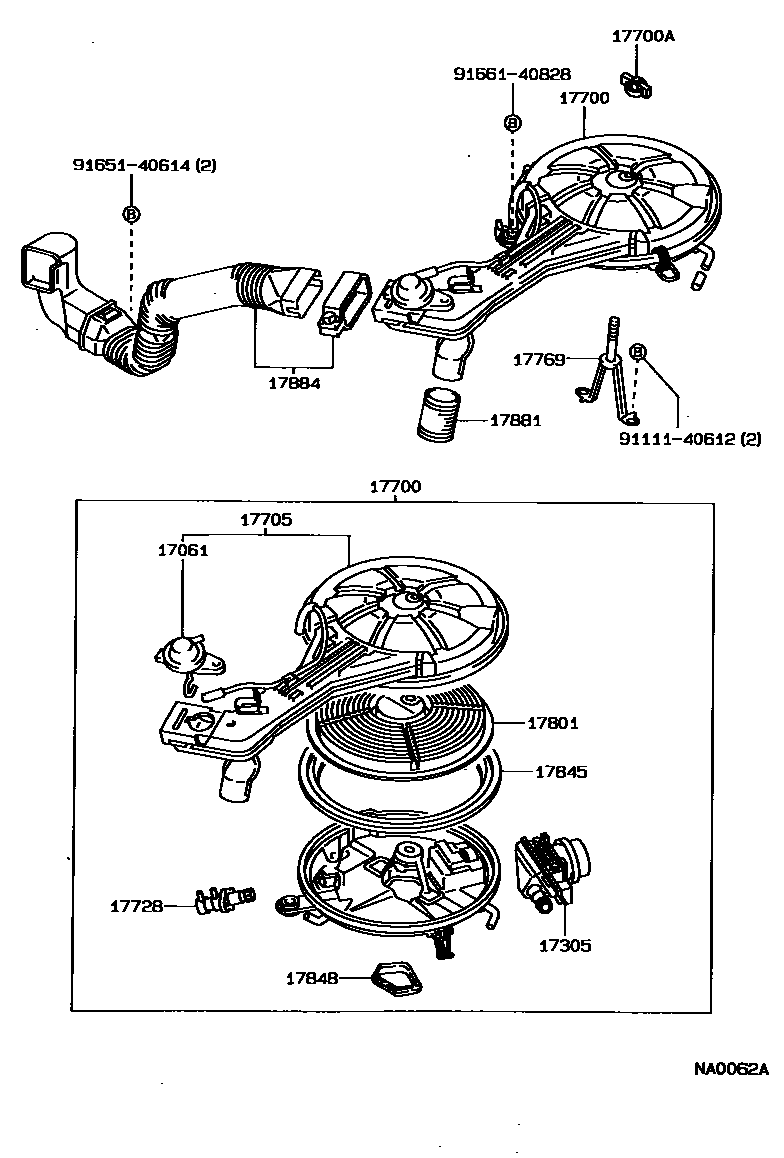

Toyota COROLLA Air Cleaner EPC diagram — NA0062A
Air Cleaner — NA0062A (198705 – 198905)

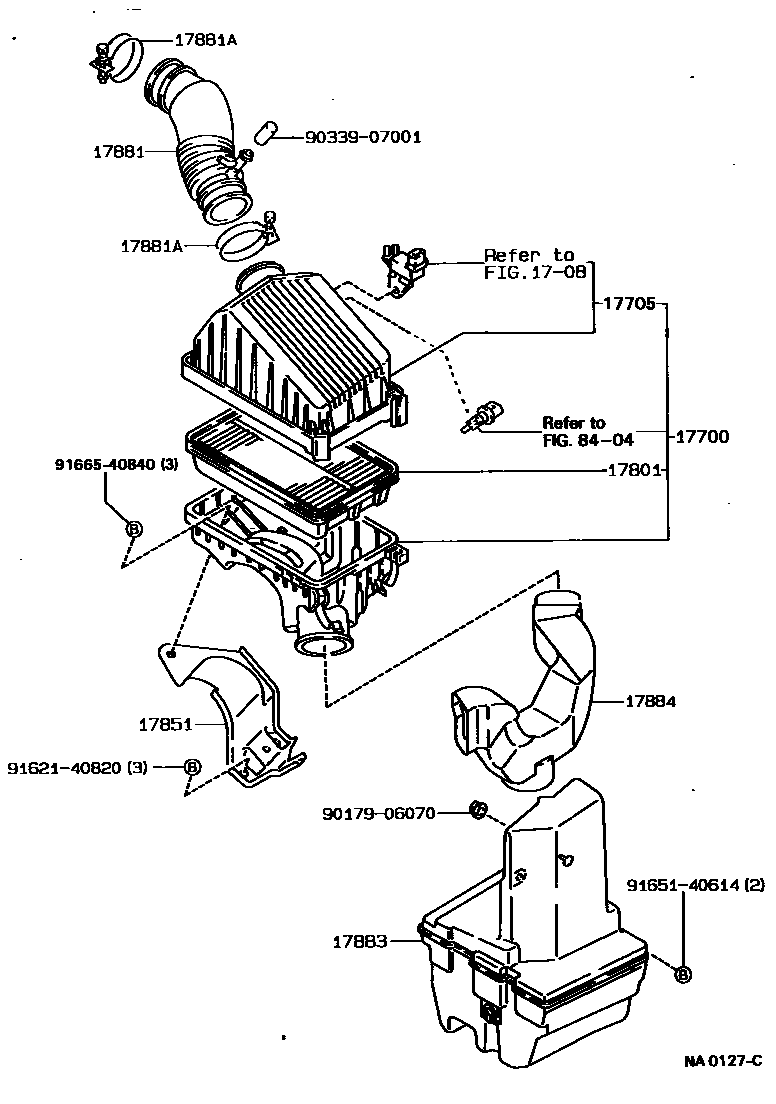

Toyota COROLLA Air Cleaner EPC diagram — NA0127C
Air Cleaner — NA0127C (198705 – 198905)

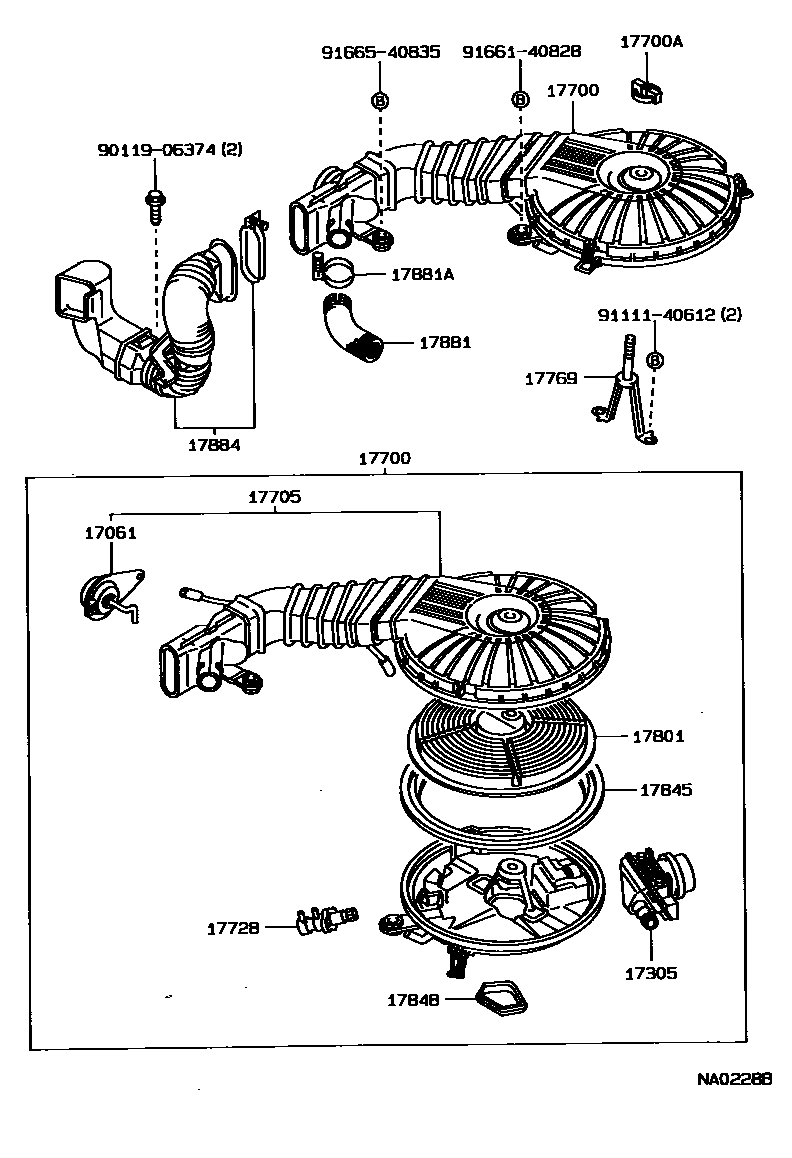

Toyota COROLLA Air Cleaner EPC diagram — NA0228B
Air Cleaner — NA0228B (198708 – 198908)

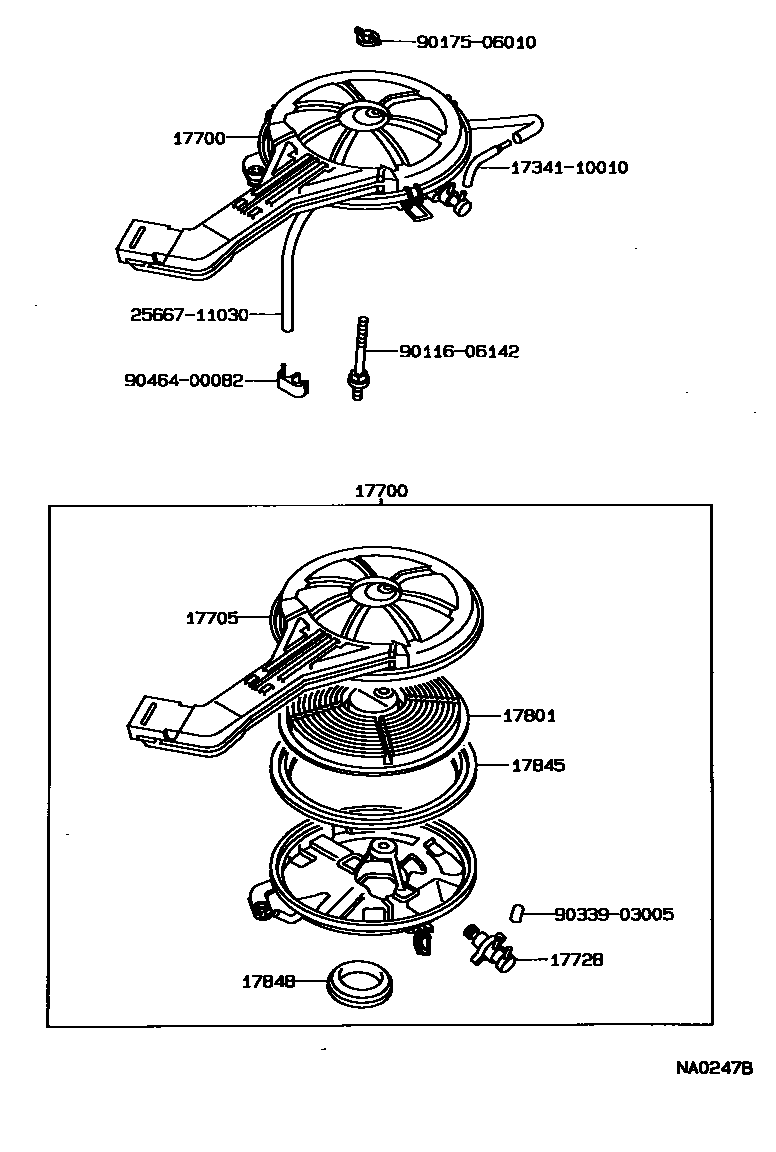

Toyota COROLLA Air Cleaner EPC diagram — NA0247B
Air Cleaner — NA0247B (198708 – 198908)

PNC and OE references

PNCPart nameOE numbers
17061Diaphragm sub-assembly17061-10010 · 17061-11010 · 17061-11030 · 17061-15040
17305Reed valve sub-assembly17350-11011 · 17350-11012 · 17350-11020 · 17350-11021 · 17350-11050 · 17350-15100 · 17350-15110
17341FAir hose No. 117341-15160
17700air filter assembly17700-10110 · 17700-10111 · 17700-11350 · 17700-11351 · 17700-11410 · 17700-11420 · 17700-11421 · 17700-11460 · 17700-11560 · 17700-11570 · 17700-15240 · 17700-15250 · 17700-16370 · 17700-16640 · 17700-16680 · 17700-64220 · 17700-64240 · 17700-64250
17700AWing nut (for air cleaner)90175-06010
17700FStud bolt (for securing air filter)90116-06018 · 90116-06142 · 90116-06230
17700Hair hose17341-10010
17705Air filter cover sub-assembly17705-10090 · 17705-11170 · 17705-11300 · 17705-11360 · 17705-11410 · 17705-15140 · 17705-15150 · 17705-16160 · 17705-16320 · 17705-16360 · 17705-64110 · 17705-64130 · 17705-64140
17728thermostat valve17728-11030 · 17728-11050 · 17728-11060 · 17728-15080
17751No. 1 air filter air inlet17751-15010
17769air filter bracket17769-11010 · 17769-11020
17771Air filter inlet pipe bracket17771-11020 · 17771-11080
17785Air filter silencer pad17785-15010
17787AAir filter muffler pad bracket17787-15010
17801Air filter element sub-assembly17801-10030 · 17801-11030 · 17801-15060 · 17801-16020 · 17801-64010 · 17801-64040 · 17801-74020
17845air cleaner cover gasket17845-10020
17848Gasket from air cleaner to carburetor17848-10021 · 17848-15010
17851air filter bracket17851-15010 · 17851-64010 · 17851-64020
17881No. 1 air cleaner hose17881-10030 · 17881-10031 · 17881-10032 · 17881-11160 · 17881-15120 · 17881-15130 · 17881-15150 · 17881-15160 · 17881-16130 · 17881-16240 · 17881-64200 · 17881-64210
17881AClamp (for No. 1 air cleaner hose)90460-73005 · 90460-80001 · 90460-80002 · 96111-10460 · 96111-10730 · 96111-10800
17882No. 2 air cleaner hose17880-64060 · 17880-64150 · 17880-64170 · 17881-15140
17882AClamp (for No. 2 air cleaner hose)17786-15010 · 90460-58003 · 96111-10560 · 96111-10650
17883No. 3 air cleaner hose17883-16030 · 17883-16031 · 17883-16040 · 17883-16041
17884No. 4 air cleaner hose17880-10030 · 17880-14070 · 17880-14080 · 17880-16010 · 17882-16100 · 17882-16130 · 17882-64050
17892Intake resonator hose17892-64010
17893Intake resonator17893-15010 · 17893-15020 · 17893-16040
17894ANo. 2 intake resonator17894-15010
