Toyota COROLLA Exhaust Pipe — Figure 1702

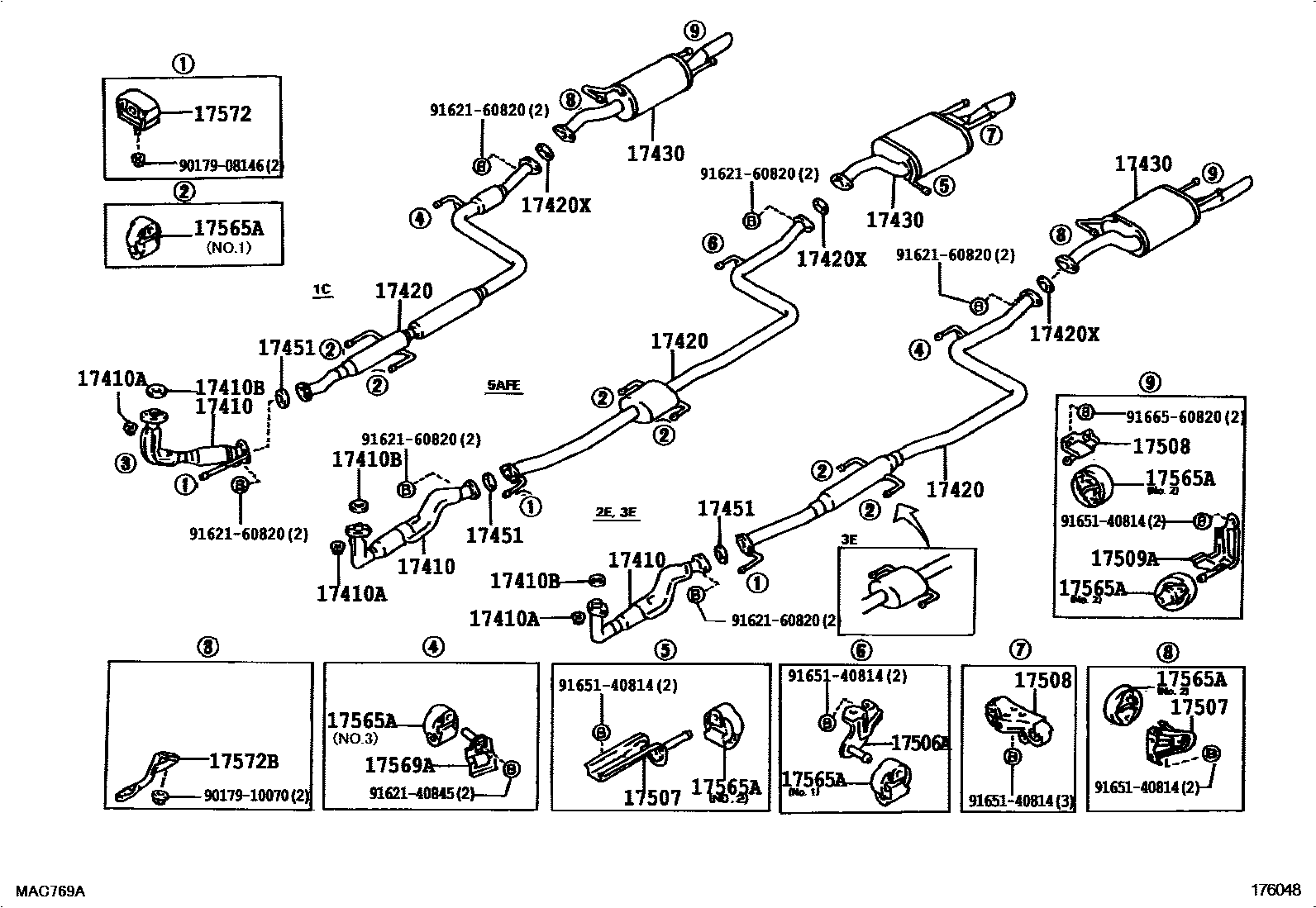

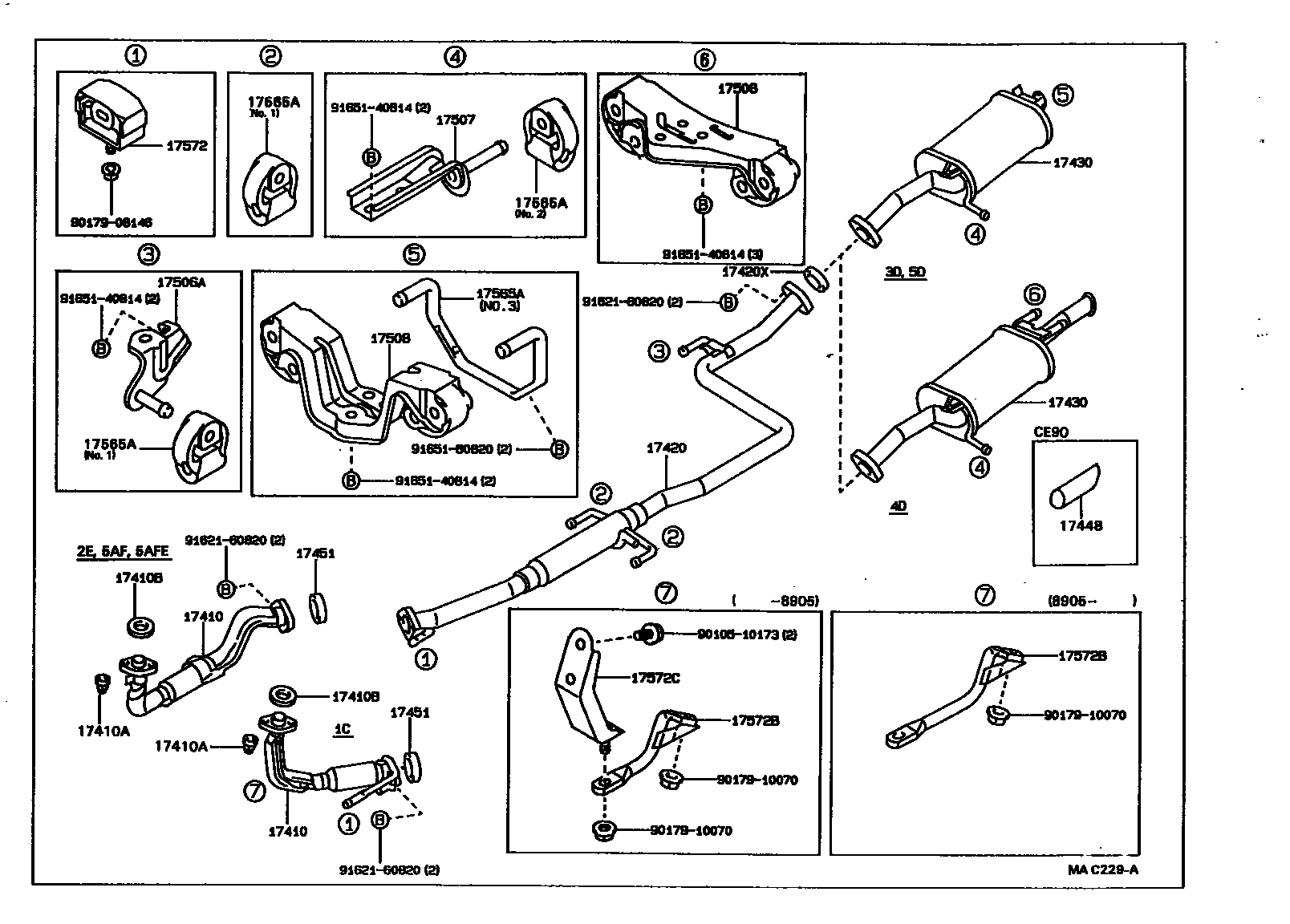

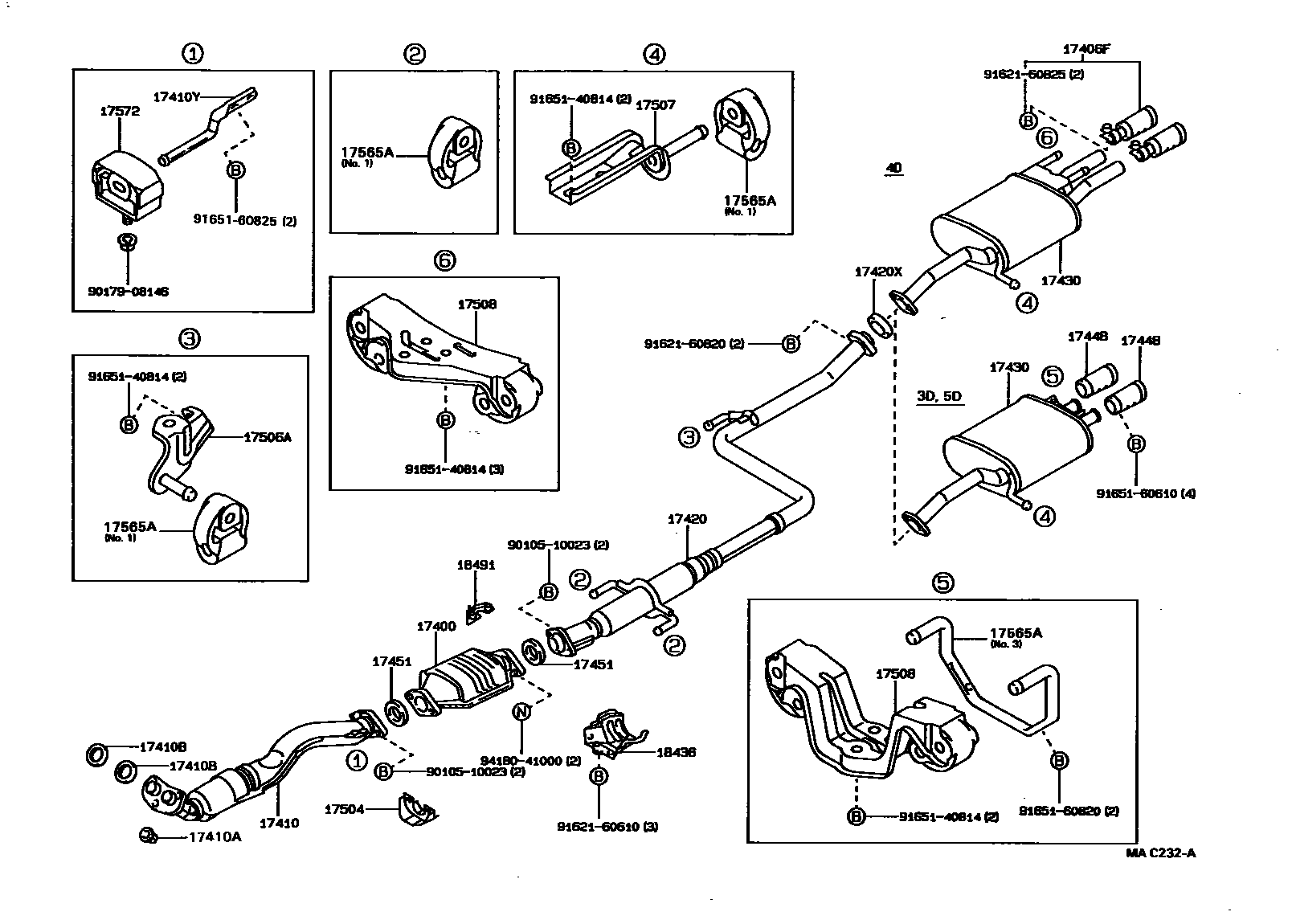

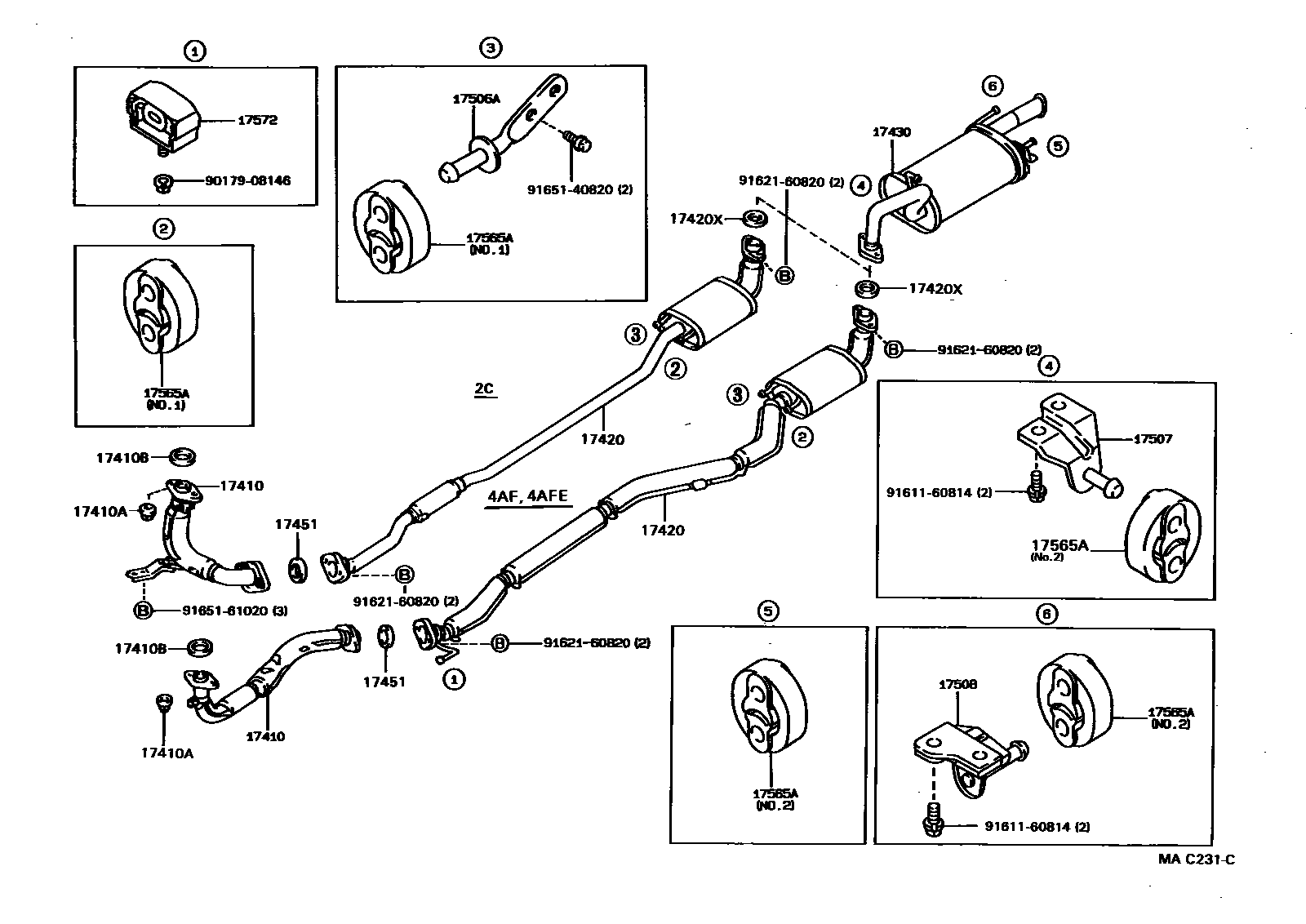

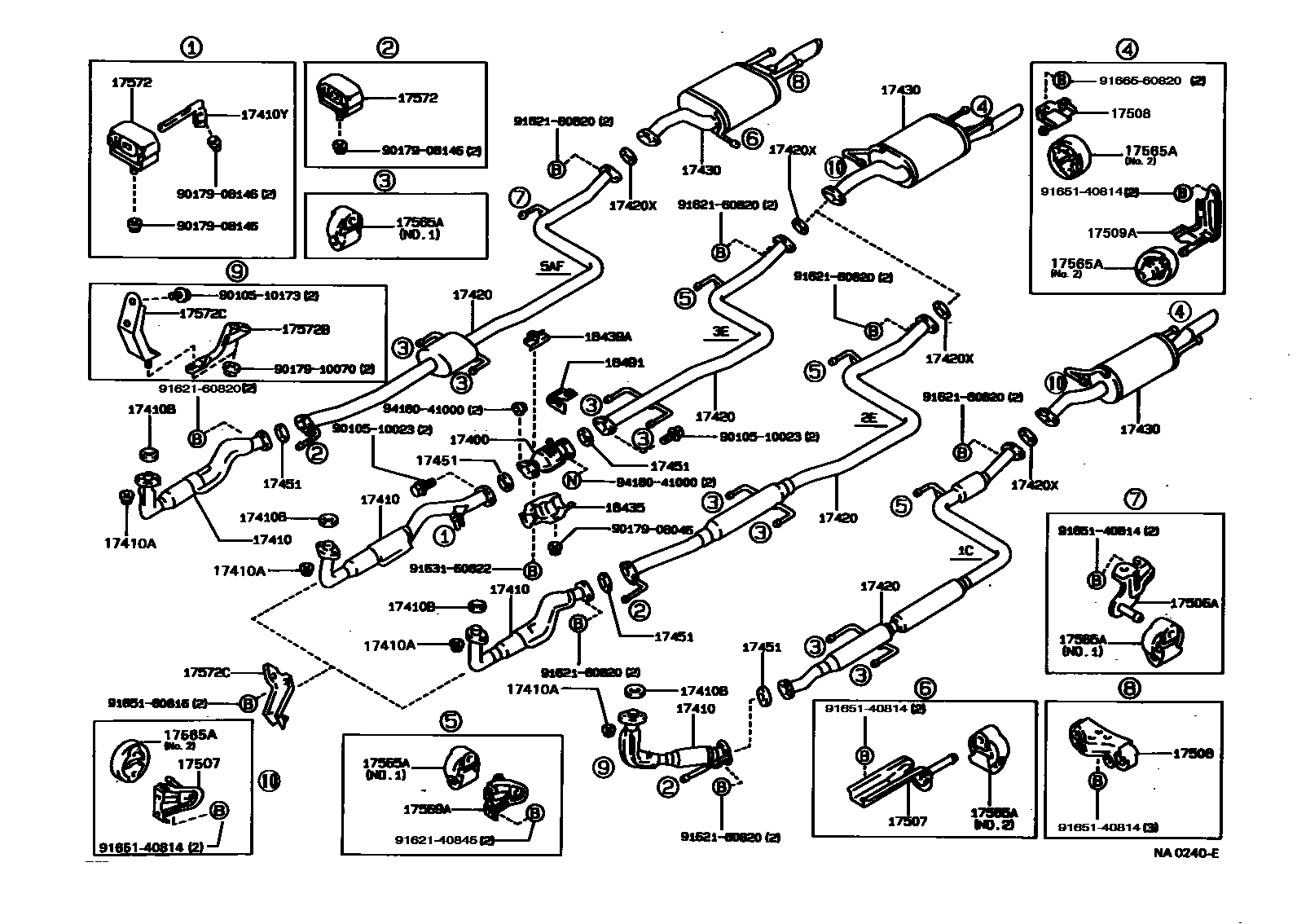

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-11070 · 18450-16240 · 18450-16410 |
| 17406F | Exhaust diffuser sub-assembly | 17406-19015 · 17406-19025 |
| 17410 | Front exhaust pipe assembly | 17410-11310 · 17410-11320 · 17410-11450 · 17410-15240 · 17410-15241 · 17410-16350 · 17410-16540 · 17410-64270 · 17410-64400 · 17410-64401 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06004 · 90917-06039 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17561-16130 · 17561-16140 |
| 17420 | Central exhaust pipe assembly | 17420-11050 · 17420-11060 · 17420-11061 · 17420-11090 · 17420-11140 · 17420-15110 · 17420-16100 · 17420-16180 · 17420-16181 · 17420-16380 · 17420-16420 · 17420-64090 · 17420-64091 · 17420-64100 · 17420-64101 · 17420-64110 |
| 17420X | Center exhaust pipe liner | 90917-06001 · 90917-06004 · 90917-06012 · 90917-06038 · 90917-06039 · 90917-06047 · 90917-06060 |
| 17430 | Exhaust tailpipe assembly | 17430-11170 · 17430-11180 · 17430-11220 · 17430-11230 · 17430-11231 · 17430-11320 · 17430-11321 · 17430-11330 · 17430-15370 · 17430-15380 · 17430-15400 · 17430-15420 · 17430-15450 · 17430-15470 · 17430-15490 · 17430-16350 · 17430-16360 · 17430-16510 · 17430-16680 · 17430-16690 · 17430-16700 · 17430-16710 · 17430-16730 · 17430-16840 · 17430-64450 · 17430-64570 |
| 17448 | Exhaust pipe tail throat | 17448-16010 · 17448-19015 · 17448-19025 · 17448-64010 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06020 · 90917-06039 · 90917-06044 · 90917-06047 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-16020 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15050 · 17506-16040 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-11030 · 17507-15030 · 17507-16020 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-11020 · 17508-15030 · 17508-15040 · 17508-16040 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-11020 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15040 · 17565-15050 · 17565-15070 · 17565-15110 · 17565-63030 · 17565-63071 |
| 17569A | Exhaust pipe support plate | 17569-11010 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 17572B | No. 2 exhaust pipe bracket | 17572-64120 |
| 17572C | Front exhaust pipe bracket (for front) | 17571-11110 · 17571-64130 |
| 18435 | Three-way catalytic converter protection device | 18407-15030 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-63010 |
| 18439A | Three-way catalytic converter protection device right bracket | 18439-15030 |
| 18491 | Thermal sensor air inlet flange | 18491-16010 · 18491-63010 · 18491-72010 |
