Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 4 images and 11 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 150460
Oil Filter — 150460 (198705 – 999999)

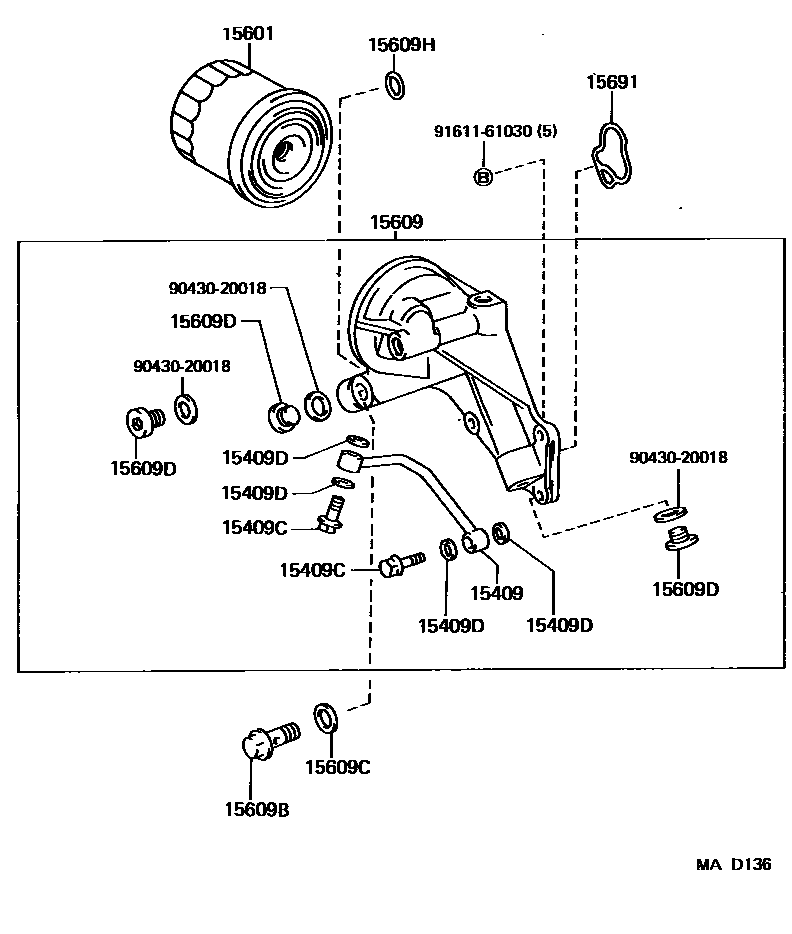

Toyota COROLLA Oil Filter EPC diagram — MAD136
Oil Filter — MAD136 (198910 – 999999)

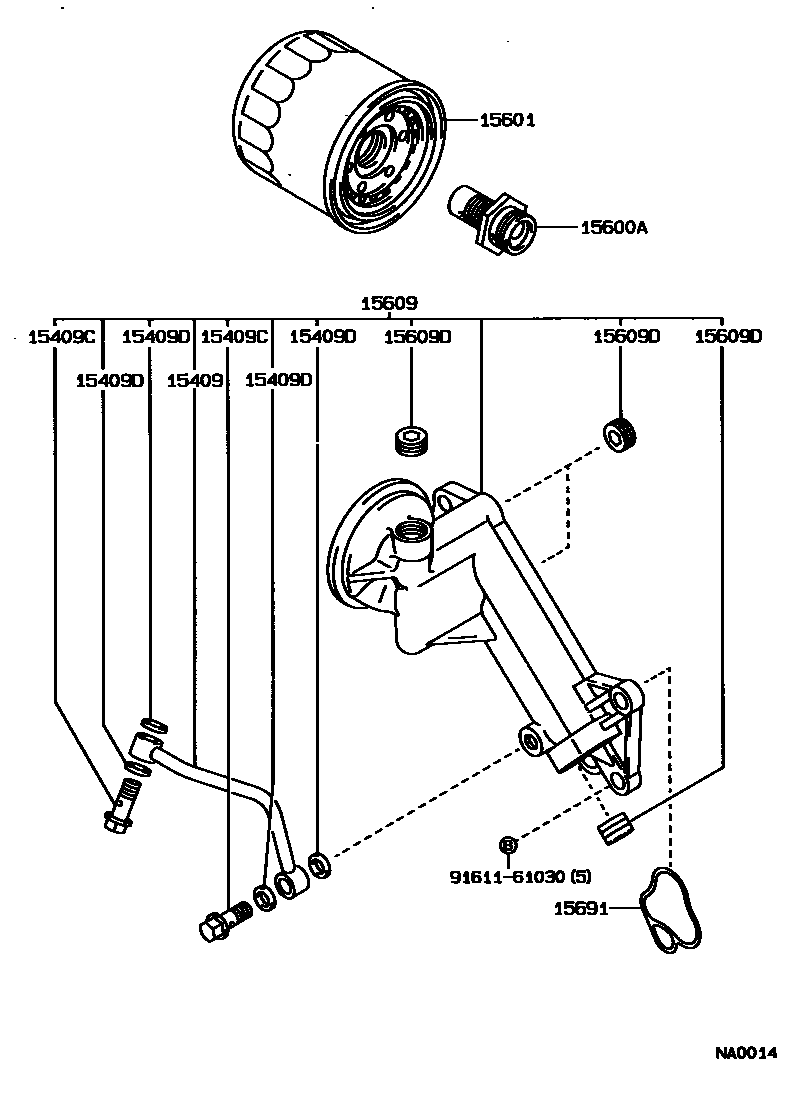

Toyota COROLLA Oil Filter EPC diagram — NA0014
Oil Filter — NA0014 (198705 – 999999)
Toyota COROLLA Oil Filter EPC diagram — NA0088
Oil Filter — NA0088 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
15409Oil filter outlet pipe or oil outlet hose15431-64030 · 15431-64040
15409CJoint bolt (for oil filter outlet pipe)90401-10020 · 90401-10031
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)15116-54021 · 90404-19001 · 90404-19007 · 90404-27001
15601Oil filter sub-assembly90915-03001 · 90915-03003 · 90915-03004 · 90915-10001 · 90915-30001
15609Oil filter bracket sub-assembly15608-64040 · 15609-64010
15609BConnector (for oil filter bracket)90401-18020
15609CGasket (for oil filter holder connector)90430-20014
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90344-53002
15609HO-ring (for oil filter bracket)90301-22004
15691oil filter gasket15691-64030 · 15691-64040
