Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 10 images and 17 PNC and OE references.

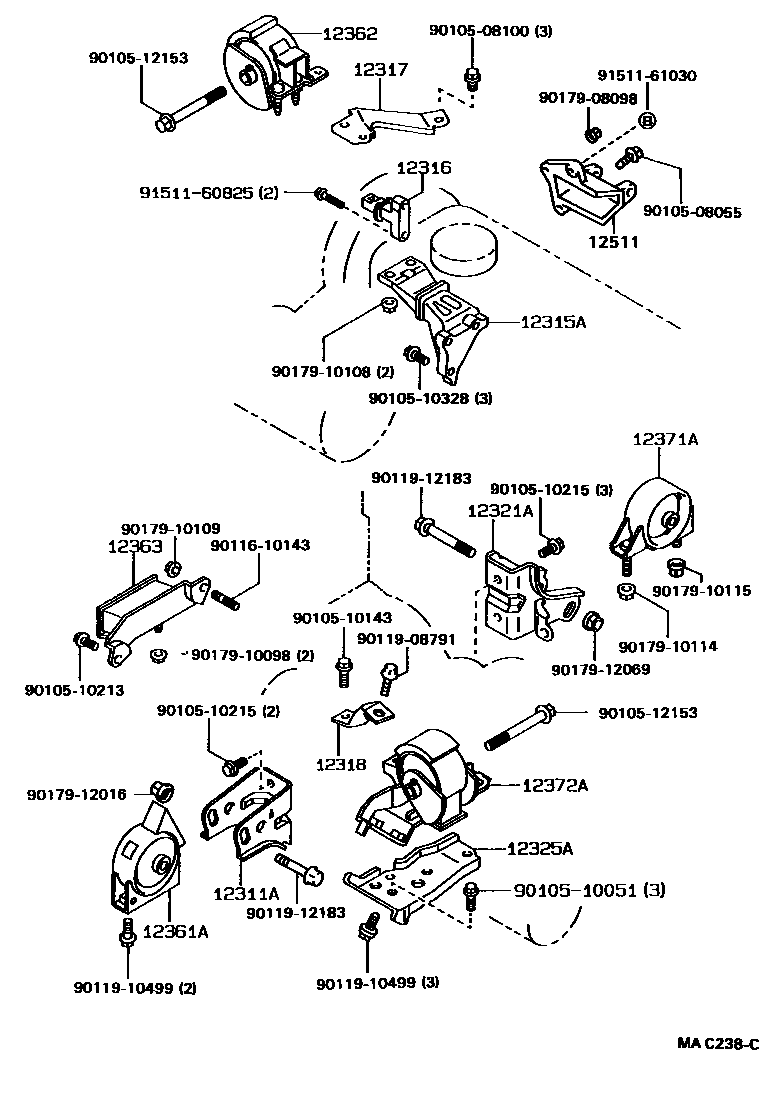

Toyota COROLLA Engine Mounting EPC diagram — MAC238C — Engine Mounting — MAC238C (198705 – 999999)

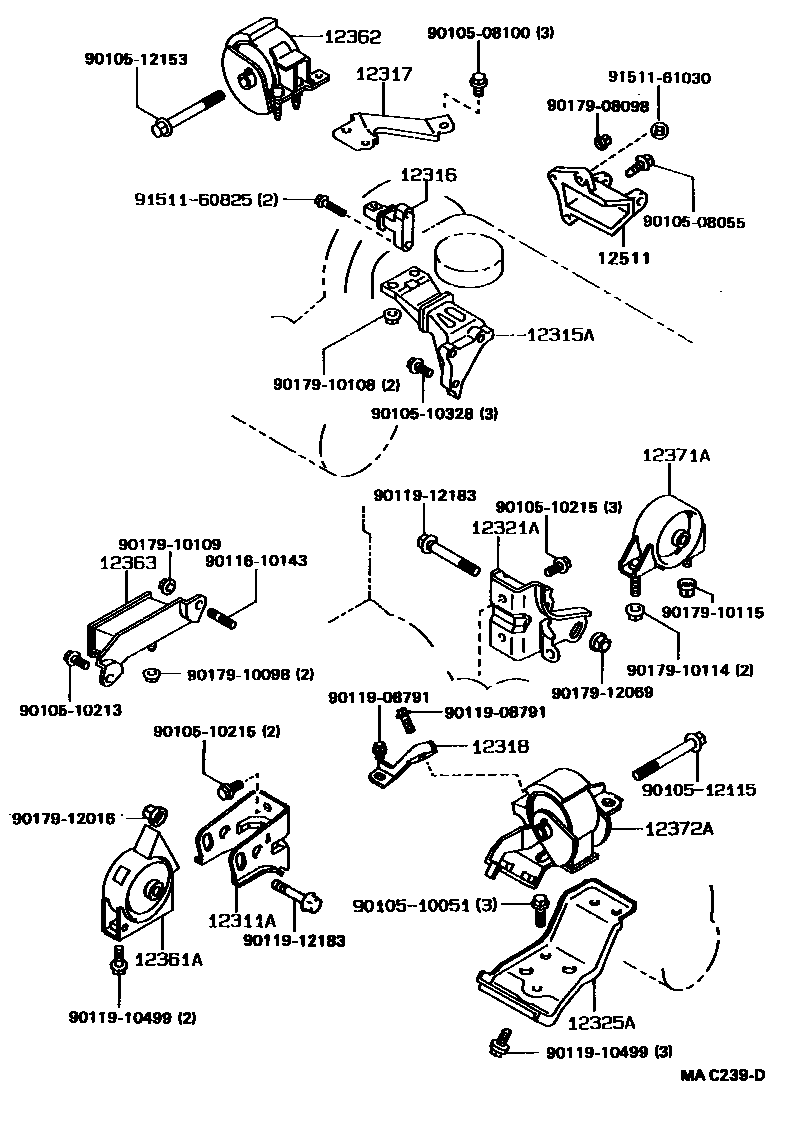

Toyota COROLLA Engine Mounting EPC diagram — MAC239D — Engine Mounting — MAC239D (198705 – 999999)

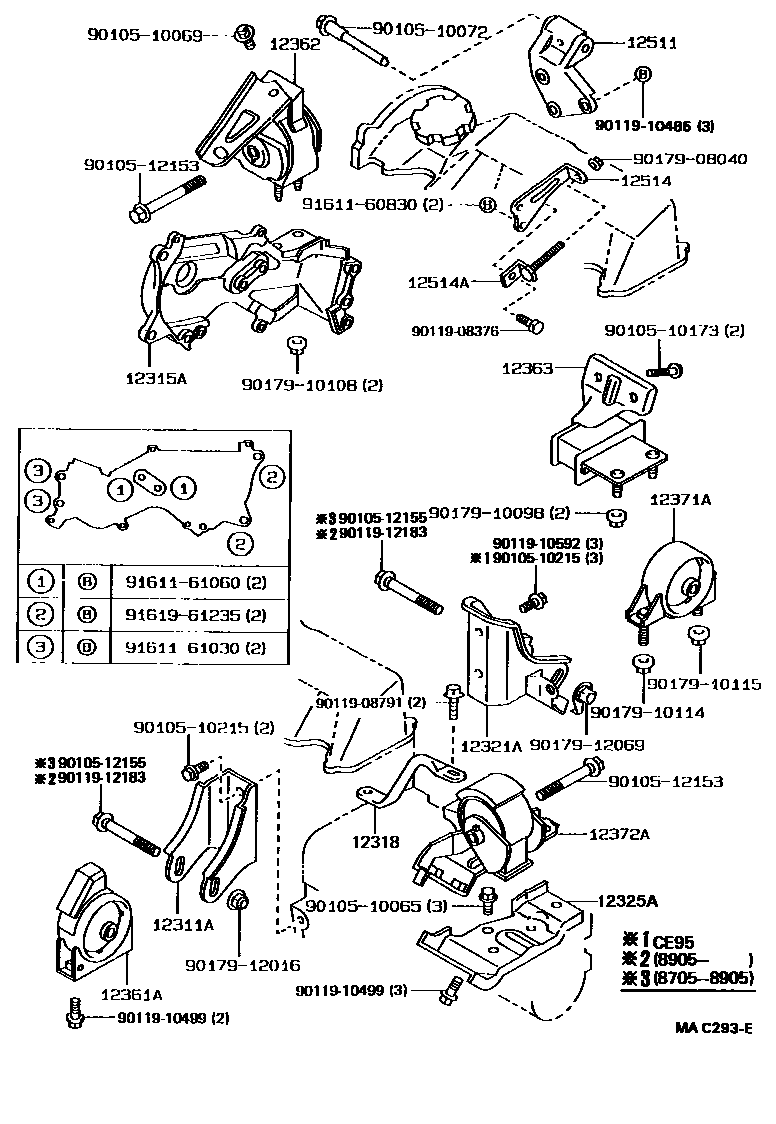

Toyota COROLLA Engine Mounting EPC diagram — MAC293E — Engine Mounting — MAC293E (198705 – 999999)

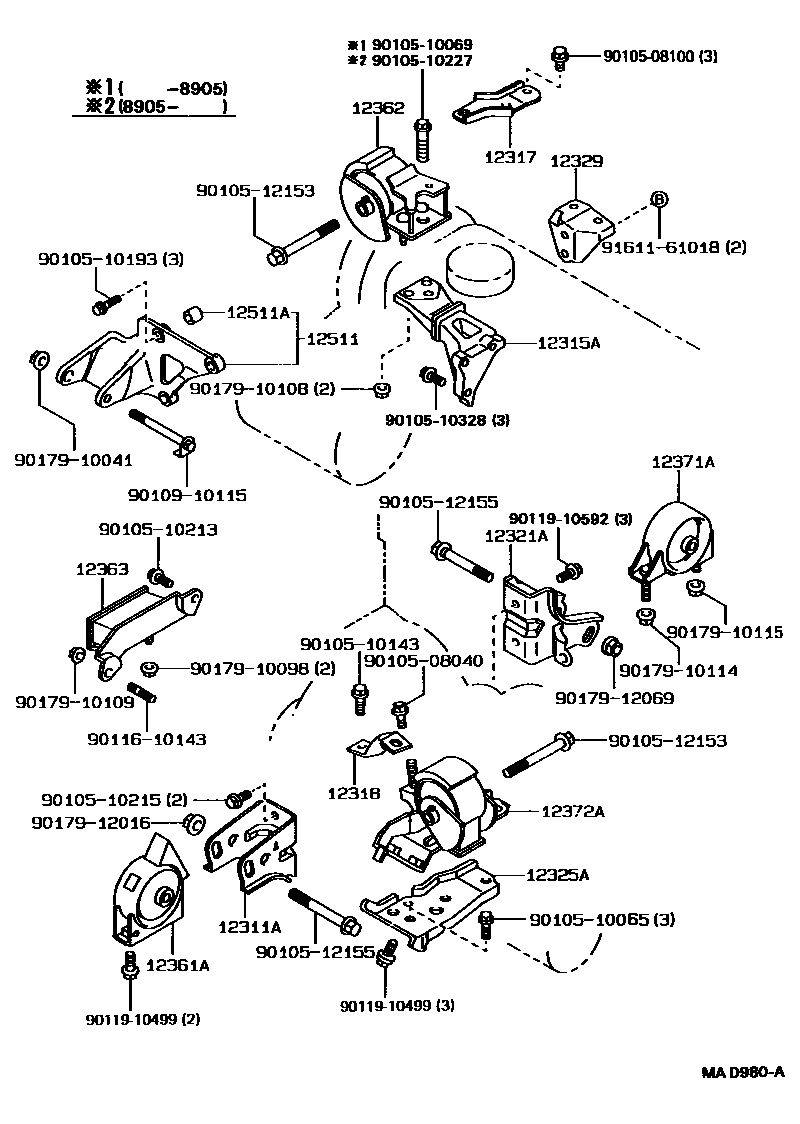

Toyota COROLLA Engine Mounting EPC diagram — MAD980A — Engine Mounting — MAD980A (198705 – 999999)

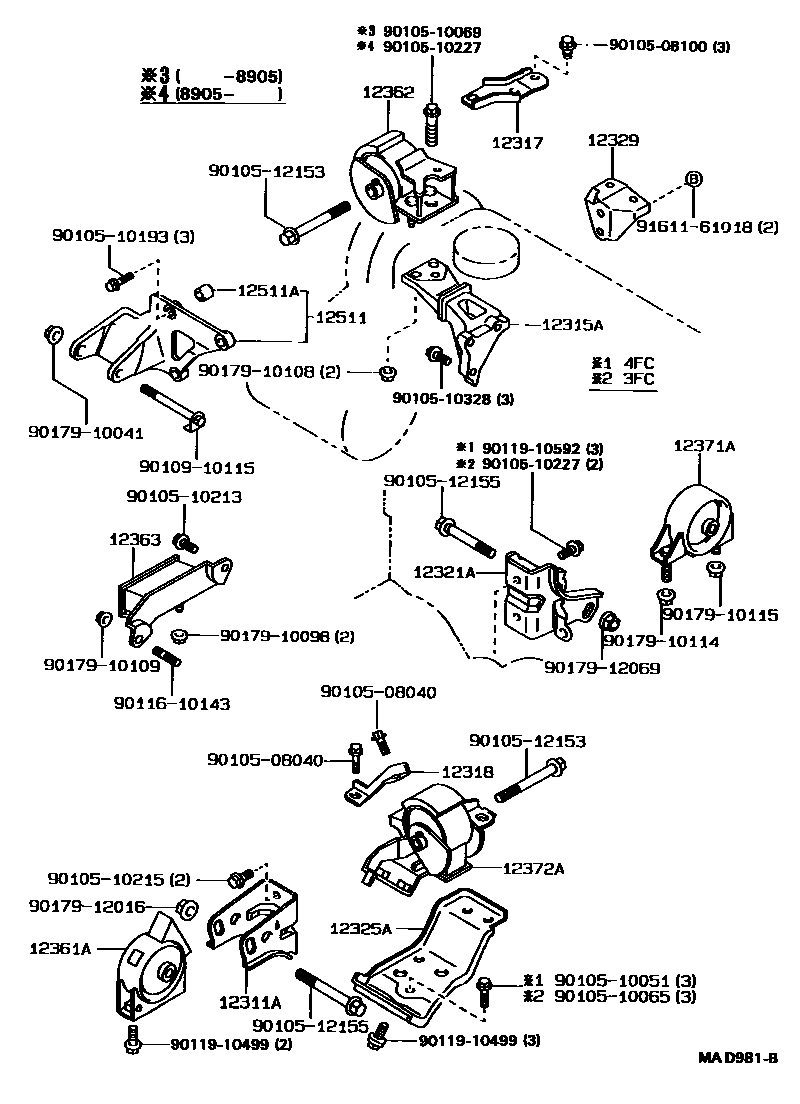

Toyota COROLLA Engine Mounting EPC diagram — MAD981B — Engine Mounting — MAD981B (198705 – 999999)

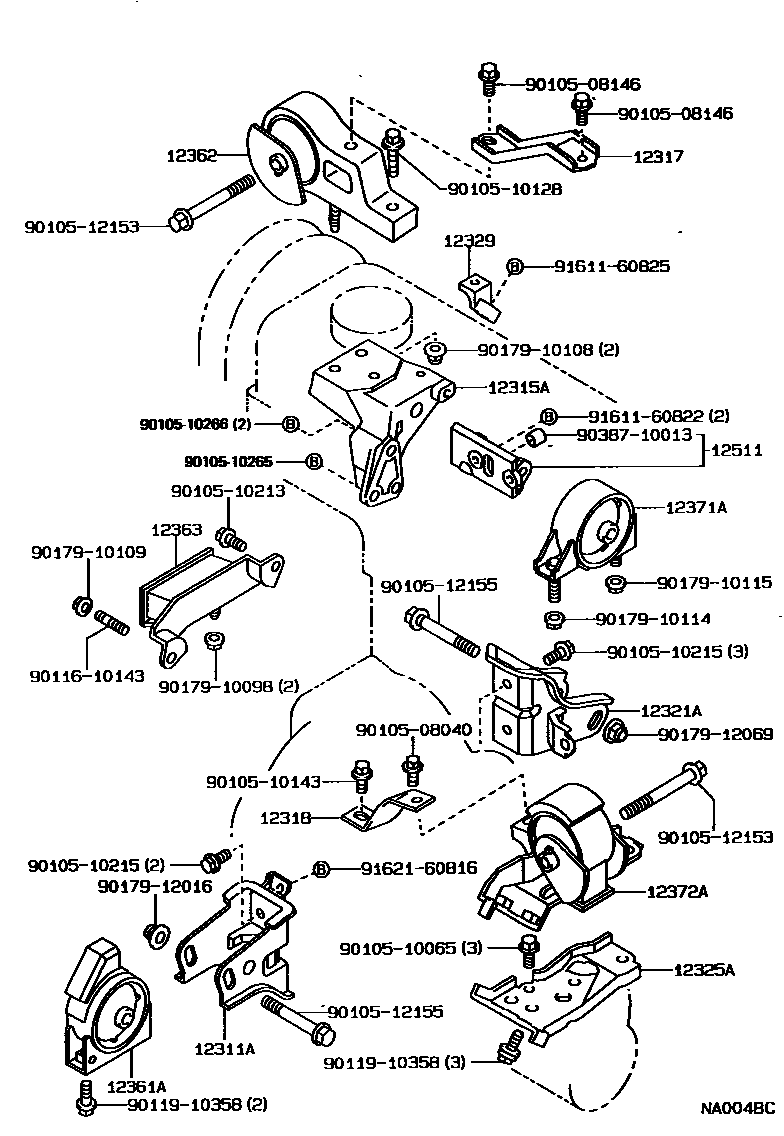

Toyota COROLLA Engine Mounting EPC diagram — NA0048C — Engine Mounting — NA0048C (198705 – 999999)

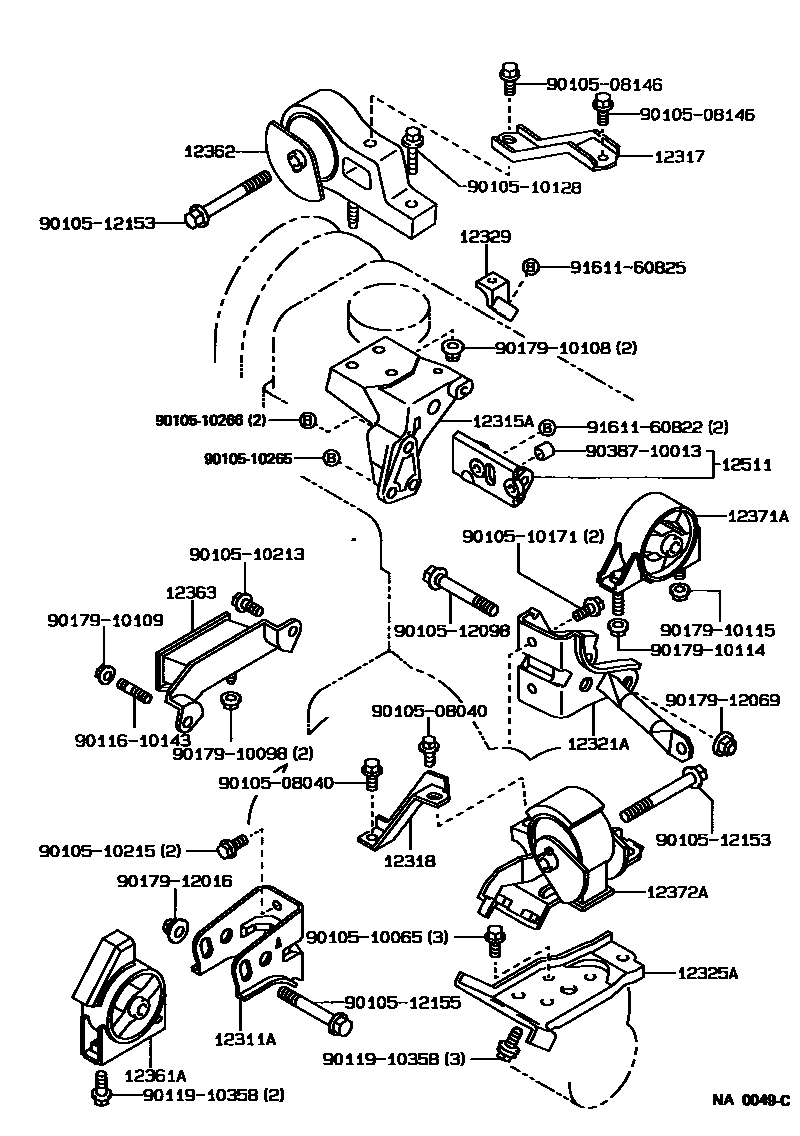

Toyota COROLLA Engine Mounting EPC diagram — NA0049C — Engine Mounting — NA0049C (198705 – 999999)

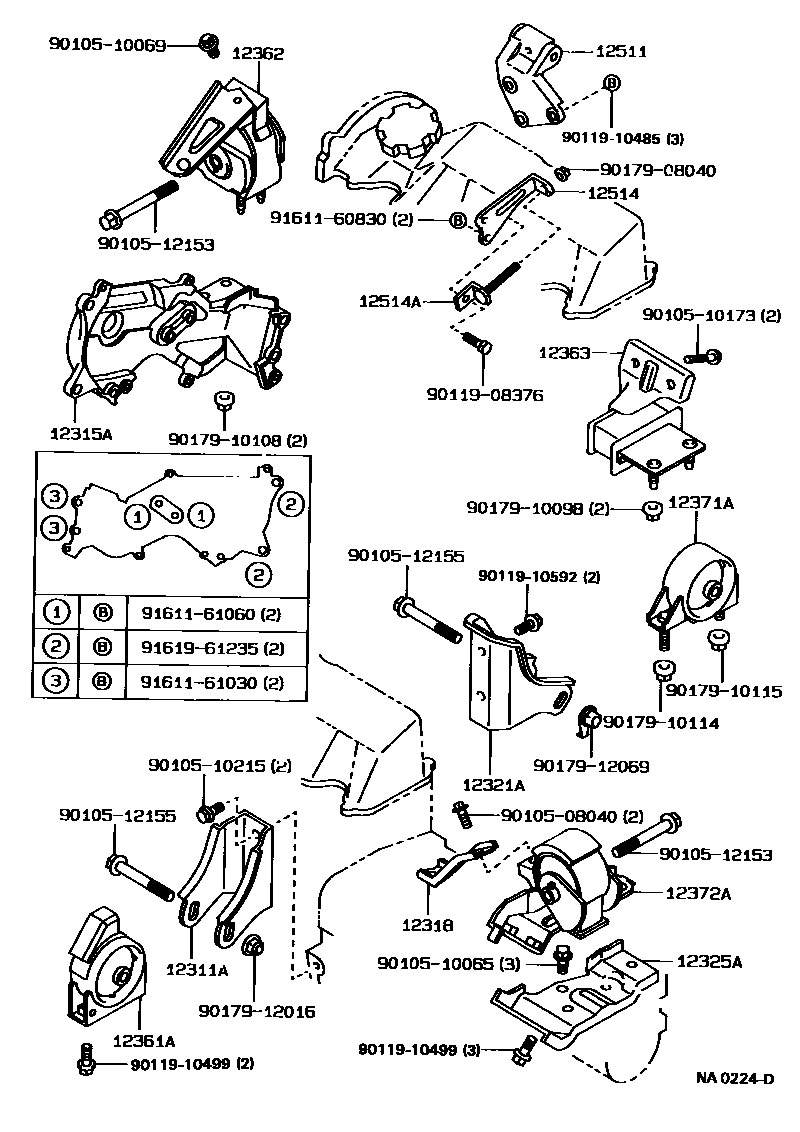

Toyota COROLLA Engine Mounting EPC diagram — NA0224D — Engine Mounting — NA0224D (198705 – 999999)

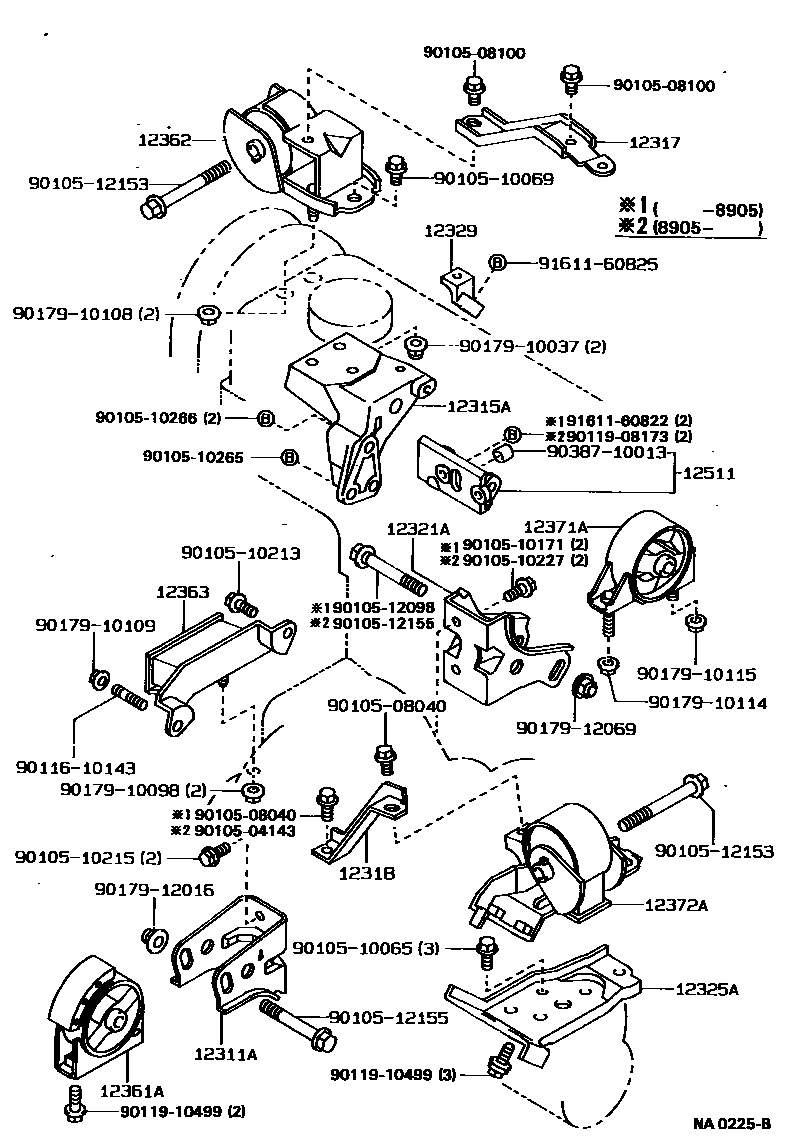

Toyota COROLLA Engine Mounting EPC diagram — NA0225B — Engine Mounting — NA0225B (198708 – 999999)

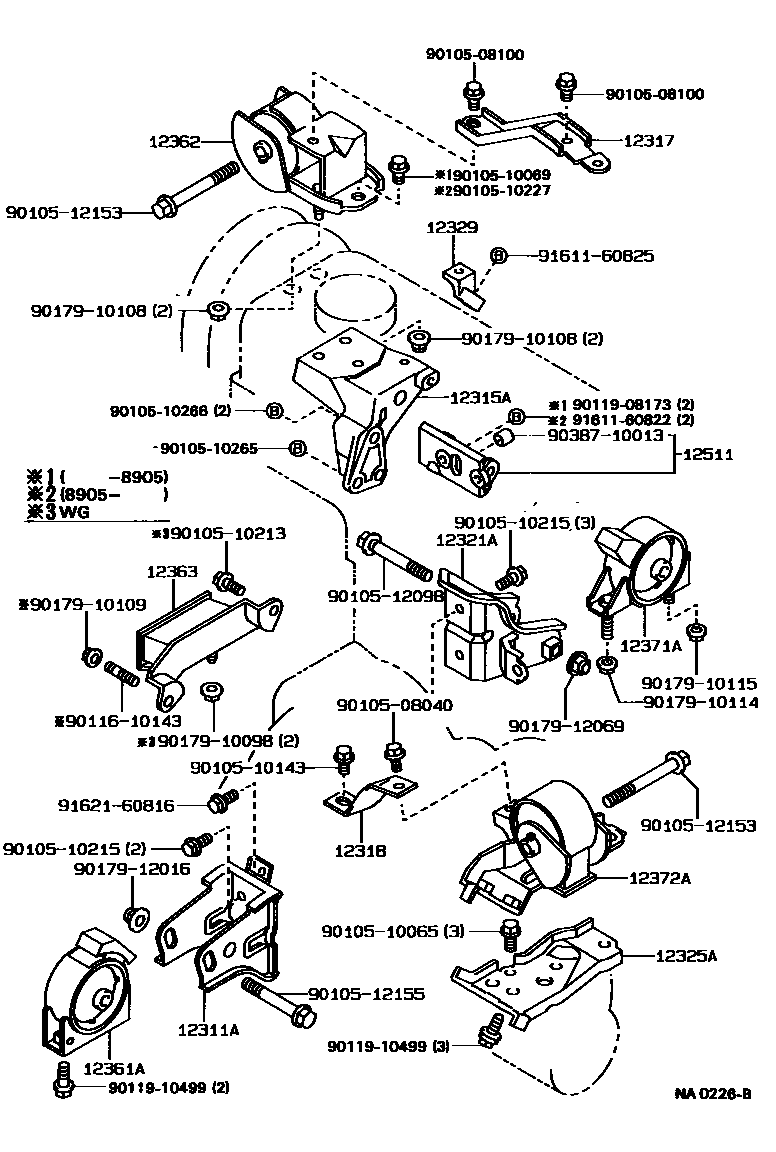

Toyota COROLLA Engine Mounting EPC diagram — NA0226B — Engine Mounting — NA0226B (198708 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12311A	Engine front mounting bracket (for transverse engine)	12311-11050 · 12311-11060 · 12311-16040 · 12311-16050 · 12311-64090 · 12311-64110
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-11020 · 12315-11030 · 12315-15070 · 12315-16040 · 12315-64040 · 12315-64050
12316	Engine No. 2 right side suspension bracket	12316-16010
12317	Engine right mounting bracket	12317-11010 · 12317-11020 · 12317-11021 · 12317-11030 · 12317-15010 · 12317-15020 · 12317-16010
12318	Engine left mounting bracket	12318-11010 · 12318-11020 · 12318-15010 · 12318-16010 · 12318-16040 · 12318-16070 · 12318-64010 · 12318-64020 · 12318-64040
12321A	Rear engine mounting bracket (for transverse engine)	12321-11060 · 12321-11070 · 12321-15050 · 12321-15060 · 12321-15070 · 12321-15110 · 12321-16090 · 12321-16100 · 12321-64130 · 12321-64140 · 12321-64170
12325A	Engine left side mounting bracket (for transversely mounted engine)	12325-11050 · 12325-15050 · 12325-16060 · 12325-16070 · 12325-16080 · 12325-16090 · 12325-64010 · 12325-64020 · 12325-64030
12329	Engine mounting bracket	12329-11010 · 12329-11020 · 12329-15010
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-16040 · 12361-16090 · 12361-16110 · 12361-16120 · 12361-64130 · 12361-64150
12362	Engine right side mounting vibration isolation pad (for transversely mounted engine)	12362-11070 · 12362-11100 · 12362-15130 · 12362-15160 · 12362-16070 · 12362-16120 · 12362-16140 · 12362-16141 · 12362-16150 · 12362-64060 · 12362-64120 · 12362-64130
12363	Engine center mount vibration isolation pad	12363-11010 · 12363-15010 · 12363-15020 · 12363-64020 · 12363-64030
12371A	Engine rear mount vibration isolation pad	12371-11180 · 12371-11210 · 12371-15200 · 12371-15230 · 12371-16120 · 12371-16130 · 12371-16190 · 12371-64120 · 12371-64130 · 12371-64141 · 12371-64170
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-15110 · 12372-15130 · 12372-16060 · 12372-16100 · 12372-16130 · 12372-16150 · 12372-64080 · 12372-64090 · 12372-64100 · 12372-64110 · 12372-64140
12511	No. 1 generator bracket	12511-11010 · 12511-11020 · 12511-15040 · 12511-16030 · 12511-64020
12511A	Generator bracket bushing	90387-10013
12514	Generator belt adjustment lever	16381-64020
12514A	Fan belt adjustment slider	16385-64020
