Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

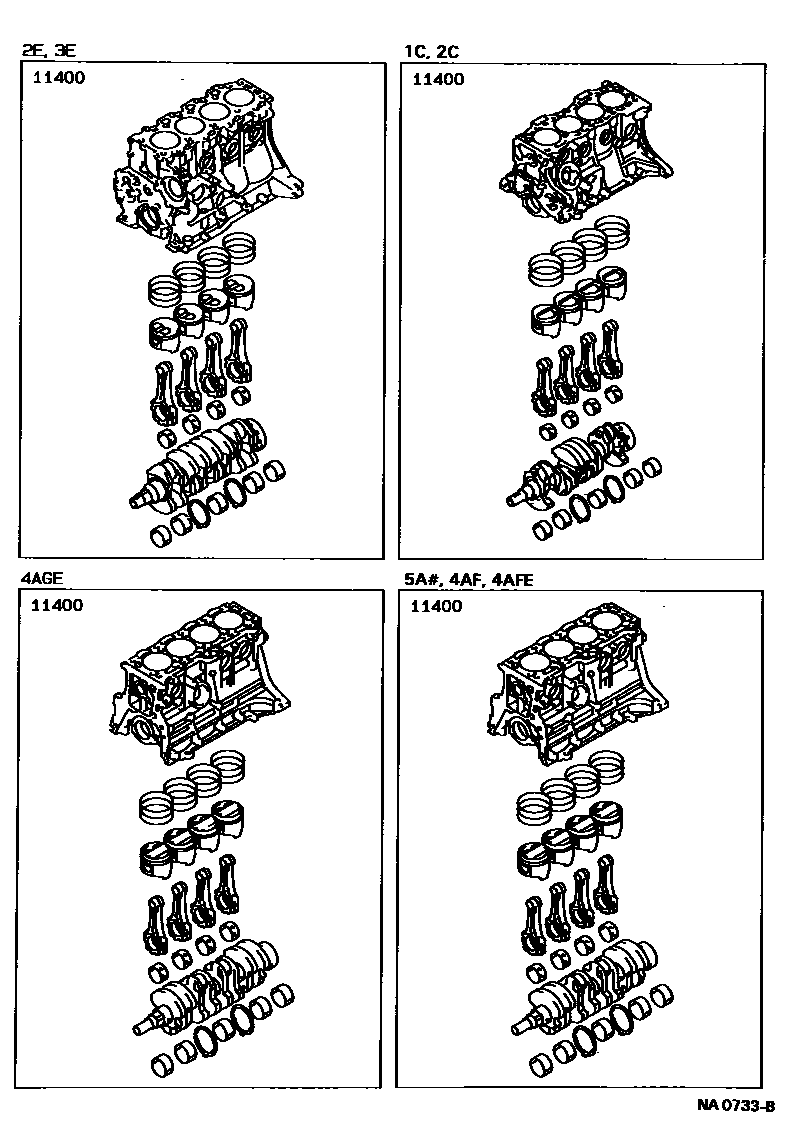

Toyota COROLLA Short Block Assembly EPC diagram — NA0733B
Short Block Assembly — NA0733B (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-11011 · 11400-11060 · 11400-15070 · 11400-15080 · 11400-16120 · 11400-16170 · 11400-16171 · 11400-16172 · 11400-16173 · 11400-16250 · 11400-16251 · 11400-64101 · 11400-64111 · 11400-64280 · 11400-64290 · 11400-64300
