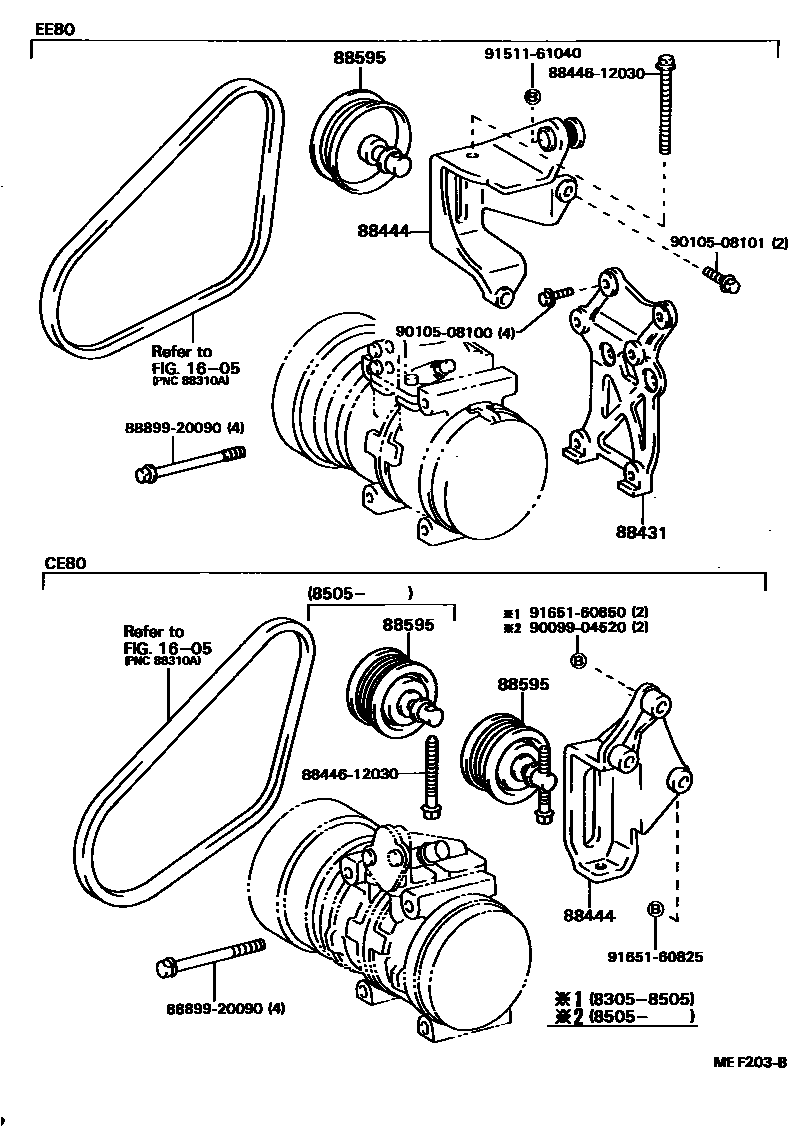

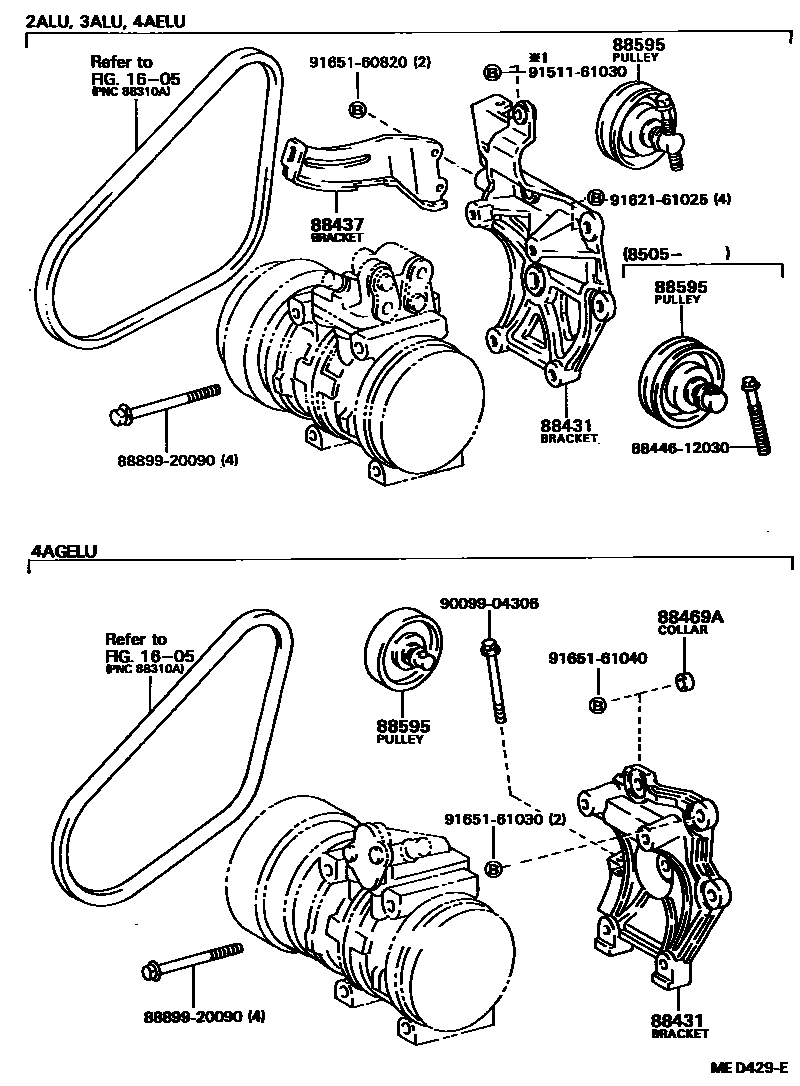

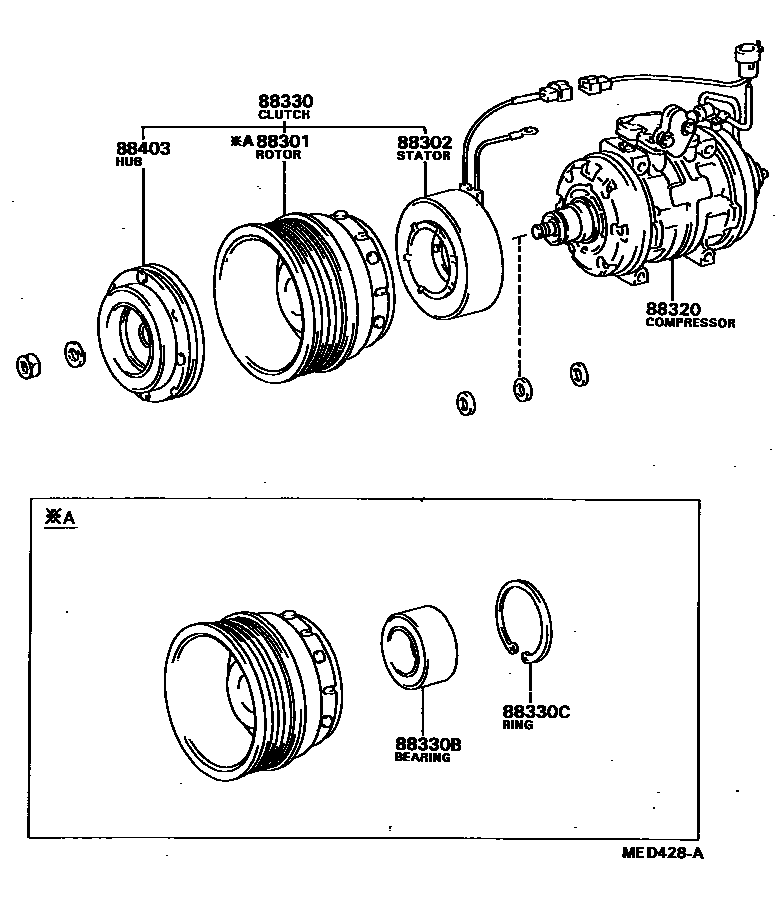

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-14030 · 88412-28010 · 88412-32010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-12090 · 88411-12100 · 88411-12130 · 88411-14050 |
| 88320 | Cooler Compressor Assembly | 88320-12250 · 88320-12260 · 88320-12290 · 88320-12310 · 88320-12330 · 88320-12340 · 88320-12350 · 88320-12360 · 88320-12370 · 88320-12380 · 88320-12390 |
| 88330 | Magnetic Clutch Assembly | 88410-12160 · 88410-12170 · 88410-12180 · 88410-12190 · 88410-12220 |
| 88330B | Electromagnetic clutch bearing | 90099-10133 · 90099-10135 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07094 · 90099-07118 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 · 88403-14040 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12290 · 88431-12340 · 88431-12341 · 88431-12350 · 88431-12351 |
| 88437 | Compressor No. 7 mounting bracket | 88437-12250 · 88437-12260 |
| 88444 | Idler gear bracket | 88444-10030 · 88444-10031 · 88444-12040 |
| 88469A | Adjustment collar | 88469-12020 |
| 88595 | Cooler compressor idler pulley | 88440-12090 · 88440-12100 · 88440-12160 · 88440-12170 · 88440-17010 · 88440-32030 |
