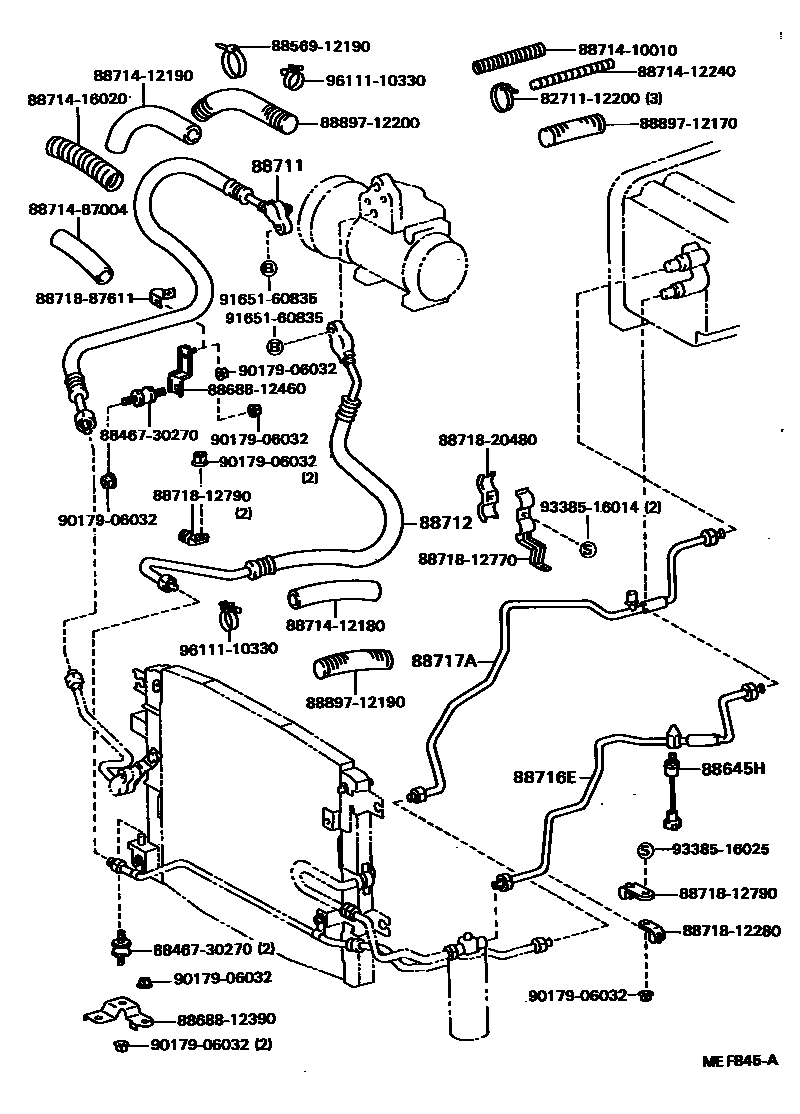

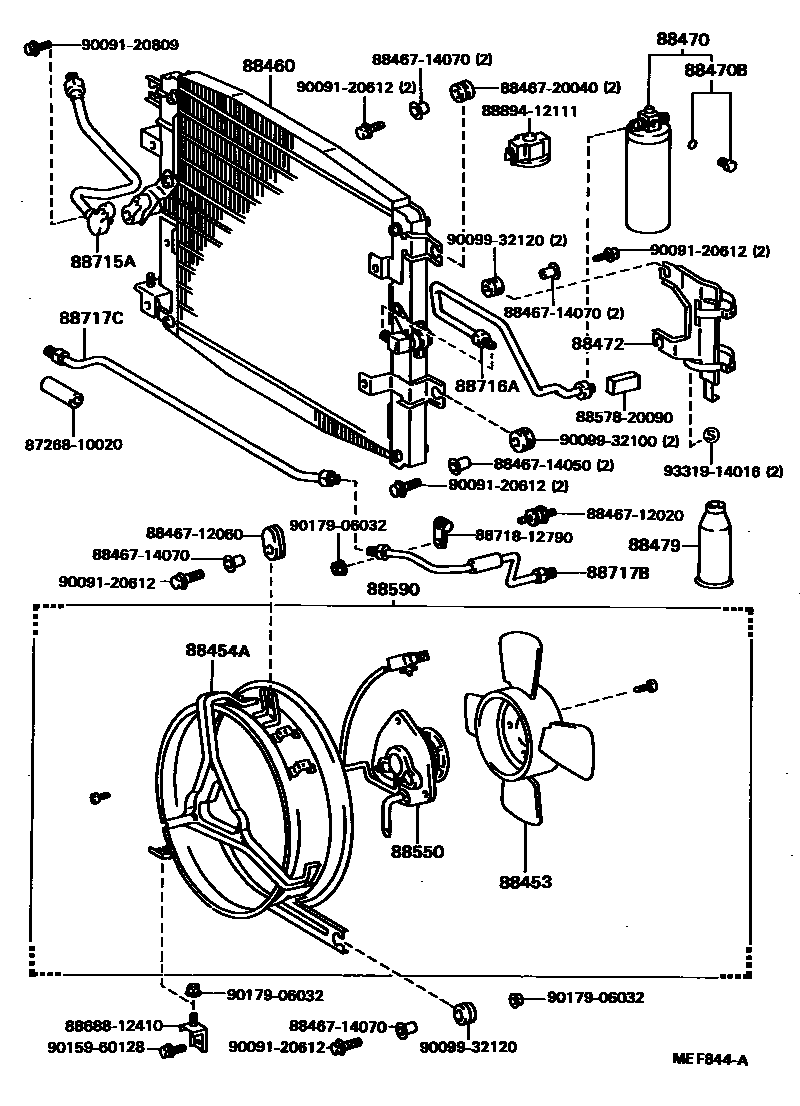

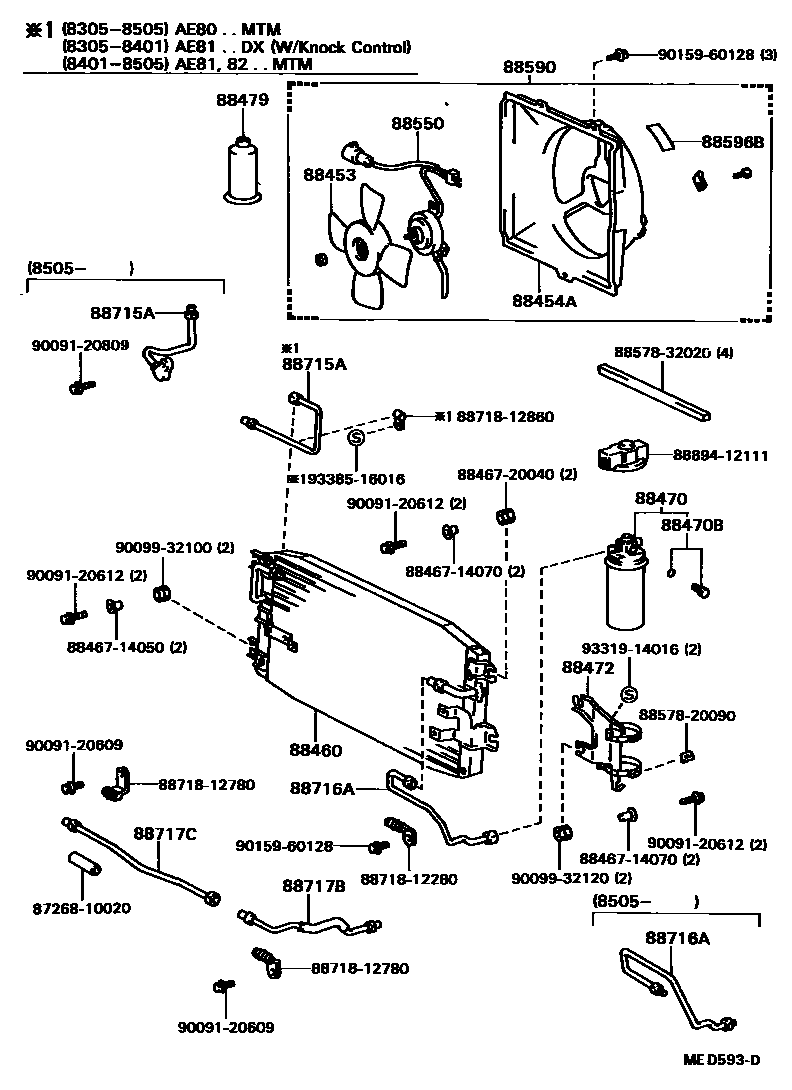

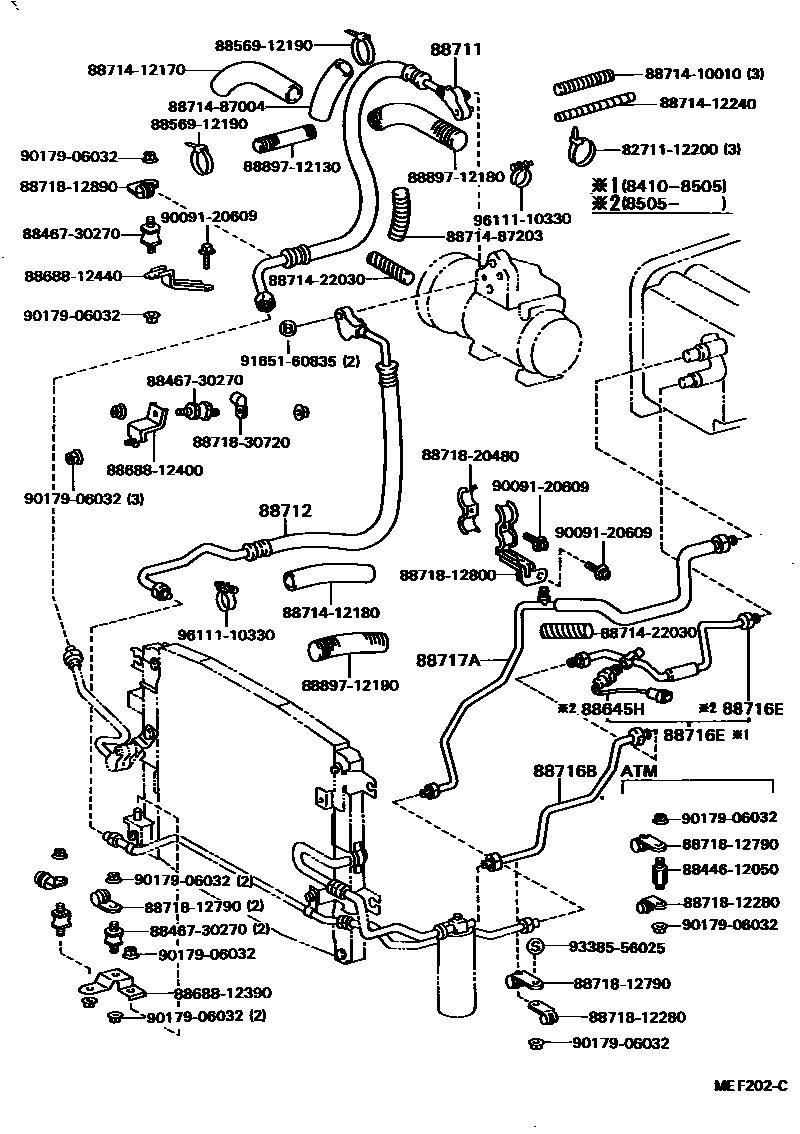

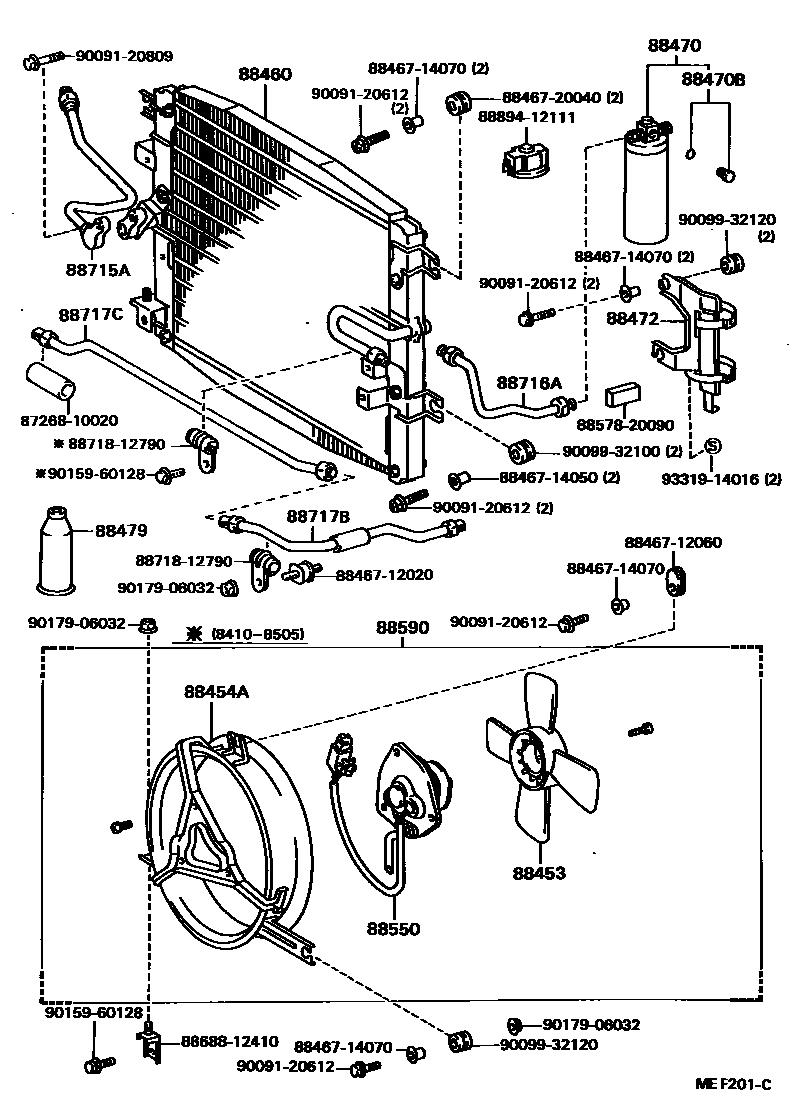

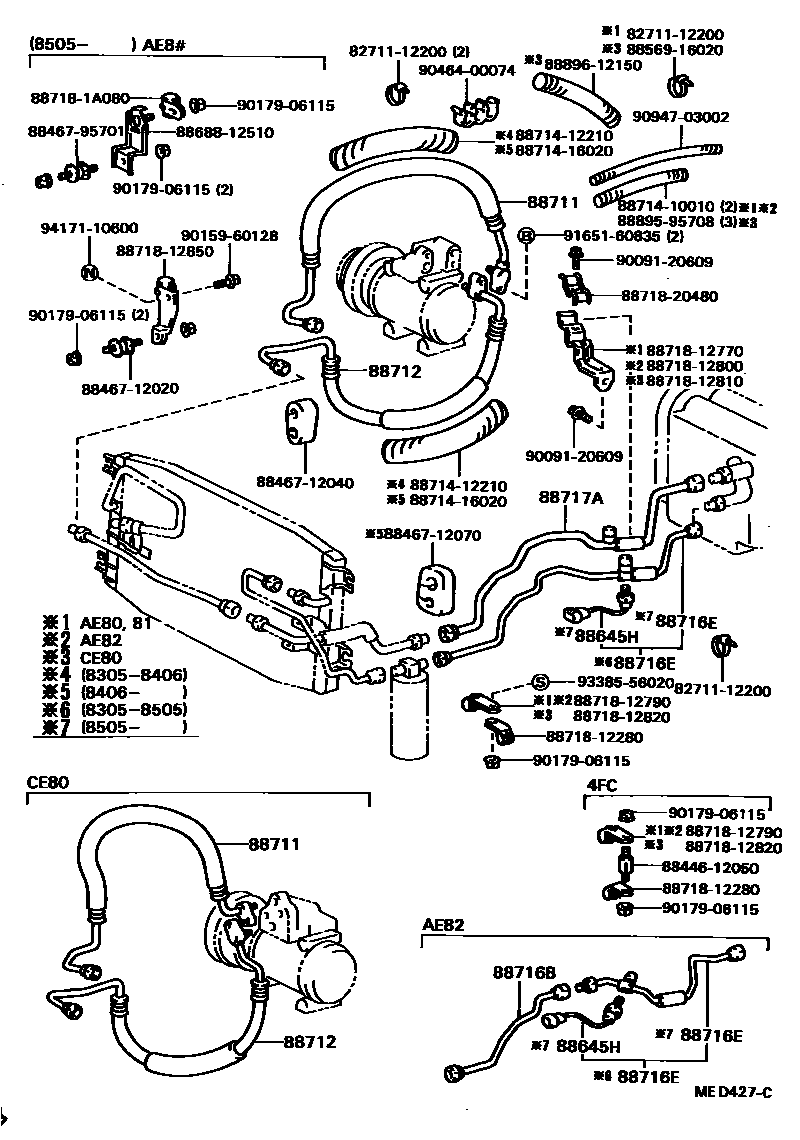

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88453 | Cooling fan (for condenser) | 16361-28010 · 88453-10010 · 88453-12030 · 88453-32010 · 88453-32020 |
| 88454A | fan cover | 88454-12050 · 88454-12051 · 88454-12060 · 88454-12061 · 88454-12070 · 88454-12071 · 88454-12080 |
| 88460 | Air conditioning condenser assembly | 88460-12230 · 88460-12250 · 88460-12270 · 88460-12280 · 88460-12320 · 88460-12330 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12061 · 88470-14010 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-20010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88550 | Blower motor assembly (for condenser) | 88550-12080 · 88550-12090 |
| 88590 | Blower assembly with hood | 88590-12040 · 88590-12050 · 88590-12051 · 88590-12060 · 88590-12061 · 88590-12080 · 88590-12120 |
| 88596B | No. 1 warning nameplate | 88596-14010 · 88596-24010 |
| 88645H | No. 1 pressure switch | 88645-32020 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12260 · 88711-12270 · 88711-12351 · 88711-12360 · 88711-12361 · 88711-12370 · 88711-12380 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12460 · 88712-12470 · 88712-12471 · 88712-12490 · 88712-12491 · 88712-12520 · 88712-12540 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12260 · 88715-12290 · 88715-12310 · 88715-12320 · 88715-12340 · 88715-12350 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12750 · 88716-12870 · 88726-12080 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-12770 · 88716-12771 · 88716-12780 · 88716-12781 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12760 · 88716-12761 · 88716-12790 · 88716-12791 · 88716-12840 · 88726-12020 · 88726-12030 · 88726-12130 · 88726-12140 · 88726-12150 · 88726-12160 · 88726-12170 · 88726-12171 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12220 · 88717-12221 · 88717-12240 · 88717-12250 |
| 88717B | Cooler refrigerant suction pipe B | 88717-12230 · 88717-12320 |
| 88717C | Cooler refrigerant suction pipe C | 88717-12260 · 88717-12330 |
