Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

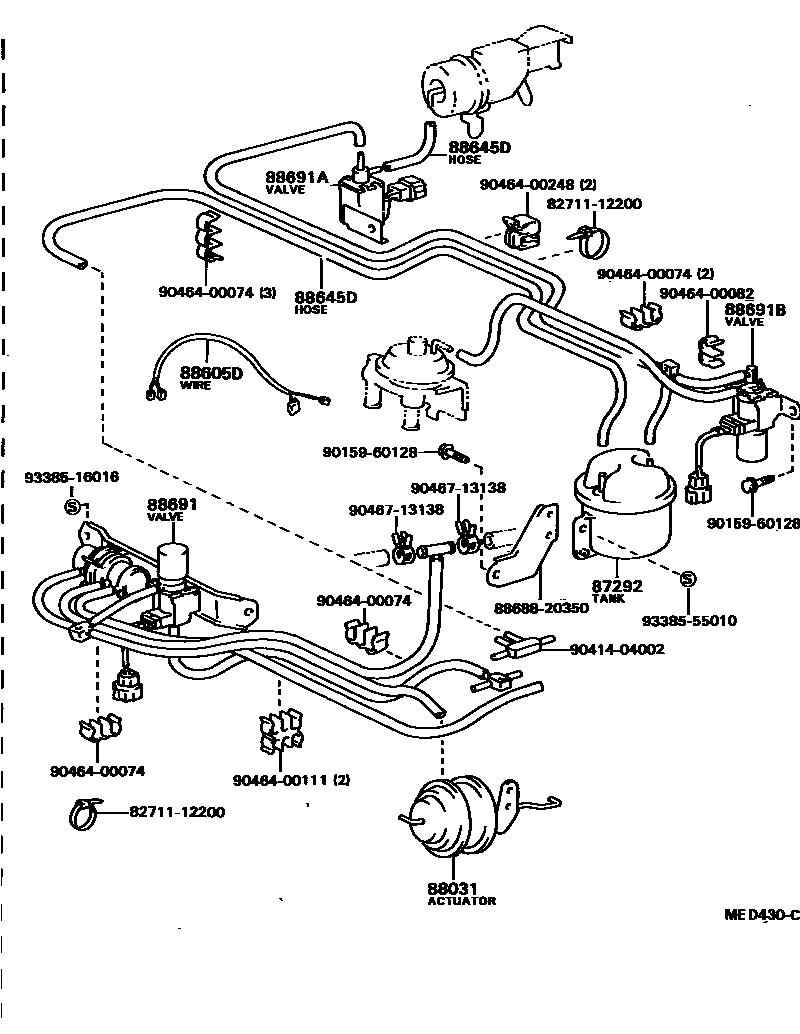

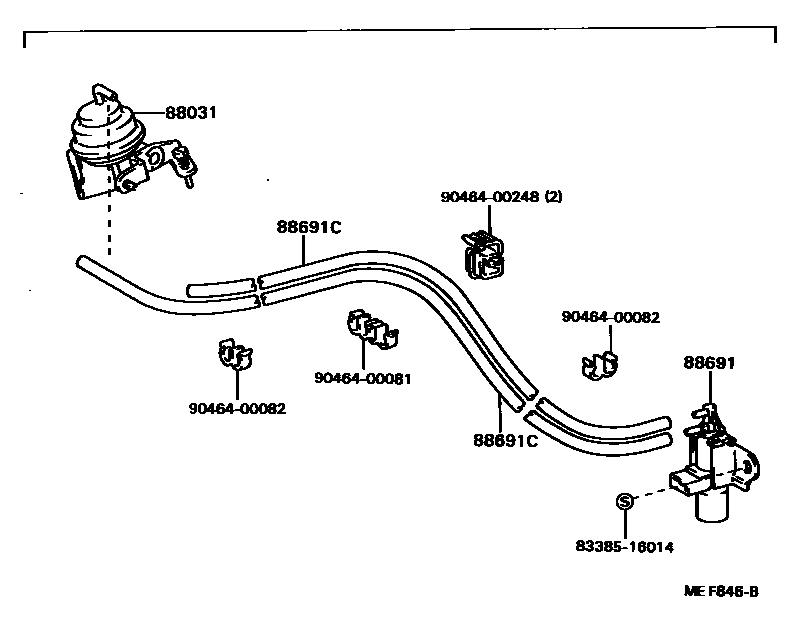

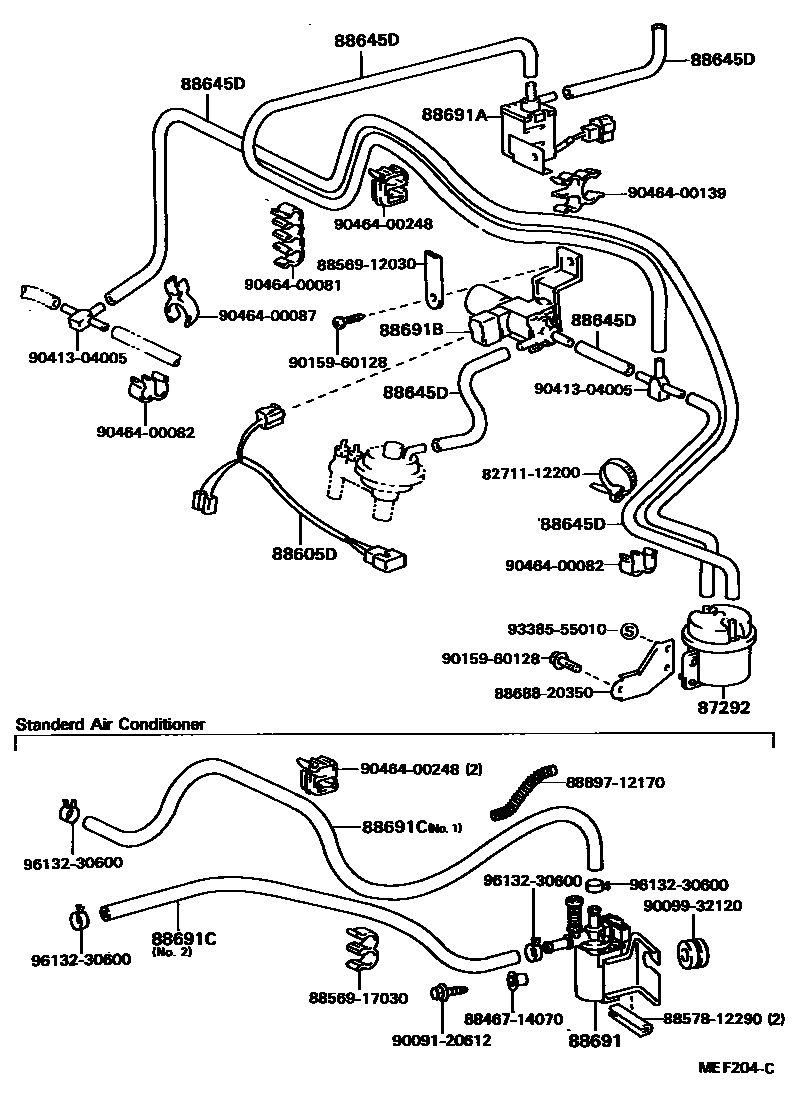

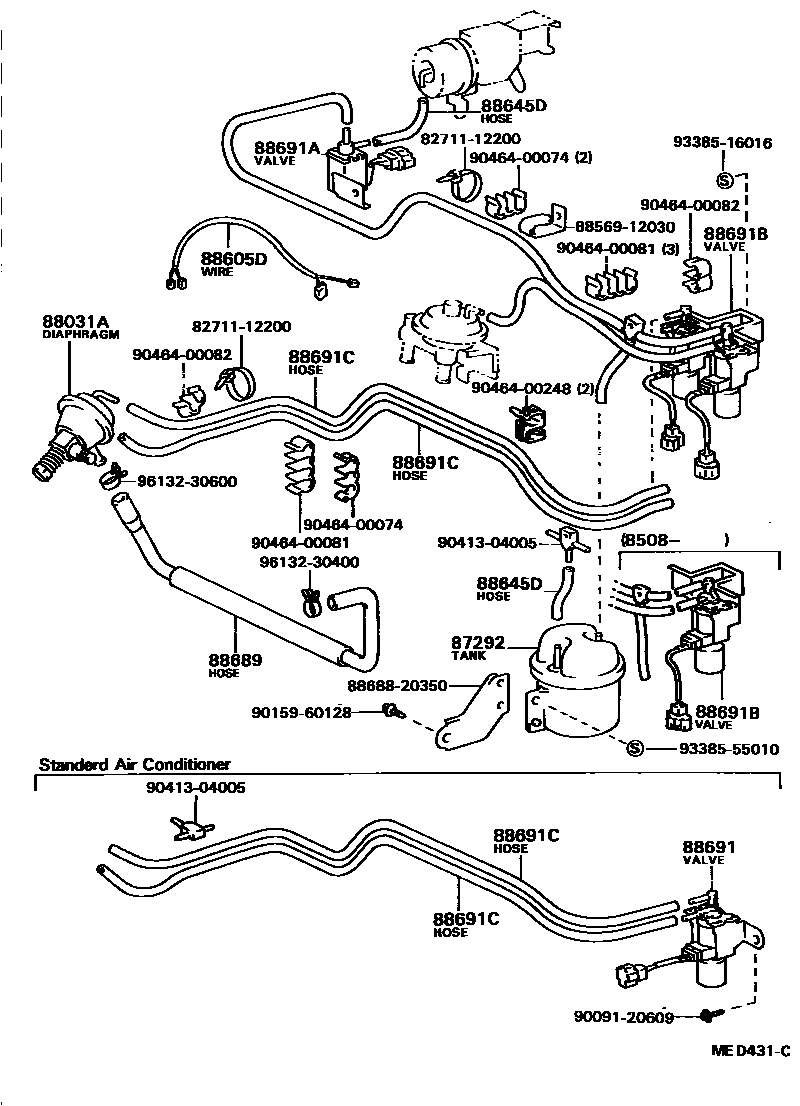

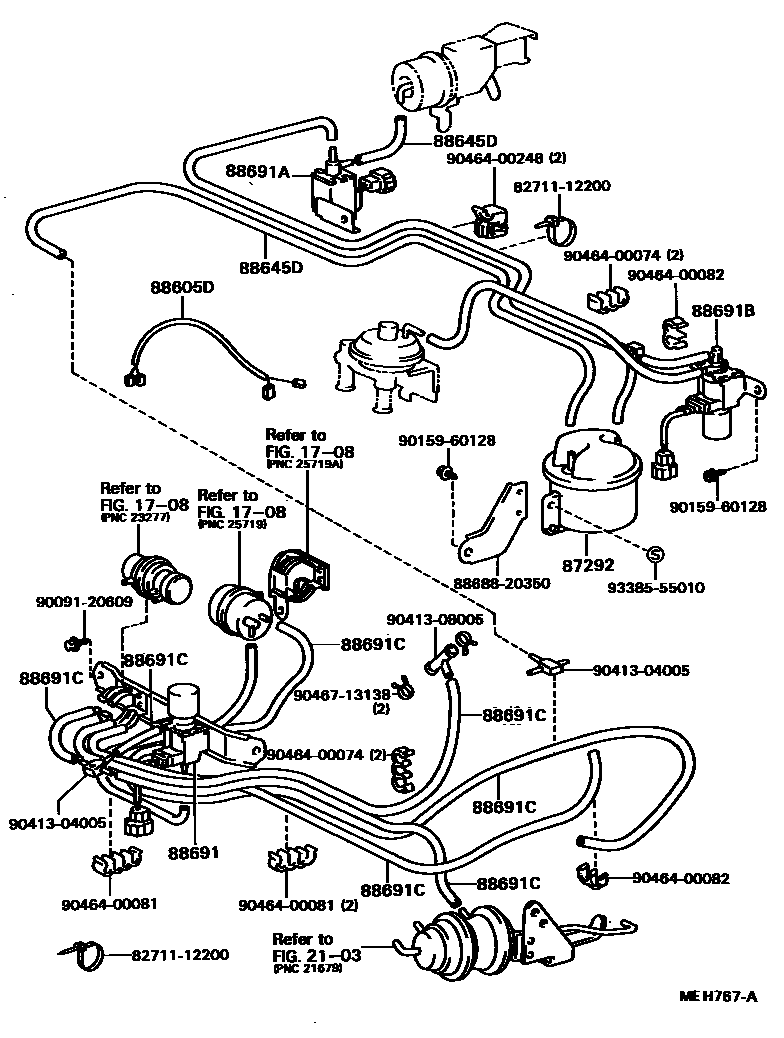

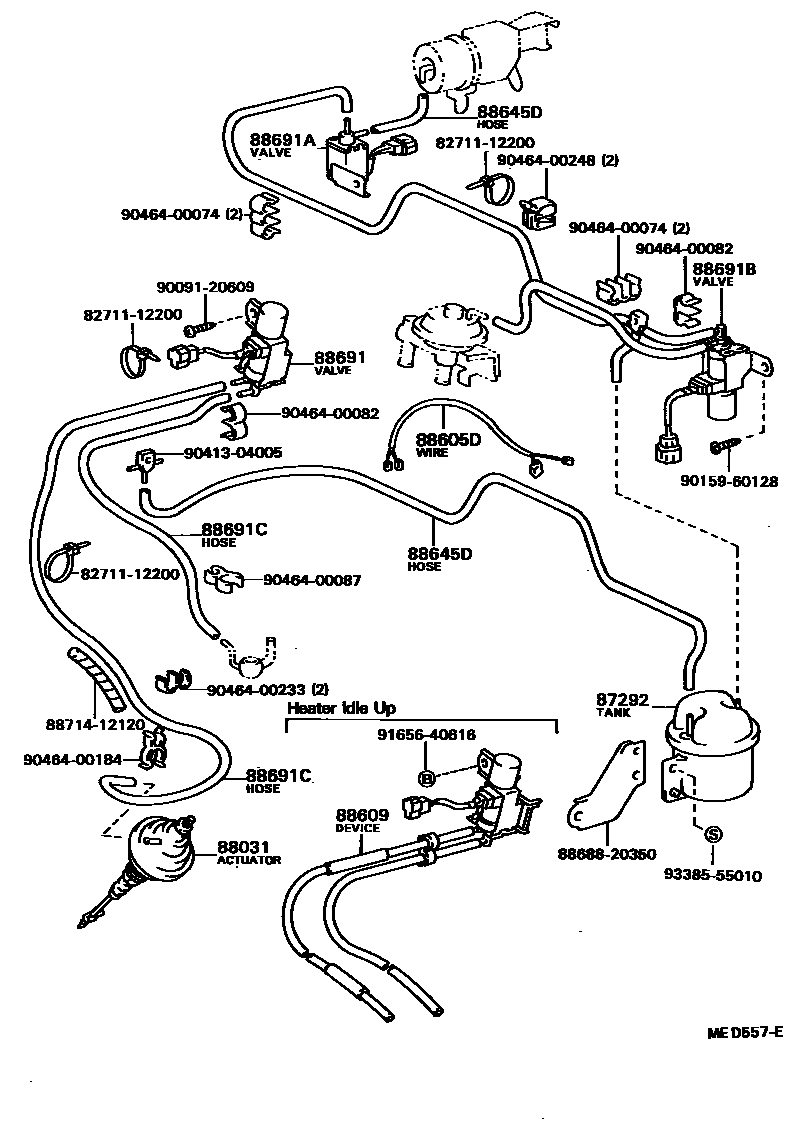

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 6 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87292 | vacuum tank | 88683-16010 |
| 88031 | Idle speed lift actuator assembly | 88031-10020 · 88031-10021 · 88031-12130 · 88031-12131 · 88031-30070 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-14020 |
| 88605D | Air conditioning wiring harness | 88605-12520 · 88605-1A010 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12230 · 88609-12231 |
| 88645D | Hoses (for idle lift) | 90445-08210 |
| 88689 | Damper control diaphragm vacuum hose | 88689-12020 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12280 · 88690-12281 · 88690-12290 · 88690-12390 · 88690-12410 · 88691-12080 · 88691-30430 · 88691-90K02 |
| 88691A | Solenoid valve (for blower switching unit) | 88690-12330 |
| 88691B | Solenoid valve (for water valve) | 88690-12270 · 88690-12271 · 88690-12350 · 88690-12360 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-12060 · 88689-12070 · 90445-08168 · 90445-08194 · 90445-08205 · 95411-11260 · 95411-11460 · 95411-19995 |
