Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

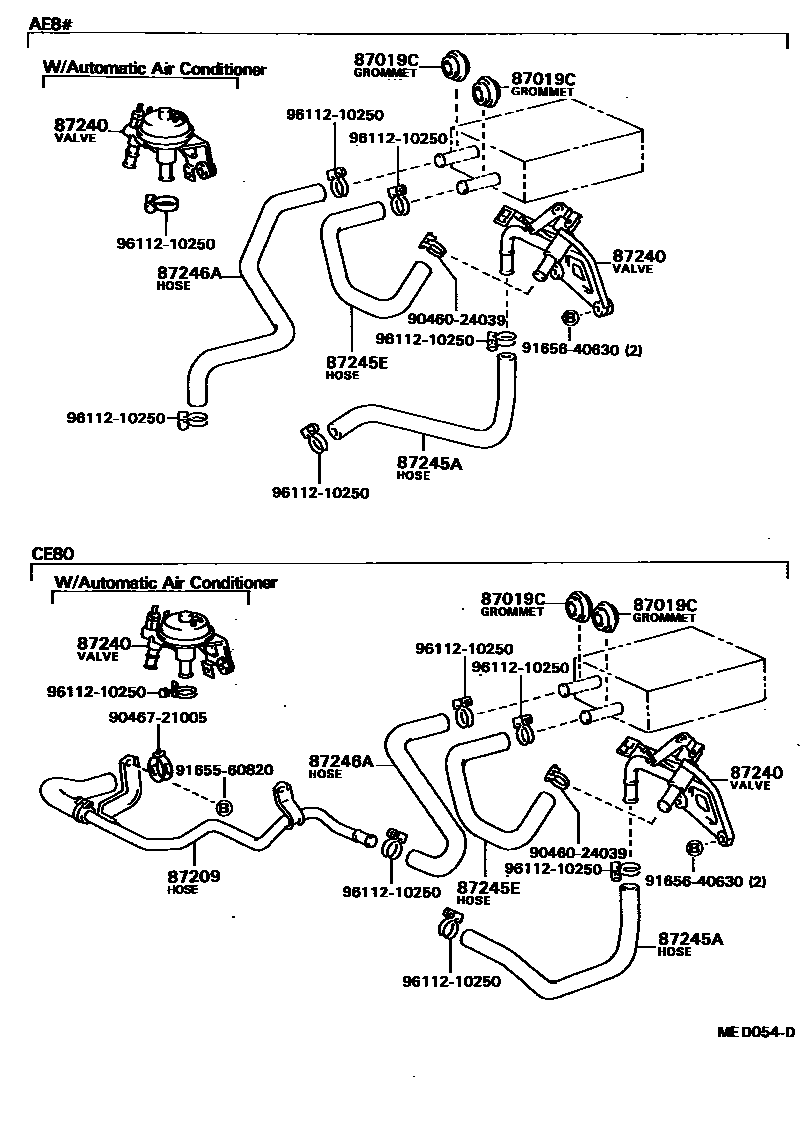

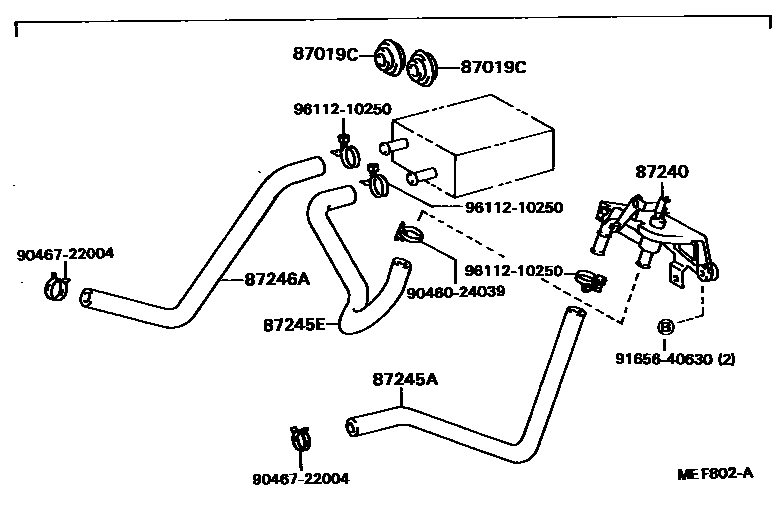

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 96531-13517 |
| 87209 | Water hose sub-assembly | 87209-12390 · 87209-12420 |
| 87240 | Heater water valve assembly | 87240-12190 · 88670-12090 |
| 87245A | Heater water inlet hose A | 87245-12690 · 87245-12710 · 87245-1A070 · 87245-1A110 |
| 87245E | Heater water inlet hose E | 87245-12670 |
| 87246A | Heater outlet hose A | 87245-12700 · 87245-12720 · 87245-1A080 |
