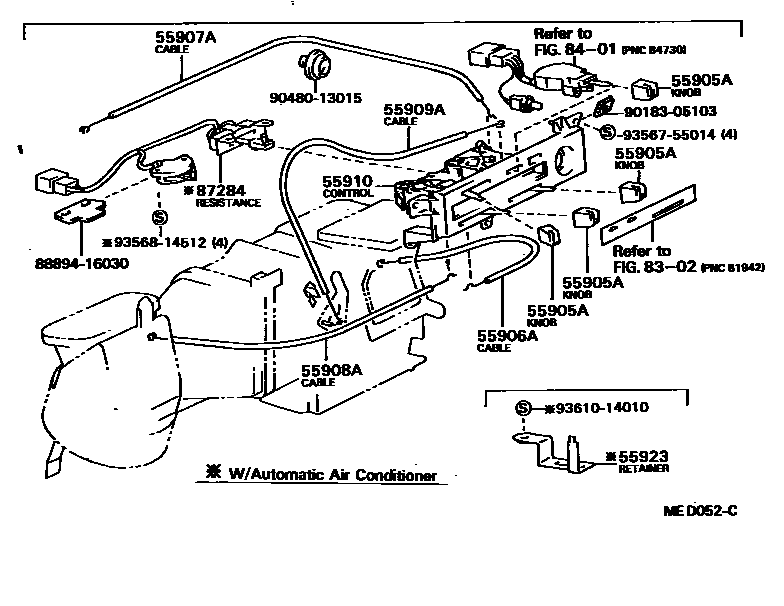

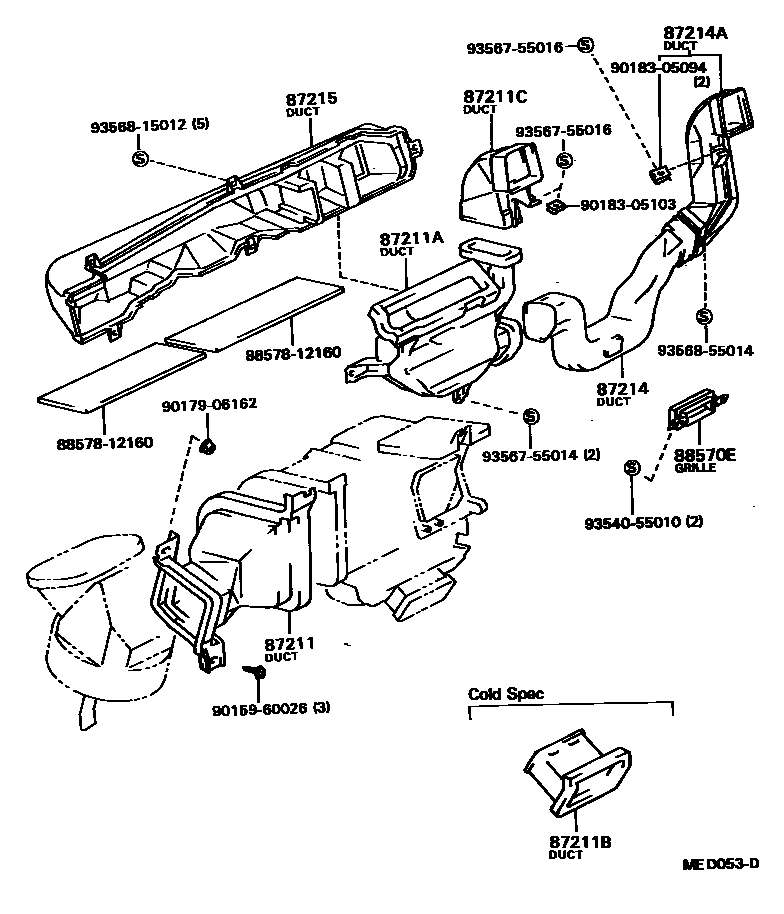

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55905A | Heater control button | 55905-12060 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12180 |
| 55907A | Water valve control cable sub-assembly | 55907-12240 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12160 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12140 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12340 |
| 55923 | Heater controller upper fixing piece | 55923-12050 |
| 87211 | No. 1 air duct | 87201-16040 |
| 87211A | Duct No. 2 | 87201-12040 |
| 87211B | No. 3 air duct | 87211-12110 |
| 87211C | No. 4 air duct | 55086-12120 · 55086-12121 |
| 87214 | Air duct No. 1 on the right | 55844-12130 |
| 87214A | Air duct No. 2 on the right | 55084-12080 · 55084-12081 |
| 87215 | Air duct No. 1 on the left | 55087-12070 · 55087-12071 |
| 87284 | Variable resistor sub-assembly | 88032-12040 |
| 88570E | Air outlet grille assembly | 55680-32010 |
| 88625C | Cooler thermistor | 88625-12140 · 88625-12180 · 88625-12181 · 88625-12190 · 88790-12010 · 88790-12011 |
| 88625E | Motor assembly (for thermistor) | 88550-12100 |
| 88648A | Cooler wiring harness | 88648-12280 · 88648-12281 |
