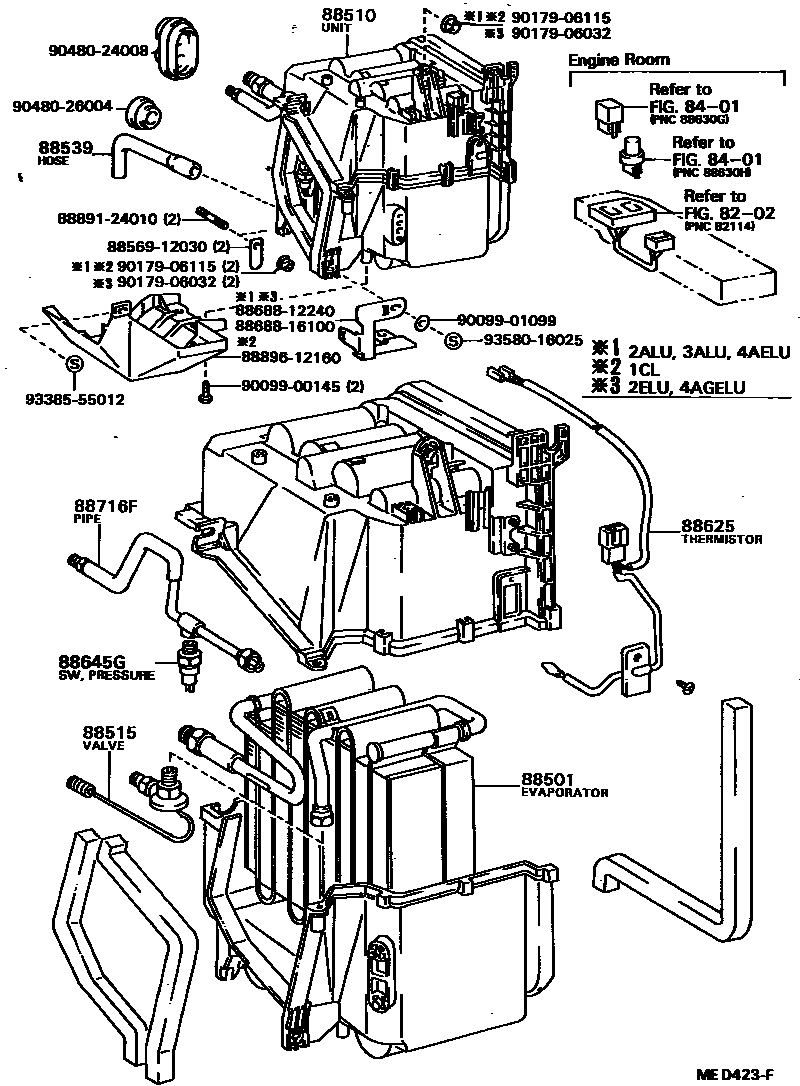

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12310 · 88501-16060 |
| 88510 | Cooler device assembly | 88510-12650 · 88510-16080 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12080 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12500 · 88605-12501 · 88605-12510 · 88605-12511 · 88605-12530 · 88605-12531 · 88605-12540 · 88605-12541 · 88605-12551 · 88605-12560 · 88605-12561 · 88605-12580 · 88605-12581 · 88605-12670 · 88605-12671 · 88605-12680 · 88605-12681 · 88605-12780 · 88605-12781 · 88605-12890 · 88605-12891 · 88605-1A040 · 88605-1A041 · 88605-1A050 · 88605-1A051 · 88605-1A060 · 88605-1A061 · 88605-1A150 |
| 88625 | Cooler No. 1 Thermistor | 88625-12200 · 88625-16060 |
| 88630 | Cooler relay assembly | 90987-02004 · 90987-03001 |
| 88630A | Cooler relay assembly | 90987-03001 |
| 88645G | pressure switch | 88645-10020 · 88645-12020 |
| 88648 | No. 1 cooler wiring harness | 88648-16080 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12120 · 88650-12200 · 88650-12201 · 88650-12290 · 88650-12300 · 88650-12320 · 88650-12350 · 88650-12351 · 88650-12360 · 88650-12361 · 88650-12430 · 88650-12431 · 88650-16030 · 88650-16040 · 88650-16050 |
| 88688A | Cooler stabilized amplifier stand | 88688-12260 · 88688-16020 · 88688-16070 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-16160 |
