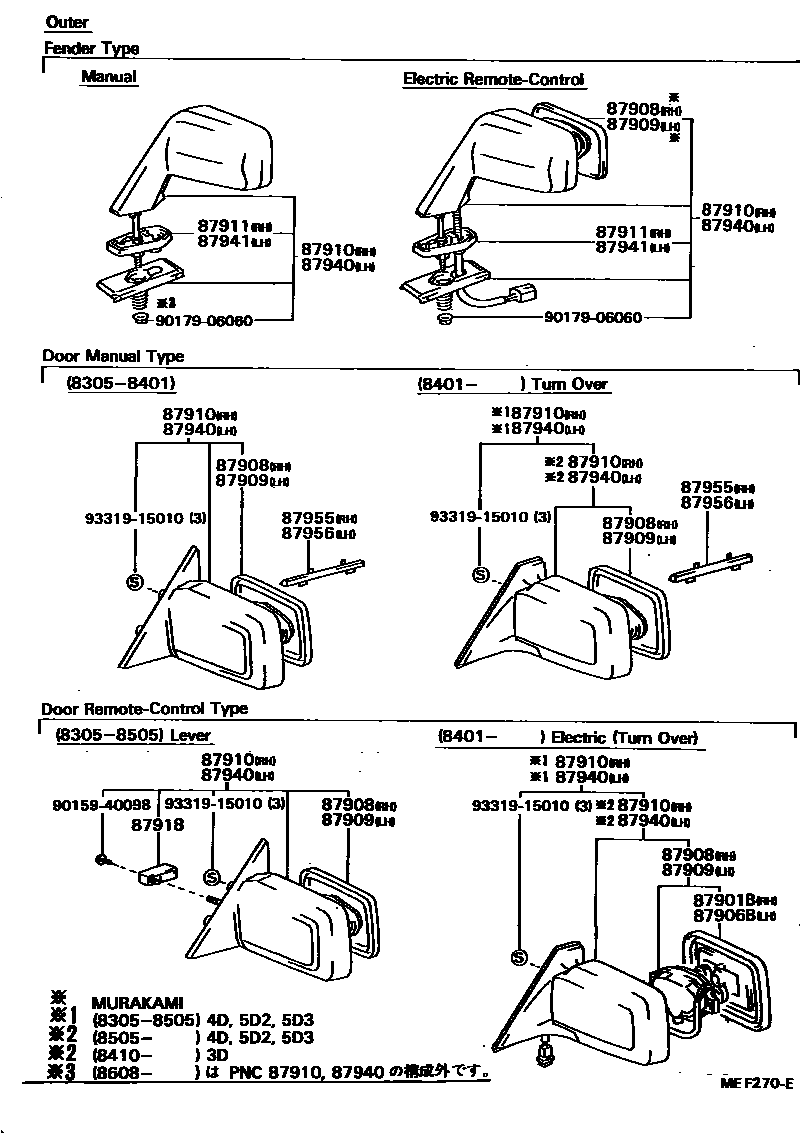

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87827 | Interior rearview mirror shock absorber | 87828-22020 · 87828-23010 |
| 87828 | Interior rearview mirror bracket seal | 87828-23010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-20040 · 87931-1A410 · 87931-20540 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-20040 · 87961-1A590 · 87961-20580 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-12080 · 87908-12100 · 87908-16030 · 87908-1A410 · 87908-20040 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-12070 · 87909-12090 · 87909-14060 · 87909-1A590 · 87909-20040 |
| 87910 | Right exterior rearview mirror assembly | 87910-12620 · 87910-12770 · 87910-12872 · 87910-12882 · 87910-1A050 · 87910-1A060 · 87910-1A400 · 87910-80033 · 87910-80034 · 87910-80035 · 87910-80074 · 87910-80075 · 87910-80117 · 87910-80118 · 87910-80150 · 87910-80151 |
| 87911 | Right exterior mirror pad | 87911-12140 · 87911-12150 · 87911-12160 |
| 87918 | Exterior rearview mirror control handle | 87918-12060 |
| 87940 | Left exterior rearview mirror assembly | 87940-12690 · 87940-12860 · 87940-1A072 · 87940-1A082 · 87940-1A130 · 87940-1A140 · 87940-1A580 · 87940-80033 · 87940-80034 · 87940-80035 · 87940-80074 · 87940-80075 · 87940-80117 · 87940-80118 · 87940-80150 · 87940-80151 |
| 87941 | Left exterior mirror pad | 87941-12120 · 87941-12130 · 87941-12140 |
| 87955 | Right exterior mirror base lower pad | 87955-12010 · 87955-12020 · 87955-12030 |
| 87956 | Left side exterior mirror base lower pad | 87956-12010 · 87956-12020 · 87956-12030 |
