Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

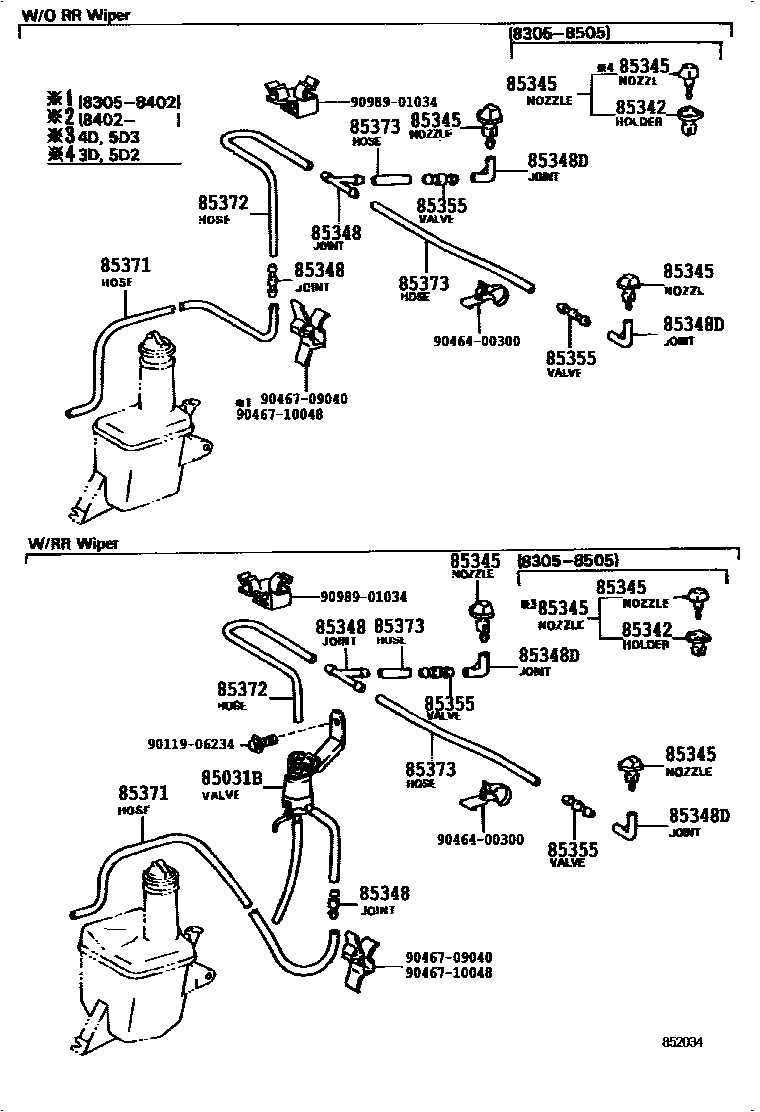

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-12040 · 85031-12100 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |

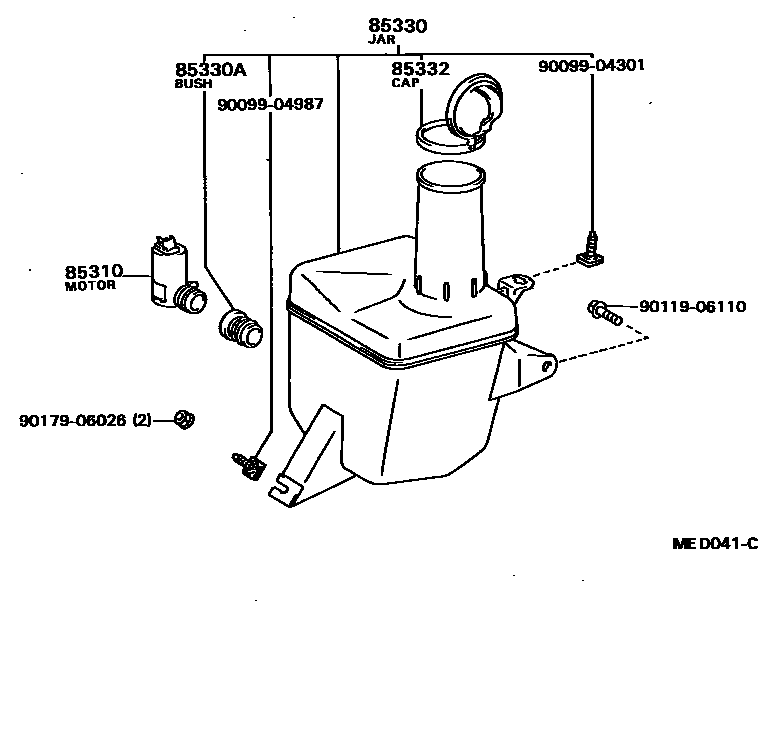

| 85330 | Windshield washer fluid tank assembly | 85331-20430 · 85331-20440 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-20430 · 85332-20431 · 85332-20440 · 85332-20441 |
| 85342 | Washer nozzle retainer | 85342-14010 |
| 85345 | windshield washer nozzle | 85035-12190 · 85035-12220 · 85035-12240 · 85035-19015 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-20070 |
| 85355 | Windshield washer hose valve | 85031-12250 · 85031-14080 |
