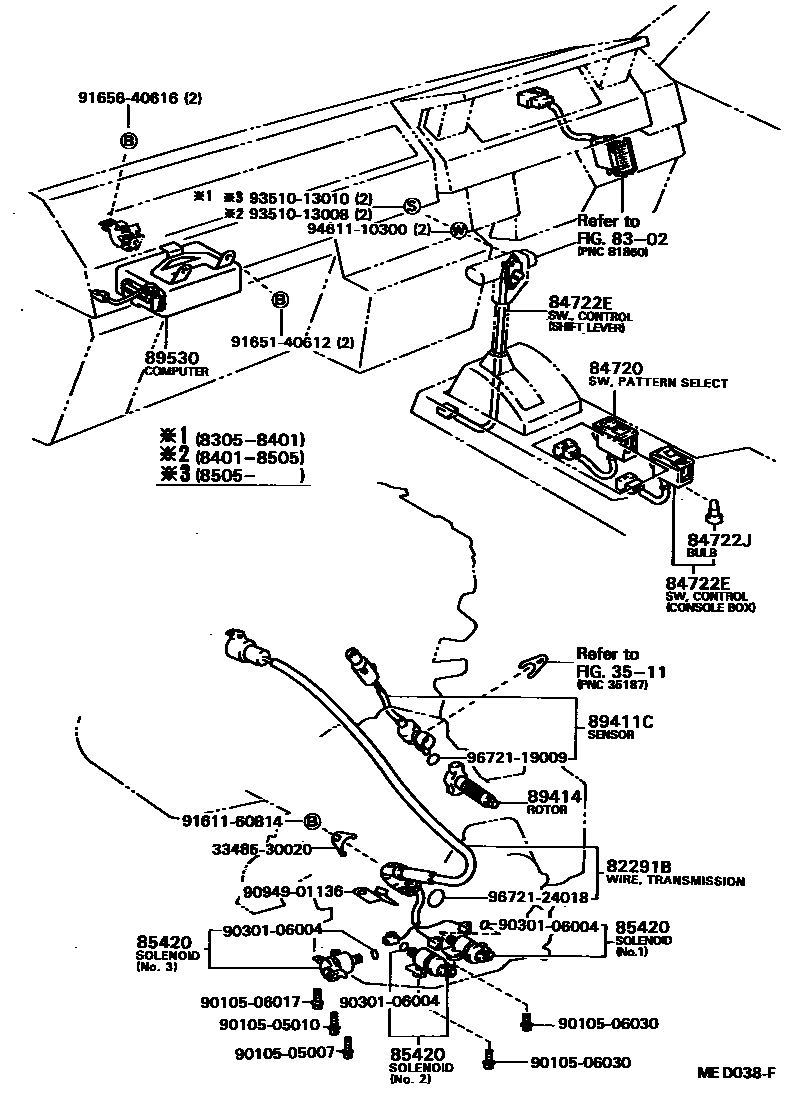

Toyota COROLLA 电子控制变速器 — Figure 8412
Toyota COROLLA EPC diagram 8412, 电子控制变速器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82291B | to solenoid valve harness (for transmission) | 82125-12250 |
| 84722E | transmission control switch | 84722-12010 · 84722-32010 |
| 84722J | Transmission control switch light bulb | 84999-10110 |
| 85420 | Transmission solenoid valve assembly | 85420-12020 · 85420-12060 · 85420-12061 |
| 89530 | Transmission control ECU assembly | 89530-12010 · 89530-12040 · 89530-12090 · 89530-12110 |
