Toyota COROLLA 巡航控制(自动行驶) — Figure 8408

Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 6 PNC and OE references.

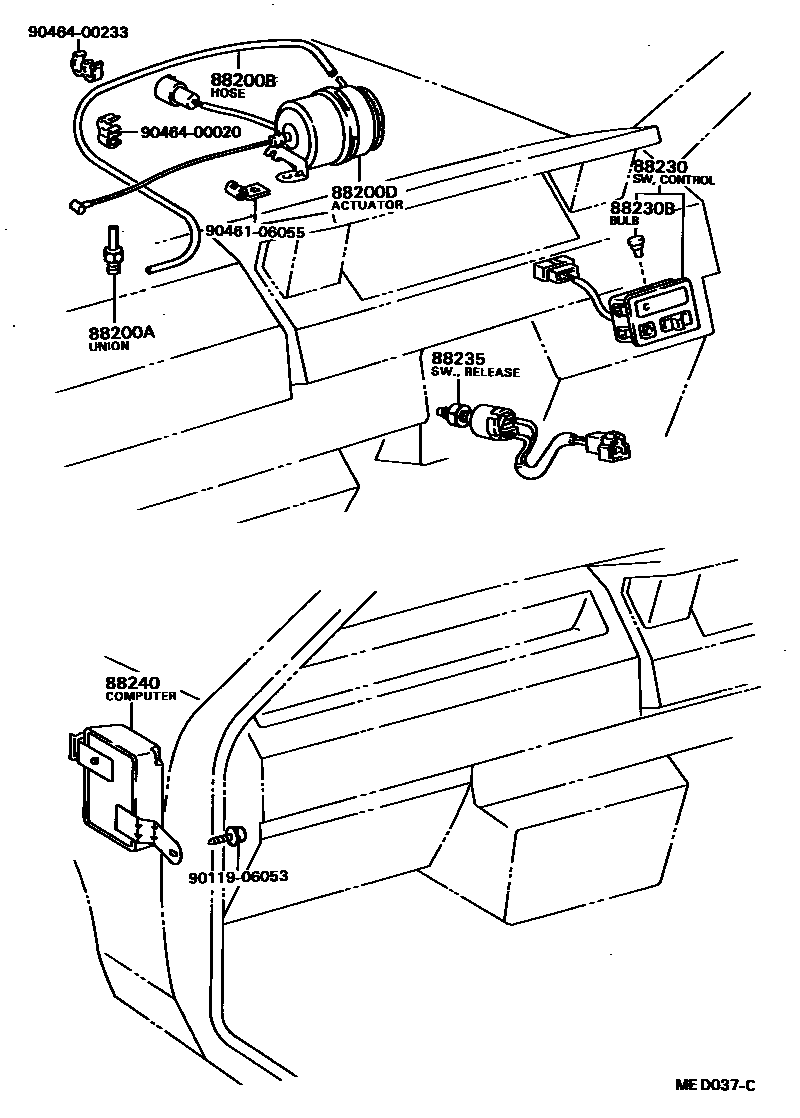

Toyota COROLLA 巡航控制(自动行驶) EPC diagram — MED037C
巡航控制(自动行驶) — MED037C (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
88200Acruise control vacuum fitting or tube90404-51010
88200DCruise control actuator assembly88200-12020
88230Cruise control (automatic driving) switch assembly84630-12020 · 88230-22040 · 88230-22061
88230BCruise control (autonomous driving) switch light bulb84999-10170 · 90981-11014
88235Cruise control (automatic driving) release switch assembly88280-35010
88240Cruise control ECU assembly88240-12030 · 88240-12031 · 88240-12032 · 88240-12070 · 88240-12080
