Toyota COROLLA 开关和继电器和ECU — Figure 8401

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 7 images and 88 PNC and OE references.

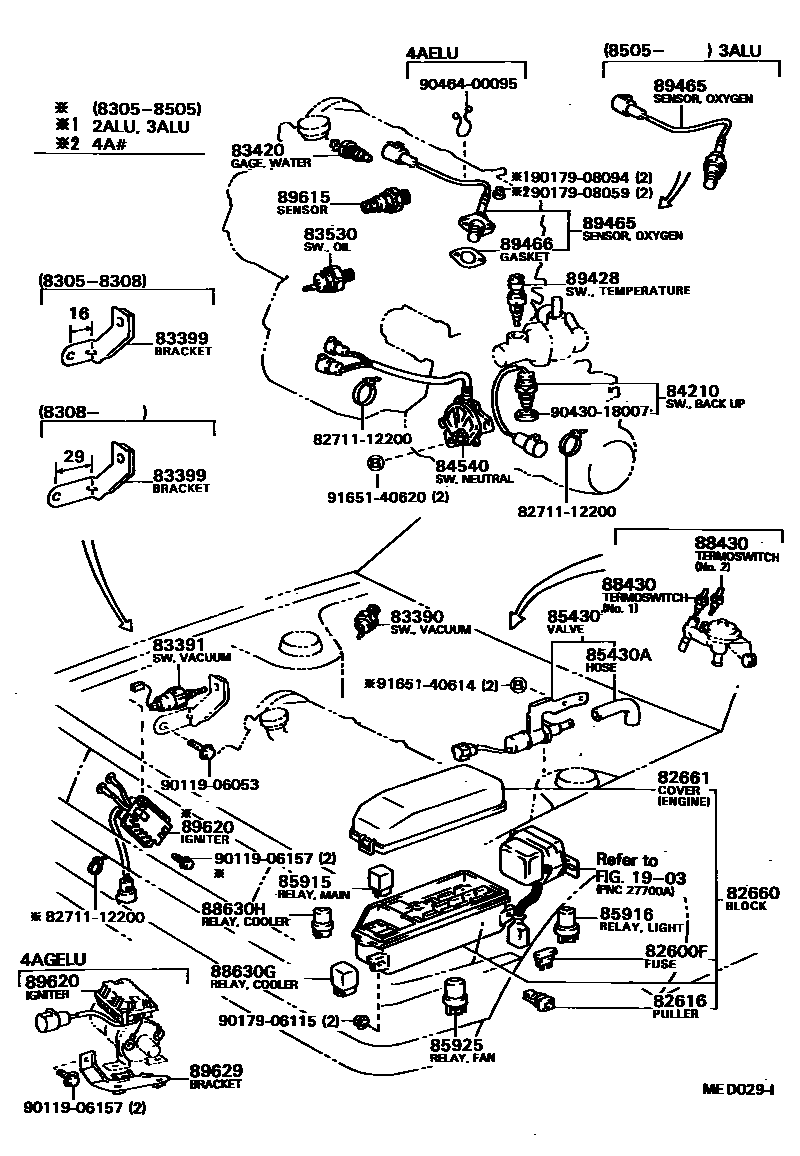

Toyota COROLLA 开关和继电器和ECU EPC diagram — MED029I
开关和继电器和ECU — MED029I (198305 – 999999)

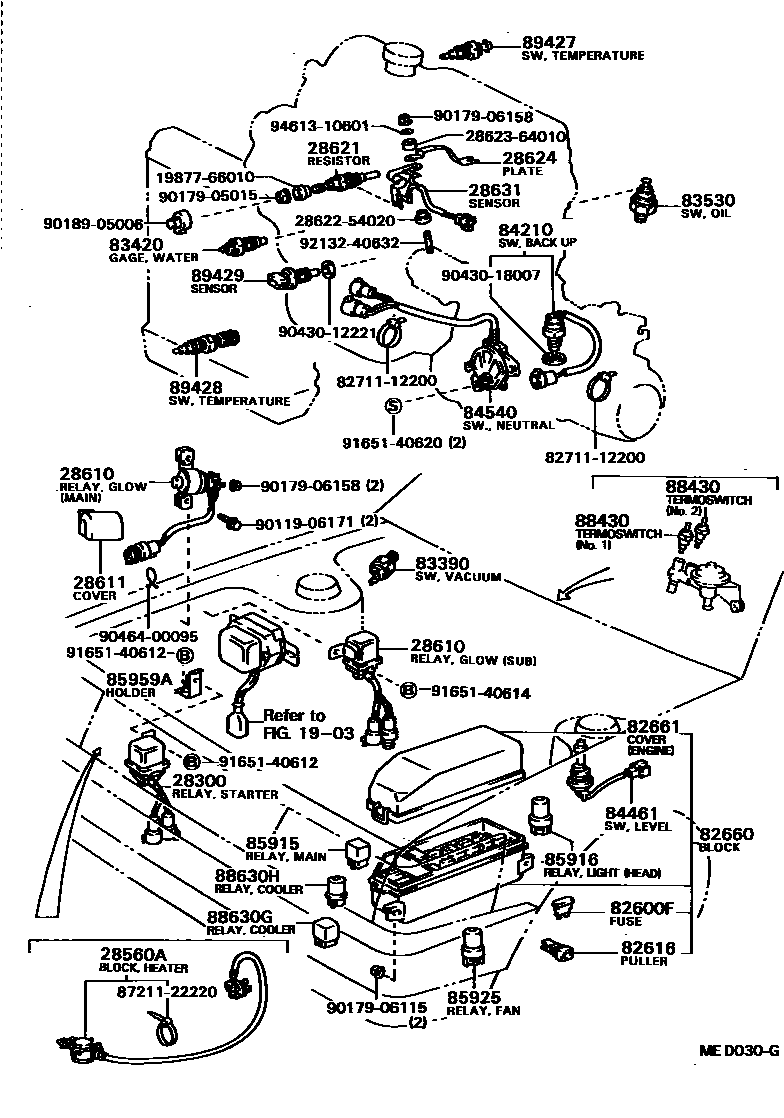

Toyota COROLLA 开关和继电器和ECU EPC diagram — MED030G
开关和继电器和ECU — MED030G (198305 – 999999)

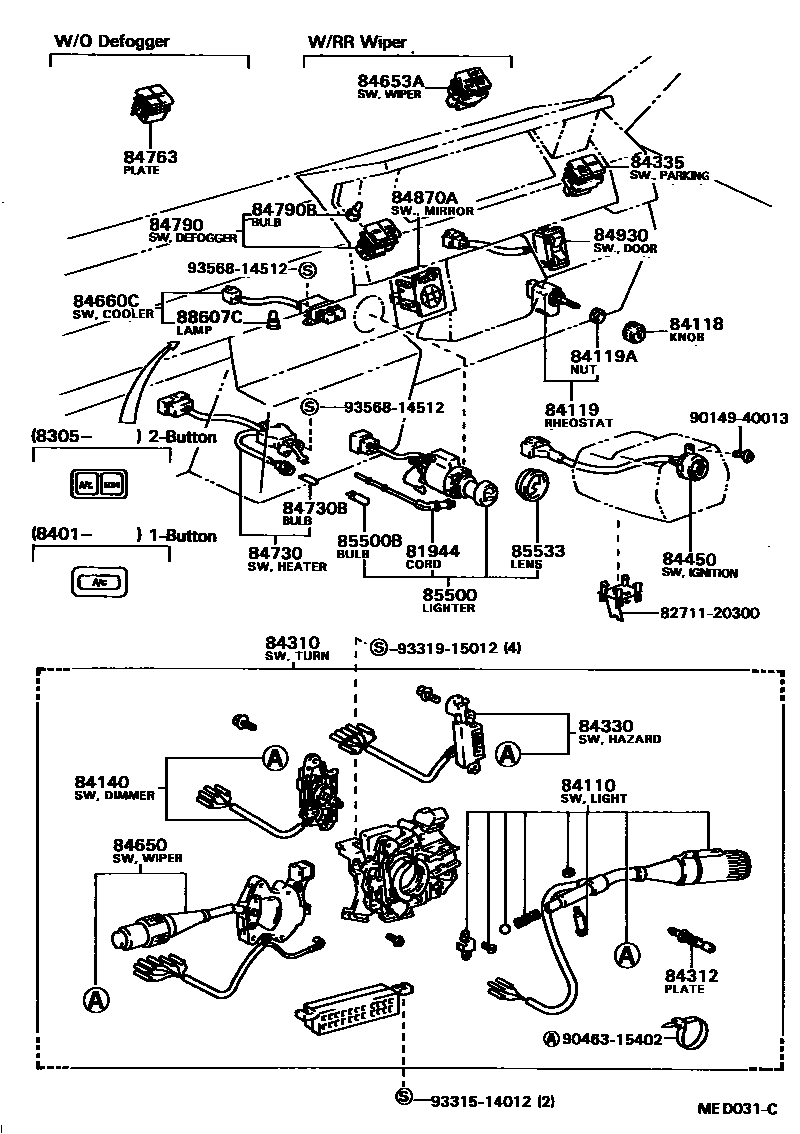

Toyota COROLLA 开关和继电器和ECU EPC diagram — MED031C
开关和继电器和ECU — MED031C (198305 – 198505)

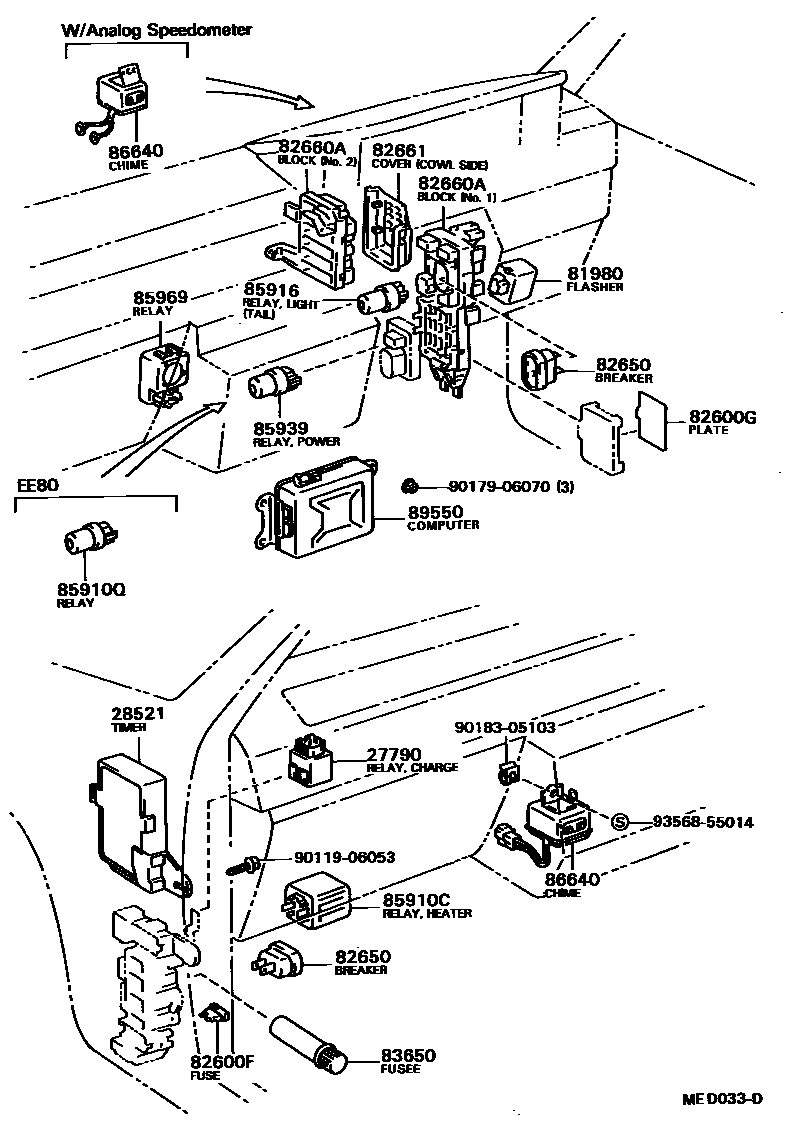

Toyota COROLLA 开关和继电器和ECU EPC diagram — MED033D
开关和继电器和ECU — MED033D (198305 – 999999)

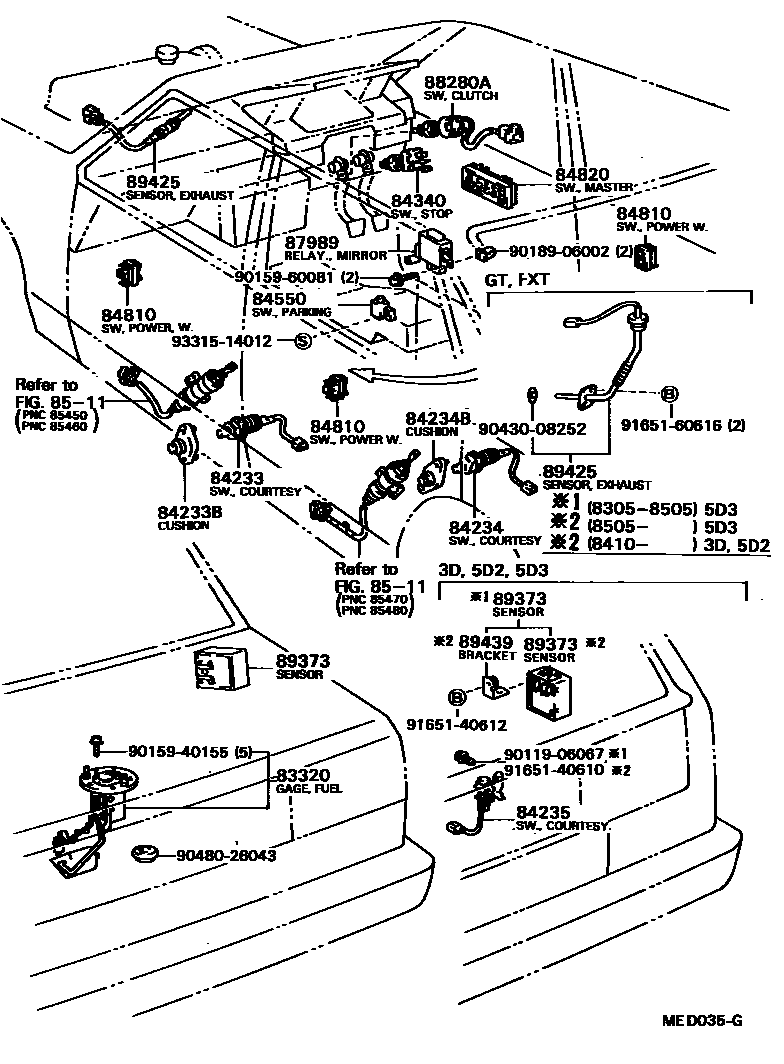

Toyota COROLLA 开关和继电器和ECU EPC diagram — MED035G
开关和继电器和ECU — MED035G (198305 – 999999)

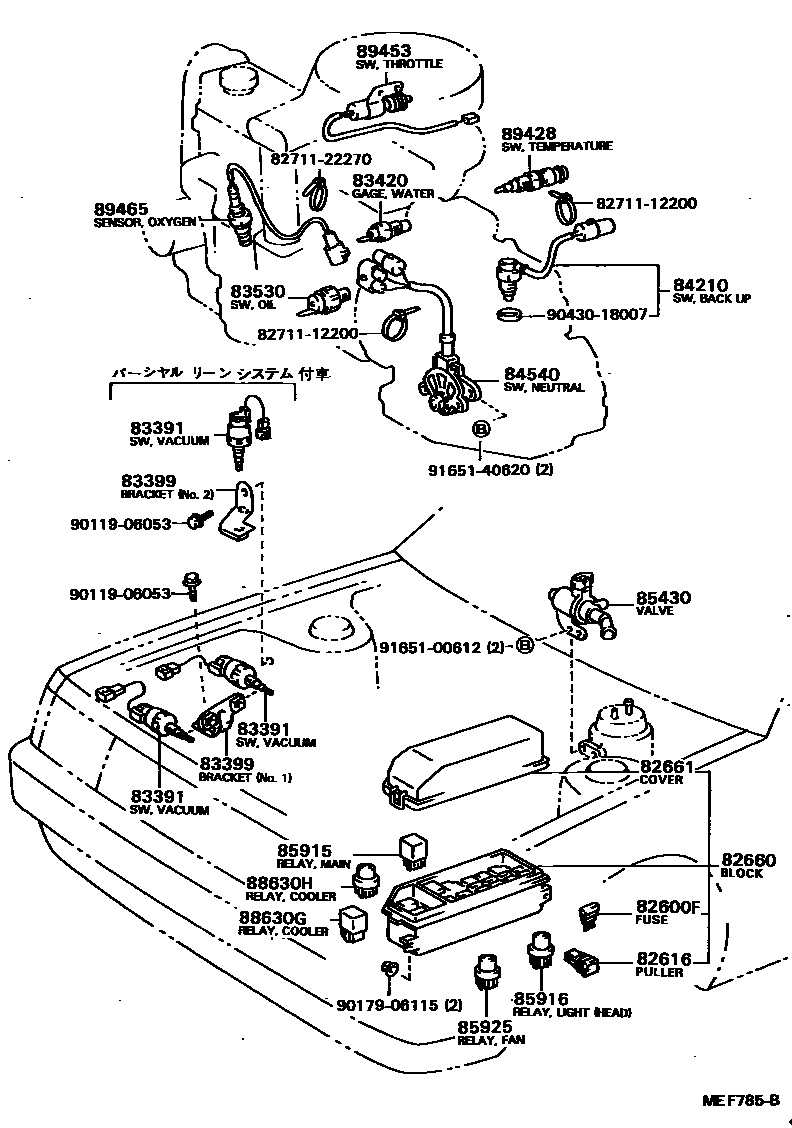

Toyota COROLLA 开关和继电器和ECU EPC diagram — MEF785B
开关和继电器和ECU — MEF785B (198505 – 999999)

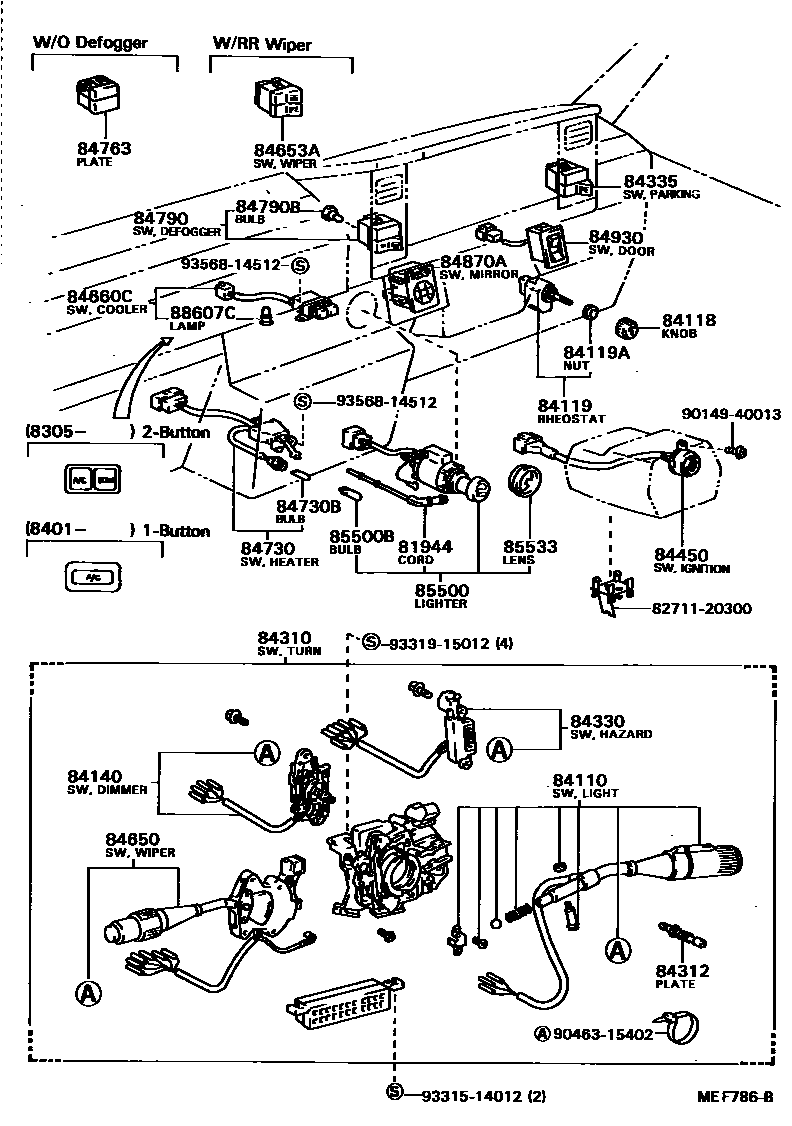

Toyota COROLLA 开关和继电器和ECU EPC diagram — MEF786B
开关和继电器和ECU — MEF786B (198505 – 999999)

PNC and OE references

PNCPart nameOE numbers
27790Charging indicator light relay assembly27790-35020
28300Starter relay assembly28300-64010
28521Preheat timer28521-64060 · 28521-64061 · 28521-64062
28560Aheater body28560-19015
28610Glow plug relay assembly28610-54080 · 28610-64010
28611Glow plug relay cover28611-54011
28621glow plug resistor28621-64011 · 28621-64020
28624Current sensor chip28624-64020
28631glow plug current sensor28631-64030
81944fiber optic cable81944-12010
81980Turn signal flasher relay assembly81980-16010 · 81980-22070
82600FSpare fuse90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005
82600GWarning nameplate (for fuses)82683-12040 · 82683-12140
82616fuse puller82616-12020
82650No. 1 circuit breaker assembly82650-12010 · 82650-12020 · 82650-20011 · 82650-35010
82660Engine room relay box assembly82660-12150 · 82660-12160
82660AFront wall side relay box assembly82660-12130 · 82660-12200
82661No. 1 relay box cover82661-12040 · 82661-12070 · 82661-12090
83320Fuel gauge sensor assembly83320-19675 · 83320-19685 · 83320-19695 · 83320-19705 · 83320-19706 · 83320-19735
83390Vacuum warning switch assembly83390-30020
83391Vacuum switch83391-12120 · 83391-12130 · 83391-12140 · 83391-14061 · 83391-22070
83399Vacuum switch bracket83399-12090 · 83399-12110 · 83399-22011 · 83399-27030
83420Water temperature sensor assembly83420-16020 · 83420-20020
83530Oil pressure switch assembly (for engine)83530-12040 · 83530-14040 · 83530-30042 · 83530-30060 · 83530-30080 · 83530-36011
83650fuse90986-01003
84110No. 1 light control switch assembly84112-19485 · 84112-19515
84118Light control rheostat button84118-20011
84119Light control rheostat84110-12180
84119ARheostat control retaining bolt or nut90170-09167
84140Headlight dimmer switch assembly84140-19225 · 84140-19255
84210Reversing light switch assembly84210-60021
84233Door control light switch assembly (for front door)84230-12120
84233BDoor light switch cushion (for front doors)84234-22010
84234Door control light switch assembly (for rear door)84230-12120
84234BDoor light switch cushion (for rear doors)84234-22010
84235Door control light switch assembly (for back door)84231-16021 · 84231-32010
84310Turn signal switch assembly84310-12560 · 84310-12580 · 84310-12650 · 84310-12660 · 84310-12740 · 84310-12780
84312Speaker contact piece84312-32010 · 84312-32020
84330Hazard warning signal switch assembly84332-19195 · 84332-19225
84335Parking light switch assembly84330-12140 · 84330-12150
84340brake light switch assembly84340-20030 · 84340-22100 · 84340-22110 · 84340-32010
84450Ignition or starter switch assembly84450-12120 · 84450-17030
84461Liquid level warning switch84461-26020
84540Neutral start switch assembly84540-12160 · 84540-32050
84550Parking brake switch assembly84550-12060
84650Windshield wiper switch assembly84652-80001 · 84652-80003 · 84652-80010 · 84652-80011 · 84652-80017 · 84652-80040
84653ARear wiper switch84653-12100 · 84653-12140
84660CCooler switch84660-12050 · 84660-12090
84730Heater blower switch assembly84732-12110 · 84732-12130 · 84732-12160 · 84732-12180
84730Bheater blower switch light bulb90981-11014
84763switch board84763-12030 · 84763-12040
84790Rear window defogger switch assembly84790-12140 · 84790-12170
84790BBulb (for rear window defogger switch)84999-10170
84870AExterior rearview mirror switch assembly84870-12070 · 84870-22040
84930Door control switch assembly84930-95701
85430External ventilation control valve85430-12061 · 90925-09003 · 90925-09004
85430Ahose90445-14109
85500Cigarette lighter assembly85500-12180 · 85500-12181 · 85500-12210
85500BCigarette lighter bulb90981-11014
85533Cigarette lighter indicator lamp shade85533-16010 · 85533-20011
85910CRelay assembly (for heater blower motor)85913-30020
85910QRelay (for idle speed boost)90987-02002 · 90987-02004
85915main relay85913-30020
85916Light control relay90987-01003
85925Radiator fan relay90987-03001
85939Power window relay90987-02002 · 90987-02004
85959ARelay mounting parts85959-12040
85969car light reminder relay85969-16010
86640Warning bell assembly86640-12080 · 86640-12090
87989Rearview mirror control relay87989-12050
88280AClutch switch assembly88280-35010
88430Air conditioning temperature switch assembly83430-30010 · 83430-30020
88607CIndicator light sub-assembly88607-12010
88630GCooler relay assembly88630-32010
88630HCooler relay assembly90987-02004
89373Malfunction indicator light sensor89373-12040 · 89373-12060 · 89373-12090 · 89373-23010
89425Exhaust gas temperature sensor89425-12140 · 89425-12190 · 89425-19355
89427Temperature detection switch89427-12051
89428No. 2 temperature detection switch89428-10100 · 89428-10110 · 89428-15011 · 89428-15030
89429oil temperature sensor89422-30020
89439Sensor holder89439-12010
89453Throttle position switch (for T.C.S.)89453-14010
89465oxygen sensor89465-10010 · 89465-12070 · 89465-19085 · 89465-19125 · 89465-29135
89466Oxygen sensor pad89466-30010 · 89466-32010
89550Emission control ECU assembly89550-12700 · 89550-12701 · 89550-12710 · 89550-12711 · 89550-12790 · 89550-12800 · 89550-12810 · 89550-12880 · 89550-12890
89615knock control sensor89615-16010
89620Ignition assembly89620-12260 · 89620-12261 · 89620-12300
89629Ignition bracket assembly89629-12020
