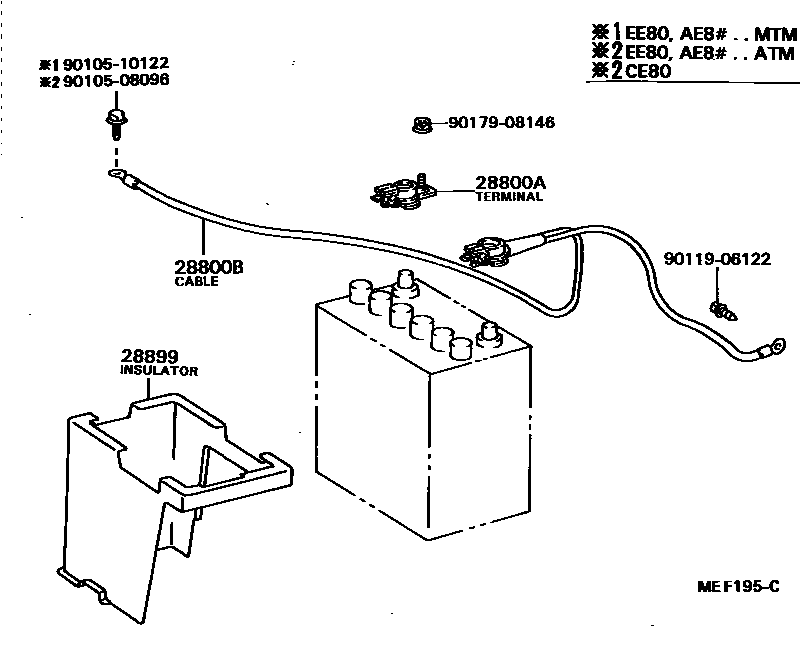

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05018 · 90982-05022 · 90982-05027 · 90982-05028 · 90982-05030 |
| 28800B | Cable between battery and ground | 82123-12050 · 82123-12070 · 82123-12100 |
| 28899 | Battery insulation cover | 28899-64010 · 28899-64020 |
