Toyota COROLLA 前示宽灯 — Figure 8104

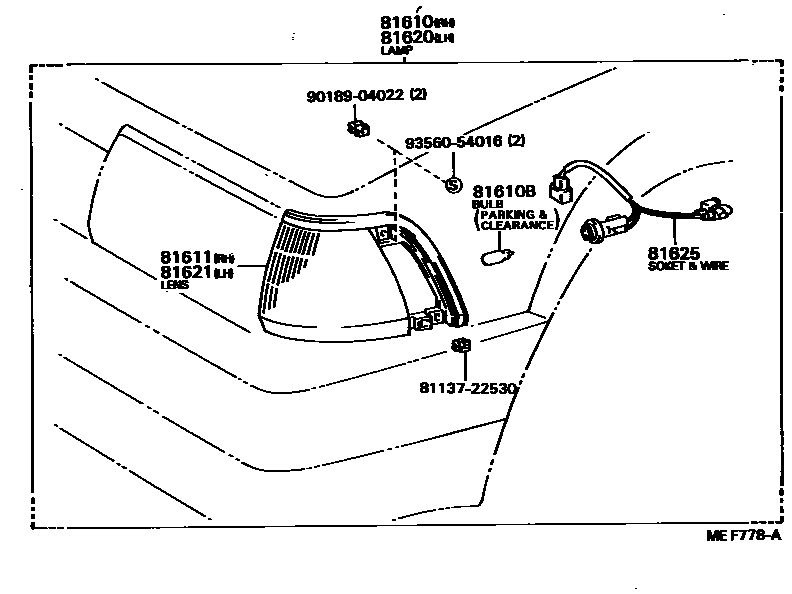

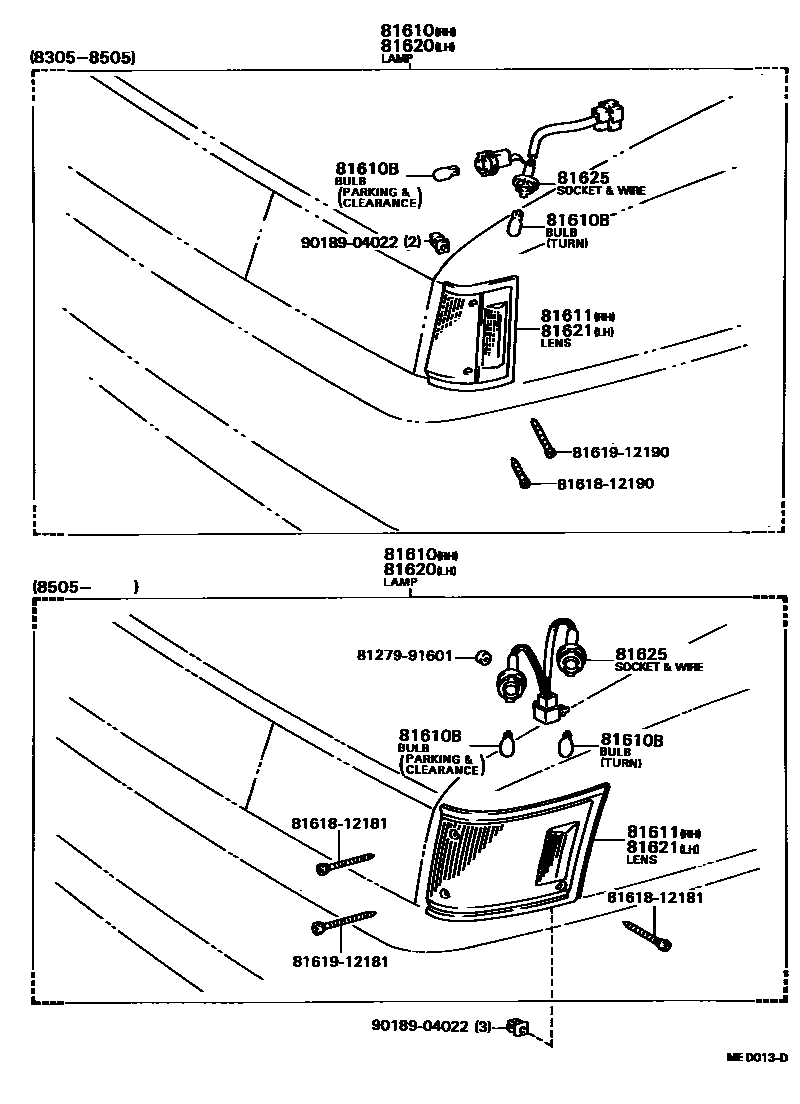

Toyota COROLLA EPC diagram 8104, 前示宽灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-12181 · 81610-12270 · 81610-19455 · 81610-19575 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-12180 · 81611-12181 · 81611-12250 · 81611-12270 |
| 81620 | Left parking light and width indicator light assembly | 81620-12181 · 81620-12270 · 81620-19455 · 81620-19575 |
| 81621 | Left parking light and width indicator light cover | 81621-12180 · 81621-12181 · 81621-12250 · 81621-12270 |
| 81625 | Parking light and width indicator lamp holder and wiring harness | 81615-12180 · 81615-12181 · 81615-12250 |
