Toyota COROLLA Headlamp — Figure 8101

Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 9 PNC and OE references.

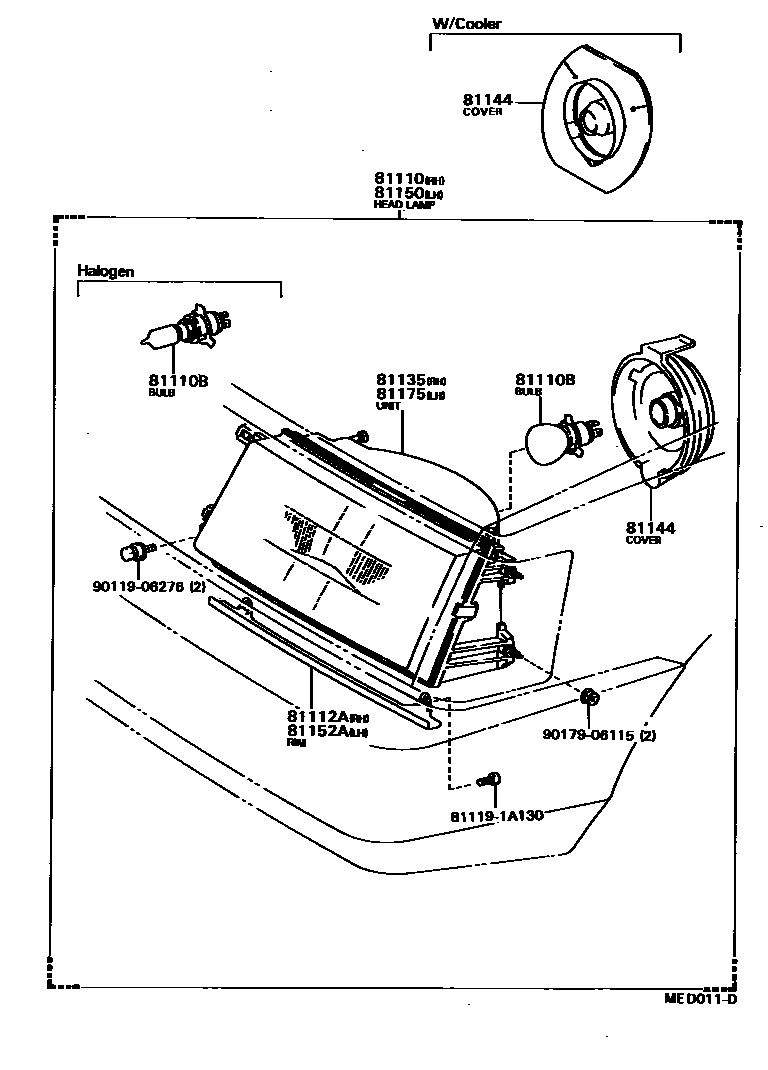

Toyota COROLLA Headlamp EPC diagram — MED011D
Headlamp — MED011D (198305 – 198505)

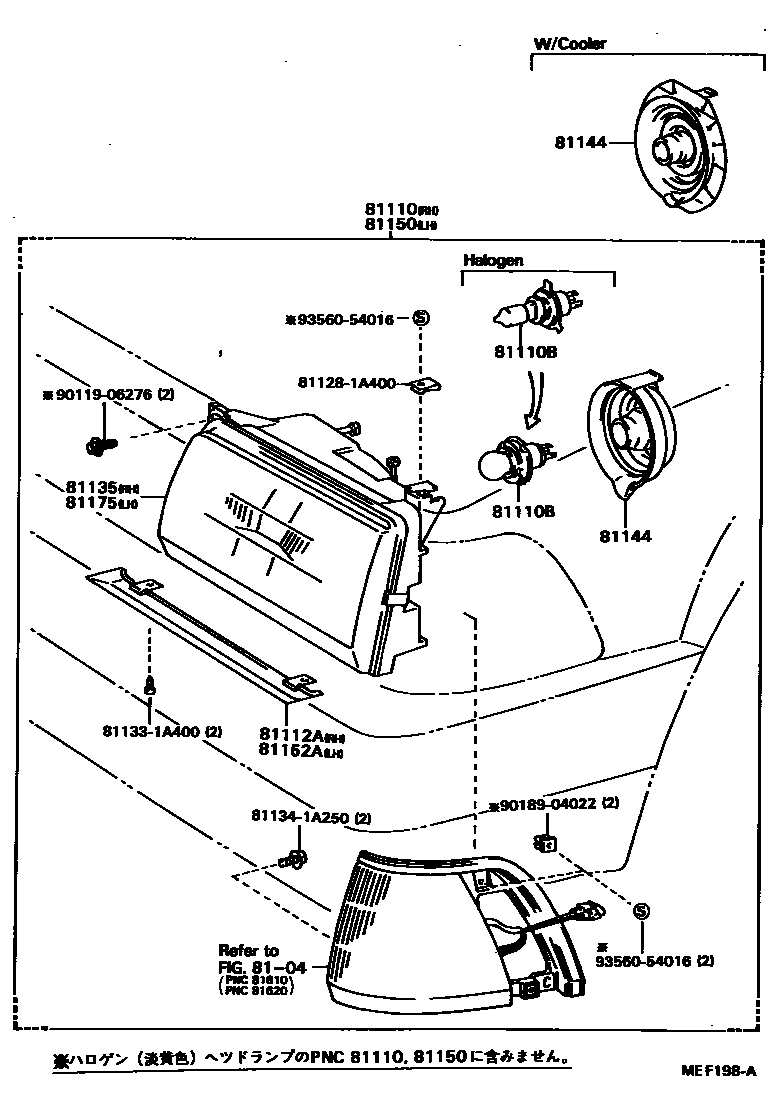

Toyota COROLLA Headlamp EPC diagram — MEF198A
Headlamp — MEF198A (198410 – 999999)

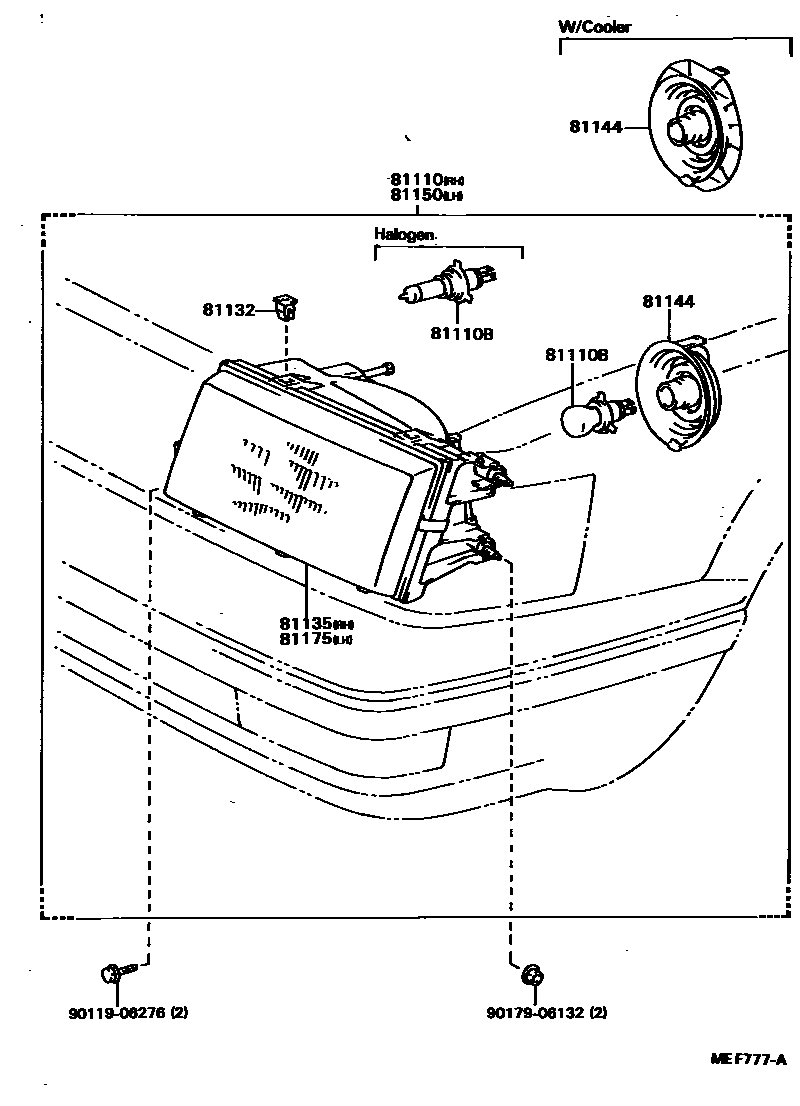

Toyota COROLLA Headlamp EPC diagram — MEF777A
Headlamp — MEF777A (198505 – 999999)

PNC and OE references

PNCPart nameOE numbers
81110Right headlight assembly81110-1A121 · 81110-1A131 · 81110-1A540 · 81110-1A560 · 81110-80309 · 81110-80310 · 81110-80439 · 81110-80440
81110BBulb (for headlight No. 1)90981-13015 · 90981-13016 · 90981-13022
81112ARight headlight frame81112-1A130 · 81112-1A400
81132Headlight self-locking nut81137-22530
81135Right headlight assembly81130-1A121 · 81130-1A131 · 81135-1A120 · 81135-1A130 · 81135-1A400 · 81135-1A410
81144No. 1 headlight cover81139-1A120 · 81139-20730
81150Left headlight assembly81150-1A071 · 81150-1A081 · 81150-1A370 · 81150-1A390 · 81150-80306 · 81150-80307 · 81150-80431 · 81150-80432
81152ALeft headlight frame81152-1A080 · 81152-1A300
81175Left headlight assembly81170-1A071 · 81170-1A081 · 81175-1A070 · 81175-1A080 · 81175-1A300 · 81175-1A310
