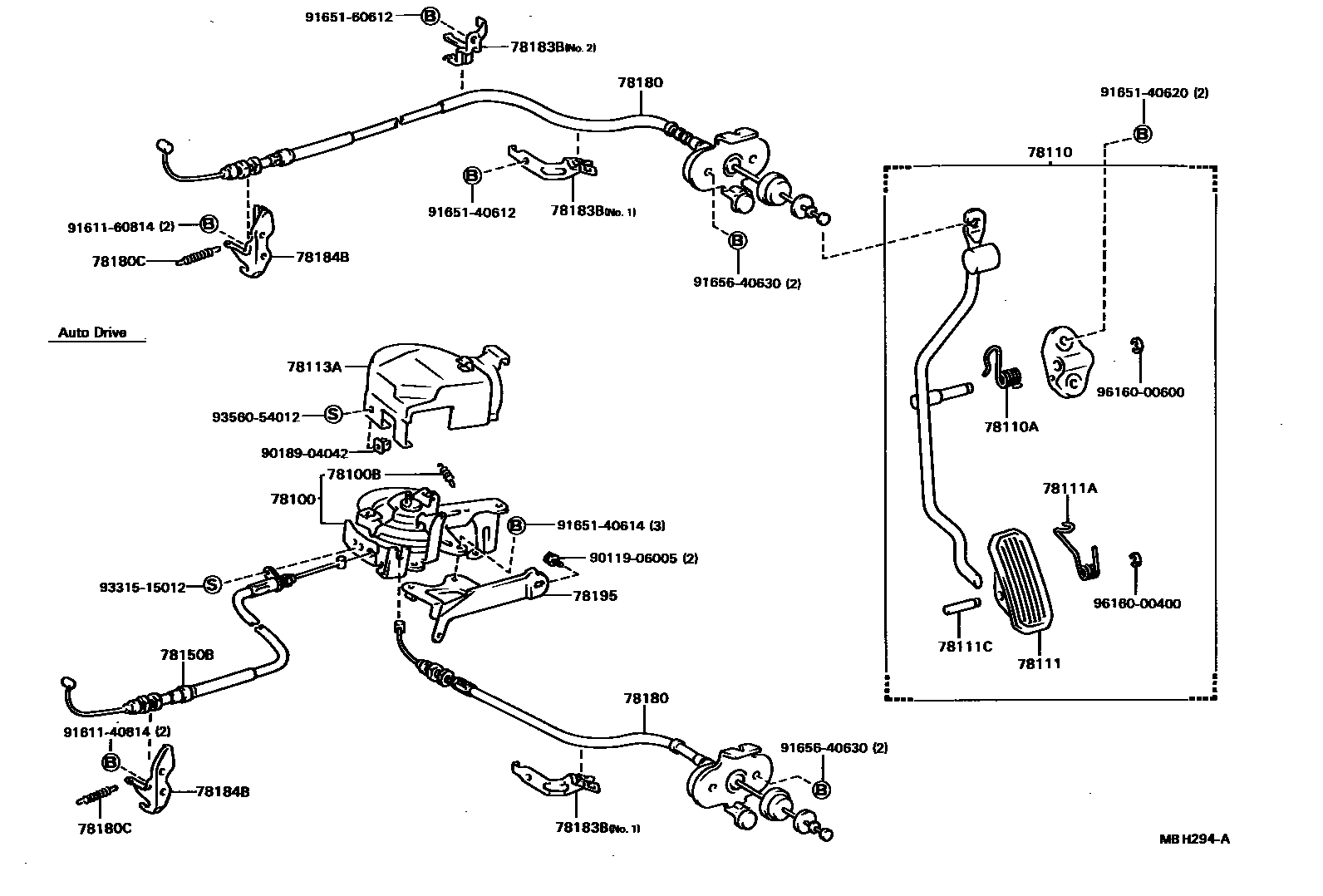

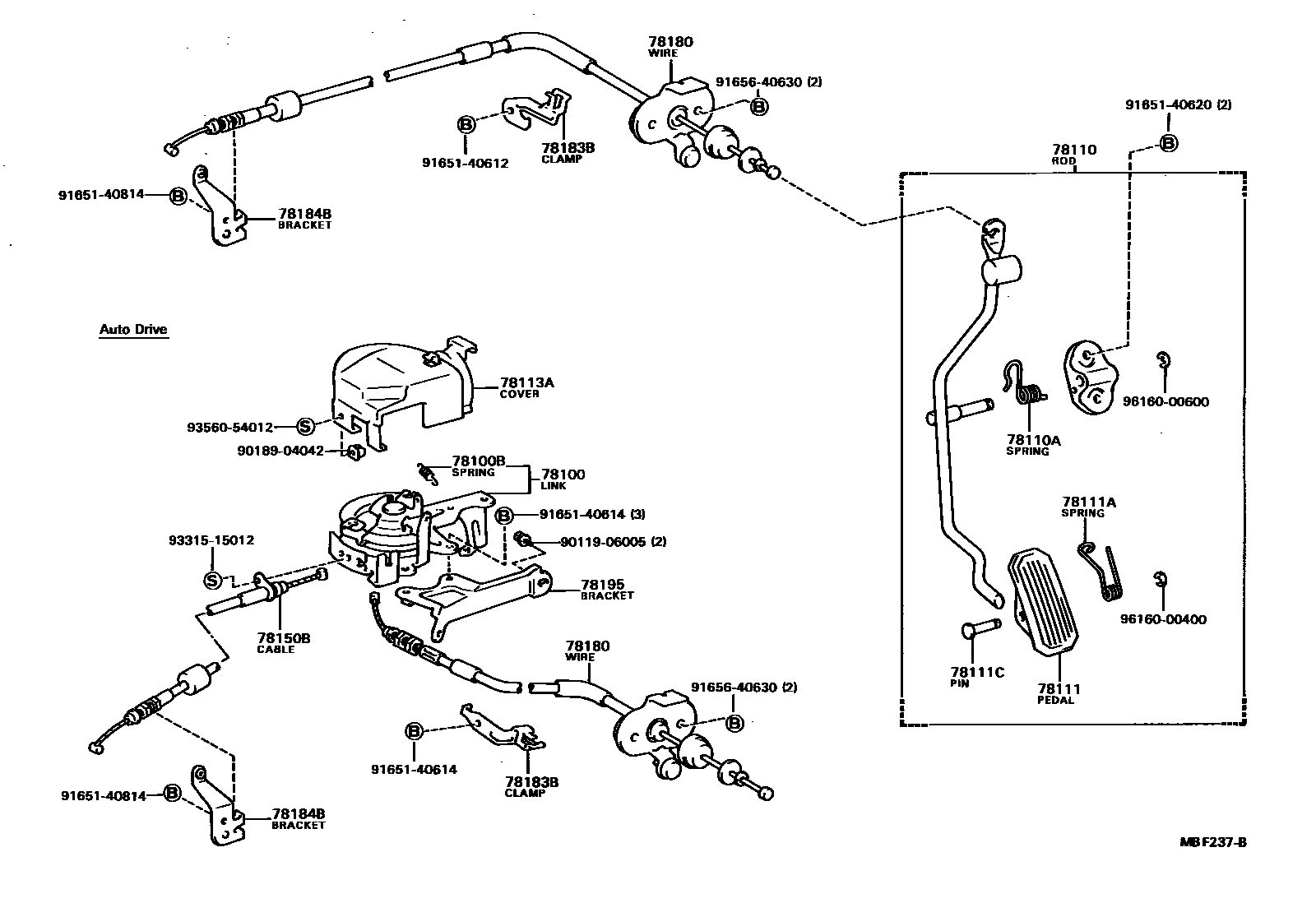

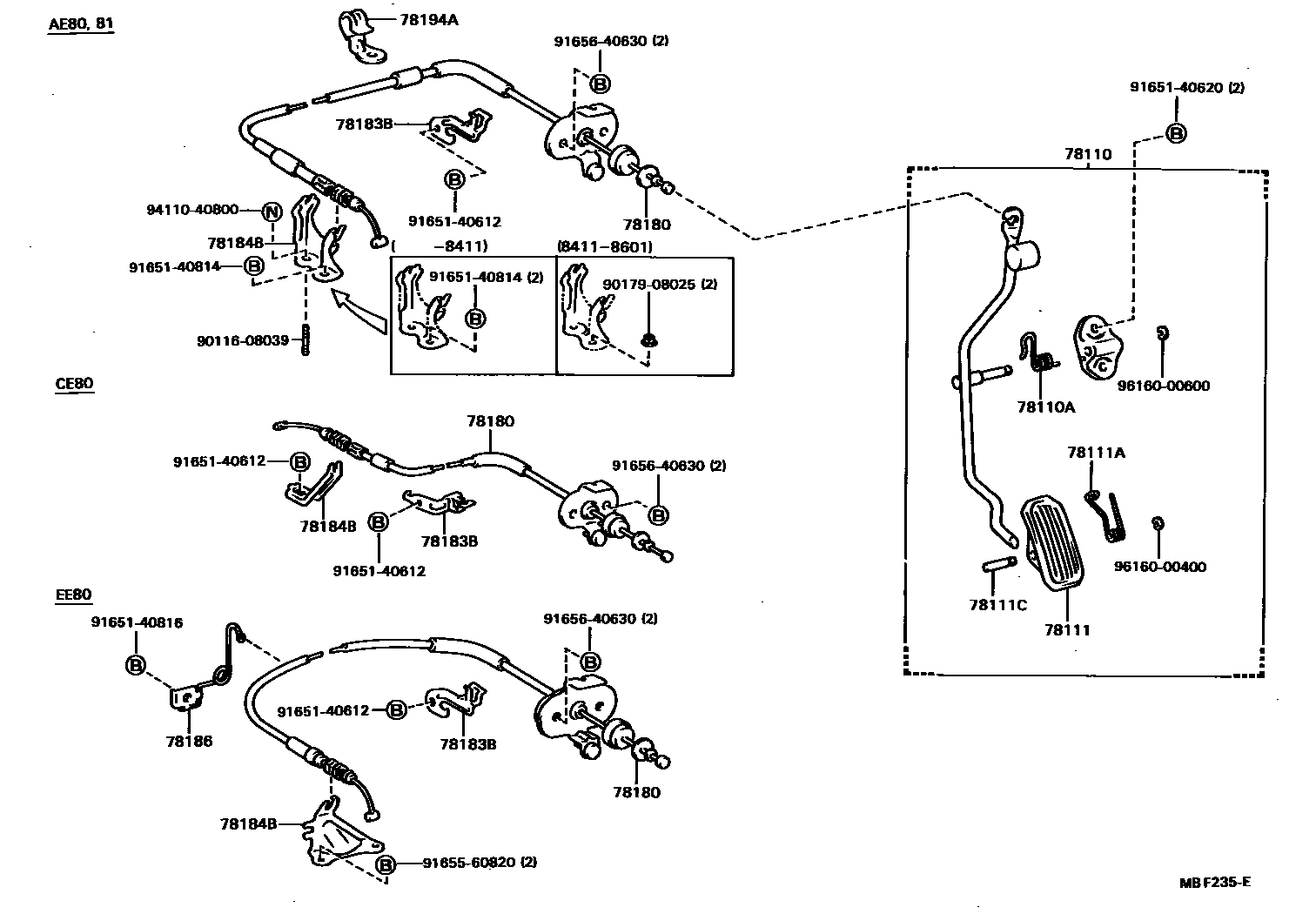

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78100 | Accelerator pedal connecting rod assembly | 78100-12050 |
| 78100B | Spring (for accelerator pedal linkage) | 90506-08019 |
| 78110 | Accelerator pedal lever assembly | 78120-12010 · 78120-12020 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-20120 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-12060 · 78150-12080 |
| 78180 | Throttle cable assembly | 78180-12440 · 78180-12480 · 78180-12540 · 78180-12570 · 78180-12580 · 78180-12660 |
| 78180C | Tension spring (for throttle cable) | 90507-10016 |
| 78183B | Accelerator pedal control cable clip | 78183-12050 · 78183-12060 · 78183-12080 |
| 78184B | Throttle pedal control cable bracket | 78184-10070 · 78184-12160 · 78184-12170 · 78184-12180 · 78184-12190 · 78184-12210 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12180 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-12020 |
| 78195 | Accelerator pedal connecting rod bracket | 78195-12010 |
