Toyota COROLLA 燃油箱和燃油管 — Figure 7701

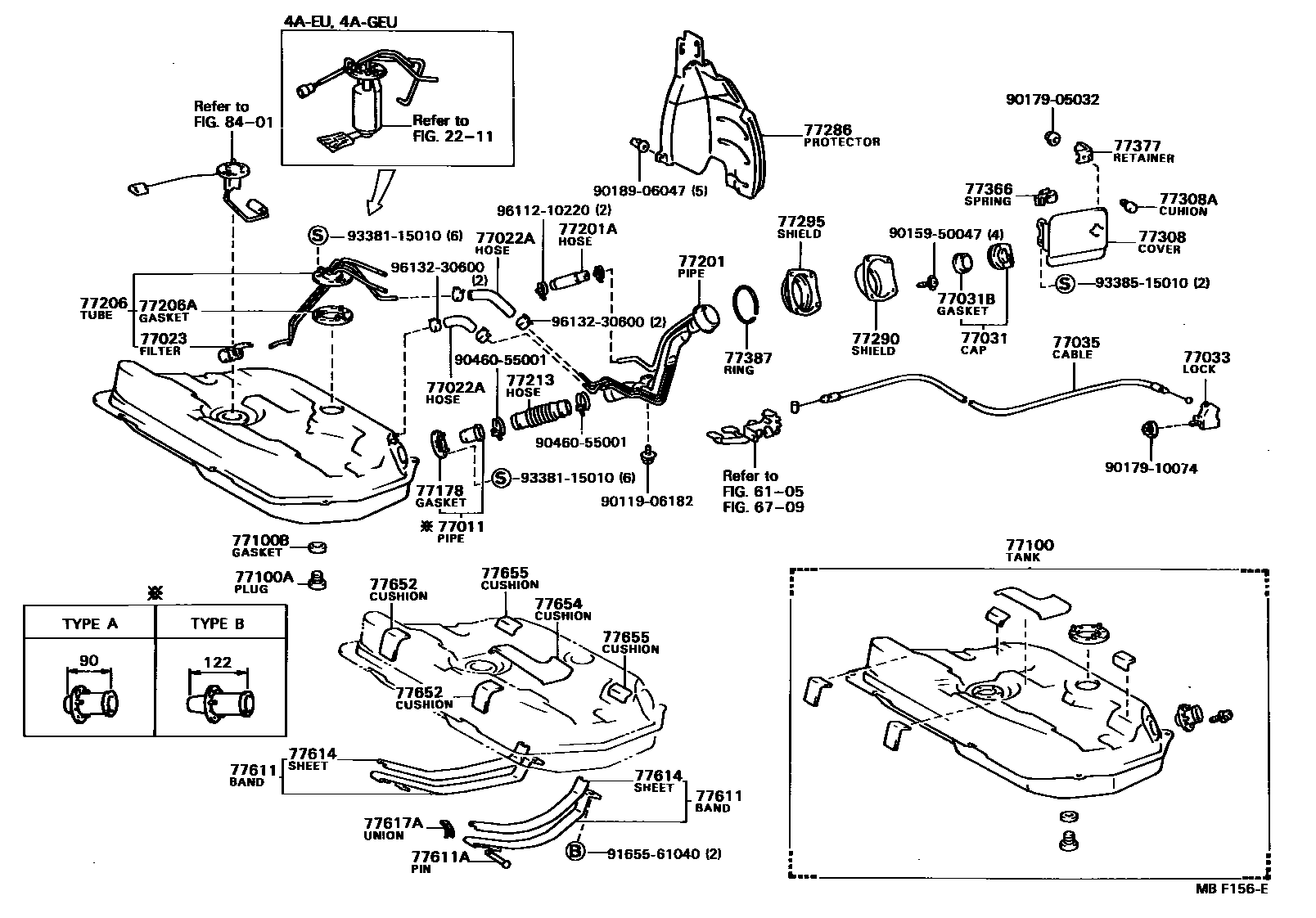

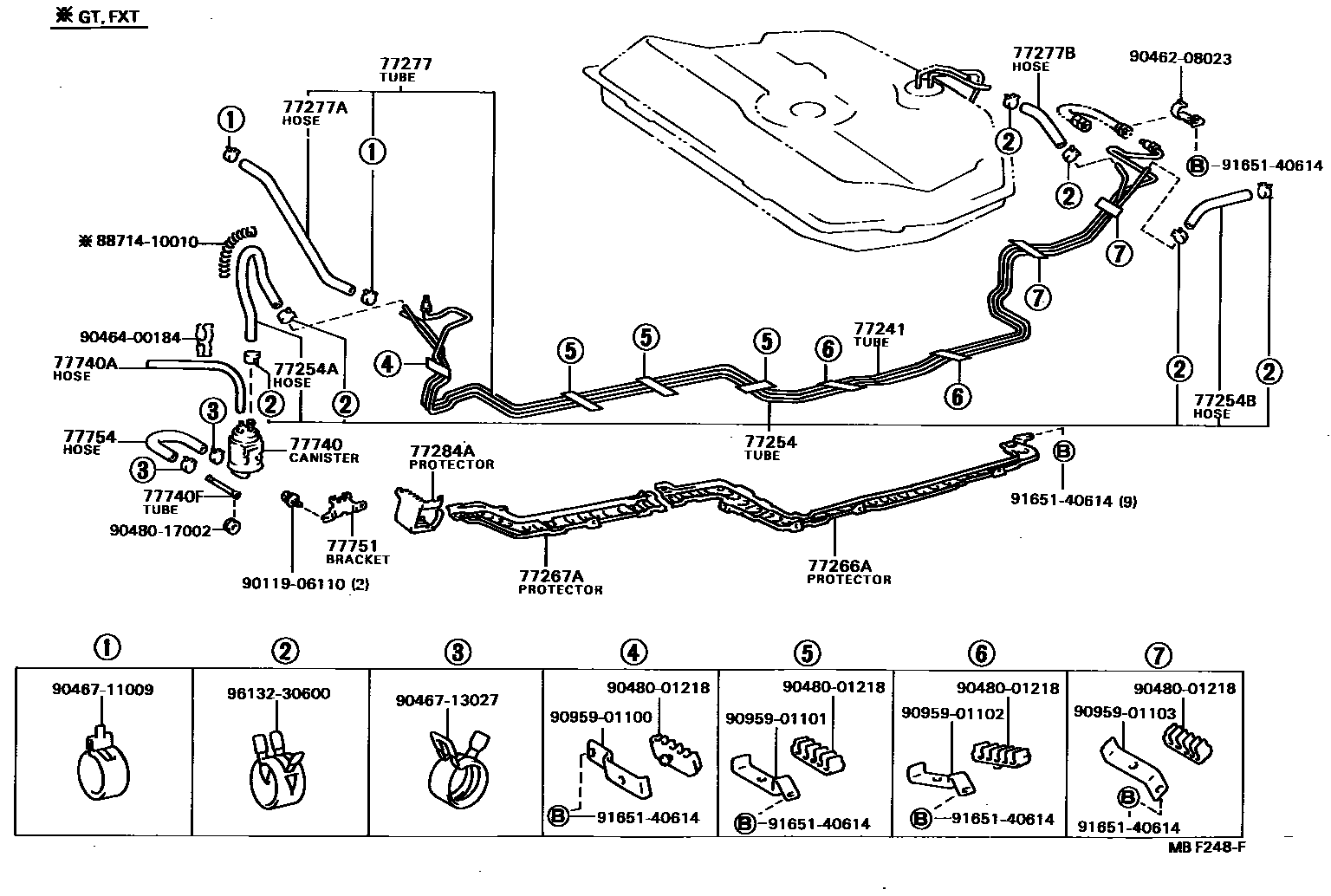

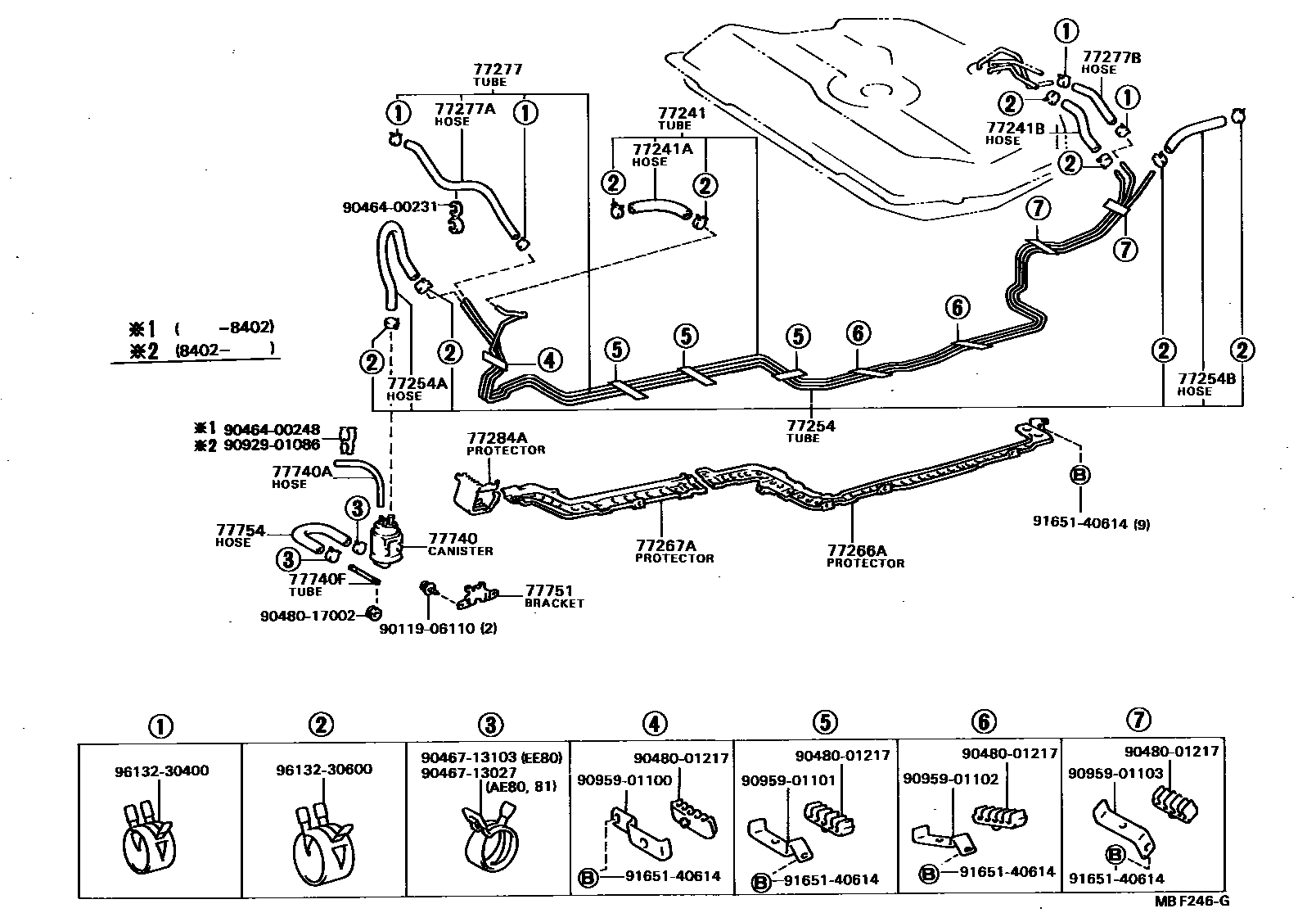

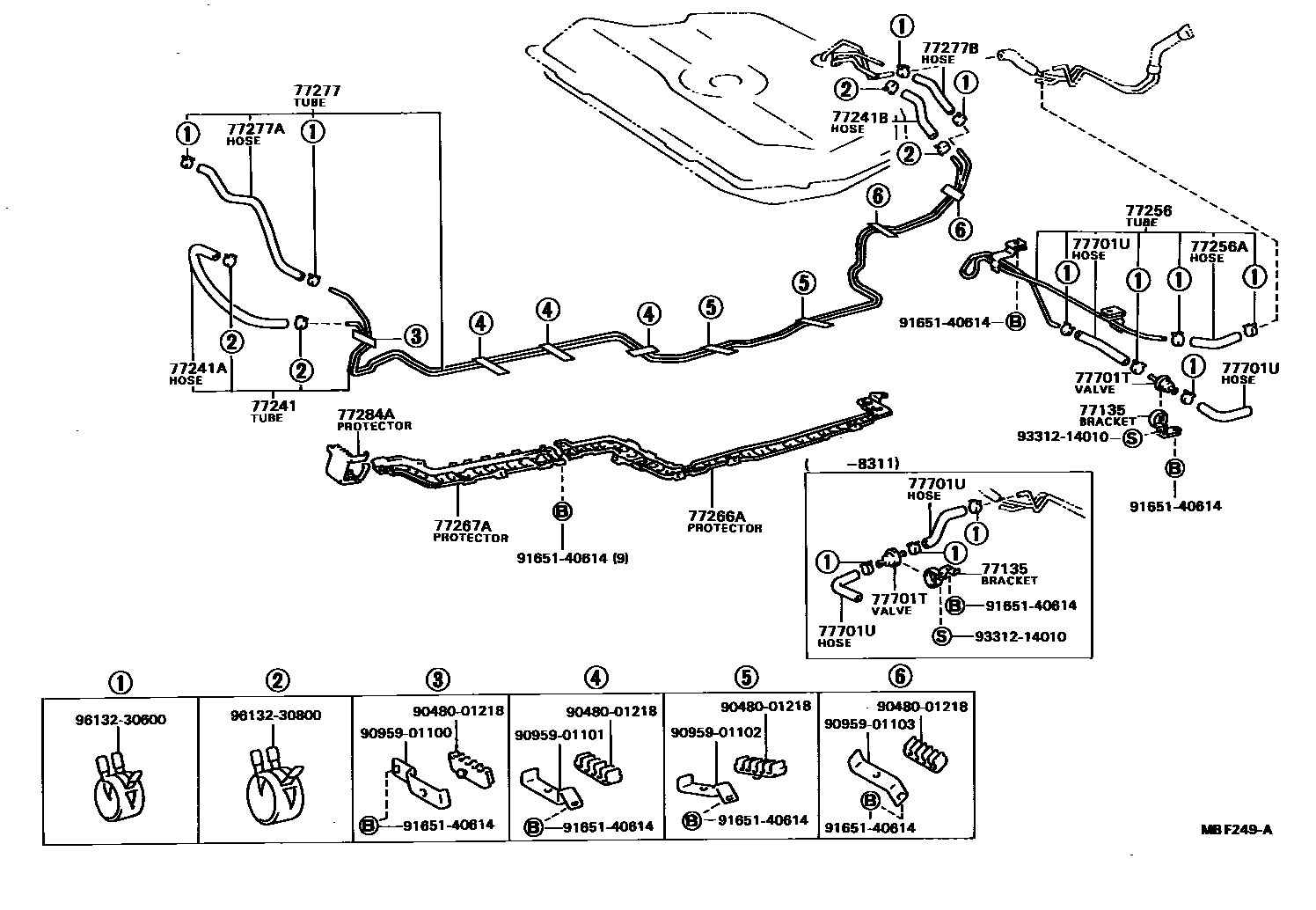

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12020 · 77011-16030 |
| 77022A | Fuel hose (for fuel vapor separator) | 77259-16040 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 · 77023-22040 |
| 77031 | Fuel tank cap assembly | 77310-12100 · 77310-35061 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 |
| 77033 | Fuel tank cap lock sub-assembly | 77037-12040 · 77037-32010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12050 · 77035-12130 |
| 77100 | fuel tank assembly | 77001-19315 · 77001-19325 · 77001-19405 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77135 | One-way valve bracket | 77135-16010 · 77135-22020 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-13020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77210-12010 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 77259-16010 |
| 77206 | Fuel tank suction pipe sub-assembly | 77017-12201 · 77017-16030 |
| 77206A | Gasket (for fuel tank suction pipe) | 77178-10010 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-16031 |
| 77241 | No. 1 main fuel pipe | 77205-12180 · 77205-12190 · 77251-12260 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 77259-16040 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77019-12140 · 77019-12150 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 95332-06040 |
| 77256 | No. 3 fuel evaporation exhaust pipe | 77028-16012 |
| 77266A | No. 1 fuel line protection device | 77266-12020 |
| 77267A | No. 2 fuel pipe protection device | 77267-12040 |
| 77277 | No. 1 fuel return pipe | 77207-12030 · 77207-12040 · 77207-12080 · 77207-12140 · 77207-12150 · 77207-12180 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23271-15060 · 23271-15150 · 23271-64040 · 90447-12043 · 90447-12050 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 95333-04016 |
| 77284A | No. 3 fuel pipe protection device | 77284-12010 |
| 77286 | Fuel tank inlet pipe protection device | 77277-12050 · 77277-12060 · 77277-12070 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-12020 |
| 77295 | Fuel filler pipe cover | 77293-16010 |
| 77308 | Fuel inlet cap sub-assembly | 77350-12060 · 77350-12070 |
| 77308A | Cushion (for fuel inlet cap) | 90541-08010 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77377 | Fuel filler cap lock retainer | 77377-12030 · 77377-24010 |
| 77387 | fuel inlet ring | 77391-14020 |
| 77611 | fuel tank strap | 77601-12060 · 77601-16020 · 77602-16020 |
| 77611A | Pin (for fuel tank strap) | 90240-08020 |
| 77614 | Fuel tank strap seat | 77681-16020 |
| 77617A | Auxiliary fuel tank strap connector | 77617-12010 |
| 77652 | No. 1 fuel tank liner | 77652-16050 |
| 77654 | No. 2 fuel tank liner | 77653-16020 |
| 77655 | No. 3 fuel tank liner | 77654-16010 |
| 77701T | Check valve (for main fuel tank) | 90917-10020 |
| 77740 | Carbon canister assembly | 77704-12250 · 77704-12310 · 77704-60050 · 77740-12420 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04075 · 95413-49975 · 95414-49975 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77264-12100 |
| 77751 | Carbon canister base bracket | 77751-12050 · 77751-12110 |
| 77754 | No. 1 carbon canister outlet hose | 77754-12020 |
