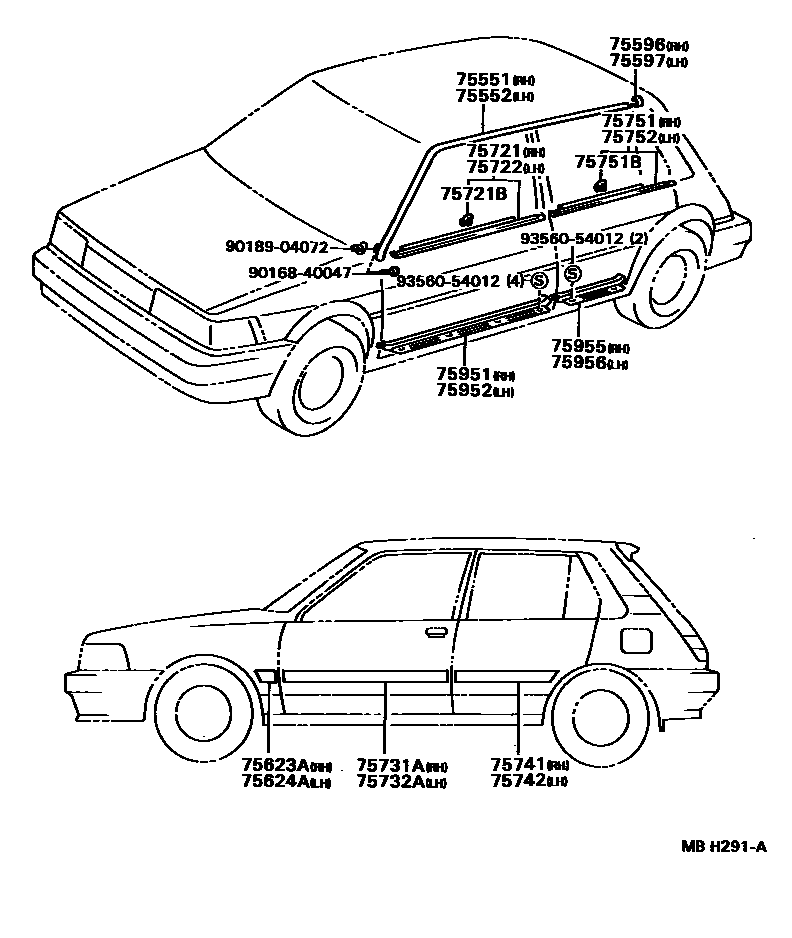

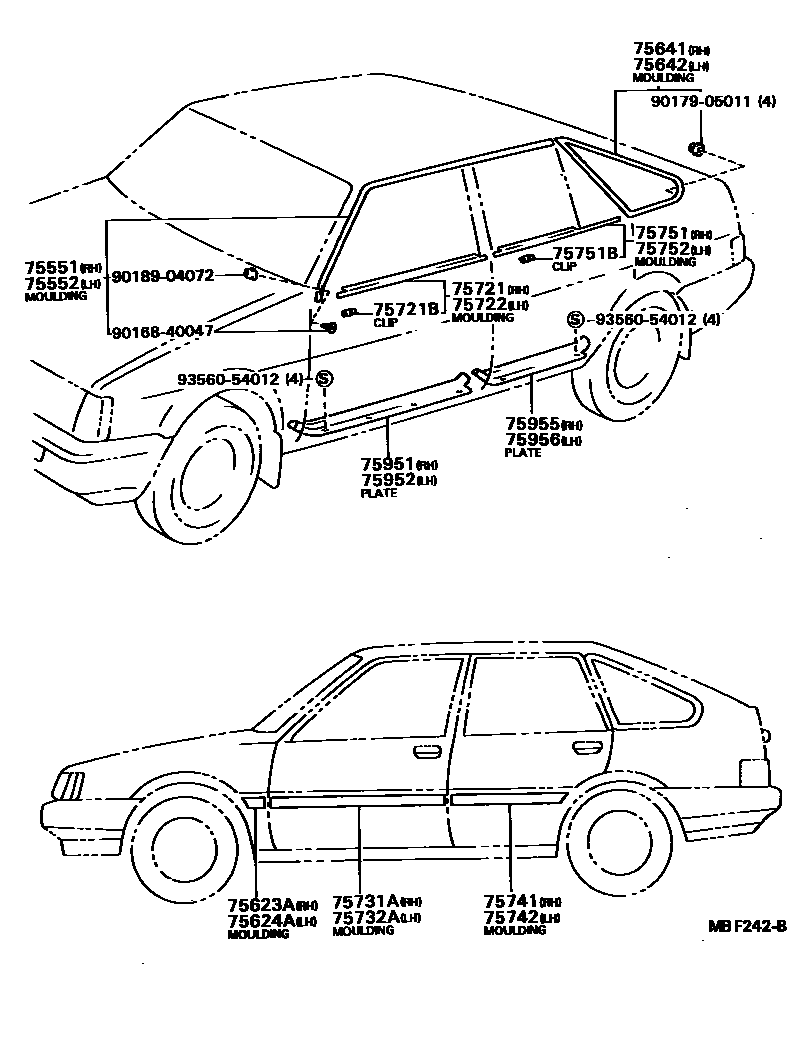

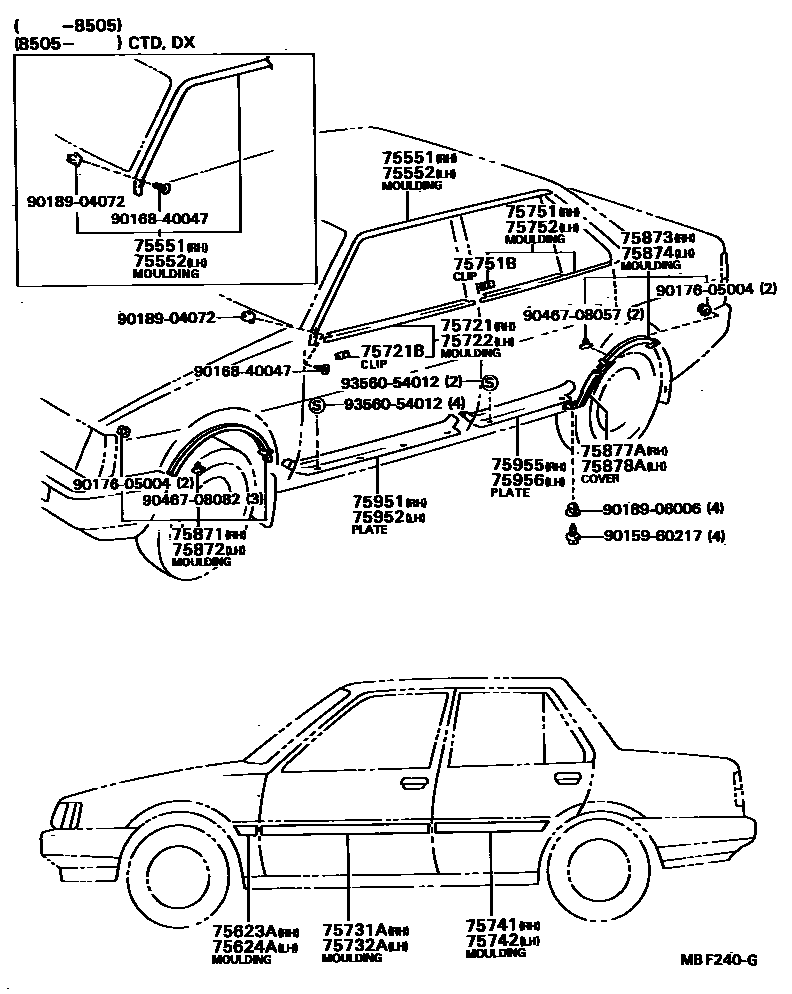

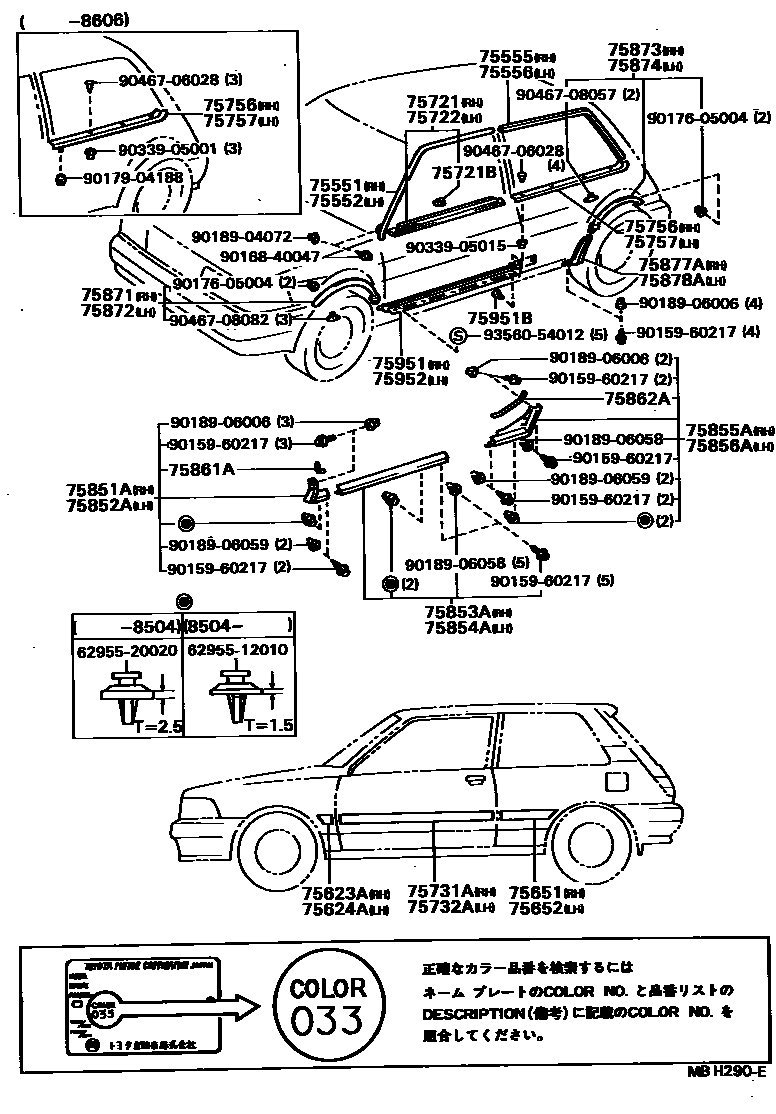

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-12291 · 75551-12330 · 75551-12340 · 75551-12350 · 75551-19125 · 75551-19135 · 75551-19165 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-12291 · 75552-12330 · 75552-12340 · 75552-12350 · 75552-19125 · 75552-19135 · 75552-19165 |
| 75555 | Decorative strip on the right side of the roof, rear gutter side | 75055-12040 |
| 75556 | Decorative strip on the left side of the roof, rear gutter side | 75056-12040 |
| 75596 | Drainage channel side decorative strip joint cover on the right side of the roof | 75596-12130 · 75596-12140 |
| 75597 | Drainage channel side decorative strip joint cover on the left side of the roof | 75596-12130 · 75596-12140 · 75597-12070 |
| 75623A | Right front fender outer rear protective strip | 75623-12180 · 75623-12350 |
| 75624A | Left front fender outer rear protective strip | 75624-12180 · 75624-12350 |
| 75641 | Right front corner window outer protective strip | 68153-19035 |
| 75642 | Left front corner window protection strip | 68154-19035 |
| 75651 | Right side outer protective strip | 75651-12590 |
| 75652 | Left side outer protective strip | 75652-12590 |
| 75721 | Right front door waistline protection strip | 75710-12360 · 75710-12380 · 75710-12390 · 75710-12391 |
| 75721B | Clip (for front door waistline protective strip assembly) | 68211-12090 · 68211-12121 · 68211-12122 |
| 75722 | Left front door waistline protection strip | 75720-12360 · 75720-12380 · 75720-12390 · 75720-12391 |
| 75731A | Right front door outer protective strip | 75731-12430 · 75731-12640 · 75731-12660 |
| 75732A | Left front door outer protective strip | 75732-12270 · 75732-12480 · 75732-12500 |
| 75741 | Right rear door outer protective strip | 75741-12320 · 75741-12500 · 75741-12620 |
| 75742 | Left rear door outer protective strip | 75742-12300 · 75742-12480 · 75742-12600 |
| 75751 | Right rear door waistline protection strip | 75730-12050 · 75730-12060 |
| 75751B | Clip (for rear door waistline protection strip assembly) | 68211-12080 |
| 75752 | Left rear door waistline protection strip | 75740-12140 · 75740-12150 |
| 75756 | Right corner window decorative strip | 75660-12180 · 75660-12181 |
| 75757 | Left corner window decorative strip | 75670-12190 · 75670-12191 |
| 75851A | Right front door sill panel protective strip | 75851-19045 · 75851-19055 · 75851-19065 · 75851-19075 · 75851-19085 · 75851-19095 |
| 75852A | Left front door sill panel protective strip | 75852-19045 · 75852-19055 · 75852-19065 · 75852-19075 · 75852-19085 · 75852-19095 |
| 75853A | Right side door sill panel center protective strip | 75853-19065 · 75853-19075 · 75853-19085 · 75853-19095 · 75853-19105 · 75853-19115 |
| 75854A | Left side door sill panel center protective strip | 75854-19065 · 75854-19075 · 75854-19085 · 75854-19095 · 75854-19105 · 75854-19115 |
| 75855A | Right rear door sill panel protective strip | 75855-19025 · 75855-19035 · 75855-19045 · 75855-19055 · 75855-19065 · 75855-19105 |
| 75856A | Left rear door sill panel protective strip | 75856-19025 · 75856-19035 · 75856-19045 · 75856-19055 · 75856-19065 · 75856-19075 |
| 75861A | No. 1 door sill panel protective strip protective cover | 75861-12030 |
| 75862A | No. 2 door sill panel protective cover | 75862-12030 |
| 75871 | Right front fender wheel well protection strip | 75871-19095 · 75871-19115 · 75871-19135 · 75871-19155 · 75871-19165 · 75871-19175 · 75871-19215 · 75871-19225 |
| 75872 | Left front fender wheel well protection strip | 75872-19095 · 75872-19115 · 75872-19135 · 75872-19155 · 75872-19165 · 75872-19175 · 75872-19215 · 75872-19225 |
| 75873 | Right side panel wheel mouth protection strip | 75873-19055 · 75873-19065 · 75873-19085 · 75873-19095 · 75873-19105 · 75873-19145 · 75873-19155 |
| 75874 | Left side panel wheel mouth protection strip | 75874-19055 · 75874-19065 · 75874-19085 · 75874-19095 · 75874-19105 · 75874-19145 · 75874-19155 |
| 75877A | Right side enclosure opening end cover | 75877-12010 |
| 75878A | Left side enclosure opening end cover | 75878-12010 |
