Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

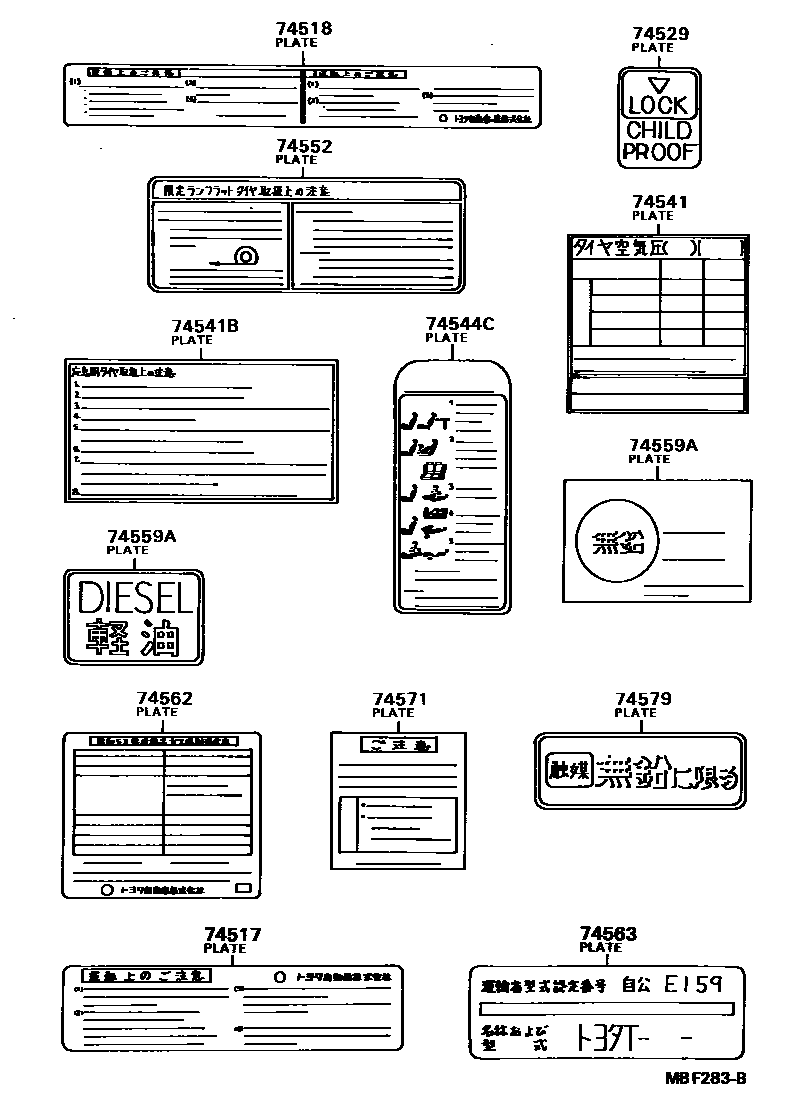

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74517 | Exhaust temperature warning nameplate | 74517-20010 · 74517-20020 · 74517-32010 · 74517-32020 |
| 74518 | Maintenance warning nameplate | 74518-14011 · 74518-22021 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-12590 · 42661-12650 · 42661-12651 · 42661-12670 · 42661-12690 · 42661-12740 |
| 74541B | Small spare tire warning plate | 42668-32010 |
| 74544C | Rear seat warning plate | 74544-12070 · 74544-12071 |
| 74552 | Safety warning nameplate | 42661-12640 |
| 74559A | Fuel warning plate | 74559-14010 · 74559-14030 |
| 74562 | Emission control system information plate | 74562-10080 · 74562-12310 · 74562-12311 · 74562-12320 · 74562-12321 · 74562-12330 · 74562-12331 · 74562-12332 · 74562-12340 · 74562-12370 · 74562-12380 · 74562-12390 · 74562-13061 · 74562-16110 · 74562-16120 · 74562-20370 · 74562-20390 · 74562-20400 · 74562-32031 |
| 74563 | Emission control equipment identification plate | 74563-12120 |
| 74571 | Brake fluid warning plate | 74571-27021 · 74571-27022 |
| 74579 | Unleaded fuel warning nameplate | 74579-30011 |
