Toyota COROLLA 扶手和遮阳板 — Figure 7401

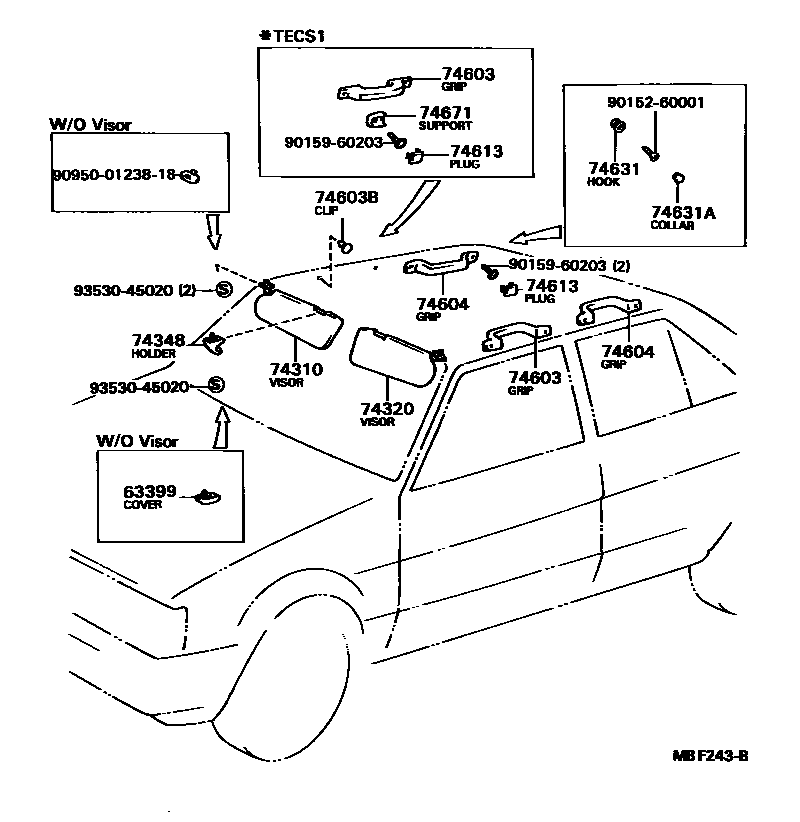

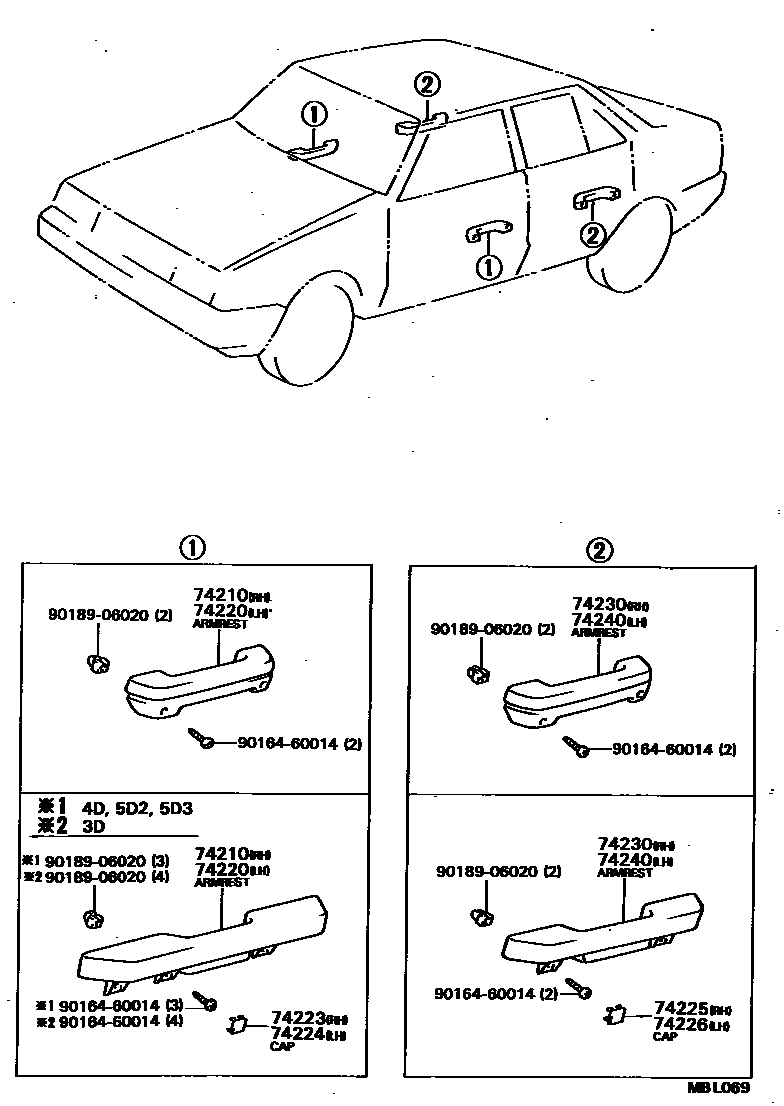

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74310 | Right sun visor assembly | 74310-12400 · 74310-12410 · 74310-12420 · 74310-12460 · 74310-12500 |
| 74320 | Left sun visor assembly | 74320-12330 · 74320-12380 |
| 74631A | Coat hook collar | 74634-12010 |
