Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

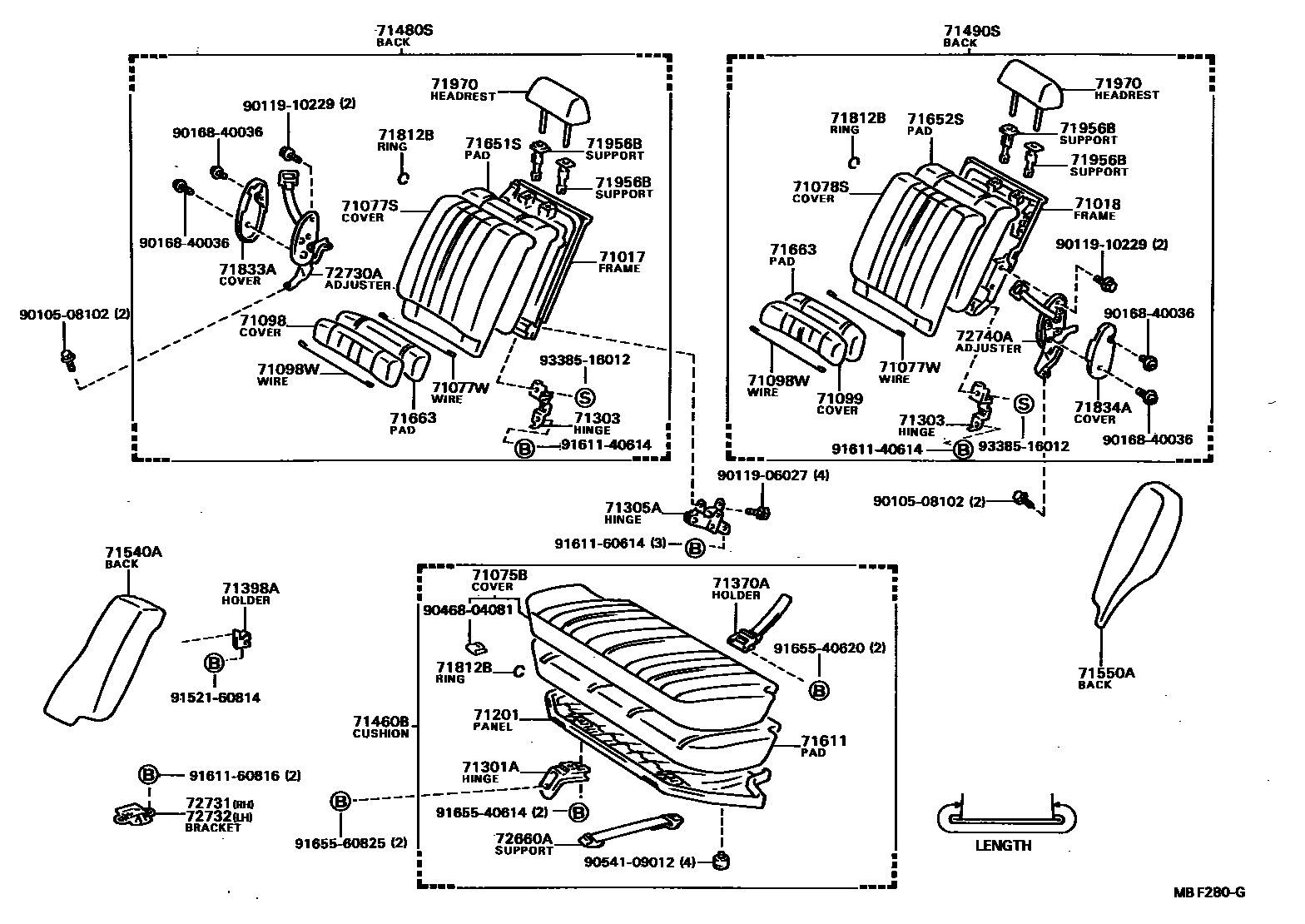

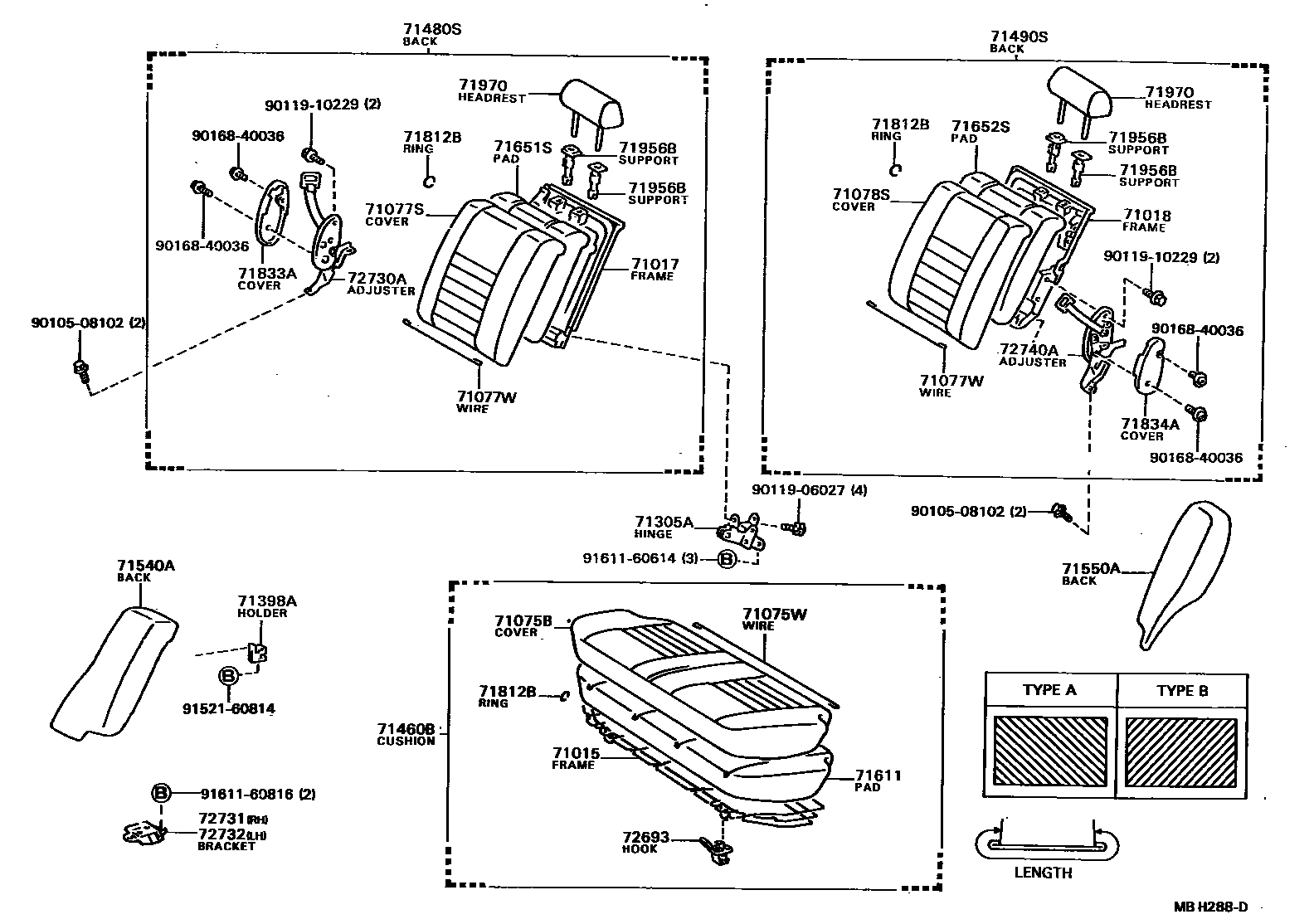

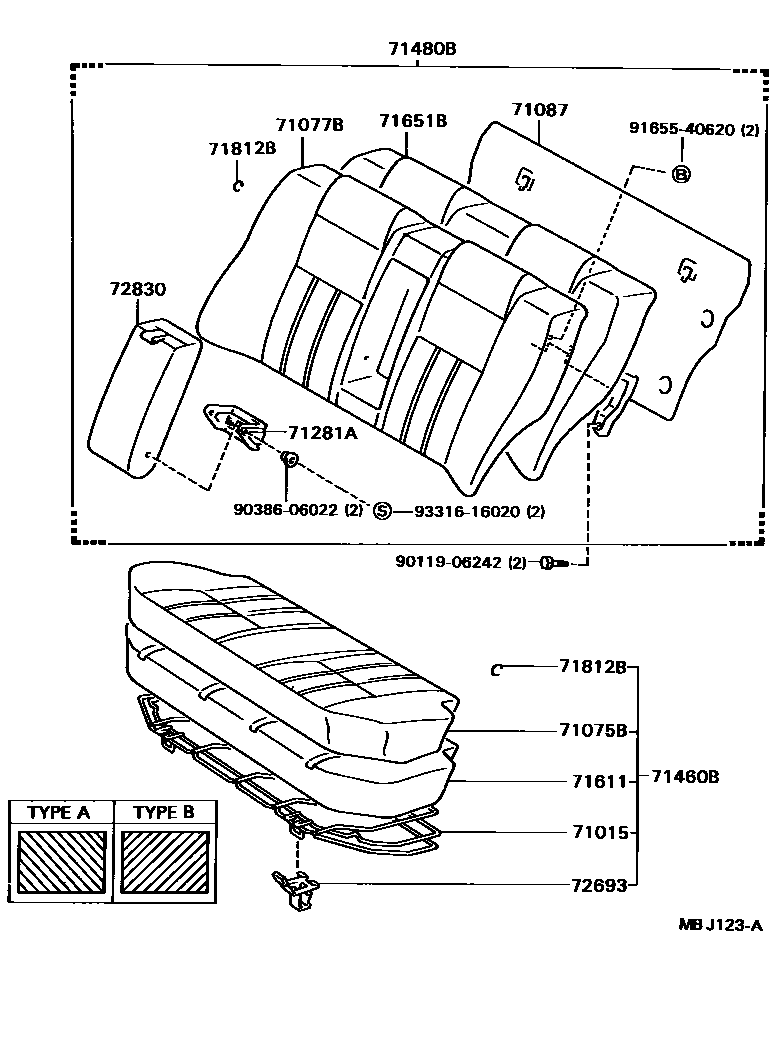

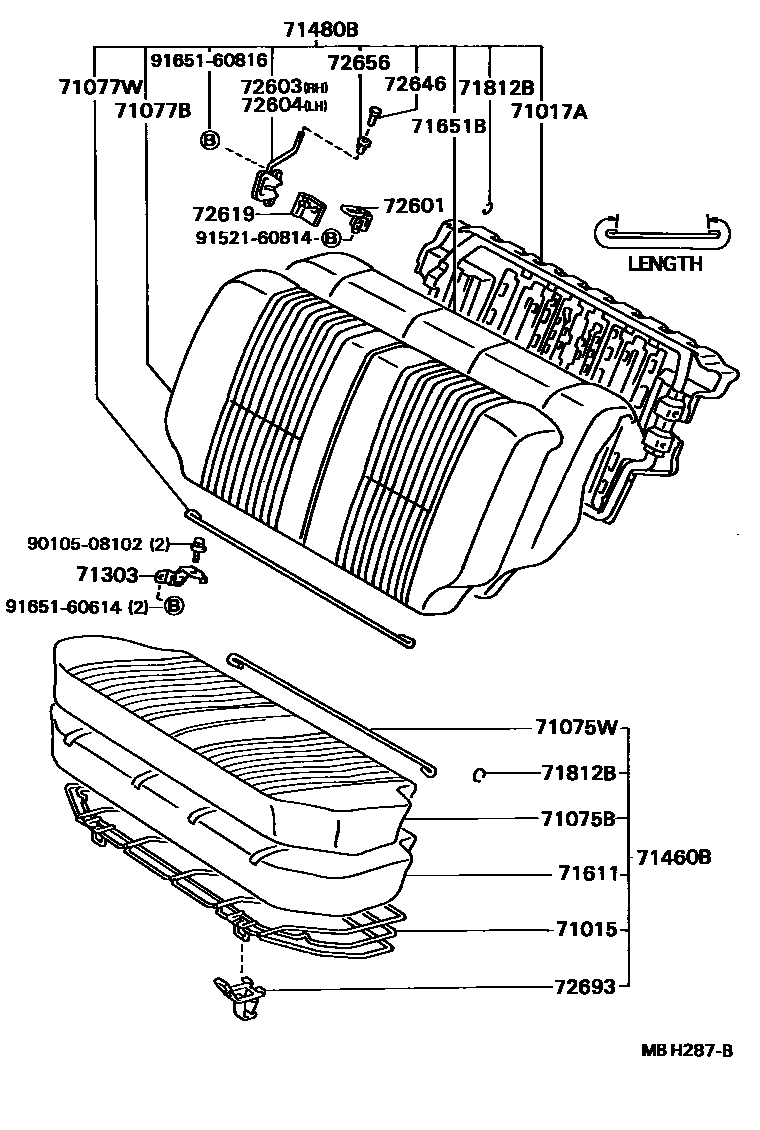

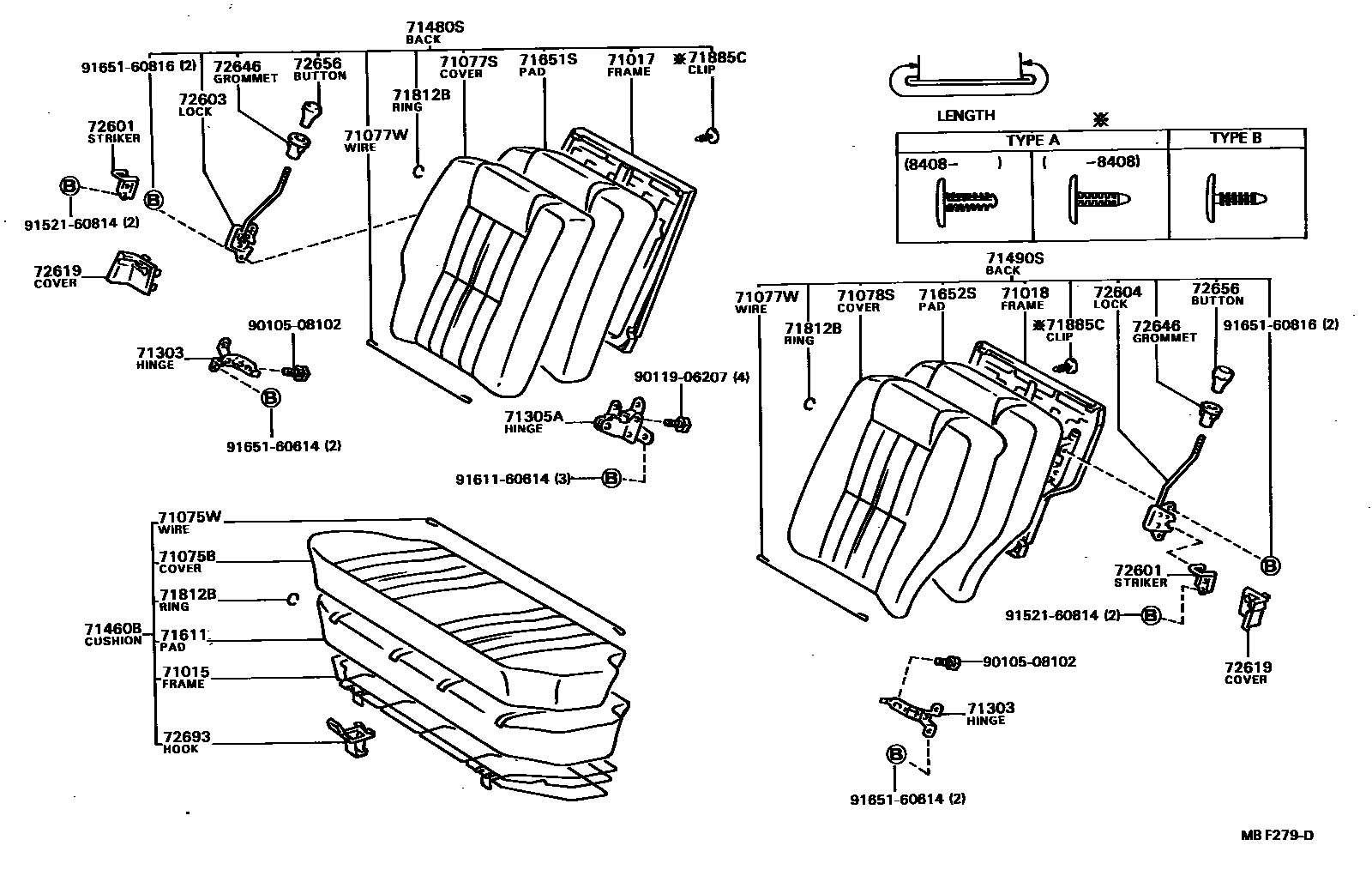

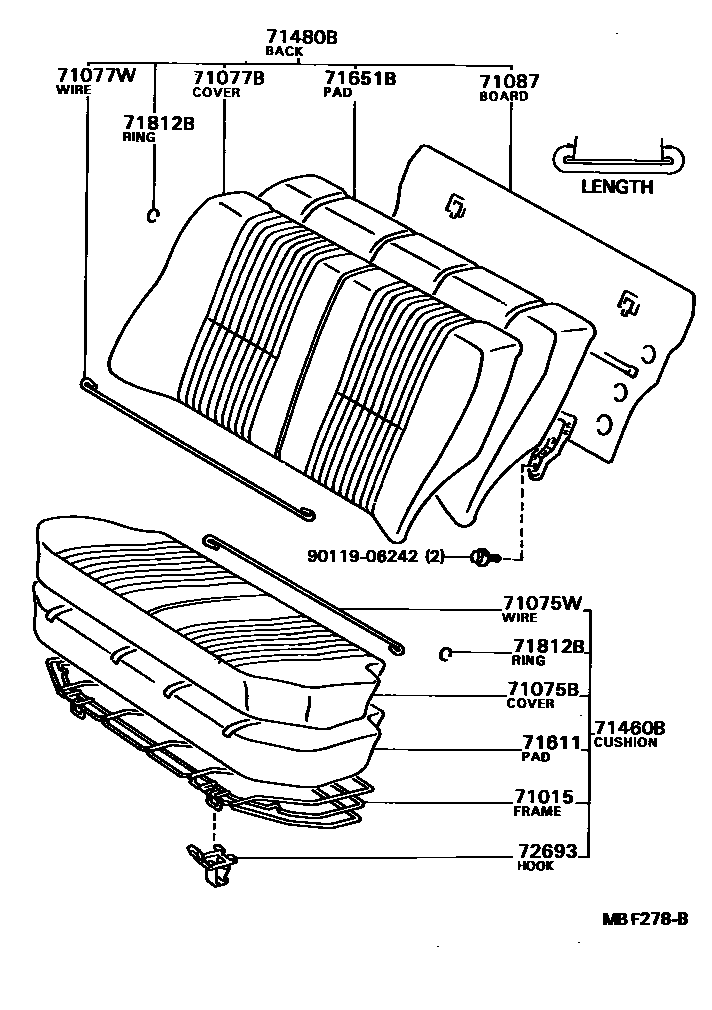

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12250 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12220 · 71017-12230 · 71017-12250 · 71017-16030 · 71017-16060 |
| 71017A | Rear seat back frame sub-assembly | 71017-16080 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12010 · 71018-12020 · 71018-12040 · 71018-16030 · 71018-16050 |
| 71075W | Rear seat cushion protective wire | 90580-16010 · 90580-16067 · 90580-20015 · 90580-20132 |
| 71077W | Rear seat backrest protective wire | 90580-16020 · 90580-16024 · 90580-16029 · 90580-16041 · 90580-16060 · 90580-16062 · 90580-16063 · 90580-16064 · 90580-16065 · 90580-20021 · 90580-20032 · 90580-20108 · 90580-20171 · 90580-26012 · 90580-26021 |
| 71087 | Rear seat back panel sub-assembly | 71087-12010 · 71087-12030 |
| 71098W | Rear seat backrest lower protective wire | 90580-16029 · 90580-16062 |
| 71201 | Rear seat cushion panel sub-assembly | 71201-12010 |
| 71281A | Rear seat center armrest hinge | 71281-12010 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12030 · 71303-12050 · 71303-12051 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12030 · 71305-12040 |
| 71398A | Rear seat back retainer | 71397-12010 · 71398-12010 |
| 71611 | Rear seat cushion cushion | 71611-12420 · 71611-12440 · 71611-12460 · 71611-12480 · 71611-12500 · 71611-12520 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-12440 · 71651-12450 · 71651-12490 · 71651-12520 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12420 · 71651-12430 · 71651-12470 · 71651-12480 · 71651-12500 · 71651-12510 · 71651-12530 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12320 · 71652-12330 · 71652-12350 · 71652-12360 · 71652-12370 · 71652-12380 · 71652-12390 |
| 71663 | Rear seat backrest cushion | 71663-12100 · 71664-12040 |
| 71812B | Clip (for rear seat cushion cover) | 90468-18071 |
| 72601 | Rear seat lock sub-assembly | 72601-12080 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12060 · 72630-12100 · 72630-16070 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12050 · 72640-12090 · 72640-16050 |
| 72660A | Rear seat cushion bracket assembly | 72660-12010 |
| 72693 | Rear seat cushion hook | 72693-16010 |
| 72731 | Rear right seat backrest tilt adjustment bracket | 72731-12010 |
| 72732 | Rear left seat backrest tilt adjustment bracket | 72732-12010 |
