Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

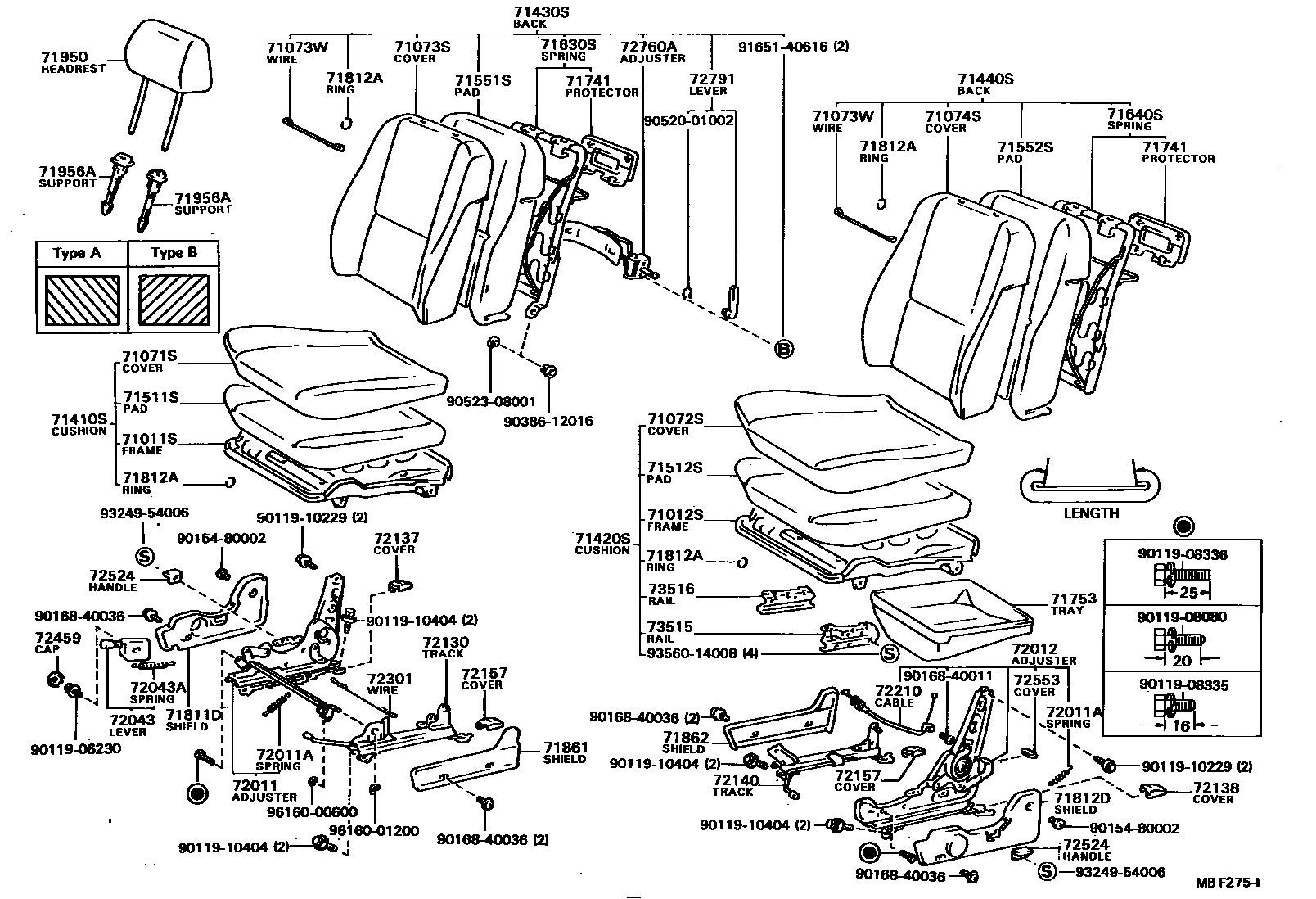

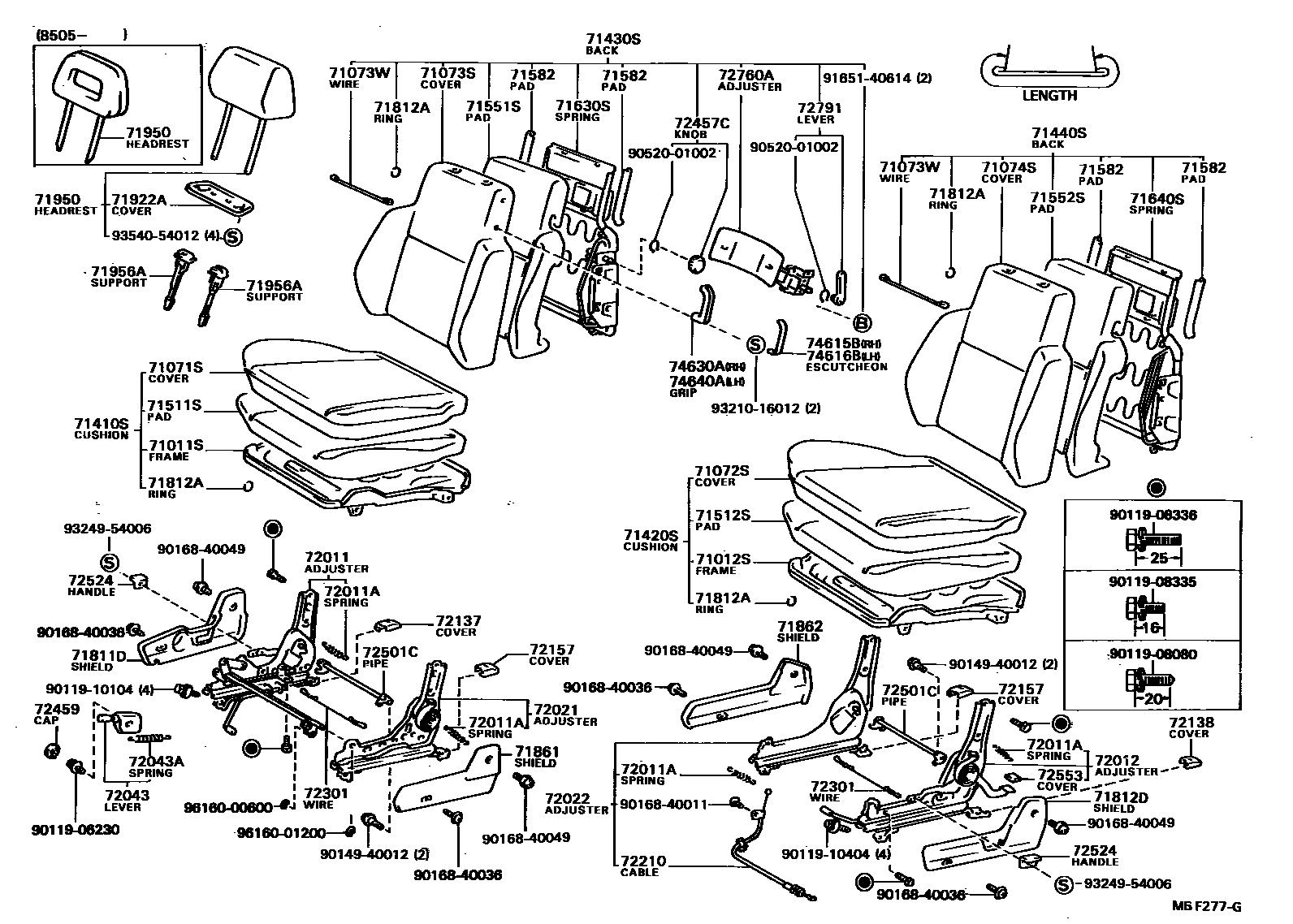

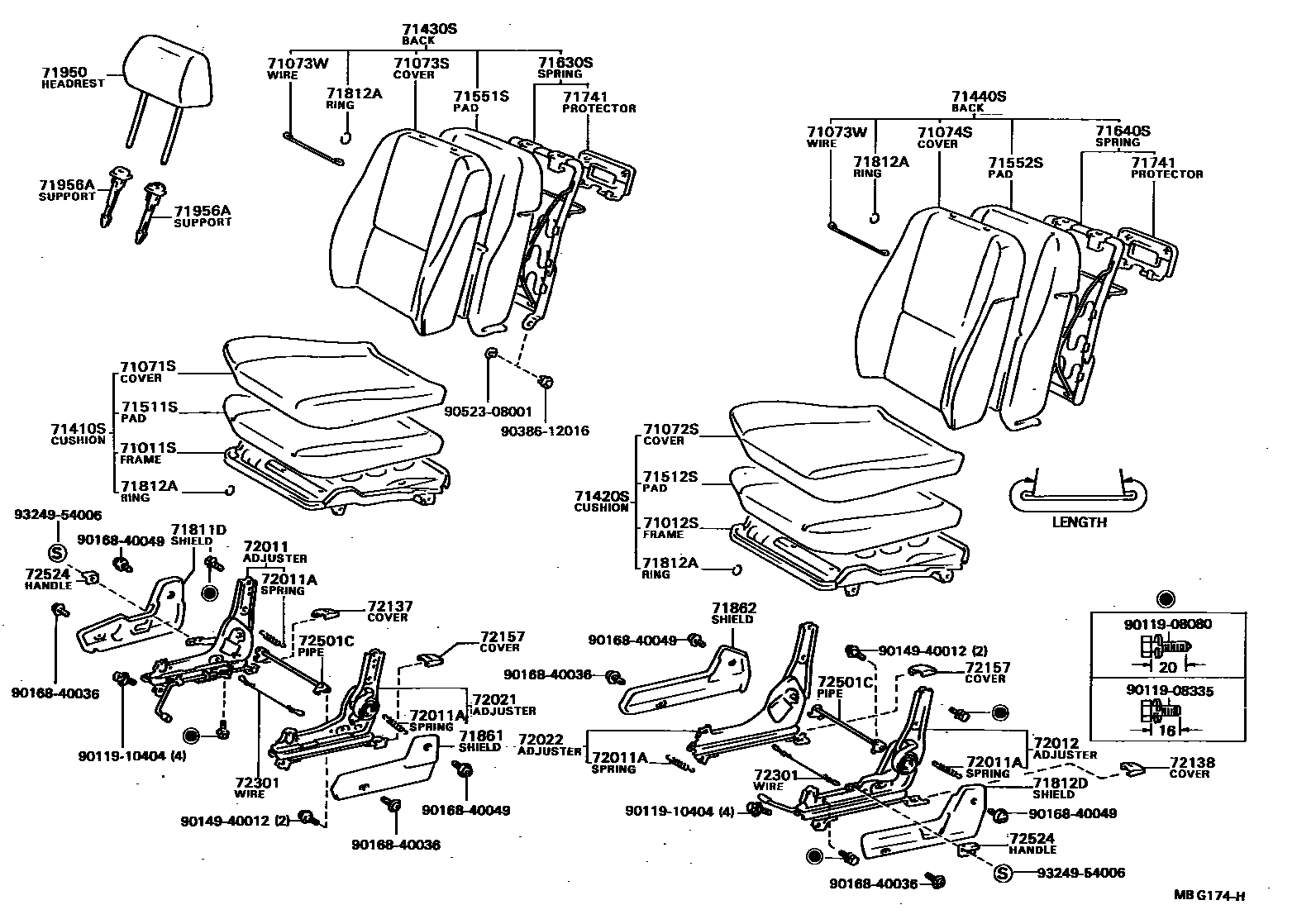

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-12170 · 71011-12180 · 71011-12190 · 71011-12200 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-12170 · 71011-12190 |
| 71073W | Front seat back cover wire | 90580-20012 · 90580-20020 · 90580-20129 · 90580-20164 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12480 · 71511-12500 · 71511-12520 · 71511-12530 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12480 · 71511-12500 · 71511-12520 · 71511-12530 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12430 · 71551-12460 · 71551-12480 · 71551-12490 · 71551-16110 · 71551-16120 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12430 · 71551-12460 · 71551-12480 · 71551-12490 · 71551-16110 · 71551-16120 |
| 71582 | Front B seat back corner cushions | 71582-12090 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12300 · 71630-12310 · 71630-12320 · 71630-16050 · 71630-16060 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-16060 · 71640-12260 · 71640-12270 · 71640-16020 |
| 71741 | Protective cover for front seat backrest and headrest stay | 71771-12030 |
| 71753 | Front seat bottom bracket | 71753-12010 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 71950 | Front seat headrest assembly | 71910-12470 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12400 · 72010-12410 · 72010-12420 · 72010-12430 · 72010-12490 · 72010-12491 · 72011-12040 · 72011-12050 · 72011-12080 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-14039 · 90506-18015 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12020 · 72012-12050 · 72020-12410 · 72020-12470 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12020 · 72021-12040 · 72021-12090 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12020 · 72022-12040 |
| 72043A | Tension spring (for lifting rod) | 90506-04001 |
| 72130 | Right seat inner slide rail assembly | 72130-12350 · 72130-12430 |
| 72140 | Left seat inner slide rail assembly | 72140-12260 · 72140-12400 |
| 72210 | Seat slide rail control cable assembly | 72210-12090 · 72210-12130 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12060 · 72301-12070 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72501-12030 |
| 72553 | Seat back tilt pedal cover | 72553-12030 · 72553-12040 |
| 72760A | Lumbar support adjuster assembly | 72750-12040 · 72750-16020 |
| 73515 | Front seat No. 1 bottom bracket guide rail | 73515-12010 · 73515-12020 |
| 73516 | Front seat No. 2 bottom bracket guide rail | 73516-12010 · 73516-12020 |
