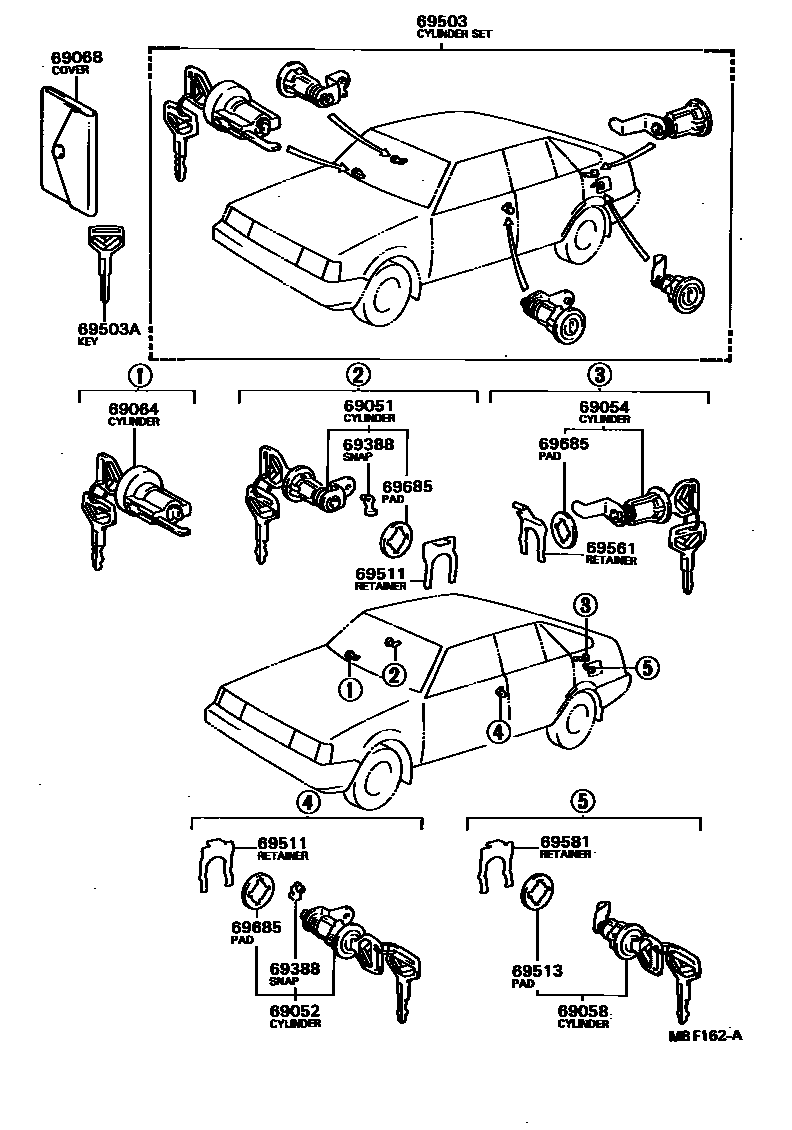

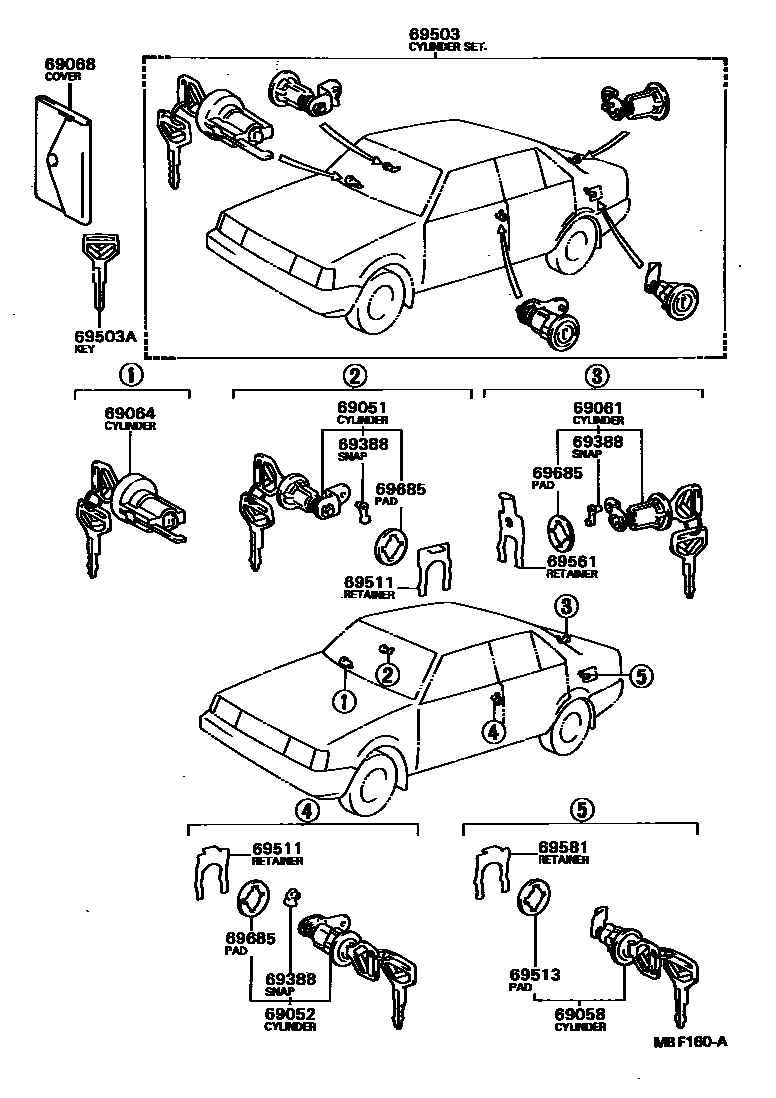

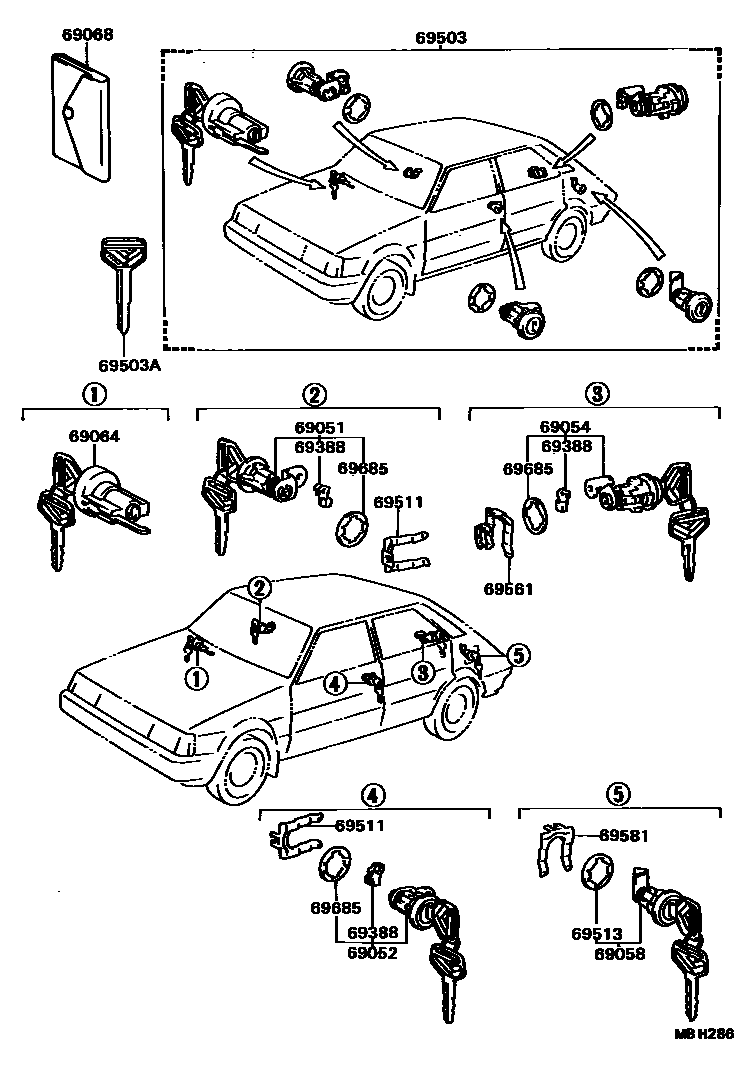

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12160 |
| 69052 | Left door lock cylinder and key assembly | 69052-12160 |
| 69054 | Rear door lock cylinder and key assembly | 69055-12260 · 69055-12360 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-12100 |
| 69061 | Luggage lock cylinder and key assembly | 69055-12220 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-12120 · 69057-16040 |
| 69068 | Key cover sub-assembly | 69555-20010 |
| 69388 | Lever clip (for door lock) | 69759-20080 · 69759-20090 |
| 69503 | Door lock cylinder components | 69005-12310 · 69005-12311 · 69005-12350 · 69005-12351 · 69005-12550 · 69005-12551 · 69005-12610 · 69005-12611 · 69005-12650 · 69005-12651 |
| 69503A | external tooth key | 90999-00085 |
| 69511 | Front door lock cylinder fixing parts | 69511-32010 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69561 | Trunk or tailgate lock cylinder fixings | 69501-12010 · 69561-12120 · 69561-12150 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
| 69685 | Lock cylinder liner | 69513-32010 · 69563-32010 |
