Toyota COROLLA 背门板和背门玻璃 — Figure 6708

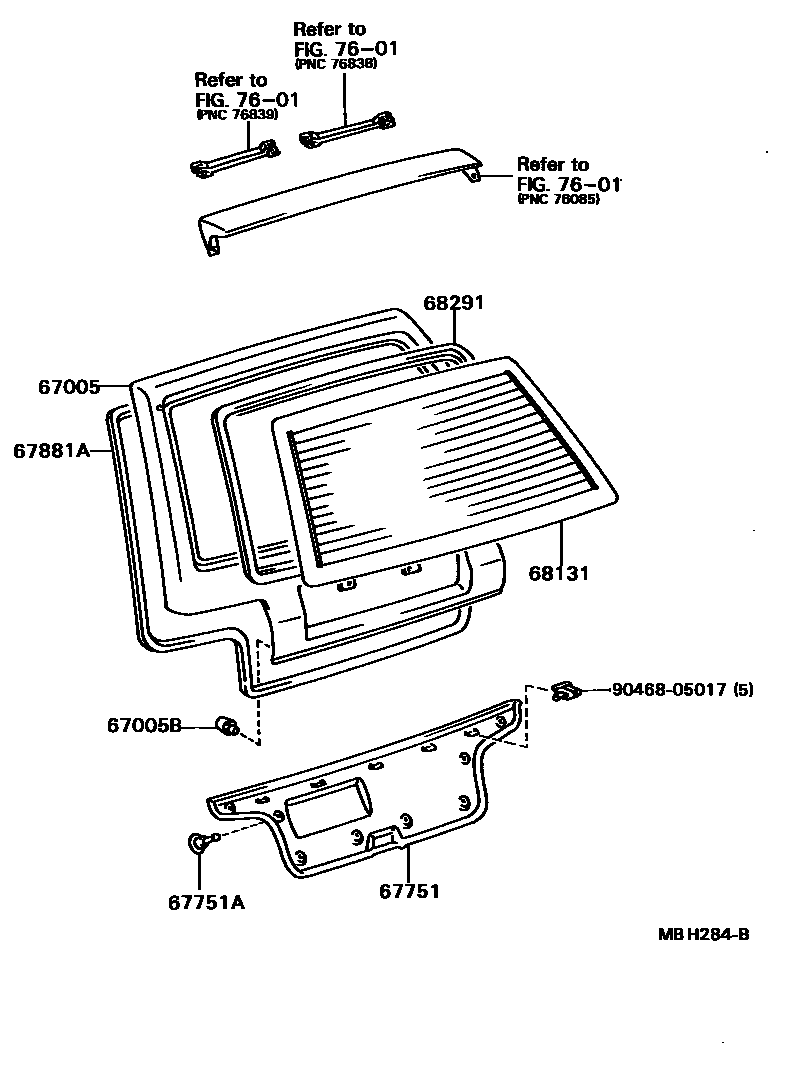

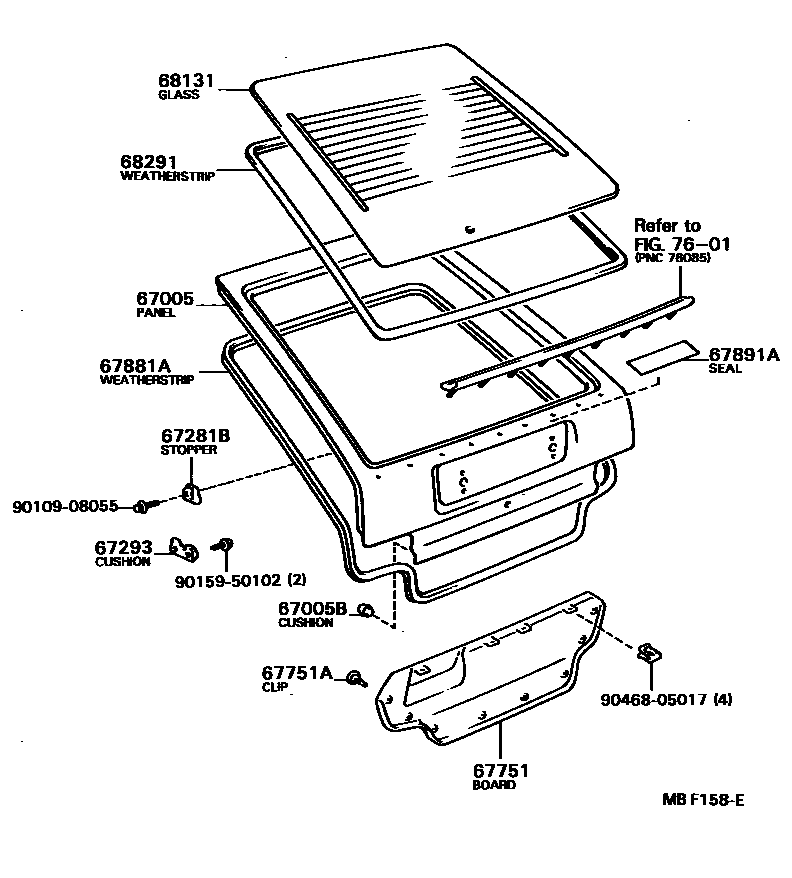

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67005 | Rear door panel sub-assembly | 67005-12370 · 67005-12410 · 67005-12660 · 67005-12661 · 67005-12670 · 67005-12671 · 67005-12680 · 67005-12681 · 67005-12730 · 67005-12731 · 67005-12790 · 67005-12791 |
| 67005B | Cushion pad (for back door panel) | 90541-09037 · 90541-09041 |
| 67281B | Back door lower block | 67281-12020 |
| 67293 | Back door lower block cushion | 67293-20010 |
| 67881A | Back door seal | 67881-12090 · 67881-12100 · 67881-12110 · 67881-12120 |
| 67891A | Back door seal | 67891-12010 |
| 68131 | back door glass | 68105-12090 · 68105-12110 · 68105-12170 · 68105-12180 · 68105-12190 · 68105-12230 · 68131-12350 |
| 68291 | Rear door glass seal strip | 68291-12080 · 68291-12090 · 68291-12100 · 68291-12110 |
