Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

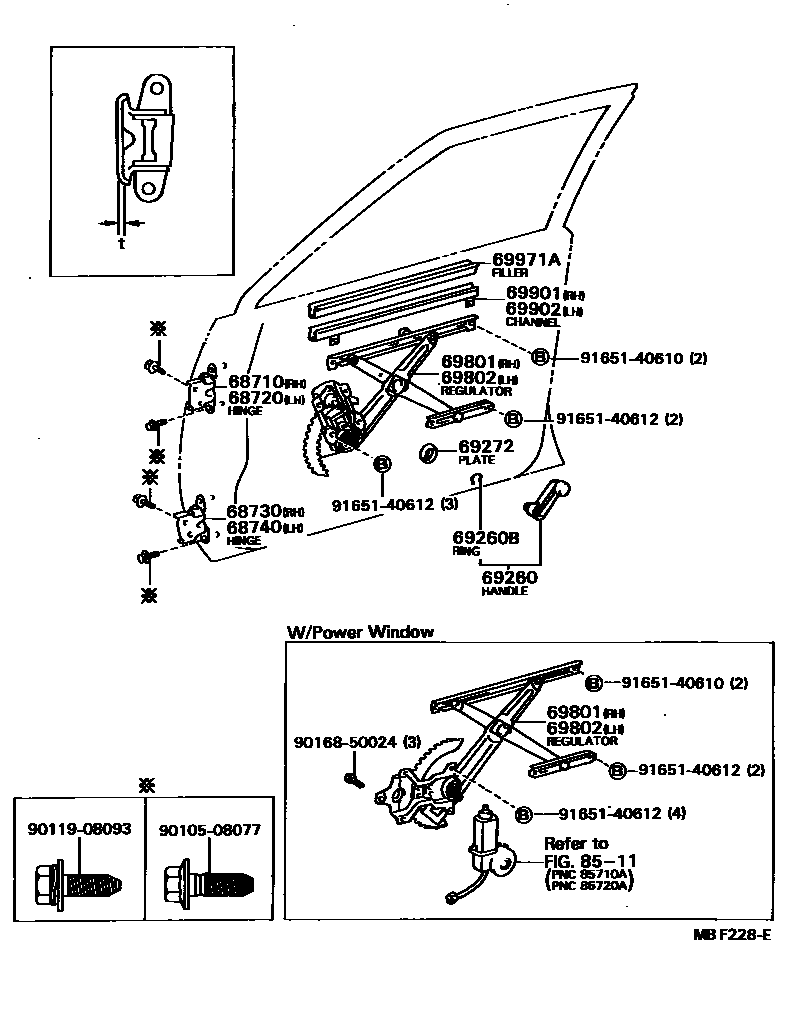

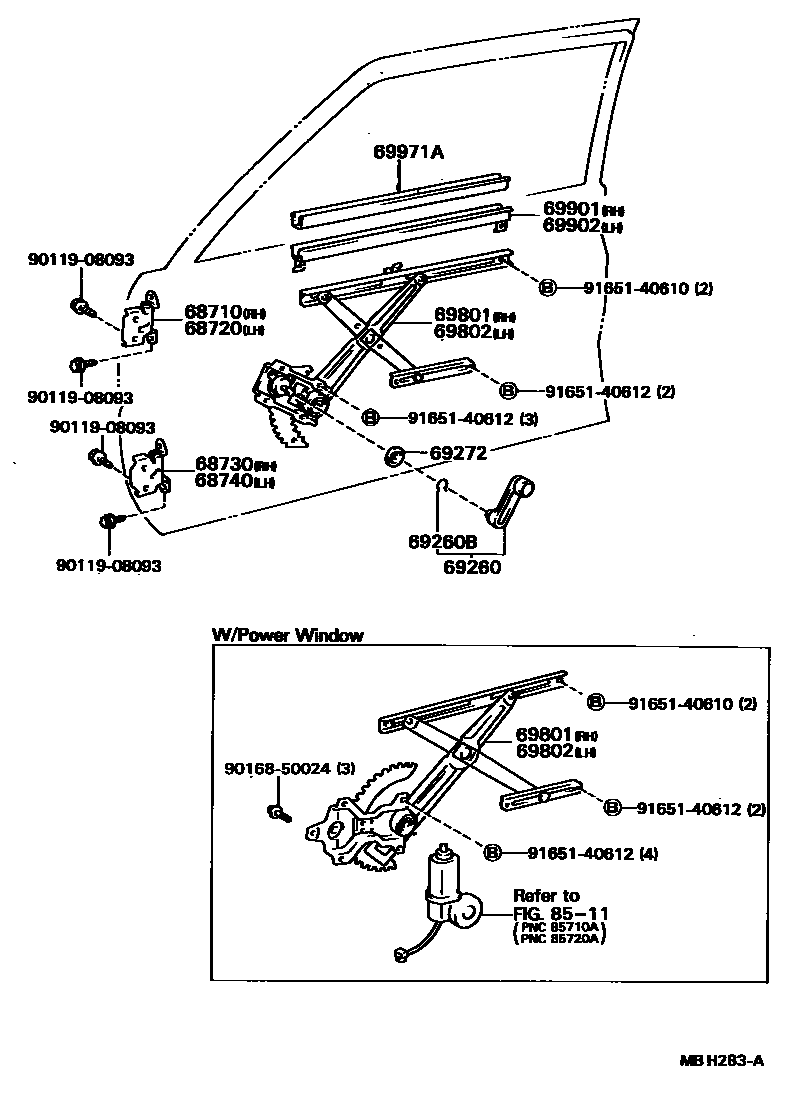

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12080 · 68710-12090 |
| 68720 | Left front door upper hinge assembly | 68720-12080 · 68720-12090 |
| 68730 | Right front door lower hinge assembly | 68730-24010 · 68730-32010 |
| 68740 | Left front door lower hinge assembly | 68740-24010 · 68740-32010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 |
| 69272 | Front door window lift inner handle plate | 69268-16010 |
| 69801 | Right front door window lifter sub-assembly | 69801-12040 · 69801-12050 · 69801-12080 · 69801-12090 · 69810-12180 · 69810-12190 · 69810-12250 · 69810-12270 |
| 69802 | Left front door window lifter sub-assembly | 69802-12040 · 69802-12050 · 69802-12080 · 69802-12090 · 69820-12170 · 69820-12190 · 69820-12250 · 69820-12270 |
| 69901 | Right front door glass groove sub-assembly | 69901-12150 · 69901-12151 · 69901-12152 · 69901-12170 · 69901-12171 |
| 69902 | Left front door glass groove sub-assembly | 69902-12090 · 69902-12091 · 69902-12092 · 69902-12110 · 69902-12111 |
| 69971A | Front door glass channel filler | 69971-12040 · 69971-12070 |
