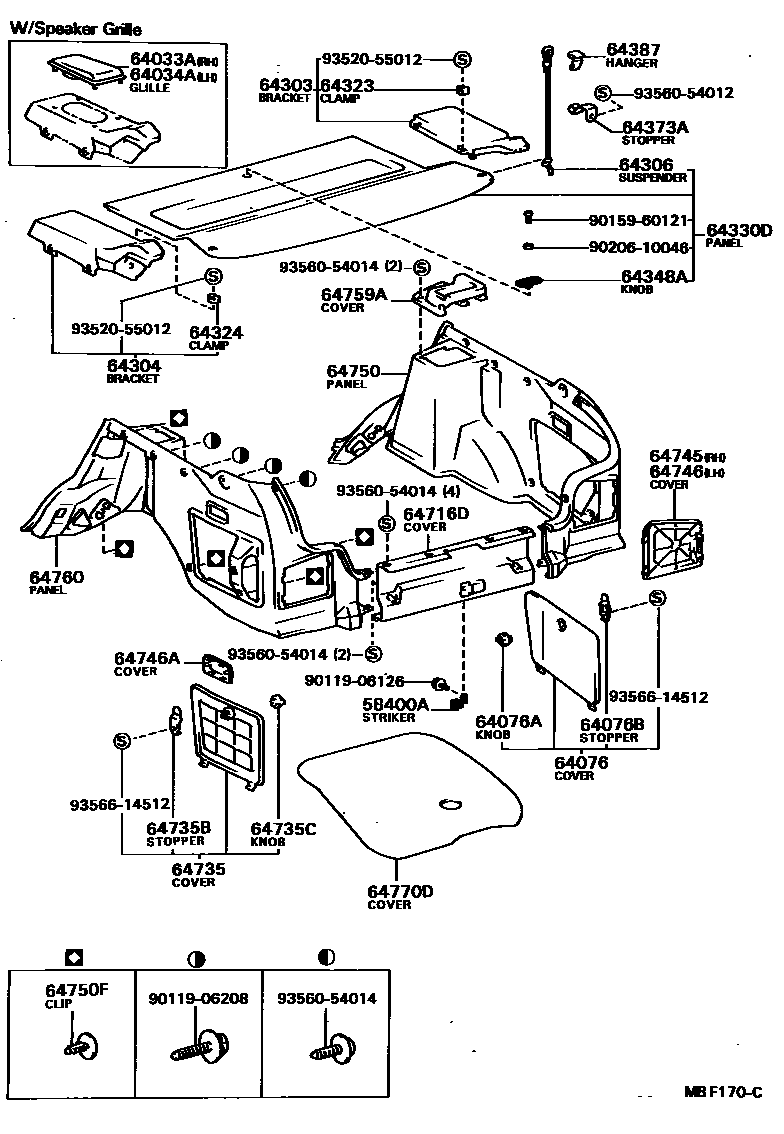

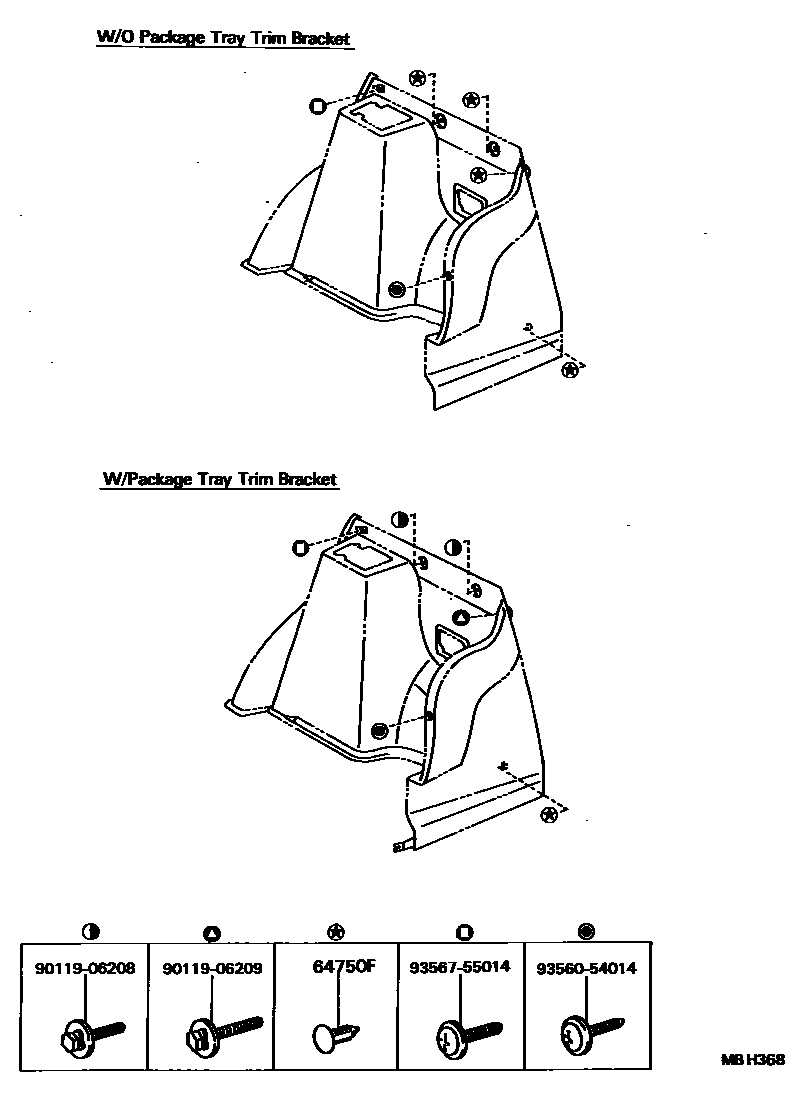

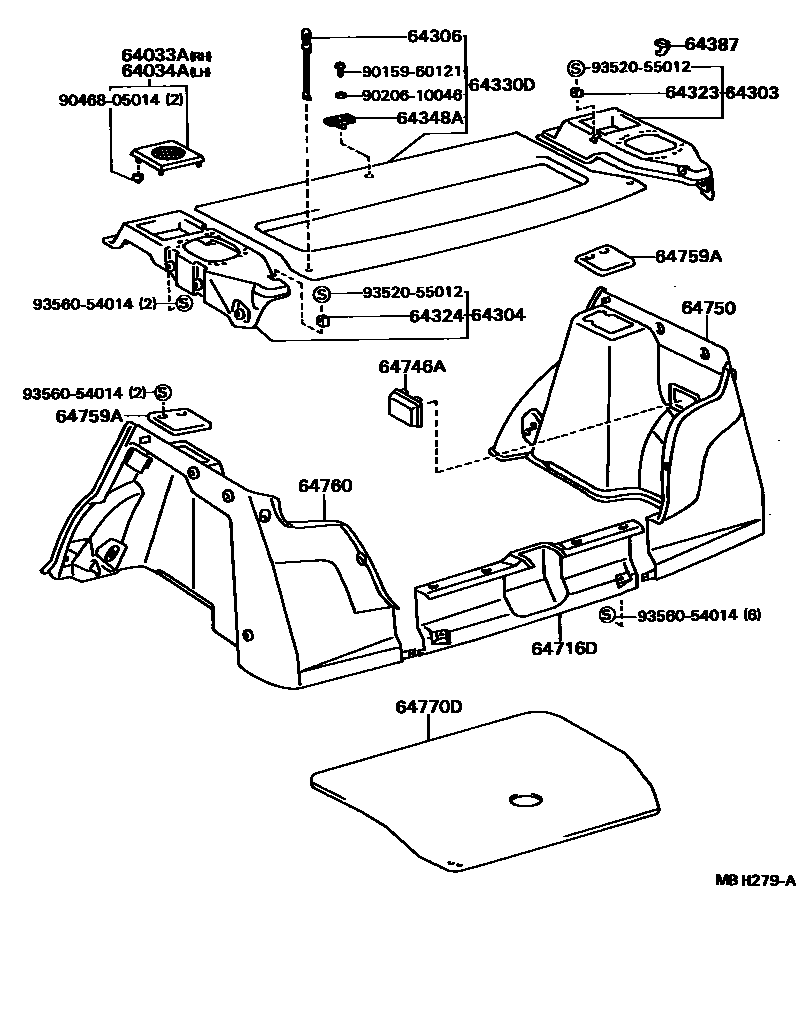

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58400A | Suitcase fixing strap lock | 58461-12020 |
| 64076B | Bottom panel side trim jack cover stop | 64981-16021 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12020 · 64306-12030 · 64306-12040 |
| 64323 | Glove box decorative plate clip No. 1 | 64323-12020 |
| 64324 | Glove box decorative plate clip No. 2 | 64324-12010 |
| 64373A | Glove box decorative panel stopper | 64373-12050 |
| 64387 | Glove box decorative panel hanger | 64381-10010 |
| 64735B | Bottom panel side trim access hole cover stopper | 64981-16021 |
| 64770D | Spare tire cover assembly | 64770-12040 · 64770-12050 · 64770-12060 · 64770-12070 · 64770-12080 · 64770-16040 · 64770-16070 |
