Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

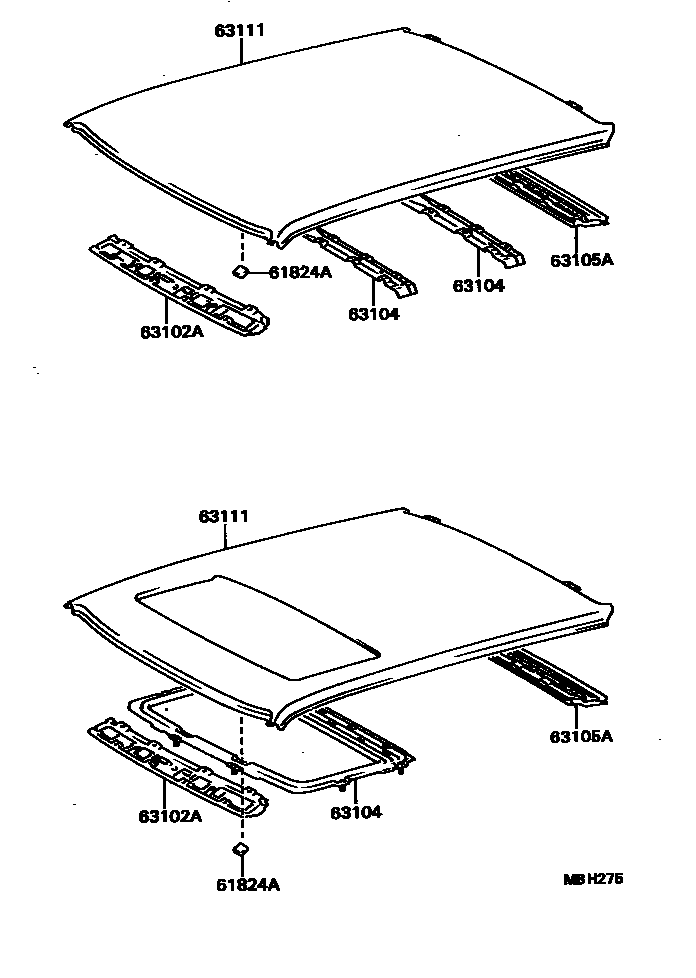

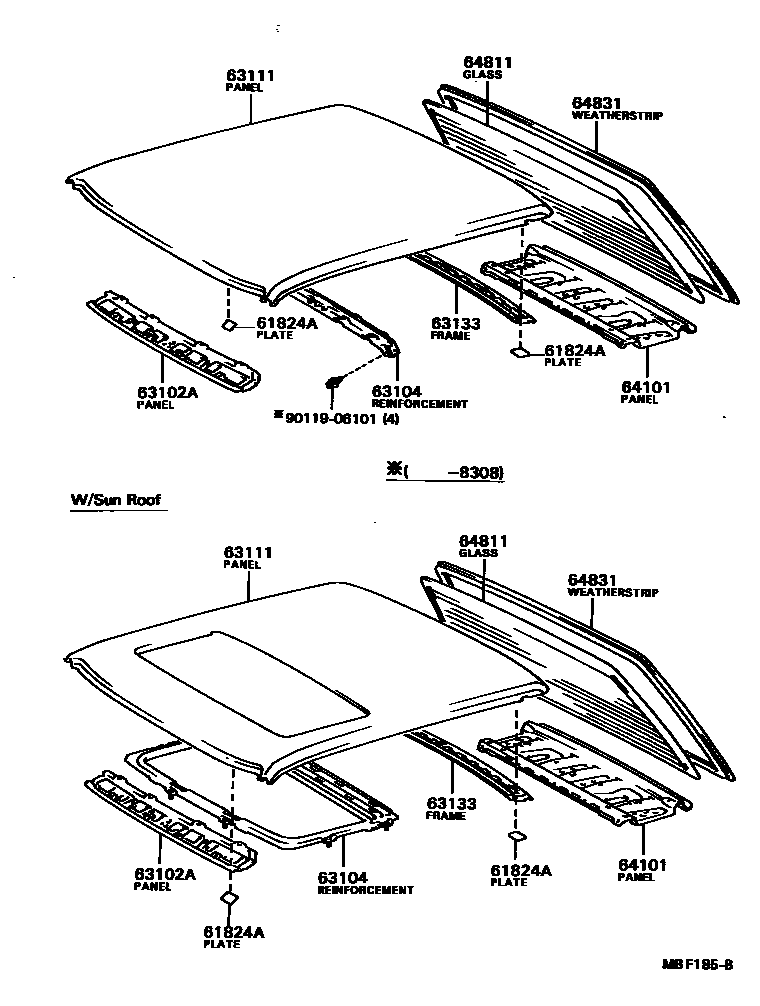

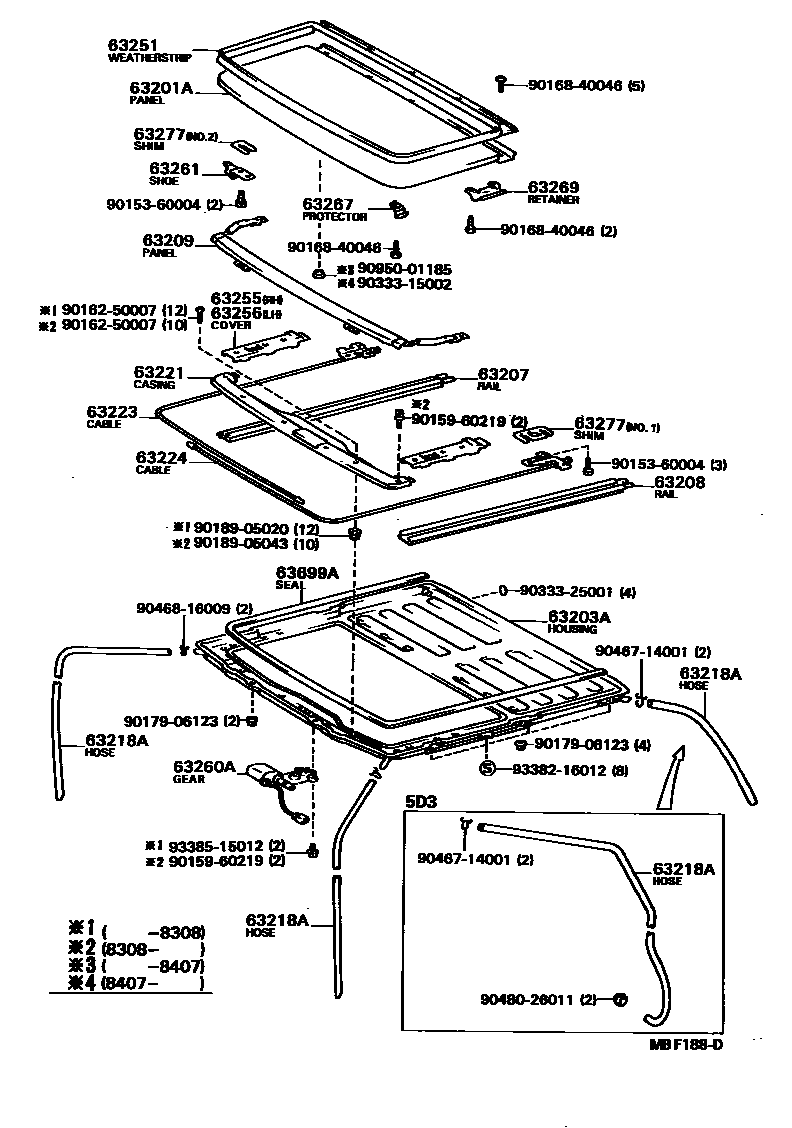

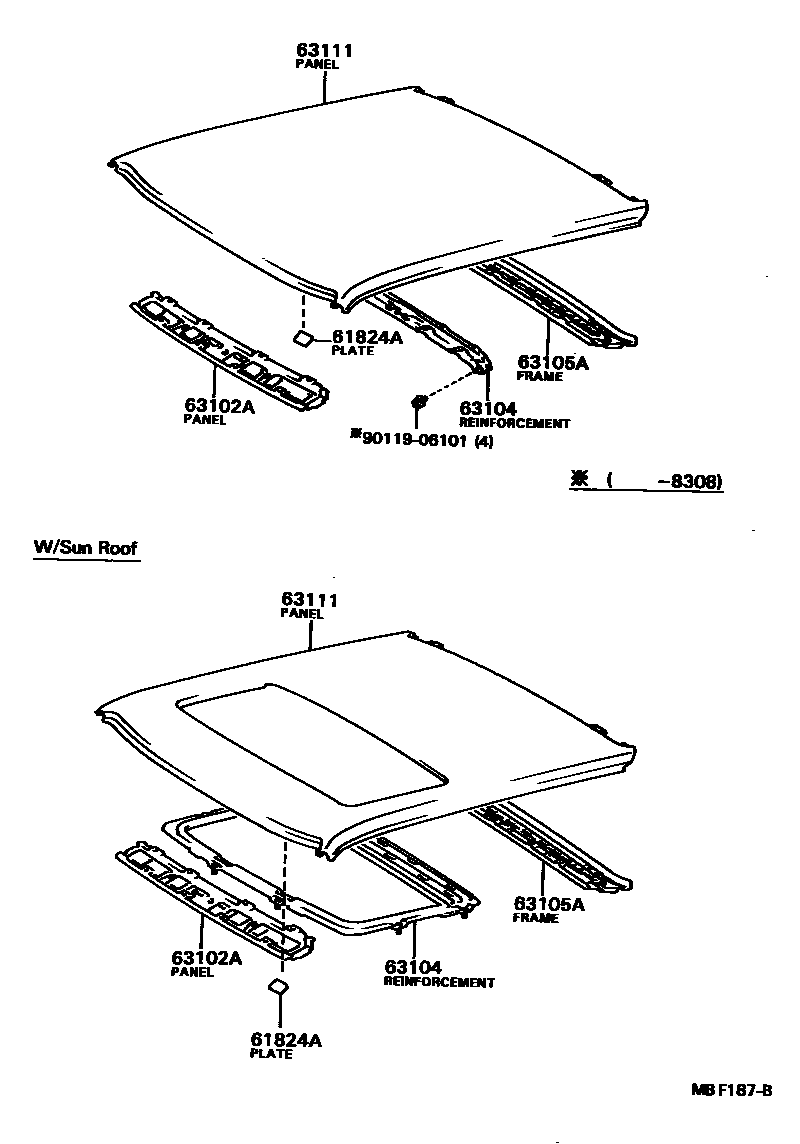

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61824A | Noise Control Panel No. 1 | 61824-12010 |
| 63102A | Windshield roof sub-assembly | 63102-12020 · 63102-12030 |
| 63104 | Center roof panel reinforcement sub-assembly | 63141-12100 · 63141-12110 · 63141-12120 · 63142-12020 |
| 63105A | Back door opening frame sub-assembly | 63105-12110 · 63105-12130 · 63105-12140 |
| 63111 | roof panel | 63111-12230 · 63111-12240 · 63111-12260 · 63111-12270 · 63111-12280 · 63111-12290 |
| 63133 | Opening frame on back window | 63133-12140 |
| 63201A | Sliding sunroof or removable sunroof panel sub-assembly | 63201-12080 |
| 63203A | Sliding sunroof or removable sunroof frame sub-assembly | 63203-12040 · 63203-12080 · 63203-12081 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-12030 · 63207-12031 · 63207-12032 · 63207-20010 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-12030 · 63208-12031 · 63208-12032 · 63208-20010 |
| 63209 | Roof deflector sub-assembly | 63209-12030 · 63209-14020 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-12010 · 63249-12050 · 63249-12060 · 63249-32010 · 90446-15004 |
| 63221 | Sliding sunroof cable duct | 63221-12030 · 63221-20010 |
| 63223 | Right sliding sunroof transmission cable | 63223-20010 |
| 63224 | Left sliding sunroof transmission cable | 63224-20010 |
| 63251 | Sliding skylight panels or removable skylight seals | 63251-12040 |
| 63255 | Right sliding sunroof guide cover | 63255-12030 · 63255-20010 |
| 63256 | Left sliding sunroof guide cover | 63255-12030 · 63255-20010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 · 63260-20010 |
| 63261 | Front sliding sunroof slider | 63261-12020 · 63261-20010 · 63262-12020 |
| 63267 | Sliding sunroof sealing strip protection | 63267-14010 · 63267-20010 · 63268-14020 · 63268-20010 |
| 63269 | Sliding sunroof sealing strip fixings | 63269-20010 · 63279-20010 |
| 63277 | Sliding skylight stringer gasket | 63277-14020 · 63277-20010 |
| 63699A | Sliding sunroof guide seals | 63699-12010 |
| 64101 | Upper back panel sub-assembly | 64101-12250 · 64101-12270 |
| 64811 | back window glass | 64801-12340 · 64801-12360 · 64801-12380 · 64811-12650 · 64811-12680 |
| 64831 | Back window glass seal strip | 64812-12280 · 64812-12290 |
