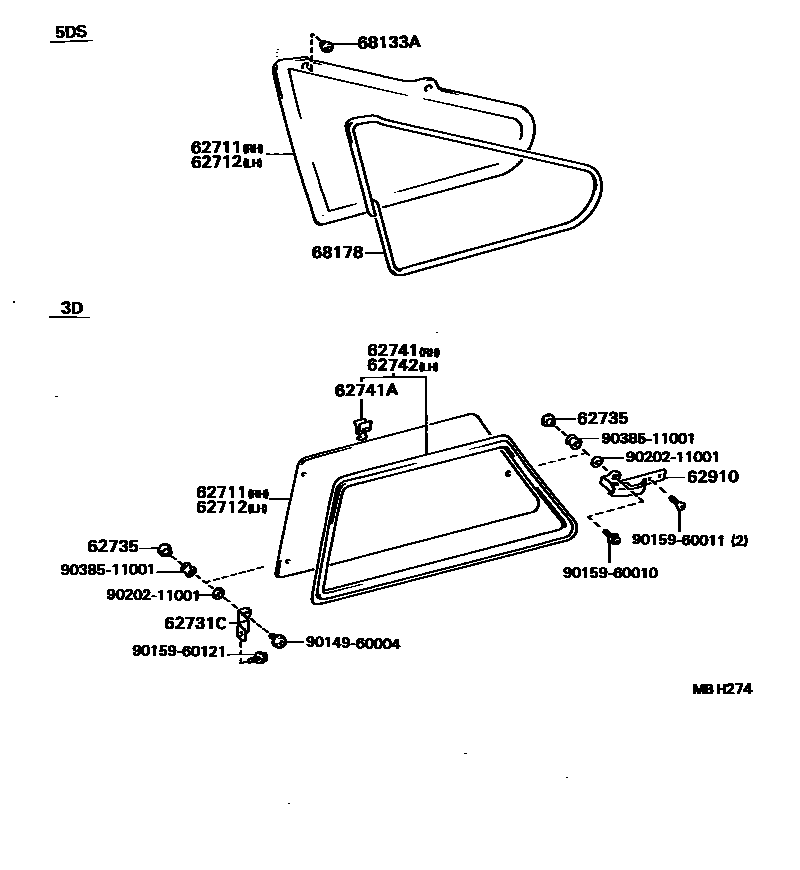

Toyota COROLLA 角窗 — Figure 6103
Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62711-12400 · 62711-12410 · 62711-12440 · 62711-12460 |
| 62712 | Left corner window glass | 62712-12400 · 62712-12410 · 62712-12440 · 62712-12460 |
| 62731C | Right corner window hinge | 62731-12080 |
| 62735 | Corner window hinge fixings | 62735-14010 |
| 62741 | Right corner window sealing strip | 62741-12140 |
| 62741A | Corner window sealing strip clip | 62759-12010 |
| 62742 | Left corner window sealing strip | 62742-12120 |
| 62910 | Right corner window or side window lock assembly | 62910-12080 |
| 68133A | Corner window No. 2 glass spacer | 68137-12020 · 68137-32010 |
| 68178 | Corner window glass seal No. 2 | 68177-12020 |
